ipDatatel BAT-CDMA-WIFI Installation Manual

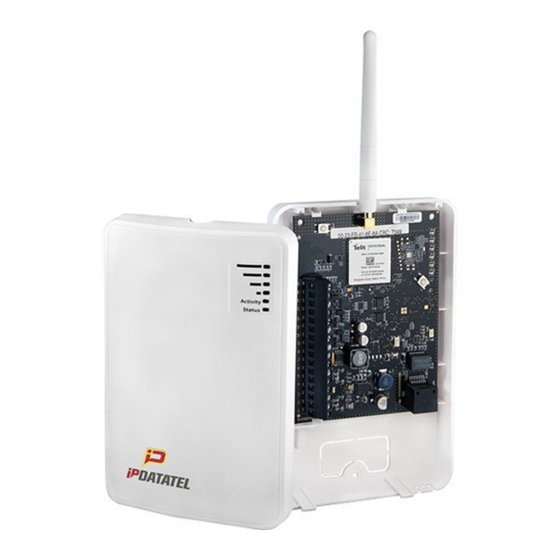

Dual-path alarm communicator/ universal cellular and wi-fi broadband alarm transceiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Rev. 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BAT-CDMA-WIFI and is the answer not in the manual?

Questions and answers

Related Manuals for ipDatatel BAT-CDMA-WIFI

Summary of Contents for ipDatatel BAT-CDMA-WIFI

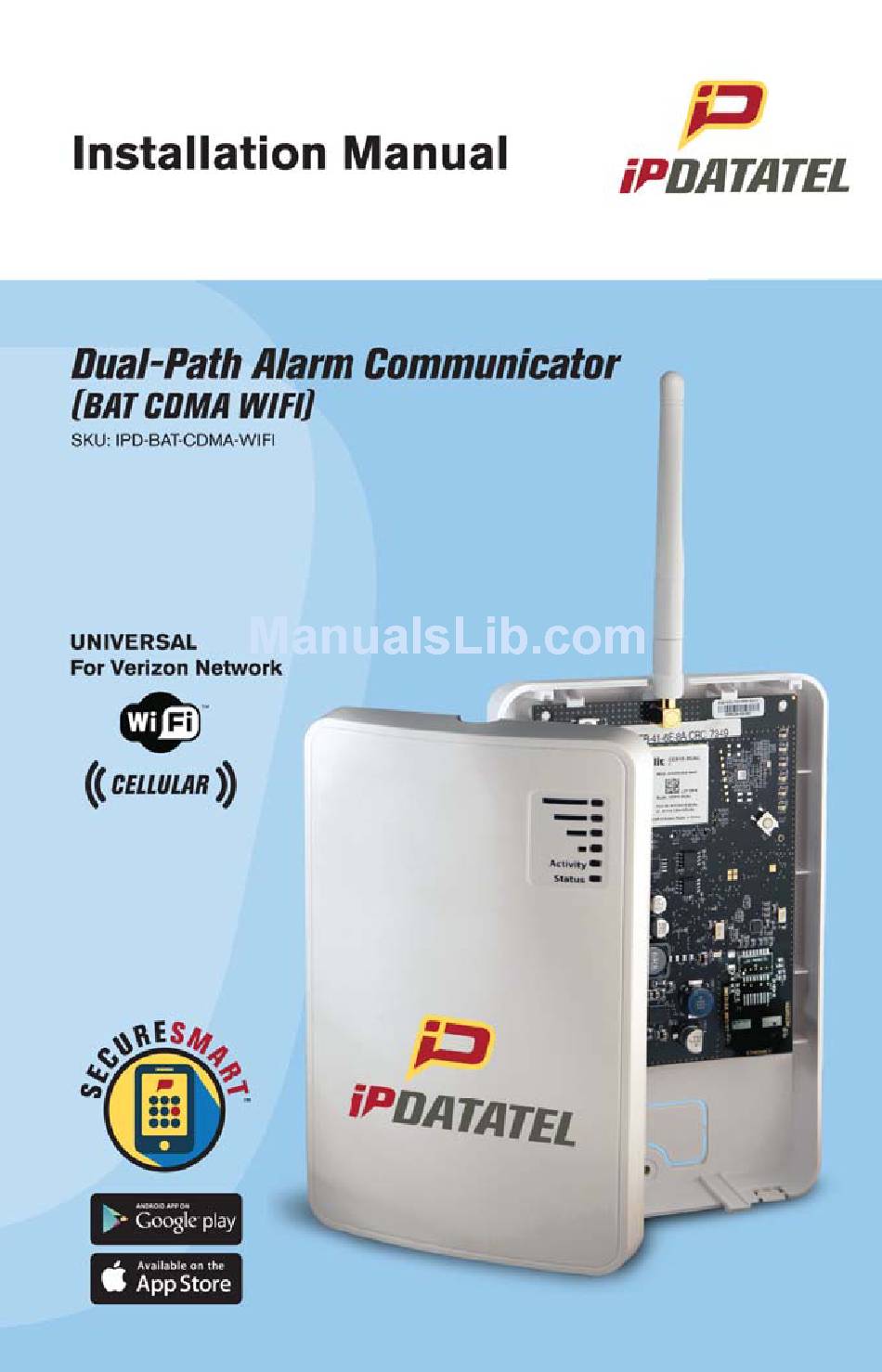

  • Page 1 Rev. 1.1...

  • Page 2: Revision Notes

    Sugar Land, TX 77478 Please visit our website for instructional videos. About ipDatatel At ipDatatel, LLC, we are dedicated to serving our dealers with quality products and support services. ipDatatel engineers and manufactures innovative security and automation devices for the alarm industry. As a leader in the design and development of Cellular and IP connected products, we offer: •...

  • Page 3: Quick Reference

    Quick Reference See Supported Panels section page 26-27 DSC: See page 14 for details Programming for TELCO use on DSC: Section Universal Wi-Fi BAT as Sole Communicator Enter Phone Number Enter Account Number Enter ‘03’ for Contact HONEYWELL / VISTA: See page 18 for details Programming for TELCO use on Vista: Section...

  • Page 4: Table Of Contents

    Table of Contents Revision Notes................2 Introduction ................5 Product Key Features .............. 5 Installation Guide ..............7 General Considerations ............7 Wi-Fi Service Provisioning ............7 AP Configuration Tool QuickStart Guide ........7 Connecting to a Wireless Network (AP Configuration) .... 7 Connecting to a Wireless Network (WPS) .......

  • Page 5: Introduction

    The BAT-CDMA-WIFI uses Verizon CDMA which has the greatest nationwide coverage. The BAT-CDMA-WIFI is compatible with most alarm control panels that transmit Contact ID (CID) format from its digital dialer. The BAT-CDMA- WIFI also connects to the Keypad Bus of compatible (Honeywell, DSC and GE) alarm control panels to provide additional interactive services.
  • Page 6 • Virtual Keypad Access Your customers can operate their security system using ipDatatel’s SecureSmart app via their Smartphone. SecureSmart is compatible with iPhone and Android platforms. The free App is available at the iTunes App Store or the Google Play Store (search for “SecureSmart”).

  • Page 7: Installation Guide

    General Considerations • Before installation, your BAT-CDMA-WIFI must also be setup using the ‘dealer branded’ portal www.alarmdealer.com. • The BAT-CDMA-WIFI should be installed securely in the supplied plastic enclosure, and be mounted adjacent to your alarm control panel. • Choose a location with good reception by monitoring the BAT-CDMA-WIFI signal strength LEDs with temporary wiring for a power-up.

  • Page 8: Connecting To A Wireless Network (Wps)

    When you connect to the above IP Address it will launch the AP Configuration Tool. Click on “Scan for Wireless Networks”. The list will populate with all available wireless networks in your area. Find the customers Wireless Network and select it. If security credentials are required, you will be prompted to enter them.

  • Page 9: Cdma Service Provisioning

    IP connectivity to the BAT- CDMA-WIFI. Resolution The following steps will re-provision the BAT-CDMA-WIFI with the Verizon network. Service Provisioning Steps: To begin, ensure, that the device is powered by 12 VDC either from a battery or the alarm control.

  • Page 10: Board Button Configuration

    Pre-Installation Hardware Registration Before installation of your BAT-CDMA-WIFI, it must be registered at www.alarmdealer.com. Here are the steps needed to register your hardware: • Log in to www.alarmdealer.com with the dealer login information that was emailed upon your initial company registration.
  • Page 11 Telco - Digital Dialer Connection The BAT-CDMA-WIFI’s signal collection requires the alarm control panel send Contact ID format signals from its digital dialer. Wire the Telco side of the alarm control’s Tip & Ring to the BAT-CDMA-WIFI’s Tip & Ring. Virtual Keypad Connection...
  • Page 12 Basic Programming The BAT-CDMA-WIFI emulates telephone service (dial-tone) to the panel. Programming for the alarm control is limited to configuring the signal format as Contact ID, as well as inputting a telephone number to dial. In this case, the actual telephone number does NOT matter and is NOT used in the signal delivery process.

  • Page 13: Troubleshooting Diagnostic Information

    Activity light is not periodically blinking. LED – 1 is used for DHCP & Network connection diagnostics: • Solid: Indicates a connection has been made to ipDatatel. (The device is Online) • 3 Flashes: Indicates the device is not connected to the Internet or is not assigned an address from the router.

  • Page 14: Dsc Panel Wiring And Programming

    DSC Panel Wiring and Programming DSC Keybus & Tip/Ring Wiring Dual-Path Alarm Communicator - Installation Guide ..........Page 14...
  • Page 15 DSC PC-Link Connection This provides for remote downloader functionality with ipDatatel’s Universal Downloader (uDownloader) software. DSC PC-Link Wiring Dual-Path Alarm Communicator - Installation Guide ..........Page 15...
  • Page 16 Panel. As long as your Reporting Codes are in the Panel and is trans- mitting in Contact ID it will send signals. Programming when using TELCO (Recommended): General Concept Programming on DSC (BAT-CDMA-WIFI as Sole Communicator): BAT as Sole Communicator Code Summarization...
  • Page 17 Programming ONLY when using PC-Link to send Signals (Used when Tip/Ring cannot utilized): if GSM is used, it must be in dialer capture mode. BAT as Sole BAT as BAT as Communi- Failover Code Summarization Dual cator w/ Add’l Enable Enable Enable Options to turn on/off alarm/...

  • Page 18: Vista Panel Wiring And Programming

    Vista Panel Wiring and Programming Vista Keybus & Tip/Ring Wiring Dual-Path Alarm Communicator - Installation Guide ..........Page 18...
  • Page 19 All alarm controls must be programmed to transmit Contact ID, and have a Phone Number and Account Number in the Panel. See Supported Panels section on page 26-27. Programming when using TELCO (Recommended): Programming a Honeywell Vista for the BAT-CDMA-WIFI as Sole Communicator: For BAT as Sole Code Summarization Communicator...
  • Page 20 Programming a Honeywell Vista control using ONLY the Keybus to send Signals - GSM Emulation: For BAT For BAT in For Dual Code Summarization as Sole use with Reporting another Enter 1 Enter 1 Enter 1 This enables GSM. The BAT Emulates a GSM.

  • Page 21: Ge Panel Wiring And Programming

    GE Panel Wiring and Programming GE Keybus & Tip/Ring Wiring Dual-Path Alarm Communicator - Installation Guide ..........Page 21...
  • Page 22 GE Panel Programming See Supported Panels section on page 27. Recommended: General Concept Programming on GE NetworX: Section BAT as Sole Communicator Code Summarization Device 0, Location 0 Enter the Phone Number Device 0, Location 1 Enter Account Number Device 0, Location 2 Enter ‘13’...

  • Page 23: Generic Alarm Panel Wiring And Programming

    Generic Alarm Panel Wiring and Programming Generic Keybus & Tip/Ring Wiring: Generic Alarm Panel Programming • Program the panel Phone Number into the panel. • Program the Customers Account Number into the panel. • Program Reporting codes into the panel. •...

  • Page 24: Generic Key Switch Wiring And Programming

    BAT (Y/Tx terminal) that the panel has entered Arm/ Disarmed state. • The Z1 output on the BAT-CDMA-WIFI will be used as a key switch connecting to a ‘zone’ terminal on the alarm panel. Dual-Path Alarm Communicator - Installation Guide ..........Page 24...
  • Page 25 Generic Key Switch Programming Key switch state programming examples for DSC, Honeywell, and GE NetworX for key switch and panel state program output operations are provided below. Most alarm panel manufacturers have the capability to configure a zone as a key switch and generally have at least one on-board programmable output that can be configured to activate on a number of different control state conditions.

  • Page 26: Supported Panels

    Supported Panels Honeywell Digital Full Panel Dialer Interactive Emulator Vista-10P 2.6+ Vista-10PSIA 4.0+ Vista-128BP 3.0+ Vista-128BPE 1.0+ Vista-128FB 1.0+ Vista-128FBP 2.0+ Vista-128FBPE 1.0+ Vista-128SIA 2008+ Vista-15 Vista-15CN 2.6+ Vista-15P 2.6+ Vista-15PCN 2.6+ Vista-15PSIA 4.0+ Vista-20P 2.6+ Vista-20PCN 2.6+ Vista-20PI 5.0+ Vista-20PS 2.6+ Vista-20PSIA...
  • Page 27 DSC (Digital Security Control) Digital Full Panel Dialer Interactive Emulator PC5010 PC1616 4.13+ PC1832 4.13+ PC1864 4.13+ Alexor GE NetworX Digital Full Panel Dialer Interactive Emulator NX-4V2 NX-6V2 NX-8V2 Note: Any alarm panel of any brand not on the supported lists herein should function properly as long as the control transmits Contact ID format through Tip &...

  • Page 28: Limited Warranty Information

    Limited Warranty Information LIMITED WARRANTY ipDatatel, LLC (hereinafter referred to as “Seller”), Located at 13110 Southwest Freeway, Sugar Land Texas 77478, warrants its “Product” to be in conformance with the product specification, and to be free from defects in materials and workmanship under normal use and service for a period of twelve (12) months from the date of original purchase.

  • Page 29: Fcc And Industry Canada Regulatory Compliance

    Consequently, Seller shall have no liability for any personal injury, property damage or any other loss based on a claim that the Product or services therefrom, failed to give warning. However, if seller is held liable, directly or indirectly, for any loss or damage arising under this Limited Warranty or otherwise regardless of cause or origin, Seller maximum liability shall not in any case exceed the purchase price of the Product, which shall be the complete and exclusive remedy against Seller.
  • Page 30 Canada Avertissement de la FCC / IC Déclaration Cet appareil est conforme à la Partie 15 des règlements de la FCC et ICES-003, 4 e édition d’Industrie Canada. Son fonctionnement est soumis aux deux conditions suivantes: (1) Cet appareil ne doit pas causer d’interférences nuisibles et (2) Cet appareil doit accepter toute interférence reçue, y compris les interférences qui peuvent perturber le fonctionnement.

  • Page 31: Specifications

    Specifications Frequency: • Wi-Fi 802.11bg (mixed mode) • Frequencies CDMA 1x 800 MHz/1900 MHz Power: • Externally provided 12v DC • Typical Current 130 mA • Max Current 185 mA Environmental: • Temperature Range - 30° to +70°C (- 22° to +158°F) •...
  • Page 32 IPD-CDMA-WIFI IM 3-15...
