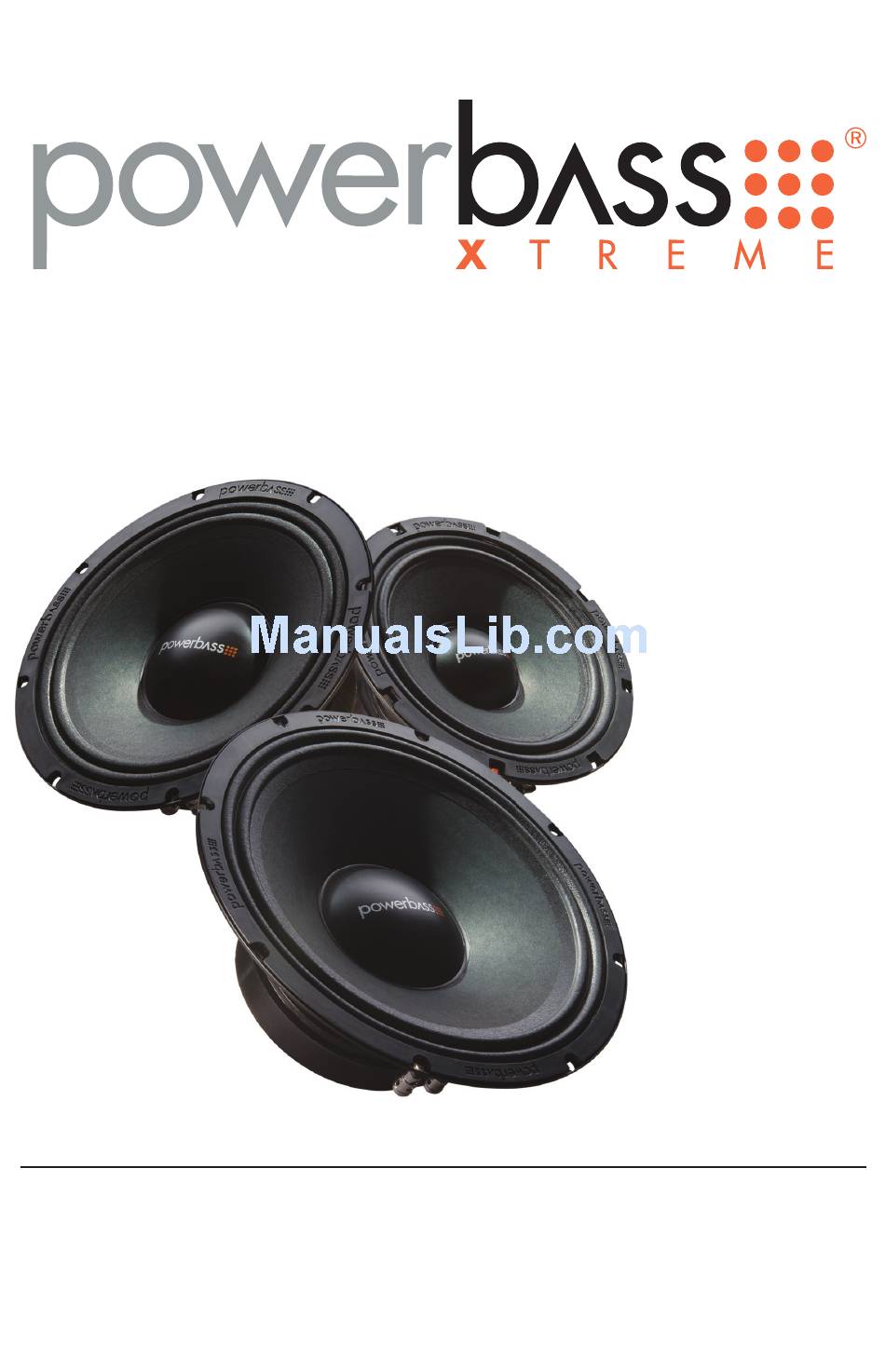

- Page 1 XPRO-65 XPRO-8 XPRO-10 XPRO PROFESSIONAL MID-RANGE DRIVERS Application Guide...
- Page 3 170 dB. Please observe all local sound ordinances while listening to your PowerBass Xtreme system. PowerBass USA, Inc. accepts no liability for hearing loss, bodily injury, or property damage due to the result...
- Page 4 FEATURES Over Built Pro Audio Design Y-35 high grade Strontium Ferrite magnet with vented pole piece al- lowing air in to keep the voice coil cooler at high power levels Treated Stiff Paper Cone for fast response without cone deformation Double Roll Textile Surround For precise linear controlled excursion especially at high volume Large Heat Dissipating Voice Coil...
- Page 5 Your PowerBass Xtreme XPRO Mid Range driver uses a single 4-OHM voice coil. It is important to know the limits of your amplifier to optimize its performance. You can vary the impedance by altering the wiring configurations: Series, Parallel, or Series-Parallel.
- Page 6 Your PowerBass Xtreme XPRO Mid Range driver uses a single 8-OHM voice coil. It is important to know the limits of your amplifier to optimize its performance. You can vary the impedance by altering the wiring configurations: Series, Parallel, or Series-Parallel.
- Page 7 8-OHM examples continued...
-
Page 8: Preparing For Installation
INSTALLATION EXPERIENCE Installation of PowerBass Xtreme speakers requires experience with a variety of mechanical procedures including enclosure construction. This manual only provides general installation and operation instruc- tions. If you have any reservations about your installation skills, please contact your local Authorized PowerBass Xtreme dealer for assistance. -
Page 9: Door Mounting
• Check to see if there is enough clearance behind the mounting surface before drilling holes or install- ing screws for proper speaker ventilation. • Also make sure there’s enough front clearance for speaker cone excursion. Failure to do this could cause the cone to vibrate against any obstructing object damaging the speaker. - Page 10 INSTALLING THE MID RANGE DRIVER Determine where the speaker will be mounted. Make sure there is a flat area large enough for the speaker to fit properly. An uneven mounting surface can damage the driver. Check to make sure the space you have selected for the speaker will not interfere with the operation of the vehicle.
- Page 11 PARAMETERS FOR XPRO 4-OHM MID RANGE DRIVERS (due to Constant Improvement, Specification and Parameter are subject to change without notice) XPRO-65 XPRO-8 XPRO-10 VC Impedance (OHMs) Test Impedance (OHMs) Fs (Hz) SD (sqCM) 323.7 Vas (Ltr) Cms (μM/N) 208.5 Mms (g) 17.8...
- Page 12 PARAMETERS FOR XPRO 8-OHM MID RANGE DRIVERS (due to Constant Improvement, Specification and Parameter are subject to change without notice) XPRO-65/8 XPRO-8/8 XPRO-10/8 VC Impedance (OHMs) Test Impedance (OHMs) Fs (Hz) SD (sqCM) 323.6 Vas (Ltr) 31.5 Cms (M/N) 211.7 Mms (g) 32.2...
- Page 13 Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for PowerBass any other liability in connection with the sale of this product.
- Page 14 This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its intentions is strictly prohibited without the express consent of PowerBass USA, Inc. Copyright 2012 PowerBass USA, Inc.
- Page 16 PowerBass Xtreme (PBX) – A division of PowerBass USA, Inc. 13936 Mountain Avenue – Chino, CA 91710 Tel. (909) 993-5399 – Fax (909) 993-5393 www.powerbassusa.com...
