AUTOSOUND S-SERIES SPEAKERS
Application Guide
Please read through this manual to familiarize yourself with your new speakers. Should your PowerBass
Autosound speakers ever require service, you will need to have the original dated receipt.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PowerBass S-6903
Summary of Contents for PowerBass S-6903

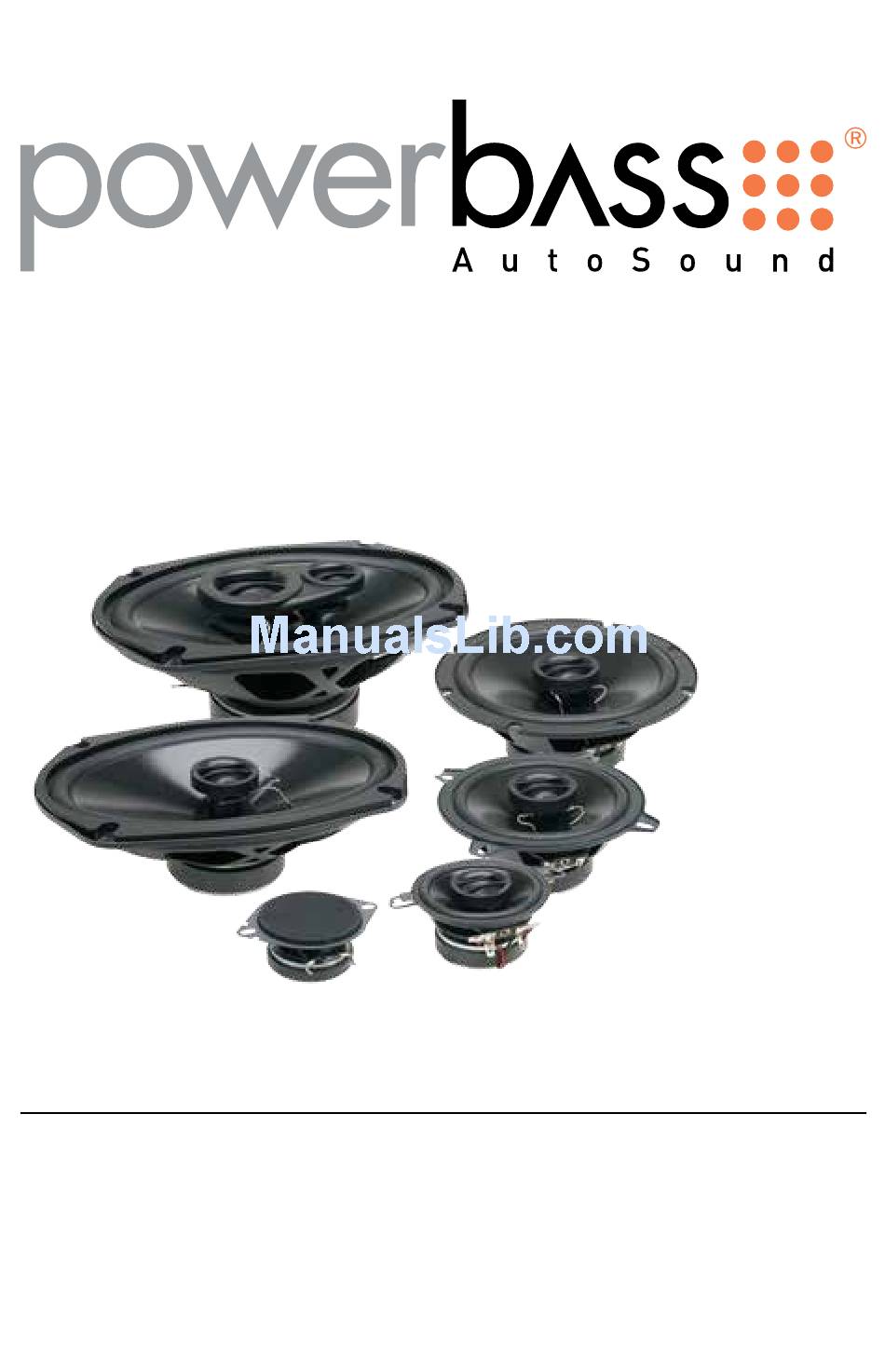

- Page 1 S-6903 S-6902T S-6802 S-4102 S-6752 S-6502 S-650T S-5202 S-4602 S-4002 S-3502 S-275CF AUTOSOUND S-SERIES SPEAKERS Application Guide Please read through this manual to familiarize yourself with your new speakers. Should your PowerBass Autosound speakers ever require service, you will need to have the original dated receipt.
- Page 2 Continuous exposure to sound pressure levels in excess of 100 dB can cause permanent hearing loss. PowerBass Autosound Speakers are capa- ble of producing sound pressure levels well over 170 dB. Please observe all local sound ordinances while listening to your PowerBass Autosound...
- Page 3 (The S-4602 and S-3502 use a PEI dynamic tweeter. The S-6903 utilizes a mylar Mid and PEI Tweeter and S-275CF is full range) OEM Drop-in Replacement: Designed to fit most OEM speaker applications for an easy installation upgrade over factory speakers.
- Page 4 Installation of PowerBass Autosound Speakers requires experience with a variety of mechanical and electrical procedures. This manual only provides general installation and operation instructions. If you have any reserva- tions about your installation skills or lack of the proper tools, please contact your local PowerBass Autosound dealer for assistance.
-
Page 5: Preparing For Installation
PREPARING FOR INSTALLATION NOTE: The tools listed below may be required for proper installation. • An electric drill with drill bits • Phillips-head and standard screwdrivers • Wire strippers • Crimping tool and needle-nose pliers • Silicone sealant or closed cell weather-stripping •... - Page 6 GENERAL If the speaker cut out locations require you to cut metal, avoid structural metal and braces. If the door body and panel cannot support the weight of the speaker, a reinforcing ring may need to be constructed around the speaker for extra support.
-
Page 7: Examples Of Mounting
EXAMPLES OF MOUNTING Mounting Options • A: Rear Deck Mounting • B: Multiple Mounting • C: Dash Mounting DASH MOUNTING Some vehicles use dash speakers in which case the PowerBass S-series has been designed as a drop-in replacement. This may require removal of the front dash or OEM grill. DOOR MOUNTING When checking for possible speaker locations in the doors, check the operation of the window and all of the door assemblies. -
Page 8: Rear Deck Mounting
REAR DECK MOUNTING In rear deck or package tray installations, carefully check the operation of the trunk suspension springs or tension bars. These tension bars move when the trunk opens and closes, so make sure speaker installation does not interfere with this mechanism. Also, when installing the speakers near a rear window check to make sure there is plenty of access to secure the mounting screws. - Page 9 2.3" 60W/180W S-6902T 6x9" thin 4-ohm 55-Hz-20kHz 89dB 10 oz. 2.5" 50W/150W S-6903 6x9" 4-ohm 45Hz-20kHz 90dB 20 oz. 3.3" 70W/210W Grills not included on some models. The PowerBass S-series was engineered with multi-hole mounting patterns, specifically tooled baskets and shallow depth magnets to give you the highest vehicle application ratio available.
- Page 10 This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its intentions is strictly prohibited without the express consent of PowerBass USA, Inc. Copyright 2014 PowerBass USA, Inc.
- Page 11 POWERBASS AUTOSOUND LIMITED WARRANTY POLICY PowerBass USA, Inc. offers limited warranty on PowerBass products under normal use on the following terms: PowerBass Autosound Speakers are to be free of defects in material and workmanship for a period of one (1) year.
- Page 12 PowerBass Autosound – A division of PowerBass USA, Inc. 2133 S. Green Privado – Ontario, CA 91761 Tel. (909) 923-3868 – Fax (909) 923-8048 www.powerbassusa.com...
