S-693
S-692T
S-682
S-412
S-675
S-652
S-65T
S-522
S-462
S-402
S-352
S-275CH

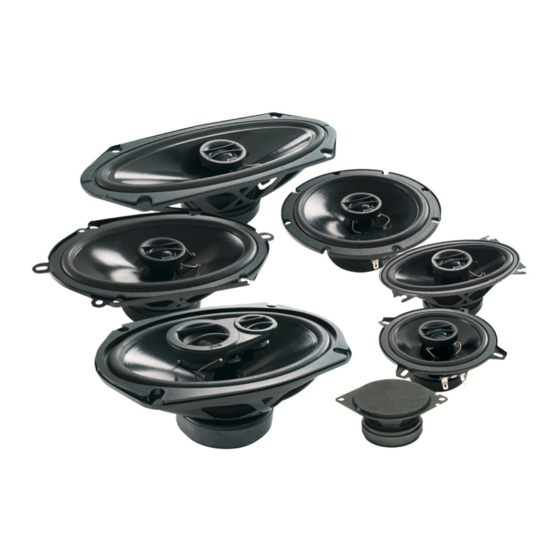

AUTOSOUND S-SERIES SPEAKERS
Application Guide
Please read through this manual to familiarize yourself with your new speakers. Should your PowerBass
Autosound speakers ever require service, you will need to have the original dated receipt.
Advertisement
Related Manuals for PowerBass S Series
Summary of Contents for PowerBass S Series

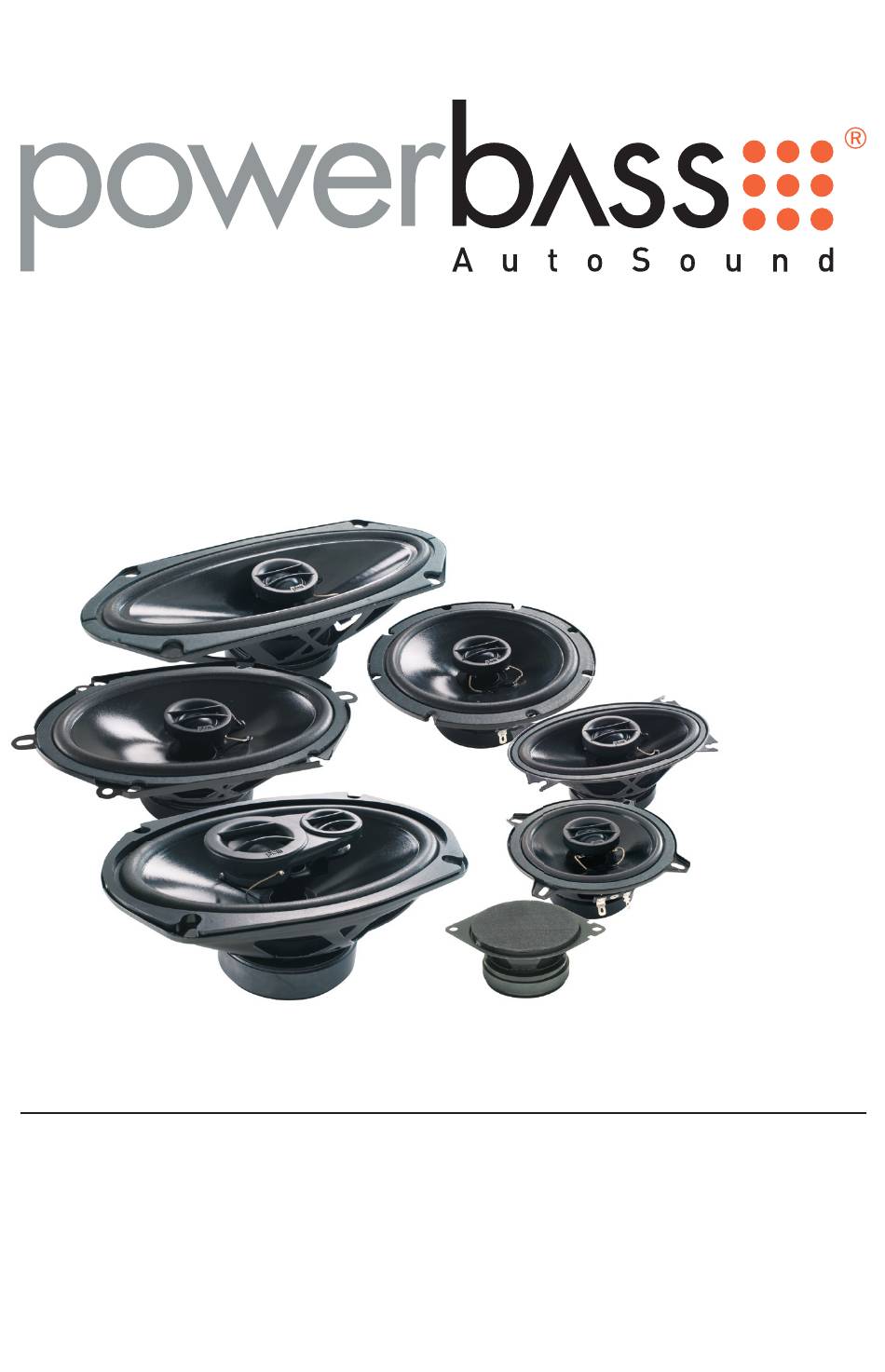

- Page 1 S-65T S-522 S-462 S-402 S-352 S-275CH AUTOSOUND S-SERIES SPEAKERS Application Guide Please read through this manual to familiarize yourself with your new speakers. Should your PowerBass Autosound speakers ever require service, you will need to have the original dated receipt.
- Page 2 170 dB. Please observe all local sound ordinances while listening to your PowerBass Autosound system. PowerBass USA, Inc. accepts no liability for hearing loss, bodily injury, or property damage due to the result of use or misuse of this product.
- Page 3 POWERBASS AUTOSOUND S SPEAKER FEATURES 2-Layer Black Paper, DDC Finish Cone: The choice of cone materials has everything to do with the differ- ence between good and great sound. Paper delivers one of the warmest sounds available along with the DDC (Dynamic Damping Coating) finish to give your music uncompromised fidelity.
- Page 4 Installation of PowerBass Autosound Speakers requires experience with a variety of mechanical and electrical procedures. This manual only provides general installation and operation instructions. If you have any reserva- tions about your installation skills or lack of the proper tools, please contact your local PowerBass Autosound dealer for assistance.
- Page 5 SPEAKER MOUNTING LOCATIONS PowerBass has engineered our S-series speakers to fit into existing factory locations. However, you are not limited to these locations alone. Choosing the correct mounting location will have the greatest effect on the overall quality of the sound system. The cosmetics of your vehicles interior will also play a role in determin- ing the best location.
- Page 6 Always use a protective grommet when passing speaker wires through metal and avoid any sharp edges. When using PowerBass grills, first drop the speaker into the mounting ring and then screw in. Once secured, the mesh grill can be pressed into the mounting ring to protect the speaker.
-
Page 7: Examples Of Mounting
• C: Dash Mounting DASH MOUNTING Some vehicles use dash speakers in which case the PowerBass S-series has been designed as a drop-in replacement. This may require removal of the front dash or OEM grill. DOOR MOUNTING When checking for possible speaker locations in the doors, check the operation of the window and all of the door assemblies. -
Page 8: Rear Deck Mounting
For additional installation suggestions please consult your authorized PowerBass dealer. LISTENING ENJOYMENT These PowerBass car audio speakers were designed to perform in the rigors of the harsh automotive envi- ronment. They are constructed using the latest materials and loudspeaker technology, however care must still be taken to ensure their long lasting performance. - Page 9 3.3" 70W/210W Grills not included on some models. The PowerBass S-series was engineered with multi-hole mounting patterns, specifically tooled baskets and shallow depth magnets to give you the highest vehicle application ratio available. The result is easy drop-in installations on...
- Page 10 Please call (909) 993-5399 for PowerBass Customer Service. You must obtain an RA# (Return Authorization Num- ber) to return any product to PowerBass. The RA number must be prominently marked on the outside of the shipping carton or the delivery will be refused. Please pack your return carefully; we are not responsible for items damaged in shipping.
- Page 11 This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its intentions is strictly prohibited without the express consent of PowerBass USA, Inc. Copyright 2011 PowerBass USA, Inc.
- Page 12 PowerBass Autosound – A division of PowerBass USA, Inc. 13936 Mountain Avenue – Chino, CA 91710 Tel. (909) 993-5399 – Fax (909) 993-5393 www.powerbassusa.com...
