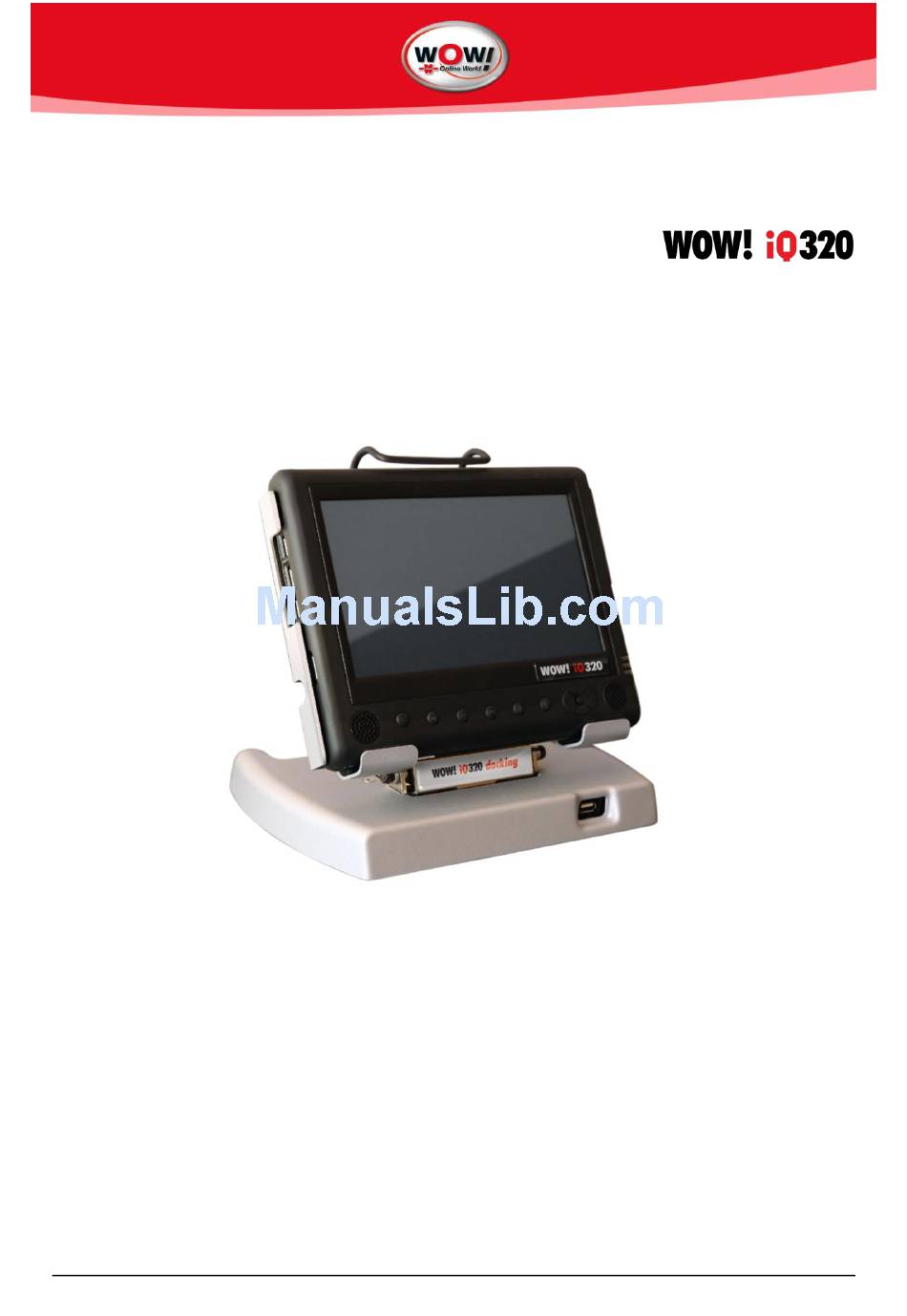

- Page 1 Manual 2121_ENG / Version:30/03/2011...
-
Page 2: Table Of Contents
Using the AC Adapter ........................7 System Overview iQ320 ........................8 Front View of the IQ320 ........................8 Right Side View of the iQ320 ......................9 Left Side View of the iQ320 ......................9 Top View of the IQ320 ........................10 Bottom View of the IQ320 ...................... -
Page 3: Conventions Used In This User Manual
● iQ320. Except as explained elsewhere in this manual, do not attempt to service the iQ320 yourself. Opening or removing covers might expose you to dangerous voltage points or other risks and voids all warranties. Refer all servicing of marked components to qualified personnel. -
Page 4: Safety Instructions
If water or another substance penetrates the mains connection or the iQ320, disconnect the mains cable ● and consult the Customer Service Centre. Damage to the devices inside the iQ320 can result in electric shocks, or a fire can result. ○ Always keep the mains cable and the socket clean. -
Page 5: Notes On The Use Of The Battery
If you use a defective iQ320, there is a risk of electric shock or fire. ○ Avoid direct exposure to sunlight if the iQ320 is in a relatively air-tight area, e.g. in a motor vehicle. ● The iQ320 may become deformed or a fire may result due to the high temperature. -
Page 6: Notes On Storage And Transport
When disassembling and reassembling the iQ320, data can be lost due to an external influence on ○ the hard disk. Data can be lost if the iQ320 is shut down or reset due to a power cut while the hard disk drive is ○ running. -
Page 7: Labels
Labels 3.1 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 8: Getting Started
2. When charging the first time, it is recommended that the battery be allowed to charge for no less than eight hours. 3. It will take a longer time to complete the charging process, if the user is using the iQ320 at the same time. To install and remove the battery pack: Power down the iQ320 using the Power Switch. -
Page 9: System Overview Iq320
Data can also be entered via a USB keyboard plugged into the USB port on the left side of the iQ320. The iQ320’s USB ports support most USB keyboards and pointing devices Internal Microphone Effortless input of monaural sound recording. -
Page 10: Right Side View Of The Iq320
A stylus pen is used to activate the touch screen display and functions in the same way as an external mouse. The stylus pen is partially visible from the left side of the iQ320 and can be located by pulling it from its secure housing. -
Page 11: Top View Of The Iq320
Powers the iQ320 ON and OFF. Bottom View of the IQ320 Battery Pack: A 6-cell 5200mAh removable Lithium-Ion battery pack comes standard with the iQ320. Each cell comes equipped with short circuit, over-charge, over-discharge, over-current and abuses protection. Rear View of the IQ320 Docking Ports: The battery charger port. -
Page 12: Functions Of The Stylus Pen
The stylus pen emulates all of the functions of a standard mouse and can be effortlessly used in place of a mouse and a standard keyboard. The stylus pen tucks into a designated holder on the lower left side of the iQ320. Insert the stylus pen back in the holder after use. Mouse... -
Page 13: Using The Front Panel Hot Key Utility
5.4 Launch a Program via Primary, Secondary and Third Panels Tap the icon twice to launch the program. Features of the Hot Key buttonsbuttons Start the WOW! Data backup Program See Chapter 6 Data backup Open the Windows Explorer Open the Windows Mobil CenterInternet Explorer... -
Page 14: Data Backup
● AU Plus data ● NOTE! The data backup set up by WOW! does not include a backup of operating system data, e.g. subsequently installed programs and user-created data! 6.1 Performing data backup 6.2 Manual recovery of data backup "D: / Diag backup"... -
Page 15: System Recovery
With system recovery you can restore the system settings obtained on delivery. This allows you to rectify different problems which have arisen, for example, as a result of incorrectly installed software from third-party providers or the like. The WOW! software remains unaffected during system recovery. The WOW! update status and your registrations are retained. IMPORTANT! Perform a manual data backup before starting the system recovery. -
Page 16: Connections And Accessories
Connections and Accessories 8.1 Connecting via a WLAN This section describes how a connection to an access point is set up. After a connection to an access point has been set up, you can access the network. NOTE! Further information on configuration, e.g. details of the network key (encryption key), is available from your network administrator. -
Page 17: Protecting & Maintaining
Protecting & Maintaining Caring for Your IQ320 To guarantee a long life for the iQ320 and to ensure it functions optimally, pay particular attention to the following recommended maintenance guidelines. Routine Care Follow these guidelines to keep the iQ320 working properly: Do not attempt to disassemble or modify the iQ320 in any way. -
Page 18: Important Safety Information
10 Important safety information 10.1 Disposal of batteries IMPORTANT! Batteries and products containing batteries that cannot be removed must not be disposed of the regular waste system. Ask your Customer Service agent how to dispose of batteries that you no longer need or can no longer be charged. -
Page 19: Specifications
11 Specifications Specifications and Standard Features Processor INTEL ATOM N270 Processor 1.6 G Chipset INTEL 945GSE (Integrated North & South bridge) Operating System Microsoft® Windows®7 Ultimate Option: Linux / WIN CE System BIOS AWARD BIOS Memory 2G DDR II DRAM 200 pin (533-MHz / MAX 2G) Display 8.9-inch TFT (1024x600) LCD Touch Panel Simulation to 1024x768 by Hot Key... -
Page 20: Declaration Of Conformity
Declaration of conformity - 19 -... - Page 21 - 20 -...
- Page 22 - 21 -...
- Page 23 - 22 -...
- Page 24 International Offices GERMANY CZECH REPUBLIK ISRAEL SERBIA WOW! Würth Online World Würth, spol. s r.o. Würth Israel Ltd. Wurth d.o.o. GmbH Prumyslová zóna Hatohen 2 Pancevacki put 38 Schliffenstraße Falkhof Neprevázka 137 Zone 34 11210 Krnjaca - Beograd 74653 Künzelsau 29301 Mladá...
