FireMagic Aurora C2-446 Quick Start Manual page 2

Note: For infrared burner equipped
grills; see detailed instructions
included in your owners manual.
Cooking Grid
Backburner
cover
Flavor Grid
(not with IR)
Warming
rack
Sideburner
lid
Drip tray
liners
Drip tray (with
lighting instructions)
Fig. 4-1
Read setting
Read setting here
here
OFF
Fig. 5-1 - Burner valve control knob
WHEN OPERATING THIS
APPLIANCE WITH PROPANE,
ALL INSTRUCTIONS AND
WARNINGS MUST BE
OBSERVED. FAILURE TO DO
SO MAY RESULT IN A FIRE
OR EXPLOSION CAUSING
SERIOUS INJURY OR DEATH.
6-Propane Safety
Gas Cylinders
IMPORTANT: READ AND FOLLOW ALL WARNINGS PROVIDED WITH THE PROPANE-GAS CYLINDER.
READ ALL SAFETY INSTRUCTIONS AND WARNINGS REGARDING THE USE OF PROPANE GAS FOUND IN
YOUR OWNERS MANUAL.
REV 0 - 1409250910
E-burner
(pre-installed)
Grill lights
(not shown)
Rotisserie
rod storage
ring
Cotter
Pin
Light
Meat probe
switch
5-Test
Note: Grill must be connected to 120VAC power for electronic lighting.
1. Open lid(s) or remove cover(s) from burner(s) to be lit.
2. Turn all gas control knob(s) to their OFF position(s).
3. Turn on the gas at its source.
Note: DO NOT turn on more than one valve at a time for either electronic or manual lighting.
HIGH to
High to
LIGHT
light
4. Depress the desired control knob for 5 seconds, then, while pressing turn it
counterclockwise to the HI LIGHT position. Once the burner lights, release the knob.
CAUTION:
5. Repeat step 4 for each additional burner to be lit.
Sideburner
control knob
(if equipped)
Left
main burner
control knob
Digital
thermometer

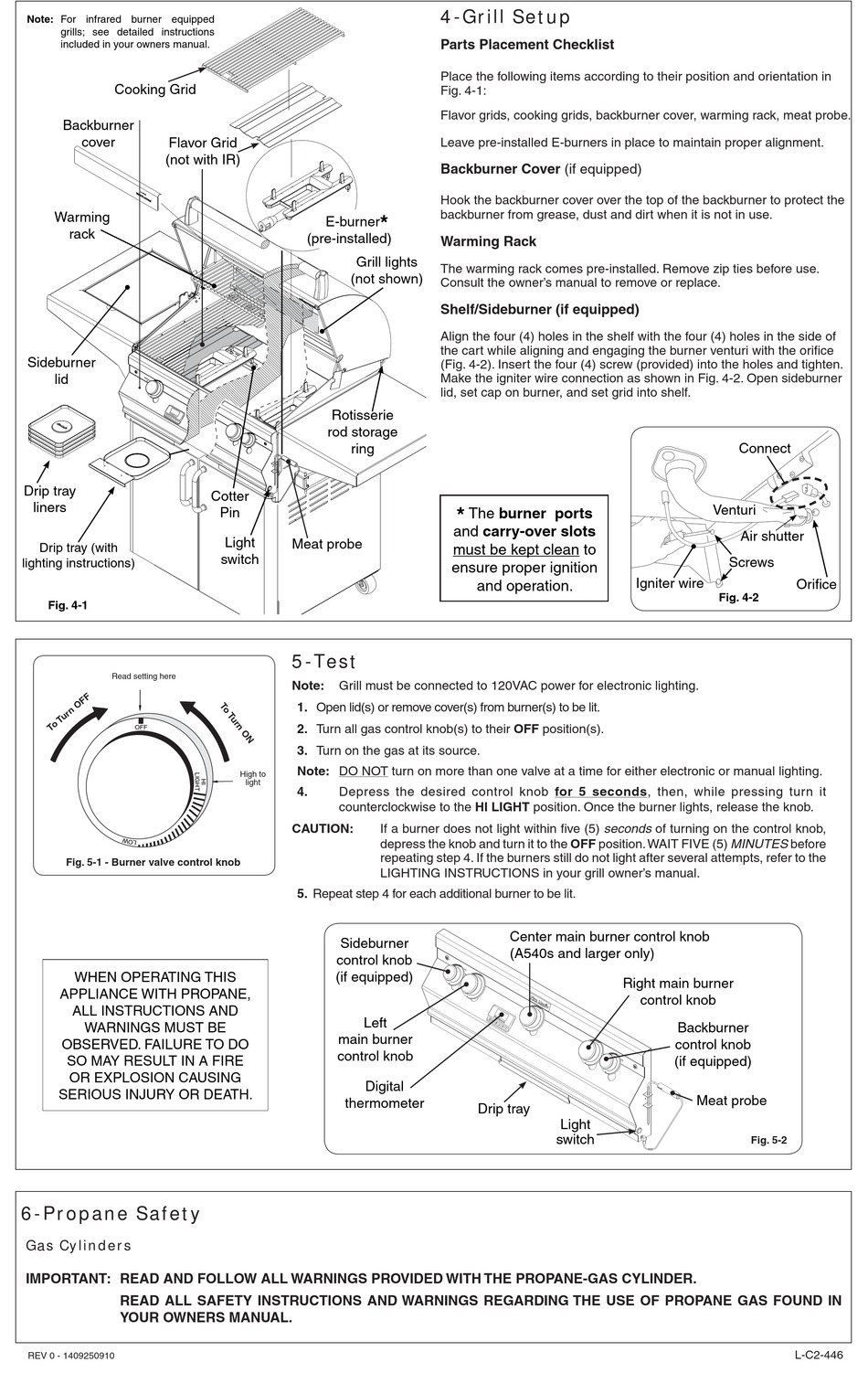

4-Grill Setup
Parts Placement Checklist
Place the following items according to their position and orientation in
Fig. 4-1:
Flavor grids, cooking grids, backburner cover, warming rack, meat probe.
Leave pre-installed E-burners in place to maintain proper alignment.
Backburner Cover (if equipped)
Hook the backburner cover over the top of the backburner to protect the
backburner from grease, dust and dirt when it is not in use.
*
Warming Rack
The warming rack comes pre-installed. Remove zip ties before use.
Consult the owner's manual to remove or replace.
Shelf/Sideburner (if equipped)
Align the four (4) holes in the shelf with the four (4) holes in the side of
the cart while aligning and engaging the burner venturi with the orifi ce
(Fig. 4-2). Insert the four (4) screw (provided) into the holes and tighten.
Make the igniter wire connection as shown in Fig. 4-2. Open sideburner
lid, set cap on burner, and set grid into shelf.
* The burner ports
and carry-over slots
must be kept clean to
ensure proper ignition
and operation.
If a burner does not light within fi ve (5) seconds of turning on the control knob,
depress the knob and turn it to the OFF position. WAIT FIVE (5) MINUTES before
repeating step 4. If the burners still do not light after several attempts, refer to the
LIGHTING INSTRUCTIONS in your grill owner's manual.
Center main burner control knob
(A540s and larger only)
Drip tray
Venturi
Igniter wire
Fig. 4-2
Right main burner
control knob
Backburner
control knob
(if equipped)
Meat probe
Light
switch
Connect
Air shutter
Screws
Orifi ce
Fig. 5-2
