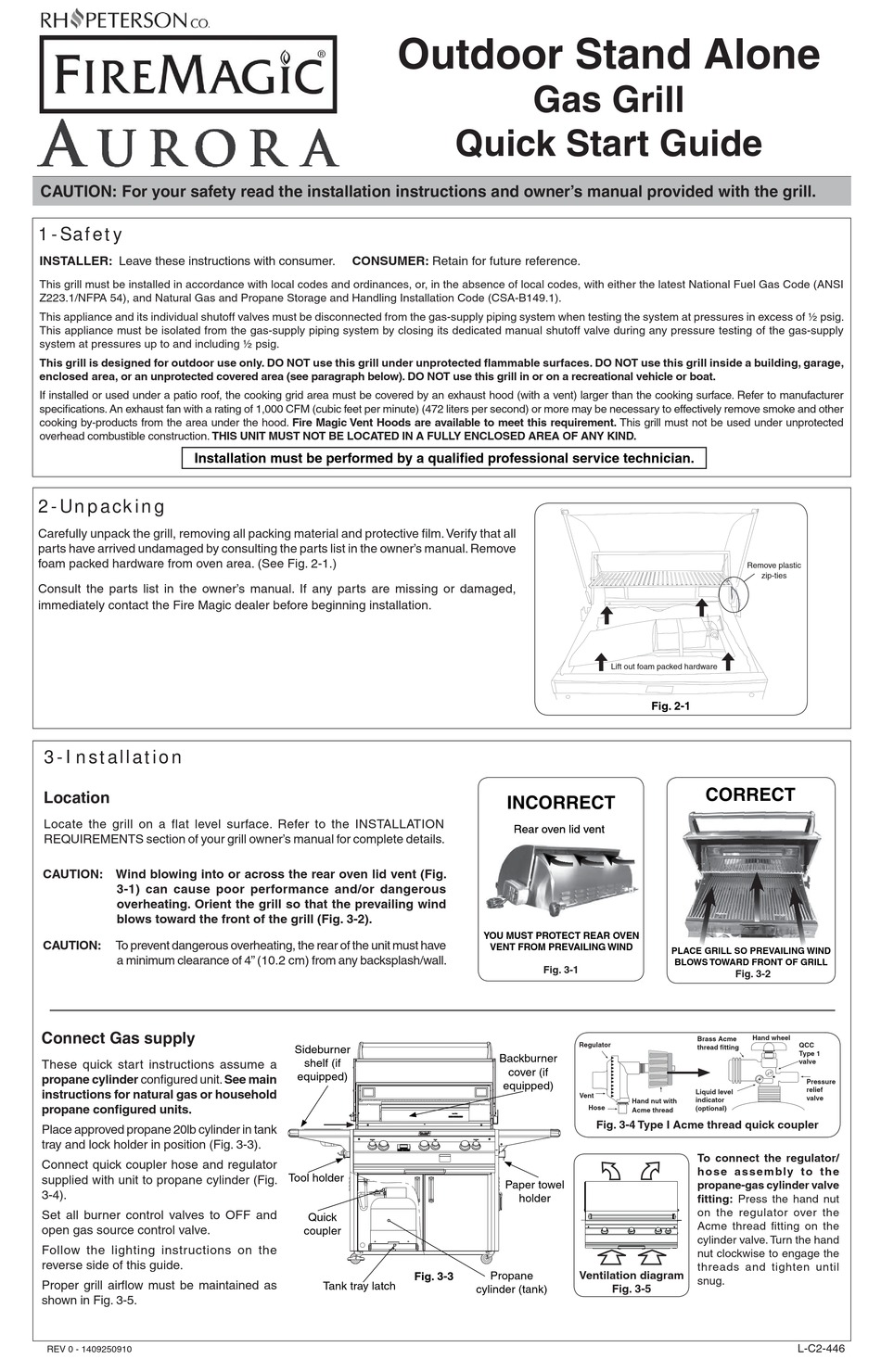

FireMagic Aurora C2-446 Quick Start Manual

CAUTION: For your safety read the installation instructions and owner's manual provided with the grill.
1-Safety
INSTALLER: Leave these instructions with consumer.
This grill must be installed in accordance with local codes and ordinances, or, in the absence of local codes, with either the latest National Fuel Gas Code (ANSI
Z223.1/NFPA 54), and Natural Gas and Propane Storage and Handling Installation Code (CSA-B149.1).
This appliance and its individual shutoff valves must be disconnected from the gas-supply piping system when testing the system at pressures in excess of ½ psig.
This appliance must be isolated from the gas-supply piping system by closing its dedicated manual shutoff valve during any pressure testing of the gas-supply
system at pressures up to and including ½ psig.
This grill is designed for outdoor use only. DO NOT use this grill under unprotected fl ammable surfaces. DO NOT use this grill inside a building, garage,
enclosed area, or an unprotected covered area (see paragraph below). DO NOT use this grill in or on a recreational vehicle or boat.
If installed or used under a patio roof, the cooking grid area must be covered by an exhaust hood (with a vent) larger than the cooking surface. Refer to manufacturer
specifi cations. An exhaust fan with a rating of 1,000 CFM (cubic feet per minute) (472 liters per second) or more may be necessary to effectively remove smoke and other
cooking by-products from the area under the hood. Fire Magic Vent Hoods are available to meet this requirement. This grill must not be used under unprotected
overhead combustible construction. THIS UNIT MUST NOT BE LOCATED IN A FULLY ENCLOSED AREA OF ANY KIND.
Installation must be performed by a qualifi ed professional service technician.
2-Unpacking
Carefully unpack the grill, removing all packing material and protective fi lm. Verify that all
parts have arrived undamaged by consulting the parts list in the owner's manual. Remove
foam packed hardware from oven area. (See Fig. 2-1.)
Consult the parts list in the owner's manual. If any parts are missing or damaged,
immediately contact the Fire Magic dealer before beginning installation.
3-Installation
Location
Locate the grill on a flat level surface. Refer to the INSTALLATION
REQUIREMENTS section of your grill owner's manual for complete details.
CAUTION: Wind blowing into or across the rear oven lid vent (Fig.
3-1) can cause poor performance and/or dangerous
overheating. Orient the grill so that the prevailing wind
blows toward the front of the grill (Fig. 3-2).
CAUTION: To prevent dangerous overheating, the rear of the unit must have
a minimum clearance of 4" (10.2 cm) from any backsplash/wall.
Connect Gas supply
These quick start instructions assume a
propane cylinder confi gured unit. See main
instructions for natural gas or household
propane confi gured units.
Place approved propane 20lb cylinder in tank
tray and lock holder in position (Fig. 3-3).
Connect quick coupler hose and regulator
supplied with unit to propane cylinder (Fig.
3-4).
Set all burner control valves to OFF and
open gas source control valve.
Follow the lighting instructions on the
reverse side of this guide.
Proper grill airfl ow must be maintained as
shown in Fig. 3-5.
REV 0 - 1409250910
Outdoor Stand Alone
CONSUMER: Retain for future reference.
Sideburner
shelf (if
equipped)
Tool holder
Quick
coupler
Fig. 3-3
Tank tray latch
Gas Grill
Quick Start Guide
Lift out foam packed hardware
INCORRECT
Re Rear oven lid vent Rear ar o ove ven n li lid d ve vent nt
YOU MUST PROTECT REAR OVEN
VENT FROM PREVAILING WIND
Fig. 3-1
Regulator
Backburner
cover (if
equipped)
Vent
Hose
Fig. 3-4 Type I Acme thread quick coupler
Paper towel
holder
Propane Ventilation diagram
cylinder (tank) Fig. 3-5
Remove plastic
zip-ties
Fig. 2-1
CORRECT
PLACE GRILL SO PREVAILING WIND
BLOWS TOWARD FRONT OF GRILL
Fig. 3-2
Hand wheel
Brass Acme
thread fi tting
U
L
Liquid level
indicator
Hand nut with
(optional)
Acme thread
To connect the regulator/
hose assembly to the
propane-gas cylinder valve
fi tting: Press the hand nut
on the regulator over the
Acme thread fi tting on the
cylinder valve. Turn the hand
nut clockwise to engage the
threads and tighten until
snug.
L-C2-446
QCC
Type 1
valve
Pressure
relief
valve
