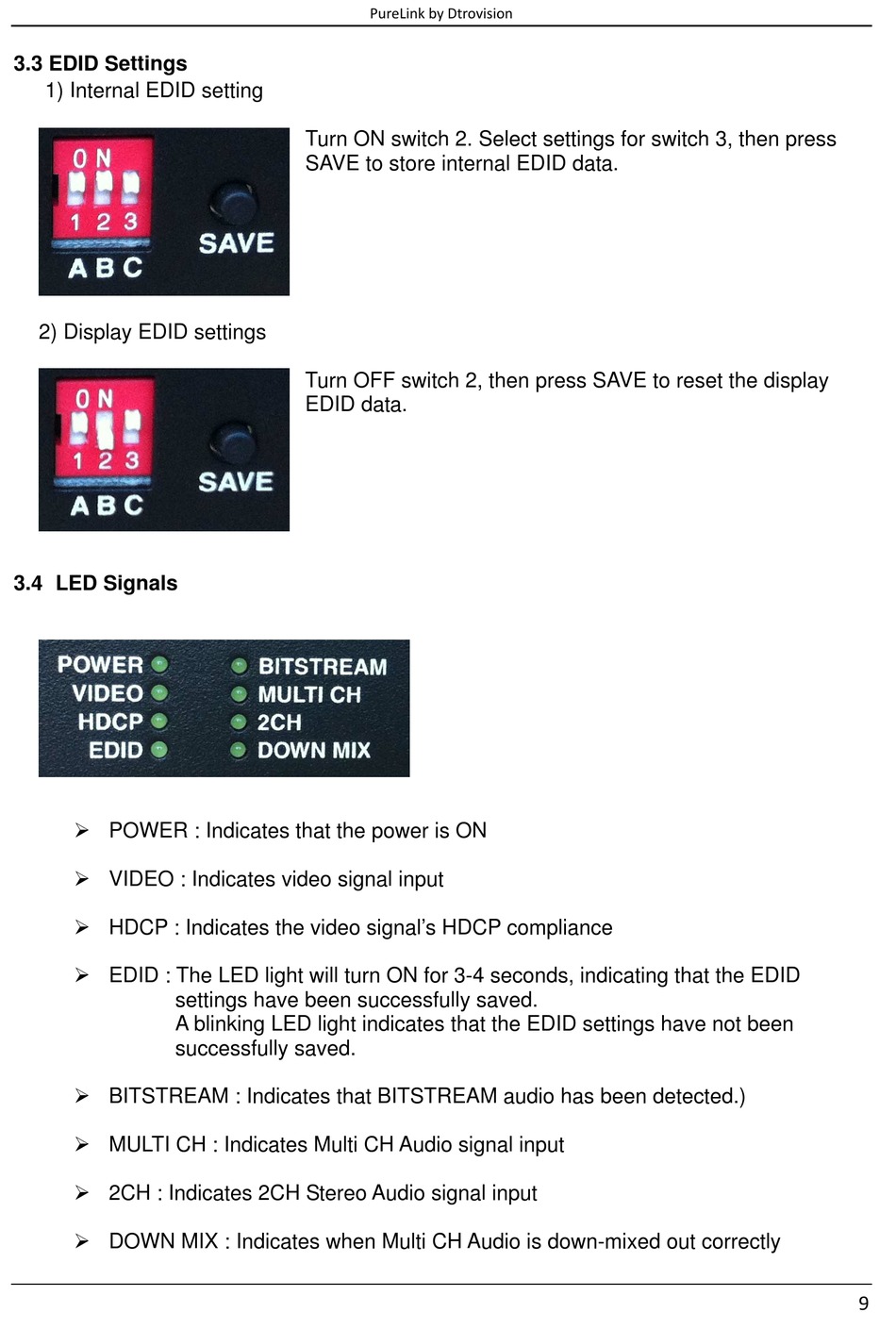

3.3 EDID Settings

1) Internal EDID setting
2) Display EDID settings

3.4 LED Signals

 POWER : Indicates that the power is ON
 VIDEO : Indicates video signal input
 HDCP : Indicates the video signal's HDCP compliance
 EDID : The LED light will turn ON for 3-4 seconds, indicating that the EDID
settings have been successfully saved.
A blinking LED light indicates that the EDID settings have not been
successfully saved.
 BITSTREAM : Indicates that BITSTREAM audio has been detected.)
 MULTI CH : Indicates Multi CH Audio signal input
 2CH : Indicates 2CH Stereo Audio signal input
 DOWN MIX : Indicates when Multi CH Audio is down-mixed out correctly
PureLink by Dtrovision
Turn ON switch 2. Select settings for switch 3, then press
SAVE to store internal EDID data.
Turn OFF switch 2, then press SAVE to reset the display
EDID data.
