Chapter 3. Installation and Operating Instruction

3.1 Installation Guidelines

1) Before installing the HEXA01 audio extractor, turn OFF the source and display devices.
2) Connect the HDMI and/or audio cable.
3) Plug in the adapter to the HEXA01 power jack.
4) Plug the wall mount power supply into the wall outlet.
5) Turn ON the display device.
6) Turn ON the source device.

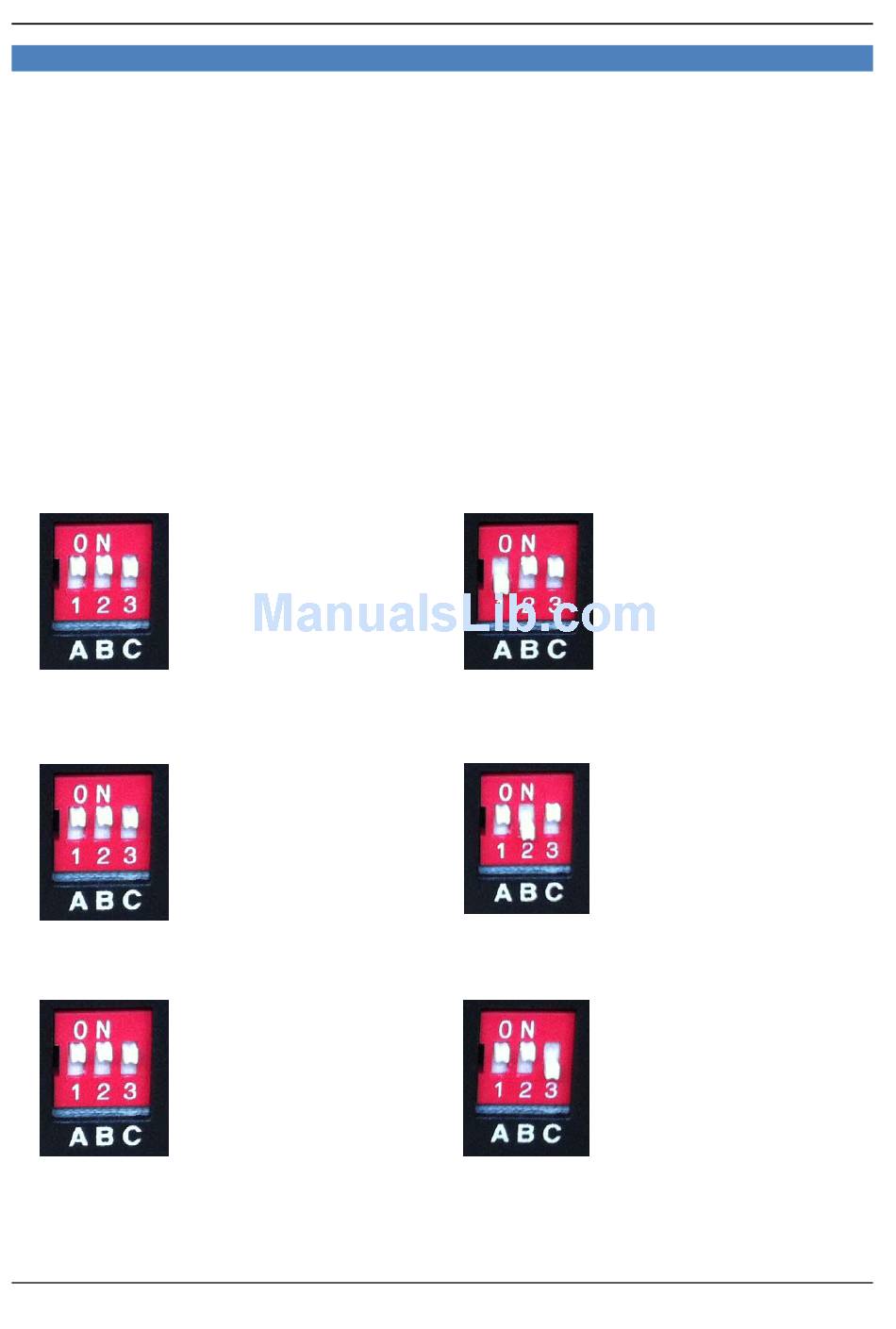

3.2 Control Settings

4.1 Switch No.1 : HDMI Audio Output ON/OFF
4.2 Switch No.2 : EDID setting
4.3 Switch No.3 : Select Internal EDID (when switch 2 is ON)
ON : HDMI Audio Output ON
ON : Internal EDID setting
ON : Select Multi CH audio EDID
PureLink by Dtrovision
OFF : HDMI Audio Output OFF
OFF : Display
(connected to HDMI Out)
EDID setting
OFF : Select 2 CH Audio EDID
