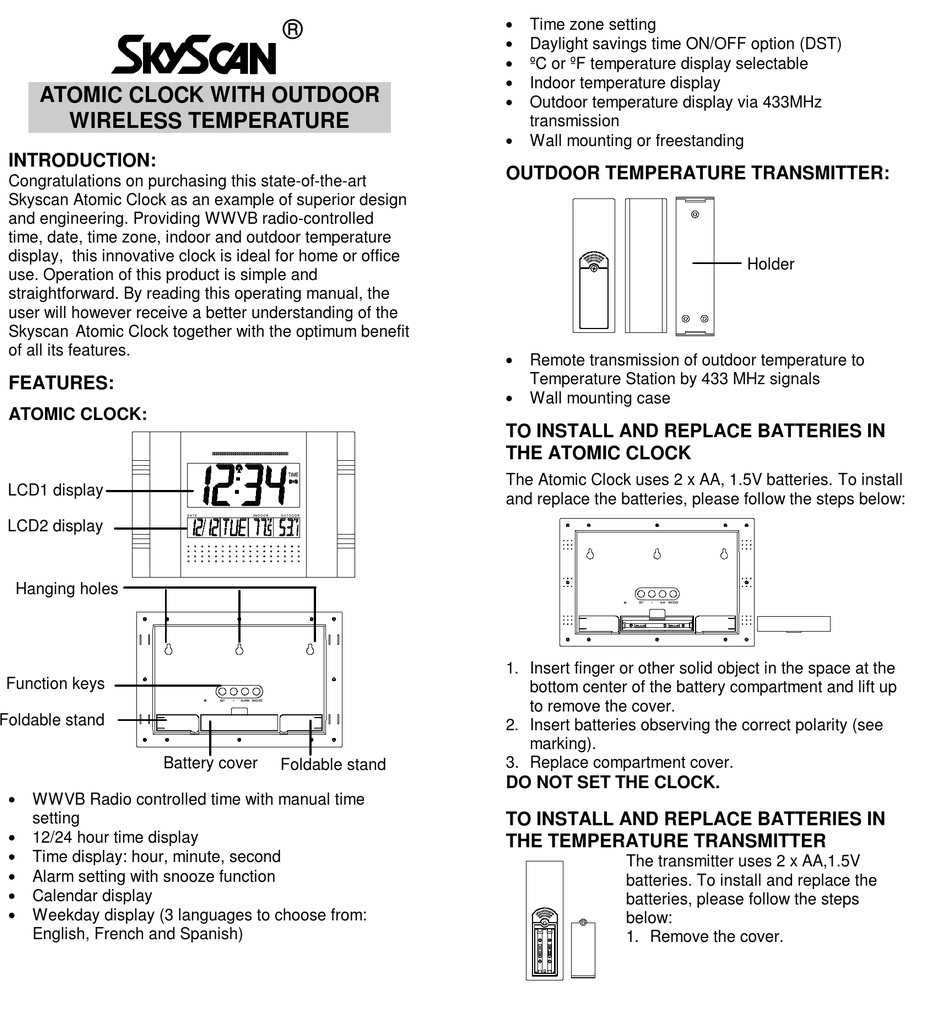

ATOMIC CLOCK WITH OUTDOOR
WIRELESS TEMPERATURE
INTRODUCTION:
Congratulations on purchasing this state-of-the-art
Skyscan Atomic Clock as an example of superior design
and engineering. Providing WWVB radio-controlled
time, date, time zone, indoor and outdoor temperature
display, this innovative clock is ideal for home or office
use. Operation of this product is simple and
straightforward. By reading this operating manual, the
user will however receive a better understanding of the
Skyscan Atomic Clock together with the optimum benefit
of all its features.
FEATURES:
ATOMIC CLOCK:
LCD1 display
LCD2 display
Hanging holes

Function keys
Foldable stand
Battery cover
• WWVB Radio controlled time with manual time
setting
• 12/24 hour time display
• Time display: hour, minute, second
• Alarm setting with snooze function
• Calendar display
• Weekday display (3 languages to choose from:
English, French and Spanish)
®

Foldable stand
• Time zone setting
• Daylight savings time ON/OFF option (DST)
• ºC or ºF temperature display selectable
• Indoor temperature display
• Outdoor temperature display via 433MHz
transmission
• Wall mounting or freestanding
OUTDOOR TEMPERATURE TRANSMITTER:
• Remote transmission of outdoor temperature to
Temperature Station by 433 MHz signals
• Wall mounting case
TO INSTALL AND REPLACE BATTERIES IN
THE ATOMIC CLOCK
The Atomic Clock uses 2 x AA, 1.5V batteries. To install
and replace the batteries, please follow the steps below:
1. Insert finger or other solid object in the space at the
bottom center of the battery compartment and lift up
to remove the cover.
2. Insert batteries observing the correct polarity (see
marking).
3. Replace compartment cover.
DO NOT SET THE CLOCK.
TO INSTALL AND REPLACE BATTERIES IN
THE TEMPERATURE TRANSMITTER
The transmitter uses 2 x AA,1.5V
batteries. To install and replace the
batteries, please follow the steps
below:
1. Remove the cover.
Holder

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 87310 and is the answer not in the manual?

Questions and answers

Summary of Contents for SkyScan 87310

  • Page 1 INTRODUCTION: OUTDOOR TEMPERATURE TRANSMITTER: Congratulations on purchasing this state-of-the-art Skyscan Atomic Clock as an example of superior design and engineering. Providing WWVB radio-controlled time, date, time zone, indoor and outdoor temperature display, this innovative clock is ideal for home or office Holder use.
  • Page 2: Function Keys

    In the event of changing batteries of the unit ensure that 1. Slide the battery cover open on the Skyscan Atomic the batteries do not spring free from the contacts. Clock as indicated above (see " To install and Always wait at least 30 seconds after removing the replace batteries in the Atomic Clock“...
  • Page 3: Wwvb Radio Controlled Time

    weakened. In extreme cases, please place the unit CHANGING THE DISPLAY MODE (DAY, close to a window and/ or point its front or back SECONDS, AND TEMPERATURES) towards the Fort Collins, Colorado, transmitter. There are three possible display modes to view the day, •...
  • Page 4 The month digits on LCD2 will start flashing. Set the MANUAL TIME SETTING desired month by use of the + key. In case the Skyscan Atomic Clock is not able to detect 2. Press the SET key to move to the mode “Date the WWVB-signal (disturbances, transmitting distance, Setting”.
  • Page 5 The temperature is measured and transmitted to the °C OR °F TEMPERATURE SETTING Skyscan Atomic Clock every 1 minute. The Atomic Clock 1. The characters “°C” or “°F” will start flashing on will update the temperature display every 5 minutes.
  • Page 6 3/16 of an inch (5mm) be reset (see Setting up). extended from the wall. POSITIONING 3) Place the Skyscan Atomic Clock onto the screws, using the hanging holes on the backside. Gently pull Note: the Atomic Clock down to lock the screws into place.
  • Page 7: Troubleshooting

    3) Remove the protective strip from the other side of the Skyscan Atomic Clock. Make tape. Position the Outdoor Temperature transmitter sure the clock is at a in the desired location, ensuring that the Skyscan receivable range from the Atomic Clock can receive the signal. transmitter.
  • Page 8: Liability Disclaimer

    Atomic Clock : 2 x AA, 1.5V batteries Transmitter: 2 x AA, 1.5V batteries Battery life: about 12 months MODEL 87310 Dimensions (L x W x H) Atomic Clock : 11.41“ x 0.98“ x 7.48“ / 290 x25 x190mm Transmitter: 2.57“ x 0.9“ x 5.04“ / 40 x 23 x 128 mm...
