SkyScan 86722 Instruction Manual

With outdoor wireless temperature
Hide thumbs
Table of Contents

Advertisement

Quick Links

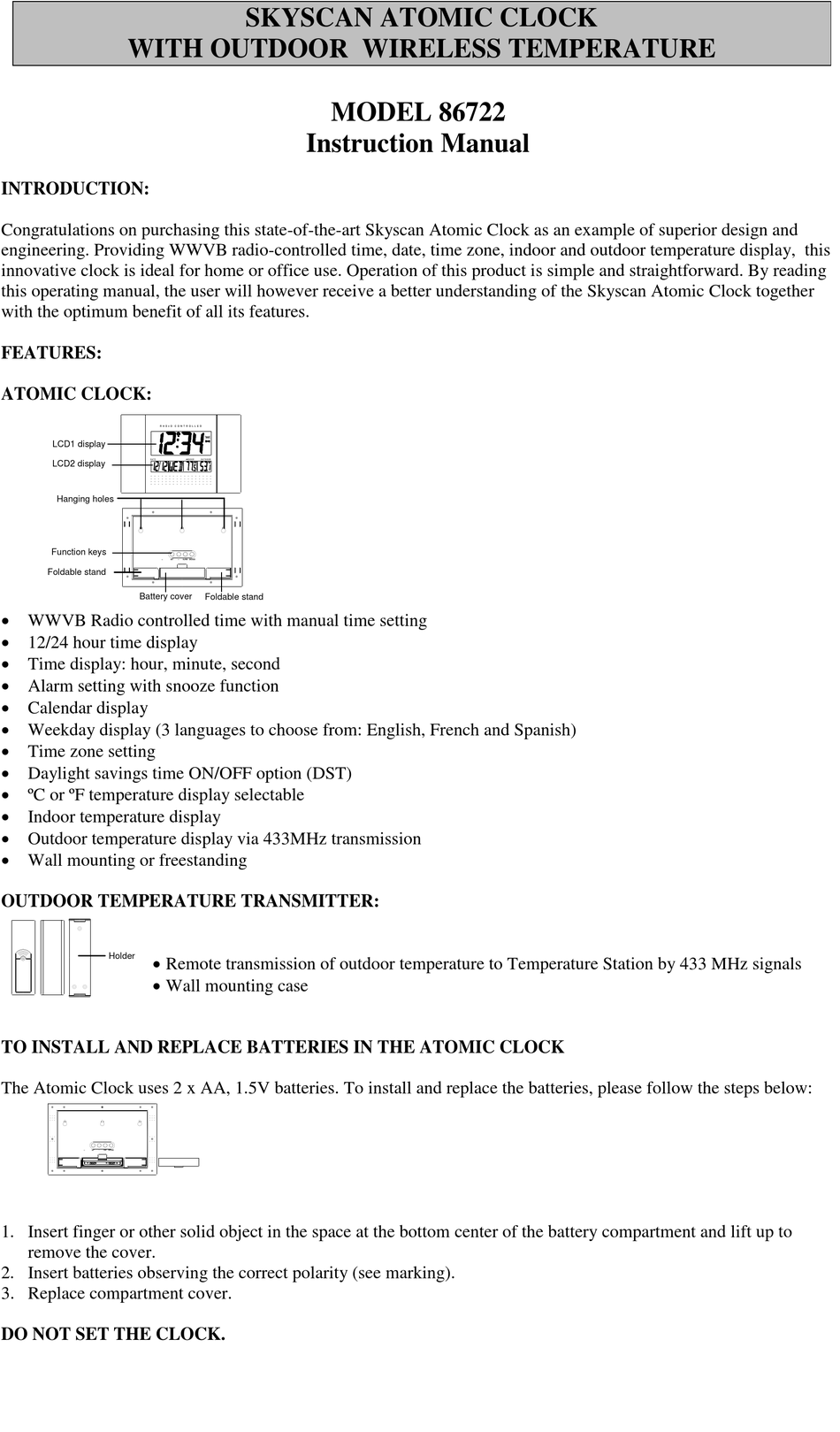

WITH OUTDOOR WIRELESS TEMPERATURE
INTRODUCTION:
Congratulations on purchasing this state-of-the-art Skyscan Atomic Clock as an example of superior design and
engineering. Providing WWVB radio-controlled time, date, time zone, indoor and outdoor temperature display, this
innovative clock is ideal for home or office use. Operation of this product is simple and straightforward. By reading
this operating manual, the user will however receive a better understanding of the Skyscan Atomic Clock together
with the optimum benefit of all its features.

FEATURES:

ATOMIC CLOCK:

LCD1 display
LCD2 display
Hanging holes
Foldable stand
Battery cover
 WWVB Radio controlled time with manual time setting
 12/24 hour time display
 Time display: hour, minute, second
 Alarm setting with snooze function
 Calendar display
 Weekday display (3 languages to choose from: English, French and Spanish)
 Time zone setting
 Daylight savings time ON/OFF option (DST)
 ºC or ºF temperature display selectable
 Indoor temperature display
 Outdoor temperature display via 433MHz transmission
 Wall mounting or freestanding

OUTDOOR TEMPERATURE TRANSMITTER:

 Remote transmission of outdoor temperature to Temperature Station by 433 MHz signals
Holder
 Wall mounting case

TO INSTALL AND REPLACE BATTERIES IN THE ATOMIC CLOCK

The Atomic Clock uses 2 x AA, 1.5V batteries. To install and replace the batteries, please follow the steps below:
1. Insert finger or other solid object in the space at the bottom center of the battery compartment and lift up to
remove the cover.
2. Insert batteries observing the correct polarity (see marking).
3. Replace compartment cover.
DO NOT SET THE CLOCK.
SKYSCAN ATOMIC CLOCK
MODEL 86722
Instruction Manual
Foldable stand

Advertisement

Table of Contents
loading

Related Manuals for SkyScan 86722

Summary of Contents for SkyScan 86722

  • Page 1 Operation of this product is simple and straightforward. By reading this operating manual, the user will however receive a better understanding of the Skyscan Atomic Clock together with the optimum benefit of all its features.

  • Page 2: Install Batteries In The Temperature Transmitter

    3. Replace the battery cover on the unit. SETTING UP: Do not set the clock until the outdoor temperature is displayed. 1. Slide the battery cover open on the SkyScan Atomic Clock as indicated above (see "To install and replace batteries in the Atomic Clock“ above).

  • Page 3: Atomic Clock Lcd Screen Descriptions

    ATOMIC CLOCK LCD SCREEN DESCRIPTIONS The Atomic Clock's LCD is divided into 2 sections and once the batteries are inserted, all the segments will light up briefly before displaying the information for time, date, indoor and outdoor temperatures. Radio reception icon WWVB Alarm icon time...
  • Page 4 MANUAL SETTINGS Note: If the Atomic Clock has already successfully received the WWVB time signal and displays the correct time and date, then the Manual settings can be omitted. After completion of the above described procedures in “Setting up” the manual setting modes can be entered by pressing the SET key.
  • Page 5 WWVB time reception takes place from 12:00 am through 6:00 am each day (attempts WWVB reception every full hour within this time frame). When the time signal is received for example at 1:00 am, the SkyScan Atomic Clock will not attempt to receive the WWVB signal for the remaining hours until 6:00 am. Therefore, the next signal attempt will take place between 12:00 am and 6:00 am the next day.
  • Page 6 The snooze can only be activated during alarm time for a snooze duration of 10 minutes. OUTDOOR TEMPERATURE TRANSMITTER: The temperature is measured and transmitted to the SkyScan Atomic Clock every 1 minute. The Atomic Clock will update the temperature display every 5 minutes.
  • Page 7 The foldout table stand legs are located on the backside, at the lower corners, and on both sides of the battery cover. The hinges are towards the edges of the SkyScan Atomic Clock, and the ends (with no hinge) need to be folded out towards the edge. Once the foldout table stands are extended, place the Atomic Clock in an appropriate location.
  • Page 8 Make sure the batteries are new and fresh. 2) Move the Atomic Clock closer to the transmitter or place the transmitter closer to the Skyscan Atomic Clock. Make sure the clock is at a receivable range from the transmitter.
  • Page 9 WARRANTY: This product is warranted to be free of defects in manufacturing for 90 days after purchase from Sams Club. This model is discontinued and not eligible for the manufacturer’s warranty. Defective clocks should be returned to the place of retail purchase. BATTERIES CHANGE: For best performance, batteries should be replaced at least once a year to maintain the best running accuracy.
