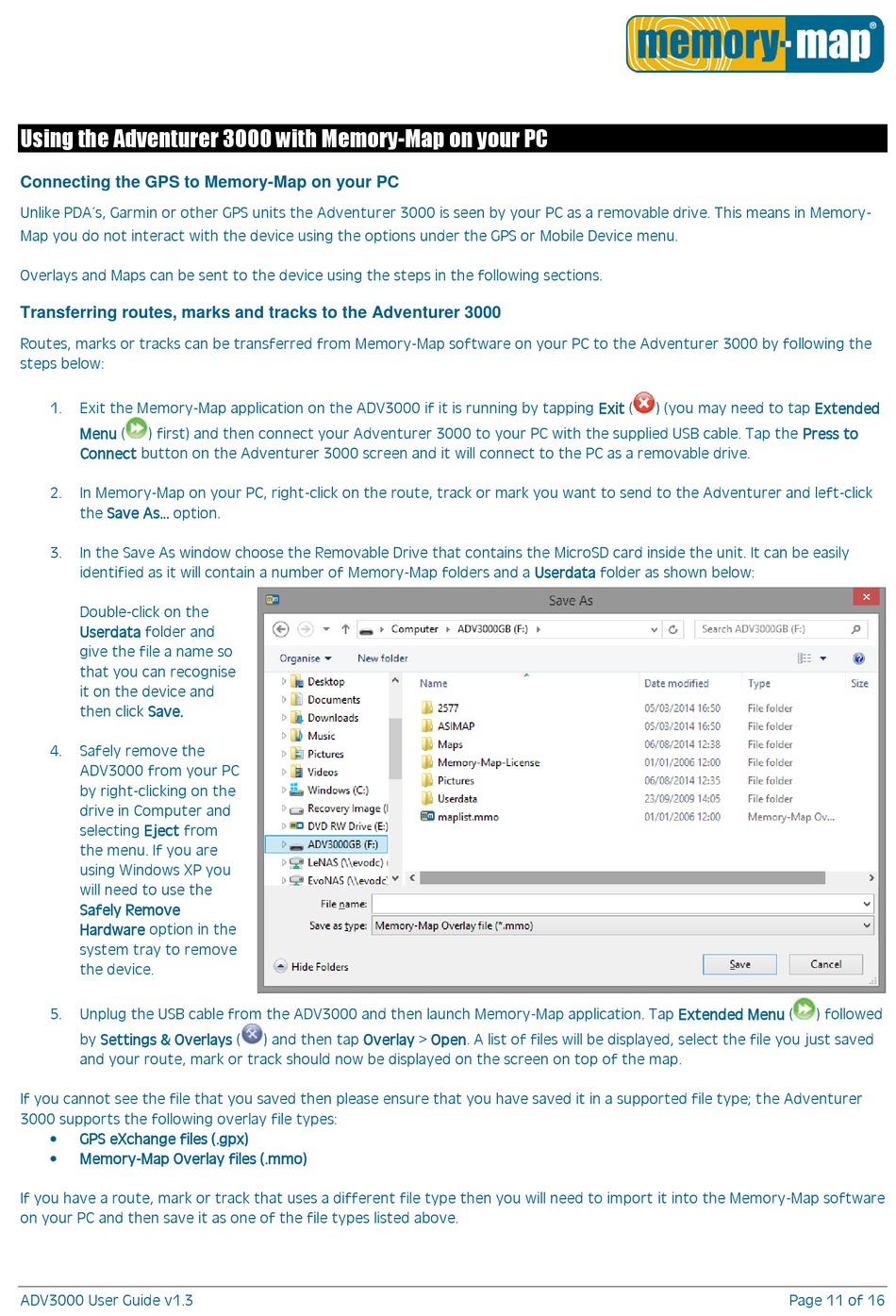

Using the Adventurer 3000 with Memory-Map on your PC

Connecting the GPS to Memory-Map on your PC

Unlike PDA's, Garmin or other GPS units the Adventurer 3000 is seen by your PC as a removable drive. This means in Memory-
Map you do not interact with the device using the options under the GPS or Mobile Device menu.
Overlays and Maps can be sent to the device using the steps in the following sections.

Transferring routes, marks and tracks to the Adventurer 3000

Routes, marks or tracks can be transferred from Memory-Map software on your PC to the Adventurer 3000 by following the
steps below:
1. Exit the Memory-Map application on the ADV3000 if it is running by tapping Exit (
Menu ( ) first) and then connect your Adventurer 3000 to your PC with the supplied USB cable. Tap the Press to
Connect button on the Adventurer 3000 screen and it will connect to the PC as a removable drive.
2. In Memory-Map on your PC, right-click on the route, track or mark you want to send to the Adventurer and left-click
the Save As... option.
3. In the Save As window choose the Removable Drive that contains the MicroSD card inside the unit. It can be easily
identified as it will contain a number of Memory-Map folders and a Userdata folder as shown below:
Double-click on the
Userdata folder and
give the file a name so
that you can recognise
it on the device and
then click Save.
4. Safely remove the
ADV3000 from your PC
by right-clicking on the
drive in Computer and
selecting Eject from
the menu. If you are
using Windows XP you
will need to use the
Safely Remove
Hardware option in the
system tray to remove
the device.
5. Unplug the USB cable from the ADV3000 and then launch Memory-Map application. Tap Extended Menu (
by Settings & Overlays (
and your route, mark or track should now be displayed on the screen on top of the map.
If you cannot see the file that you saved then please ensure that you have saved it in a supported file type; the Adventurer
3000 supports the following overlay file types:
 GPS eXchange files (.gpx)
 Memory-Map Overlay files (.mmo)
If you have a route, mark or track that uses a different file type then you will need to import it into the Memory-Map software
on your PC and then save it as one of the file types listed above.
ADV3000 User Guide v1.3
) and then tap Overlay > Open. A list of files will be displayed, select the file you just saved
) (you may need to tap Extended
) followed
Page 11 of 16
