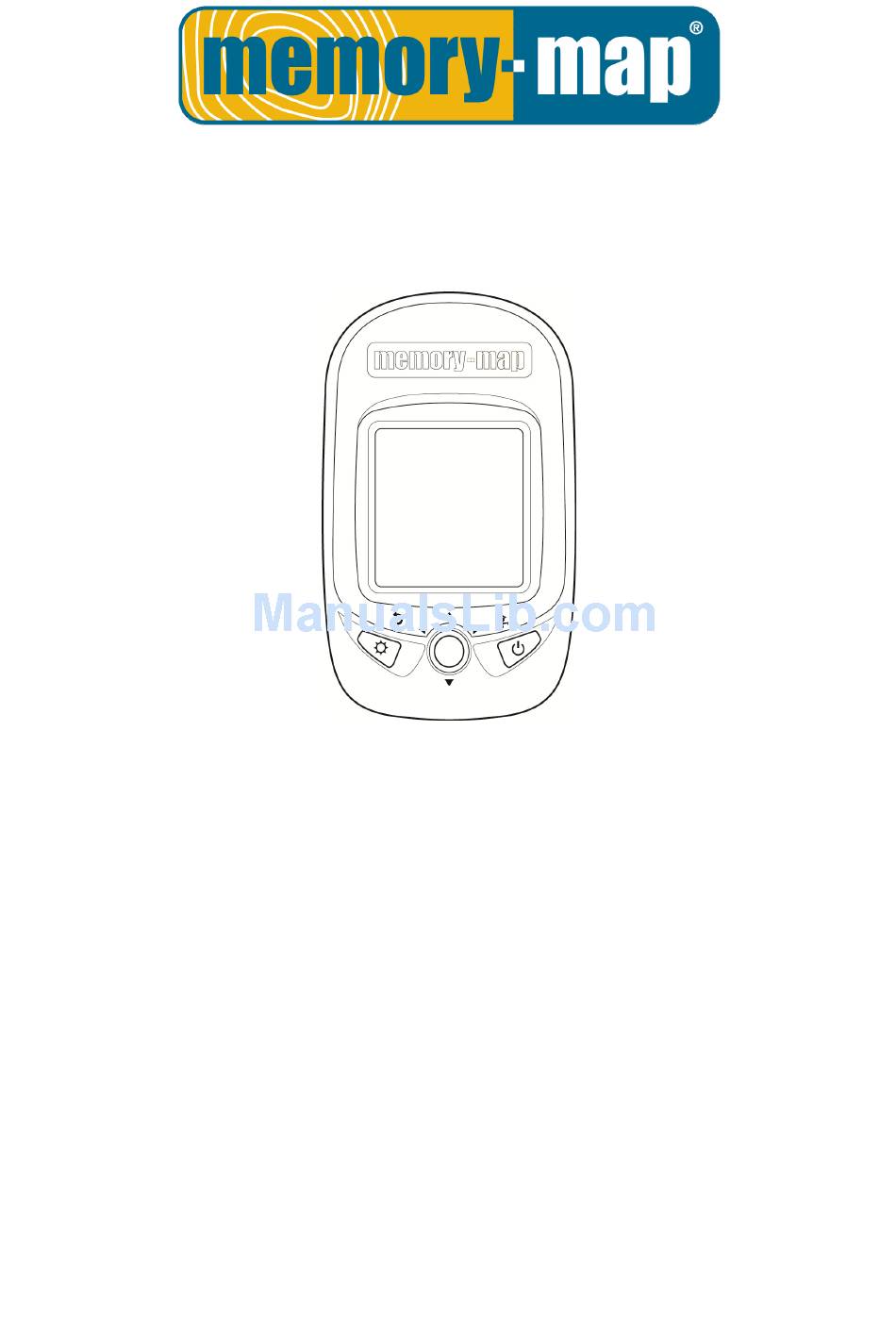

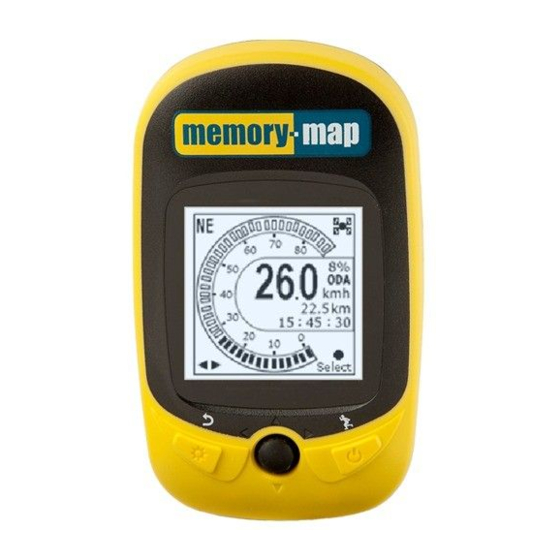

  • Page 1 Bike 270 Pro User Guide.

  • Page 2: Safety Precautions

    Warranty Information. The Memory-Map Bike 270 Pro is warranted to be free from defects in material and functions for a period of one year from the date of purchase. If there is a product failure of within this period (under normal conditions), a replacement will be provided at no charge to the customer.

  • Page 3: Table Of Contents

    Table of Contents. Introduction..................................5  .................... 6  EATURES ................. 7  ARTS AND UNCTIONS ..............8  TANDARD CCESSORIES ..............8  PTIONAL CCESSORIES ............... 9  HARGING THE ATTERY Using the AC Charger ..............9  ............... 9  NSTALLING OUNT ..............
  • Page 4 Basic Operation without Setting ............. 42  Speed Meter .................. 42  ..................43  TATUS CONS Setting Up Memory-Map Bike 270 Pro........................44  ..................44  UICK ETUP Sport Mode ..................44  ....................45  LERT To Set Alerts ................... 45 ...
  • Page 5 Odometer ..................60  GPS ....................60  Signal ..................... 60 Cold Start ..................61 Reset Device .................. 61  About ezPlanner Plus and ezPlanner........................... 62  ..............62  UNCTIONS OF EZ LANNER ............62  EATURES OF EZ LANNER Normal Care and Maintenance............................ 63  Specifications.

  • Page 6: Introduction

    Introduction. Thank you for purchasing the Memory-Map Bike 270 Pro. The Memory-Map Bike 270 Pro comes with a sturdy feel and shape and is packed with great features. In addition, it is compatible with an optional ANT+ heart rate monitor straps, ANT+ bike cadence sensors and ANT+ bike speed sensors for anyone who wants to have in-depth analysis on their rides and accordingly sharpen their outdoor performance.

  • Page 7: Features

    Features. ● GPS positioning ● Follow course: Allow users to plan routes at home and download routes to the device! ● BMI calculation ● Automatic page flipping ● Auto power off after a specified interval with no signal ● Multi Finder can record up to 20 locations and supports return-to -starting-point ●...

  • Page 8: Parts And Functions

    Parts and Functions. Front View 1.5’’ LCD screen Backlight Power/ Exit Start/Pause OK/Up/ Down/ Right/ Left button Rear View Mini USB Port Button Name Icon Function Power button Press to pause/ resume log when the device is turned on. Press for 3 seconds to power on/off the unit. Exit Exit to previous level of menu Backlight...

  • Page 9: Standard Accessories

    Standard Accessories. Please make sure the following accessories are included in the box. Please contact your supplier immediately if there are any missing items. Memory-Map Bike 270 Pro Bicycle Mounting Kit Quick Guide USB cable Optional Accessories. ANT+ Heart Rate Monitor...

  • Page 10: Charging The Battery

    Charging the Battery. Using the AC Charger 1. Plug the mini USB plug of the AC charger into the mini USB port at the back of the Memory-Map Bike 270 Pro. 2. Plug the AC charger into a wall outlet.
  • Page 11 3. Place the rubber pad under the bike mount and attach the bike mount securely to the bike stem using the two cable ties. 4. Slide in the GPS on top of the bike mount until it snaps into place. Press here to release the device Note: Cable ties are reusable - 10 -...

  • Page 12: Downloading Track Logs

    Downloading Track Logs To download the recorded track log and view it on your computer, firstly you will need to install the bundled ezPlanner Plus. Installing ezPlanner Plus 1. Download the PC ezPlanner software from snooperneo.co.uk. Follow the on-screen directions, saving the software to a PC or run.
  • Page 13 Click Finish to exit the wizard. - 12 -...

  • Page 14: Starting Ezplanner Plus

    Starting ezPlanner Plus Once the ezPlanner Plus is well installed in your computer, the ezPlanner Plus icon will appear on your desktop as a shortcut. Double-click the icon to start ezPlanner Plus. The following opening screen appears and you are ready to use the software. For details, please refer to the included ezPlanner Plus user manual.

  • Page 15: Connecting To A Pc

    Connecting to a PC After the ezPlanner Plus is installed, you can now connect your Bike 270 Pro to your computer to download the recorded track log. Use the included mini USB cable to connect the Memory-Map Bike 270 Pro with your computer as described below.

  • Page 16: Introduction Of 9 Function Modes

    Introduction of 9 Function Modes Main Menu The main menu appears when the device is turned on by pressing the power button. 9 operation modes are displayed in the main menu including Sport, Plot, Follow Course, Training, Multiple Finder, Pedometer, Compass, History and Setting modes.
  • Page 17 Sub Page 1 Speed & Distance: Displays current speed and distance. Sub Page 2 Altitude and Trip Time: Displays barometer altitude and the variation since the log started. Altitude reading is indicated on Barometer altitude and is displayed as . If users want to have the GPS altitude which will be displayed as , they can set it through user definable pages on Sub Page 4 or 5.
  • Page 18 Sub Page 5 Carbon Saving: Displays amount of carbon dioxide emissions avoided or number of trees planted by not driving in one journey. This 5 way button icon shown on this page means the information shown on this page can be determined by users. Move the Up/ Down button to select the information to be displayed on Top or Bottom.
  • Page 19 User Defined Screen Listed below are user defined screens of all combination. - 18 -...

  • Page 20: Plot Mode

    Plot Mode. Plot mode shows track log in graph and in real time display without interruption. The real time transectional plot shows four units of sport information including:  Altitude + Time  Altitude + Distance  Speed + Time ...
  • Page 21 Zoom Mode Zoom out /Zoom in Back to View Mode Show POI. Press again to disable the function. POI name will be displayed in the language edited in ezPlanner. Plot Mode Display Altitude/Speed plot The following x- and y-axis combinations are available: ...
  • Page 22 Select to toggle between Hide Track and Show Track. Information varies as it displays real-time sport information. - 21 -...

  • Page 23: Follow Course Mode

    To follow course, tracks can be acquired from one of the following methods: 1. Plan your routes with ezPlanner and then send it from the PC to Memory-Map Bike 270 Pro. Please refer to the ezPlanner user manual for details.
  • Page 24 Follow course from history logs History List Displays the tracks logs currently stored on the Memory-Map Bike 270 Pro. Track details: All history logs are listed in time order followed by track distance. Move the up and down cursor to select the log. Press the OK button to review the log in details.
  • Page 25 Check Points Preview all checkpoints and the details of check points in one track. When a check point is selected, you will be prompted to confirm if the selected check point is the starting point to follow. Press the OK button  to confirm.
  • Page 26 Show track on Plot Mode. View Track Course in Track View Shows Check Points on track; Zoom in / out for the loaded track. Press the  button to enter/toggle between the Zoom & Pan mode - 25 -...

  • Page 27: Training

    Training. The Memory-Map Bike 270 Pro provides two kinds of training features including HRM (Heart Rate Monitor) and Cadence to notify users when a pre-determined setting is exceeded or fallen behind. Training - HRM HRM is set to notify users with alarm when the heart rate exceeds or falls behind a specific range of heart rates per minutes.

  • Page 28: Training Time

    activate/deactivate the Cadence sensor. Go to Setting  Wireless Link  Activate ANT+ Devices  Cadence. Cadence range can be selected from default list or can be defined by users. See illustration below. Select Cadence range from list: Define Cadence range by user: Training Time Users can set Training Time when they want to workout for certain period of time.

  • Page 29: Start Training

    When the goal of training time is reached, a message prompts to show the training is to finish. When you select Start Training, a warning message prompts to notify you that current track logs will save and cleared. A new log will start. You can disable the message prompt by checking the box.
  • Page 30 The icon of HRM/Cadence or Speed varies according to the status of the corresponding sensor. (i). The icon flashes and is displayed steadily to indicate the corresponding sensor is well connected; (ii). The icon freezes when the corresponding sensor signal is lost for a short period of time.
  • Page 31 To view training summary in plot, press OK button  to choose among After entering the plot mode, you can press the modes of different combination, for example, HRM + Time, HRM + Distance, Cadence + Time or Cadence + Distance. The default mode is HRM+Time.

  • Page 32: Multi Finder Mode

    Multi Finder Mode. The Multiple Finder Mode shows the direction to the start of the track and leads you back to the starting point; alternatively, enter the coordinates for the destination to be guided by direction and distance.  TripStart auto memorized your first GPS fixing location. This cannot be edited or changed by users.
  • Page 33 Set Points Save current coordinates to a Finder point on the List. Show Displays the coordinates of current location and the destination. - 32 -...

  • Page 34: Pedometer Mode

    2. Log recording continues when Pedometer is working. Enter this mode, input your stride length and press OK. While working as a pedometer, the Memory-Map Bike 270 Pro needs no GPS signal to calculate distance. Distance is calculated on the basis of steps timing stride length.

  • Page 35: Compass Mode

    Compass Mode. Works as a regular magnetic compass Shows direction mark with degree and current coordinates Push CAL to calibrate compass - 34 -...

  • Page 36: Setting Mode

    Setting Mode. Setting Menu Quick Setup Quick setup allows you to select sport type, set user weight and select Odometer. Alert The Alert function can be set for time, speed, distance and altitude. Calibration Calibration is needed at the start of each activity’s log. - 35 -...
  • Page 37 The Memory-Map Bike 270 Pro is set to automatically start logging user’s track once it is turned on. Users can also set the log interval by pre-determined time or distance. Wireless Link The Memory-Map Bike 270 Pro uses ANT+ wireless technology to...

  • Page 38: History Mode

    History Mode. History shows track details including speed, time, distance, altitude, check points, calories consumed, and CO2 reduced. Displays total number of tracks. Tracks can also be set as Favorite. Track List displays all history track logs with track time and distance listed by order of time.
  • Page 39 Track statistics. Use the left and right buttons to switch between different intervals (1, 2, 3, 4, 5, 6, 7, 10, 12 days, 2 weeks, 1 month, and all.) - 38 -...

  • Page 40: Getting Started

    OK button again. Initial Setup. Please perform the initial setup for the very first time use of Memory-Map Bike 270 Pro. If the Memory-Map Bike 270 Pro is reset, the Initial Setup will automatically start when users turn on the device.

  • Page 41: Starting/Stopping Logging

    Starting/Stopping Logging. Auto-Start Logging The Memory-Map Bike 270 Pro is set to automatically log your track once it is turned on. To pause logging during activity, just press the Power button and the icon “ ” will be replaced by pause icon “...

  • Page 42: Basic Operation

    Basic Operation. Quick Menu Press concurrently, the quick menu appears for fast setup including: enter Main Menu, Save POI, Pause Log, Save & Clear (log), and QR Code, Lock Keys and Activate 2.4G. Save POI Save coordinates as POI (waypoint) Pause Log Pause track logging.

  • Page 43: Basic Operation Without Setting

    Basic Operation without Setting The Memory-Map Bike 270 Pro is designed to automatically log once it is on and GPS signal is received. Select Sport Mode from the main menu and the default first page Speed Meter appears. You are ready to use the basic function of this device.

  • Page 44: Status Icons

    Status Icons. The status icons indicates Sport mode, Compass icon, POI, Backlight, Satellite Status, Memory Mode and Battery. Sport mode icons: Bicycle mode Running mode Walking mode Vehicle mode Track Log icons: Track currently being logged Track currently not being logged Compass icons: The black arrow always points north The compass needs calibrating...

  • Page 45: Setting Up Memory-Map Bike 270 Pro

    Setting Up Memory-Map Bike 270 Pro. Quick Setup. User-friendly Quick setup function allows you to quickly setup most common settings. Press the Menu button to enter Main Menu and choose Quick Setup to begin. Q1. Sport Mode appears. Sport Mode Use the Up/Down button to move to the desired sport mode.

  • Page 46: Alert

    8. Press the OK button  when finish. 9. Return to the main menu. Press the Power Key to start. Alert. The Alert function can be set for time, speed, distance and altitude.  Time Alert - appears only when the pre-determined time is reached. ...

  • Page 47: To Set Time Alert

    To Set Time Alert Press the Left/Right button to move to left/right. Press the Up/Down button to adjust the value. Press the OK  button to confirm. iii. Press the Up/Down  (Y) / (N) button to check  Enable or leave it blank. iv.

  • Page 48: To Set Altitude Alert

    Without calibration, the 3D compass may have inaccurate readings. As for barometer calibration, the Memory-Map Bike 270 Pro provides two methods for users to calibrate, i.e. Auto calibration and Manual calibration.

  • Page 49: Altimeter Calibration

    A barometer is an instrument for determining the pressure generated by the weight of the atmosphere. Users can use their Bike 270 Pro to determine their immediate altitude and altitude gained/lost. Barometer calibration is set to be automatically performed by default. However, users can set the device to be manually calibrated.

  • Page 50: Compass Calibration

    Compass Calibration  Main Menu Setting  Calibration  Compass Press the OK button  to calibrate the compass. Step 1. Hold the compass level with the horizon. Make sure that you are not near any metallic or magnetic objects. Press the OK button.

  • Page 51: Log

    Memory-Map Bike 270 Pro is not logging. Bike 270 Pro checked again in another 5 seconds. The total distance then is 16 meters long, so it logs and one waypoint is recorded. The device resets the counter and measures the distance and time again.

  • Page 52: Auto-Start (Logging)

    1 to 1000 (m). Auto-Start (Logging) Auto-Start means the Memory-Map Bike 270 Pro will automatically start to log once the satellite signal is well received. User can enable/disable the auto logging by entering Setting Log Auto Start Yes/No...

  • Page 53: Wireless Link

    Users have to activate the Memory-Map Bike 270 Pro wireless link before they connect the Memory-Map Bike 270 Pro with sport sensors. If the wireless link is not yet activated, the setting menu displays “Activate” for selection, otherwise, “Deactivate” is displayed when the device is active.

  • Page 54: Connect And Detect

    Or the message of “Device Not Detected” appears. The Memory-Map Bike 270 Pro can connect up to 3 sensors of different kinds at a time, namely, one HRM, one Speed sensor, and one Cadence sensor can be connected concurrently. If a sport device is detected, a message appears as shown.

  • Page 55: About Wheel Size

    About Wheel Size The Memory-Map Bike 270 Pro comes with a speed sensor that reads the speed of your bike wheel rotation. Distance between two points during your workout is thus measured if your bike wheel size is also properly entered.
  • Page 56 Measuring Circumference If your wheel size is not listed on the Memory-Map Bike 270 Pro for selection, you can go to User Define to manually enter your circumference. To measure your circumference, choose Method A or B and follow the steps described and illustrated below.

  • Page 57: General (Setting)

    General (Setting). User Profile Users profile includes User’s age (Birth year), Weight and Height. Once the above information is entered, user’s BMI (Body Mass Index) value is determined. Refer to the following table for BMI categories. Body mass index by category Category Underweight Below 18.5...

  • Page 58: Auto Flip Page

    “Full Stop”. Press the Up/Down button to select. Auto Power Off The Memory-Map Bike 270 Pro can be set to be automatically powered off when there’s no GPS signal being detected for 15 minutes, 30 minutes, 1 hour, or 2 hours.

  • Page 59: System Setting

    System Setting. Delete all log Select “Delete all log” will empty the internal memory and all recorded log data will be removed. Time Format System  Time Format Select format “24 hours” and “12 hours”. Time Zone System  Time Zone Press the up and down button to select.

  • Page 60: Unit

    Unit Unit Conversion converts units of Speed/Distance, Weight and Temperature. Speed/Distance System  Unit  Speed/Distance Select “Distance/Speed” to choose metric as “km/m/kmh”, imperial as “mi/ft/mph” or nautical as “kt/nm”. Weight System  Unit  Weight Select “weight” to choose metric as “Kilogram/kg”, or imperial as “Pound/lb”. Language - 59 -...

  • Page 61: Lcd Contrast

    LCD Contrast LCD contrast can be adjusted in the LCD Contrast. Press the Up/Down button to select. Odometer You can save trip information in Odometer A or Odometer B. The default is Odometer A. The value of both odometers can be reset or modified. ...

  • Page 62: Cold Start

    Cold Start Setting  GPS  Cold Start Users are recommended to perform Cold Start when they travel for a long distance within a short period of time, say flying from Asia to Europe, for the GPS receiver may have problem to receive information about the current time, the orbits of the satellites or its own current position with previous GPS acquired.

  • Page 63: About Ezplanner Plus And Ezplanner

    User define Placemark to plan the rest point at home  Automatically show earth elevation as soon as the route is completed!  Able to synchronize the route to Memory-Map Bike 270 Pro  Import/Export .gpx .kml files for other usages ...

  • Page 64: Normal Care And Maintenance

    Normal Care and Maintenance. To ensure the unit’s normal operation and extended life span, please note the following while using and storing:  Do not drop the unit If violently impacted or shocked, serious damage may be caused.  Avoid sudden temperature changes Condensation may occur when entering a warm room on a cold day.

  • Page 65: Specifications

    Specifications. GPS Chip Chipset: MTK 3329 Dimensions 81.7x 54x 22 mm Weight Battery Rechargeable 1050 mAh lithium battery Power DC5V/1A Button 2 buttons : Menu / Power + 5 Direction keys Antenna Built-in patch antenna IO Interface Mini USB Display High-contrast electro-luminescent backlit display, 4-level grayscale LCD.

  • Page 66: Service Under Warranty

    Service under Warranty. Your device comes with a standard one year manufacturer’s warranty. For help and support please visit snooperneo.co.uk or call 0333 240 1000. If, for some reason, your unit requires service under warranty return your device, via special delivery (insured) and in suitable packaging to: The Returns Department, Performance Products Limited, Cleaver House, Sarus Court, Manor Park, Cheshire WA7 1UL...
