NetAlert NetMeter User Manual page 5

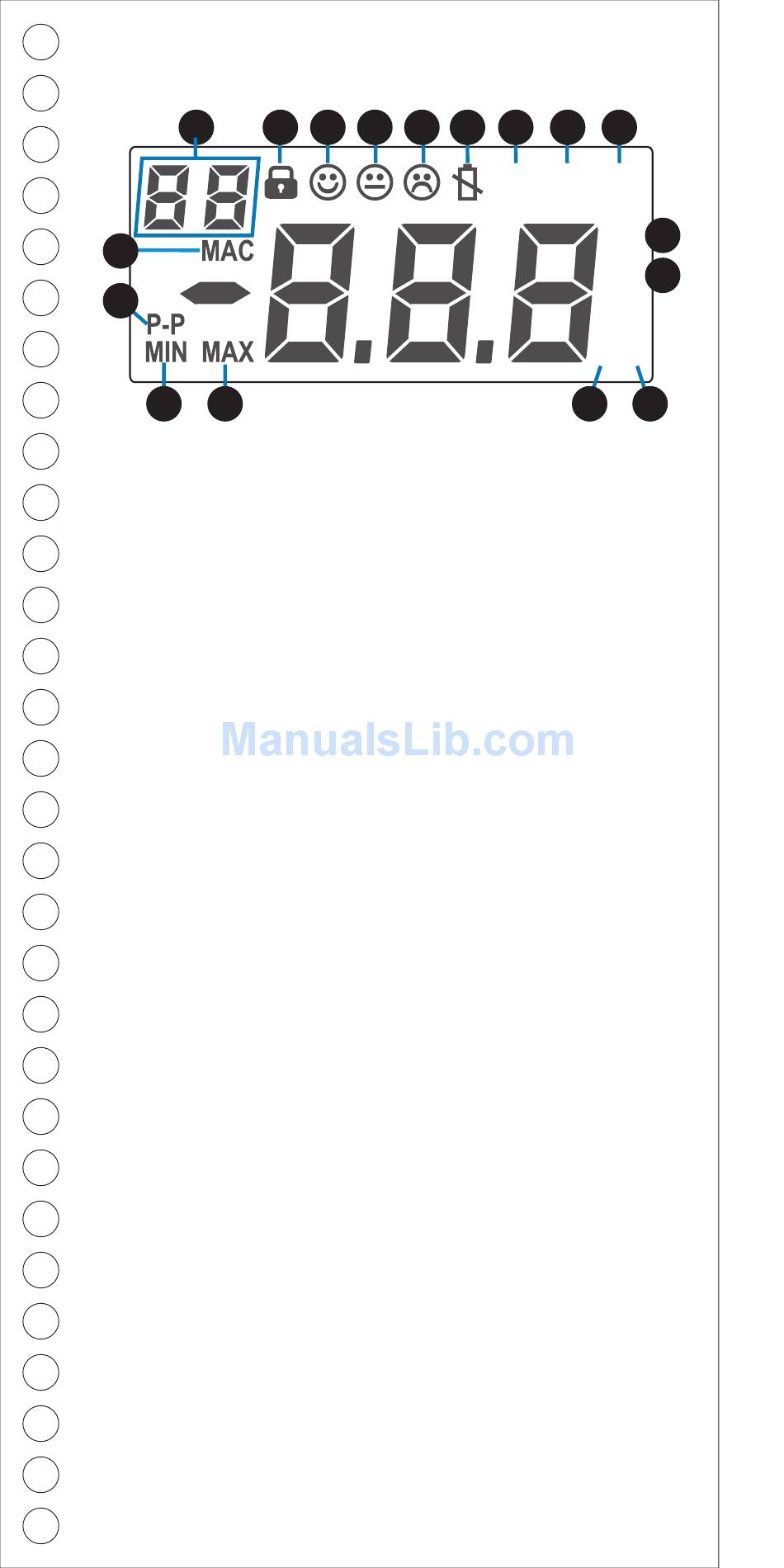

Display
1
17
16
15 14
1 Network MAC ID (node #) or NetMeter switch
setting number (AutoSearch)
2 Display locked indicator ("lock" switch is on)
3 Measurement displayed is acceptable
4 Measurement displayed is marginal
5 Measurement displayed is unacceptable
6 Battery low - stored measurements may be lost
7 125 Kbaud network activity detected
8 250 Kbaud network activity detected
9 500 Kbaud network activity detected
10 Measurement unit is % bandwidth
11 Measurement unit is errors / messages per second
12 Measurement unit is volts
13 Measurement displayed is in thousands (kilo)
14 Measurement displayed is a maximum value
15 Measurement displayed is a minimum value
16
Measurement
17 Displayed when viewing measurements for a
particular MAC ID. Not displayed in AutoSearch
mode when the value shown in the top left corner is
a switch position.
If none of MIN, MAX or P-P are shown then the
*
value displayed is a "live" measurement, or the most
recent "Live" measurement if the "lock" switch is on.
2 3 4 5
displayed is a
6 7 8
125 250 500
13
peak-to-peak value
9
10
%
11
/S
K V
12
5
