Using the NetMeter

Viewing Measurements

Each selector switch position accesses a different bus
measurement, and each supports several different
measurement types.
Pressing cycles the display through the different
measurements available at each switch position.
Some measurements allow a detailed view for each
MAC ID. Press
MAC IDs. Press
overall network view

Display Lock

To lock measurements for offline viewing move the lock
switch to the
restart bus analysis move the lock switch to "Run".
Stored values are retained indefinitely, providing the lock
switch is left in the
good - even if the meter is turned off.
Resetting Min/Max Measurements
The NetMeter is reset (Min/Max and other stored
measurements cleared) when the Lock switch is moved
to the "Run" position, and when the power switch is
turned On while the Lock switch is in the "Run" position.
You may reset stored measurements by either turning
the meter off and on again, or by moving the Lock switch
to and back to "Run".

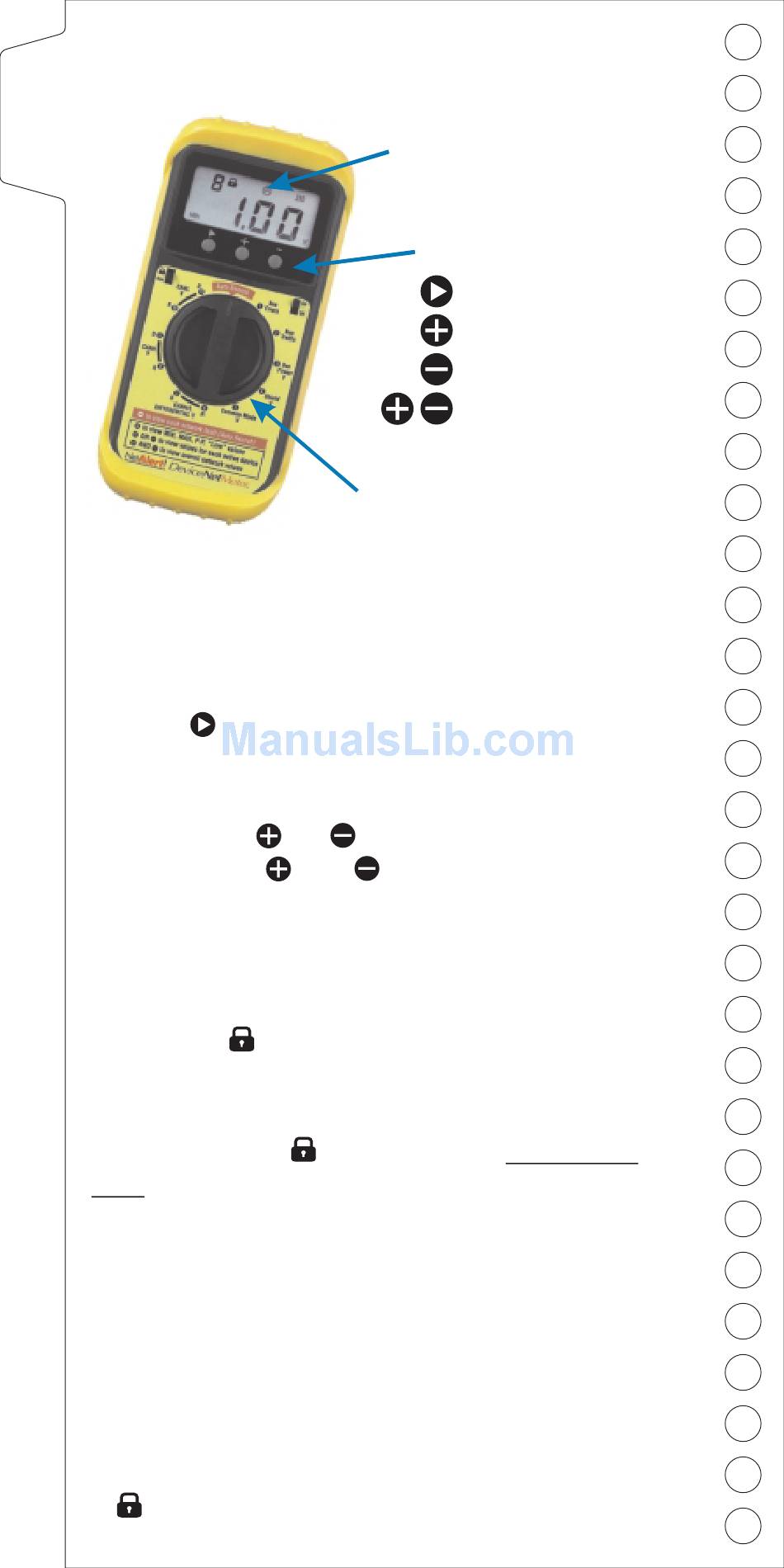

LCD Display

Selector switch
OR to cycle through the active
AND together to return to the
position. To erase
position, and the
Pushbuttons
Next measurement
Next MACID
Previous MACID
Return to Network
View (push at the
same time)
stored values and
batteries are
