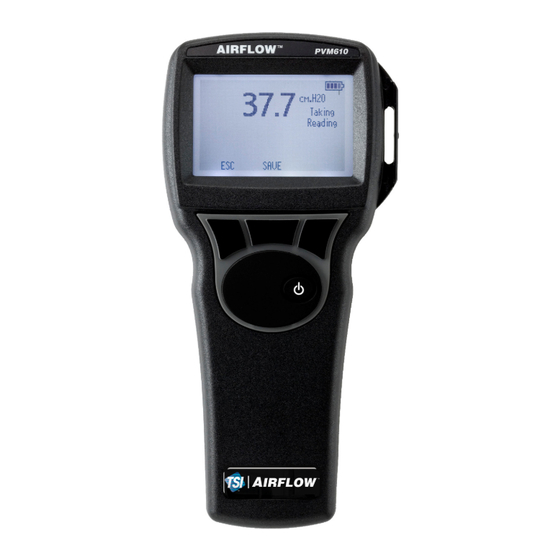

- Page 1 Ventilation Testing Micromanometer Alnor Model AXD610 ® Model PVM610 IRFLOW Operation and Service Manual...
- Page 2 Copyright© TSI Incorporated / 2007-2008 / All rights reserved. Address TSI Incorporated / 500 Cardigan Road / Shoreview, MN 55126 / USA Fax No. (651) 490-3824 LIMITATION OF WARRANTY AND LIABILITY (effective July 2000) Seller warrants the goods sold hereunder, under normal use and service as described in the operator's manual, shall be free from defects in workmanship and material for twenty-four (24) months, or the length of time specified in the operator's manual, from the date of shipment to the customer.
-
Page 3: Table Of Contents
CONTENTS CHAPTER 1 UNPACKING AND PARTS IDENTIFICATION .... 1 CHAPTER 2 SETTING-UP..............3 Supplying Power to the Alnor AXD610/A PVM610 ..... 3 IRFLOW Installing the Batteries ...............3 CHAPTER 3 OPERATION ..............5 Keypad Functions ................5 CHAPTER 4 MAINTENANCE............7 Recalibration...................7 Cases....................7... -
Page 5: Chapter 1 Unpacking And Parts Identification
Chapter 1 Unpacking and Parts Identification Carefully unpack the instrument and accessories from the shipping container. Check the individual parts against the list of components below. If anything is missing or damaged, notify TSI immediately. 1. Carrying case 2. Instrument... -
Page 7: Chapter 2 Setting-Up
Installing the Batteries Insert four AA batteries as indicated by the diagram located on the inside of the battery compartment. The Alnor AXD610/A IRFLOW PVM610 is designed to operate with either alkaline or NiMH rechargeable batteries, although it will not recharge NiMH batteries. -
Page 9: Chapter 3 Operation
Chapter 3 Operation Keypad Functions ON/OFF Key Press to turn the Alnor AXD610/A IRFLOW PVM610 on and off. During the power up sequence the display will show the following: Model Number, Serial Number, Software Revision and Last Date Calibrated. Pressing this key changes the display to read air ft/min / m/s Key velocity, converted from. -
Page 11: Chapter 4 Maintenance
IRFLOW keep it performing well. Recalibration To maintain a high degree of accuracy in your measurements, we recommend that you return your Alnor AXD610/A PVM610 to TSI IRFLOW for annual recalibration. Please contact one of TSI’s offices or your local distributor to make service arrangements and to receive a Return Material Authorization (RMA) number. -
Page 13: Chapter 5 Troubleshooting
Chapter 5 Troubleshooting Table 5-1 lists the symptoms, possible causes, and recommended solutions for common problems encountered with the Alnor AXD610/A IRFLOW PVM610. If your symptom is not listed, or if none of the solutions solves your problem, please contact TSI. -
Page 15: Appendix A Specifications
Appendix A Specifications Specifications are subject to change without notice. Static/Differential Pressure: Range -15 to +15 in. H O (-28.0 to +28.0 mm Hg, -3735 to +3735 Pa) Accuracy: ±1% of reading ±0.005 in. H O (±0.01 mm Hg, ±1 Pa) Resolution: 0.001 in. - Page 16 TSI Incorporated TSI Instruments Ltd. 500 Cardigan Road Stirling Road Shoreview, MN 55126 USA Cressex Business Park Toll Free (800) 874-2811 High Wycombe Telephone (651) 490-2811 Bucks Fax: (651) 490-3824 HP12 3RT United Kingdom Tel: +44 (0) 149 4 459200 E-mail: customerservice@alnor.com Fax: +44 (0) 149 4 459700...
