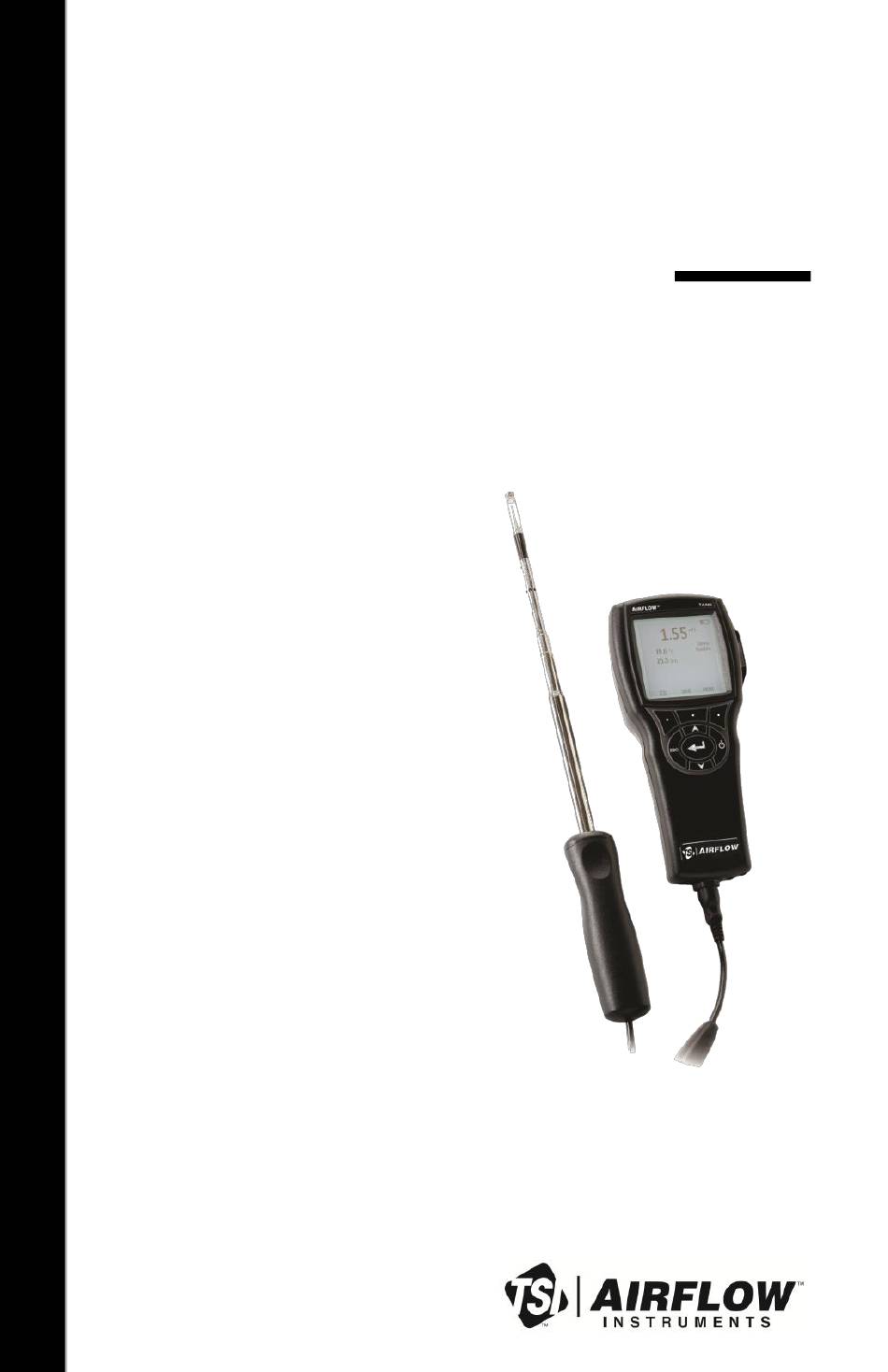

AIRFLOW™ INSTRUMENTS
AIR VELOCITY METER
MODEL TA465
OPERATION AND SERVICE MANUAL
P/N 6005359, REV D
OCTOBER 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TA465 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Airflow TA465

Summary of Contents for Airflow TA465

  • Page 1 AIRFLOW™ INSTRUMENTS AIR VELOCITY METER MODEL TA465 OPERATION AND SERVICE MANUAL P/N 6005359, REV D OCTOBER 2014...
  • Page 3 Copyright TSI Incorporated / 2011-2014 / All rights reserved. Address TSI Incorporated / 500 Cardigan Road / Shoreview, MN 55126 / USA Fax No. (651) 490-3824 Limitation Of Warranty And Liability (effective April 2014) (For country-specific terms and conditions outside of the USA, please visit www.tsi.com.) Seller warrants the goods, excluding software, sold hereunder, under normal use and service as described in the operator's manual, to be free from defects in workmanship and material for 24 months, or if less, the length of time specified in the operator's...
  • Page 4 OTHERWISE) SHALL BE THE RETURN OF GOODS TO SELLER AND THE REFUND OF THE PURCHASE PRICE, OR, AT THE OPTION OF SELLER, THE REPAIR OR REPLACEMENT OF THE GOODS. IN THE CASE OF SOFTWARE, SELLER WILL REPAIR OR REPLACE DEFECTIVE SOFTWARE OR IF UNABLE TO DO SO, WILL REFUND THE PURCHASE PRICE OF THE SOFTWARE.

  • Page 5: Table Of Contents

    CONTENTS CHAPTER 1 UNPACKING AND PARTS IDENTIFICATION .... 1 CHAPTER 2 SETTING-UP ..............3 Supplying Power to the Model TA465 Series ......... 3 Installing the Batteries ............... 3 DIP Switch Settings ..............3 Using the AC Adapter ..............4 Connecting Ventilation or IAQ Probes ..........5 Using the Telescoping Thermoanemometer Probes ......
  • Page 6 These Application Notes can be found under TSI’s web site: http://www.tsi.com AF-106 Traversing a Duct to Determine Average Air Velocity or Volume AF-107 Using the Models TA465, PVM610, and PVM620 to Measure Pressure AF-109 Converting Standard Velocity to Actual Velocity AF-114...

  • Page 7: Chapter 1 Unpacking And Parts Identification

    Check the individual parts against the list of components below. If anything is missing or damaged, notify TSI immediately. 1. Carrying case 2. Instrument 3. Static pressure tip (TA465-P model only) 4. Rubber tubing (TA465-P model only) 5. USB cable 6. LogDat2 CD-ROM with downloading software...
  • Page 8 (This page intentionally left blank) Chapter 1...

  • Page 9: Chapter 2 Setting-Up

    Installing the Batteries Insert four AA batteries as indicated by the diagram located on the inside of the battery compartment. The Model TA465 is designed to operate with either alkaline or NiMH rechargeable batteries. Battery life will be shorter if NiMH batteries are used. If NiMH batteries are used the DIP switch will need to be changed.

  • Page 10: Using The Ac Adapter

    Do not attempt to charge alkaline batteries. Using the AC Adapter The AC adapter can be used to power the instrument or to charge the NiMH batteries when the DIP switch in the battery compartment is set to NiMH. If the DIP switch is set to Alkaline, and the AC power adapter is connected, then the batteries will be bypassed and the meter will be powered by the AC adapter.

  • Page 11: Connecting Ventilation Or Iaq Probes

    The ventilation and IAQ probes have a “D” shape overmolding on the mini-DIN connector which must align with the connector at the base of the TA465 series meter. This will ensure the probe is properly connected and remains so during use. Once connected and turned on, refer to the DISPLAY SETUP for displaying the desired measurements.

  • Page 12: Using The Pressure Ports (Ta465-P)

    Do not use the instrument or probes near hazardous voltage sources since serious injury could result. Using the Pressure Ports (TA465-P) The TA465-P includes pressure ports that can be used to measure static and differential pressures in ductwork. For more information, Application Note AF-107.

  • Page 13: Connecting An Optional Pitot Probe Or Airflow (Straight Pitot) Probe

    When connected to a pitot probe, air velocity or air volume can be measured. A pitot probe can be connected to the “+” and “-” pressure ports on the Model TA465-P using two pieces of tubing of equal length. The total pressure port of the pitot probe connects to the “+”...
  • Page 14 Total pressure hole Static pressure holes Static pressure port (to – input on manometer) Total pressure port (to + input on manometer) Do not use the instrument or probes near hazardous voltage sources since serious injury could result. Chapter 2...

  • Page 15: Thermocouple Ports

    Thermocouple Ports The TA465 series includes two thermocouple ports at the base of the meter. Any K-Alloy thermocouple with mini-connector can be attached. See Display Setup for setting the thermocouple temperature readings to be displayed as TC1, TC2, or TC1-TC2.

  • Page 16: Connecting The Optional Bluetooth Portable Printer Device

    Connecting the Optional Bluetooth Portable Printer Device To connect the Bluetooth printer to the Model TA465, power on the unit and the printer. Then press the MENU soft key. From the Menu keys to highlight Bluetooth Functions and press the ...

  • Page 17: Chapter 3 Operation

    Indicators Secondary Parameters Soft Keys Keypad Functions Press the ON/OFF key to turn the Model TA465 on ON/OFF ( ) Key and off. During the power up sequence the display will show the following: Model Number, Serial Number, and Software Revision. To turn the instrument off, press and hold the ON/OFF Key for 3 seconds.

  • Page 18: Common Terms

    Enter ( ) Key Press to accept a menu selection, value or condition. Press to Start or Stop datalogging when in Continuous Key mode. Arrow (or ) and Press arrow keys to change choices while setting a Menu Soft Keys parameter.

  • Page 19: Menus

    Menus The menu structure is organized to allow easy navigation and instrument setup utilizing the arrow keys and button. To exit a menu or menu item, press the ESC key.  To access the Menu items, press the Menu soft key. ...

  • Page 20: Display Setup

    DISPLAY SETUP Display Setup menu is where you will setup the desired parameters to be displayed on the instrument screen. With a parameter highlighted you can then use the ON soft key to have it show up on the instrument screen or select the OFF soft key to turn off the parameter.

  • Page 21: Settings

    SETTINGS Settings menu is where you can set the general settings. These include Language, Beeper, Select Units, Time Constant, Contrast, Set Time, Set Date, Time Format, Date Format, Number Format, Backlight and Auto Off. Use the or  keys to select an option, and the ...
  • Page 22 Round duct, Rect duct and Duct area are used to perform a duct traverse using a pitot probe or thermoanemometer probe. For more information on how to perform a duct traverse, refer to Application Note AF-106. Press/Kfact allows for calculating flow rate from diffusers or flow stations with pressure taps using the instruments pressure ports and Kfactors.
  • Page 23 When measuring Flow as the Primary measurement, the parameters can be quickly changed by pressing the  or  key while on the main measurement screen: Make adjustments with the  or  arrow keys and press accept, or enter the Select Duct or Select Kfactor menu to choose a different pre-programmed flow value or dimension.

  • Page 24: Voc Setup

    Models 984, 985, 986 and 987 for information on usage and setup. ACTUAL/STANDARD SETUP Choose Actual/Standard measurements and parameters in the Act/Std Setup menu. The Model TA465 measures the actual barometric pressure using an internal sensor. The temperature source can be entered manually or taken from a probe that measures temperature (plug in probe or thermocouple).

  • Page 25: Data Logging

    PRIMARY and the other to ON. Only one can be ON at any given time. Log Mode/Log Settings The TA465 can be programmed to store measurements to memory in several different logging formats: ...
  • Page 26 Manual Logging Manual mode does not automatically save data, but instead prompts the user to SAVE a sample or ESC to not save. To start logging, press the key. N O T E To adjust the averaging period for a sample, change the Time Constant (increase or decrease in seconds) which is located in the Settings Menu.
  • Page 27 When set to Auto-save, the Sample Time can be adjusted. Sample Time is the time period over which the Sample will be averaged. DATA LOGGING SAMPLE TIME Measurements Log Mode Auto-save Log Settings 00:05 Choose Test Test 001 Min:Sec Name Test View Data Delete Data % Memory...
  • Page 28 When set to Cont. key, the log interval can be adjusted. DATA LOGGING LOG SETTINGS LOG INTERVAL Measurements Log Mode Cont.-key Log Interval 00:01 00:05 Log Settings Min:Sec Choose Test Test 001 Name Test View Data Delete Data % Memory N O T E ...
  • Page 29 When set to Cont.-time, the log interval and test length can be adjusted. DATA LOGGING LOG SETTINGS LOG INTERVAL Measurements Log Mode Cont.-time Log Interval 00:01 00:05 Log Settings Test Length 00:00:01 Min:Sec Choose Test Test 001 Name Test View Data TEST LENGTH Delete Data % Memory...

  • Page 30: Choose Test

    Test IDs consist of a group of Samples that are used to determine statistics (average, minimum, and maximum) of a measurement application. The TA465 can store 26,500+ samples and 100 test IDs (one sample can contain fourteen measurement types). Example: Each duct traverse will have its own Test ID consisting of several Samples.

  • Page 31: View Data

    View Data Choose Test To view stored data, first select the Test ID that contains the data to be recalled. This is accomplished in the “Choose Test” menu. DATA LOGGING Measurements VIEW DATA CHOOSE TEST Log Mode Auto-save Choose Test Test 001 View Stats Test 001...

  • Page 32: View Samples

    Use the < or > keys to view statistics of each measurement parameter. The TA465 can send this data to the optional Model 8934 wireless printer or PC capable of Bluetooth communications. To use the PRINT command, Bluetooth communications must be established between the TA465 and the Model 8934 wireless printer or PC set up with Bluetooth communications.

  • Page 33: Print Test

    PRINT PRINT PRINT The TA465 can send this data to the optional Model 8934 wireless printer or PC capable of Bluetooth communications. To use the PRINT command, Bluetooth communications must be established between the TA465 and the Model 8934 wireless printer or PC set up with Bluetooth communications.

  • Page 34: Delete Data

    Delete Data Use this to delete all data, delete test or delete sample. DATA LOGGING DELETE DATA Measurements Delete All Log Mode Cont.-time Log Settings Delete Test Choose Test Test 001 Delete Sample Name Test View Data Delete Data % Memory Delete All will clear stored data in all Test IDs.

  • Page 35: Memory

    Delete Sample will clear the last sample in an individual Test ID selected by the user. DELETE DATA DELETE SAMPLE Delete All Test 001 14 Samples Delete Test Test 002 10 Samples Delete Sample Test 003 12 Samples Test 004 8 Samples Test 005 7 Samples...

  • Page 36: Zero Co

    ZERO CO This menu item applies to TSI probe Model 982 which can measure carbon monoxide (CO). Zero CO will zero the CO sensor readings that may have drifted. Initiating the Zero CO function will show the sensor CO reading and the time remaining. MENU Zero Press ZERO CO...

  • Page 37: Applications

    APPLICATIONS This menu option includes specialized measurement protocols used to perform various tests or investigations. You can choose Draft Rate, Heat flow, Turbulence, % Outside Air, and Leakage Test in the Applications menu. For more information on these applications, refer to the following information: ...

  • Page 38: Calibration

    The Calibration Menu lists measurement parameters that can be adjusted in the field. The appropriate detachable probes must be attached to the TA465 before field calibration can be undertaken except for pressure and barometric pressure calibration. For more information on performing field calibrations, refer to TSI Applications Note AF-146.

  • Page 39: Discoverability

    Discoverability Describes whether another device can discover the meter. Options include: The instrument is not discoverable by other Disable devices. Allows the instrument to be discoverable until Temporary another device pairs with it or until the instrument power is turned off and back on. Makes the instrument discoverable indefinitely.

  • Page 40: Logdat2™ Downloading Software

    Model TA465 also includes downloading software called IRFLOW LogDat2. LogDat2 software transfers the stored data from the Model TA465 to a computer as a spreadsheet file. This software is useful for applications such as duct traverses, fume hood, and filter face velocity testing.

  • Page 41: Chapter 4 Maintenance

    If the instrument case or storage case needs cleaning, wipe it off with a soft cloth and isopropyl alcohol or a mild detergent. Never immerse the Model TA465. If the enclosure of the Model TA465 or the AC adapter becomes broken, it must be replaced immediately to prevent access to hazardous voltage.
  • Page 42 (This page intentionally left blank) Chapter 4...

  • Page 43: Chapter 5 Troubleshooting

    Chapter 5 Troubleshooting Table 5-1 lists the symptoms, possible causes, and recommended solutions for common problems encountered with the Model TA465. If your symptom is not listed, or if none of the solutions solves your problem, please contact TSI. Table 5-1: Troubleshooting the Model TA465...
  • Page 44 WARNING! Remove the probe from excessive temperature immediately: excessive heat can damage the sensor. Operating temperature limits can be found in Appendix A, Specifications. The pressure sensor is protected from damage up to 7 psi (48 kPa or 360 mmHg). At higher pressure it can burst! Chapter 5...

  • Page 45: Appendix A Specifications

    Appendix A Specifications Specifications are subject to change without notice. Velocity (TA Probe): Range: 0 to 9999 ft/min (0 to 50 m/s) 1&2 Accuracy ±3% of reading or ±3 ft/min (±0.015 m/s), whichever is greater Resolution: 1 ft/min (0.01 m/s) Velocity (Pitot Tube): Range 250 to 15500 ft/min (1.27 to 78.7 m/s)
  • Page 46 Static / Differential Pressure: Range -15 to +15 in. H O (-28.0 to +28.0 mm Hg, -3735 to +3735 Pa) Accuracy: ±1% of reading ±0.005 in. H O (±1 Pa, ±0.01 mm Hg) Resolution: 0.001 in. H O (0.1 Pa, 0.01 mm Hg) Barometric Pressure: Range: 20.36 to 36.648 in.
  • Page 47 Power Requirements: Four AA-size batteries (included) or AC Adapter p/n 801761 Input: 90 to 240 VAC, 50 to 60 Hz Output: 9 VDC, 2A Temperature compensated over an air temperature range of 40 to 150°F (5 to 65°C). The accuracy statement of ±3.0% of reading or ±3 ft/min (±0.015 m/s), whichever is greater, begins at 30 ft/min through 9999 ft/min (0.15 m/s through 50 m/s).
  • Page 48 (This page intentionally left blank) Appendix A...

  • Page 49: Appendix B Optional Plug-In Probes

    Appendix B Optional Plug-in Probes Thermoanemometer Probes Model Description Air Velocity and Temperature, Straight Probe Air Velocity and Temperature, Articulating Probe Air Velocity, Temperature, and Humidity, Straight Probe Air Velocity, Temperature, and Humidity, Articulating Probe Rotating Vane Anemometer Probes Model Description 4 in.
  • Page 50 Pitot Probes Model Description 634634000 Pitot Probe 12" (30 cm) - 5/16" (8 mm) diameter 634634001 Pitot Probe 18" (46 cm) - 5/16" (8 mm) diameter 634634002 Pitot Probe 24" (61 cm) - 5/16" (8 mm) diameter 634634003 Pitot Probe 36" (91 cm) - 5/16" (8 mm) diameter 634634005 Pitot Probe 60"...
  • Page 51 Airflow Instruments, TSI Instruments Ltd. Visit our website at www.airflowinstruments.co.uk for more information. Tel: +44 149 4 459200 Germany Tel: +49 241 523030 France Tel: +33 491 11 87 64 P/N 6005359 Rev D ©2014 TSI Incorporated Printed in U.S.A.
