Airflow TA465-P Operation And Service Manual

Airflow TA465-P Operation And Service Manual

Air velocity meter

Advertisement

Quick Links

Air Velocity Meter
Model TA465

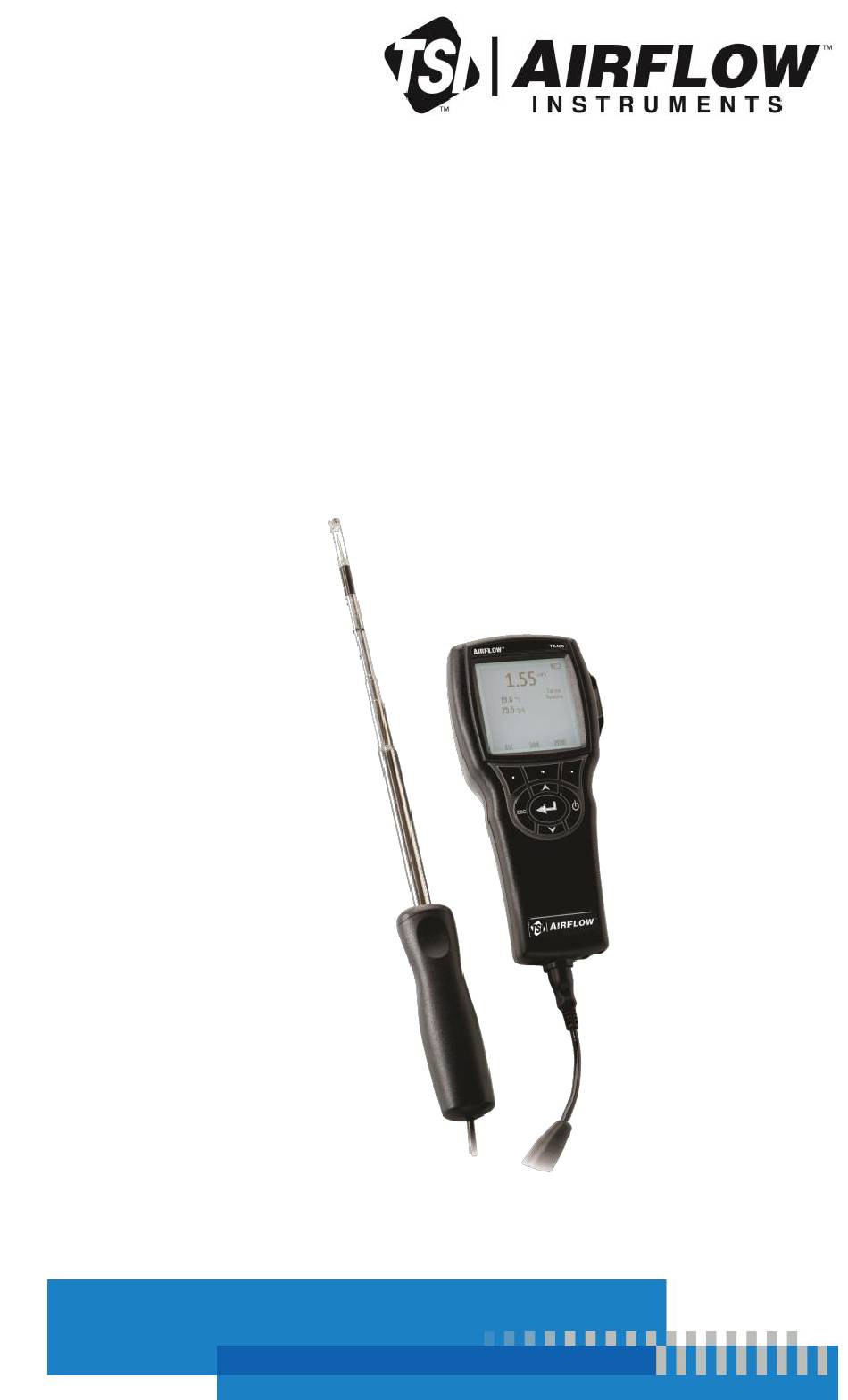

Operation and Service Manual
P/N 6005359, Rev. G
December 2024
www.tsi.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the TA465-P and is the answer not in the manual?

Questions and answers

Summary of Contents for Airflow TA465-P

  • Page 1 Air Velocity Meter Model TA465 Operation and Service Manual P/N 6005359, Rev. G December 2024 www.tsi.com...
  • Page 2 Start Seeing the Benefits of Registering Today! ® ® Thank you for your TSI instrument purchase. Occasionally, TSI releases information on software updates, product enhancements and ® new products. By registering your instrument, TSI will be able to send this important information to you. http://register.tsi.com As part of the registration process, you will be asked for your comments on TSI products and services.
  • Page 3 Copyright TSI Incorporated / 2011-2024 / All rights reserved. Address TSI Incorporated / 500 Cardigan Road / Shoreview, MN 55126 / USA Fax No. (651) 490-3824 Limitation Of Warranty And Liability (effective May 2024) (For country-specific terms and conditions outside of the USA, please visit www.tsi.com.) Seller warrants the goods, excluding software, sold hereunder, under normal use and service as described in the operator's manual (version published at the time of sale), to be free from defects in workmanship and material for the longer period of either 24...
  • Page 4 EXCLUDES CLAIMS OF CONTRIBUTORY OR INDUCED INFRINGEMENTS. BUYER’S EXCLUSIVE REMEDY SHALL BE THE RETURN OF THE PURCHASE PRICE DISCOUNTED FOR REASONABLE WEAR AND TEAR OR AT SELLER’S OPTION REPLACEMENT OF THE GOODS WITH NON-INFRINGING GOODS. TO THE EXTENT PERMITTED BY LAW, THE EXCLUSIVE REMEDY OF THE USER OR BUYER, AND THE LIMIT OF SELLER'S LIABILITY FOR ANY AND ALL LOSSES, INJURIES, OR DAMAGES CONCERNING THE GOODS (INCLUDING CLAIMS BASED ON CONTRACT, NEGLIGENCE, TORT, STRICT LIABILITY OR...
  • Page 5 Connecting Ventilation or IAQ Probes ..........7 Using the Telescoping Thermoanemometer Probes ...... 7 Extending the Probe ..............7 Retracting the Probe..............7 Using the Pressure Ports (TA465-P) ..........8 Connecting the Static Pressure Probe ........8 ™ Connecting an Optional Pitot Probe or Airflow (straight pitot) Probe ...............
  • Page 6 ZERO CO ..................32 APPLICATIONS ................. 33 CALIBRATION .................. 34 BLUETOOTH FUNCTIONS (Models TA465-P and TA465-X only) ....34 Discover Devices ..............34 Discoverability ................35 PINcode ................... 35 # AutoConnects ............... 35 Printing Data Using the Portable Printer (Models TA465-P and TA465-X only) ........... 35 LogDat2™...
  • Page 7 If anything is missing or damaged, notify TSI immediately. 1. Carrying case 2. Instrument 3. Static pressure tip (TA465-P and TA465-P-NB models only) 4. Rubber tubing (TA465-P and TA465-P-NB models only) 5. USB cable 6. AC adapter This manual supports the following models:...
  • Page 8 NOTICE This device may not cause interference; this device must accept any interference, including interference that may cause undesired operation of the device. l’appareil ne doit pas produire de brouillage; l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
  • Page 9 W A R N I N G Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  • Page 10 (This page intentionally left blank) Chapter 1...
  • Page 11 Chapter 2 Setting-up Supplying Power to the Model TA465 Series The Model TA465 Airflow™ Instruments Air Velocity Meter can be powered in one of two ways: four size AA batteries or the AC adapter. Installing the Batteries Insert four AA batteries as indicated by the diagram located on the inside of the battery compartment.
  • Page 12 N O T I C E DO NOT attempt to charge alkaline batteries. Using the AC Adapter The AC adapter can be used to power the instrument or to charge the NiMH batteries when the DIP switch in the battery compartment is set to NiMH.
  • Page 13 Connecting Ventilation or IAQ Probes The ventilation and IAQ probes have a “D” shape overmolding on the mini-DIN connector which must align with the connector at the base of the TA465 series meter. This will ensure the probe is properly connected and remains so during use.
  • Page 14 DO NOT use the instrument or probes near hazardous voltage sources since serious injury could result. Using the Pressure Ports (TA465-P) The TA465-P includes pressure ports that can be used to measure static and differential pressures in ductwork. For more information, Application Note AF-107.
  • Page 15 When connected to a pitot probe, air velocity or air volume can be measured. A pitot probe can be connected to the “+” and “-” pressure ports on the Model TA465-P using two pieces of tubing of equal length. The total pressure port of the pitot probe connects to the “+”...
  • Page 16 Total pressure hole Static pressure holes Static pressure port (to – input on manometer) Total pressure port (to + input on manometer) W A R N I N G DO NOT use the instrument or probes near hazardous voltage sources since serious injury could result.
  • Page 17 Thermocouple Ports The TA465 series includes two thermocouple ports at the base of the meter. Any K-Alloy thermocouple with mini-connector can be attached. See Display Setup for setting the thermocouple temperature readings to be displayed as TC1, TC2, or TC1-TC2. Connecting the Thermocouples The K-Alloy thermocouple with mini-connector has one terminal wider than the other.
  • Page 18 ® Connecting the Optional Bluetooth Portable Printer Device (Models TA465-P and TA465-X only) ® To connect the Bluetooth printer to the Model TA465, power on the unit and the printer. Then press the MENU soft key. From the keys to highlight Bluetooth Functions and ...
  • Page 19 Chapter 3 Operation Keypad Functions Press the ON/OFF key to turn the Model TA465 on ON/OFF ( ) Key and off. During the power up sequence the display will show the following: Model Number, Serial Number, and Software Revision. To turn the instrument off, press and hold the ON/OFF Key for 3 seconds.
  • Page 20 Arrow (or ) and Press arrow keys to change choices while Menu Soft Keys setting a parameter. Press the Menu soft key to select the Menu selections, which are Pressure Zero, Display Setup, Settings, Flow Setup, VOC Setup, Actual/Std Setup, Data Logging, Zero CO, Applications, Calibration, and ®...
  • Page 21 Menus The menu structure is organized to allow easy navigation and instrument setup utilizing the arrow keys and button. To exit a menu or menu item, press the ESC key. To access the Menu items, press the Menu soft key. ◼...
  • Page 22 DISPLAY SETUP Display Setup menu is where you will setup the desired parameters to be displayed on the instrument screen. With a parameter highlighted you can then use the ON soft key to have it show up on the instrument screen or select the OFF soft key to turn off the parameter.
  • Page 23 SETTINGS Settings menu is where you can set the general settings. These include Language, Beeper, Select Units, Time Constant, Contrast, Set Time, Set Date, Time Format, Date Format, Number Format, Backlight and Auto Off. Use the or  keys to select an option, and the ...
  • Page 24 Round duct, Rect duct and Duct area are used to perform a duct traverse using a pitot probe or thermoanemometer probe. For more information on how to perform a duct traverse, refer to Application Note AF-106. Press/Kfact allows for calculating flow rate from diffusers or flow stations with pressure taps using the instruments pressure ports and Kfactors.
  • Page 25 When measuring Flow as the Primary measurement, the parameters can be quickly changed by pressing the  or  key while on the main measurement screen: Make adjustments with the  or  arrow keys and press accept, or enter the Select Duct or Select Kfactor menu to choose a different pre-programmed flow value or dimension.
  • Page 26 VOC SETUP ® This menu item applies to TSI probes that measure Volatile Organic Compounds (VOC). Refer to the manual included with VOC probe Models 984, 985, 986 and 987 for information on usage and setup. ACTUAL/STANDARD SETUP Choose Actual/Standard measurements and parameters in the Act/Std Setup menu.
  • Page 27 DATA LOGGING Measurements Measurements to be logged to memory are independent of measurements on the display, and must; therefore, be selected under DATA LOGGING → Measurements. When set to ON, measurement will be logged to memory. ◼ When set to DISPLAY, measurement will be logged to memory ◼...
  • Page 28 Manual Logging Manual mode does not automatically save data, but instead prompts the user to SAVE a sample or ESC to not save. To start logging, press the key. NOTICE To adjust the averaging period for a sample when using Manual logging, change the Time Constant (increase or decrease in seconds) which is located in the Settings Menu.
  • Page 29 When set to Auto-save, the Sample Time can be adjusted. Sample Time is the time period over which the Sample will be averaged. DATA LOGGING SAMPLE TIME Measurements Log Mode Auto-save Log Settings 00:05 Choose Test Test 001 Min:Sec Name Test View Data Delete Data % Memory...
  • Page 30 When set to Cont. key, the log interval can be adjusted. DATA LOGGING LOG SETTINGS LOG INTERVAL Measurements Log Mode Cont.-key Log Interval 00:01 00:05 Log Settings Min:Sec Choose Test Test 001 Name Test View Data Delete Data % Memory NOTICE ...
  • Page 31 When set to Cont.-time, the log interval and test length can be adjusted. DATA LOGGING LOG SETTINGS LOG INTERVAL Measurements Log Mode Cont.-time Log Interval 00:01 00:05 Log Settings Test Length 00:00:01 Min:Sec Choose Test Test 001 Name Test View Data TEST LENGTH Delete Data % Memory...
  • Page 32 Choose Test Test IDs consist of a group of Samples that are used to determine statistics (average, minimum, and maximum) of a measurement application. The TA465 can store 26,500+ samples and 100 test IDs (one sample can contain fourteen measurement types).
  • Page 33 View Data Choose Test To view stored data, first select the Test ID that contains the data to be recalled. This is accomplished in the “Choose Test” menu. DATA LOGGING Measurements VIEW DATA CHOOSE TEST Log Mode Auto-save Choose Test Test 001 View Stats Test 001...
  • Page 34 Use the < or > keys to view statistics of each measurement parameter. The TA465-P and TA465-X can send this data to the optional ® Model 8934 wireless printer or PC capable of Bluetooth communications.
  • Page 35 Sample 9 13.5%rh PRINT PRINT PRINT The TA465-P and TA465-X can send this data to the optional ® Model 8934 wireless printer or PC capable of Bluetooth communications. To use the PRINT command, Bluetooth ® communications must be established between the instrument ®...
  • Page 36 Delete Data Use this to delete all data, delete test or delete sample. DATA LOGGING DELETE DATA Measurements Delete All Log Mode Cont.-time Log Settings Delete Test Choose Test Test 001 Delete Sample Name Test View Data Delete Data % Memory Delete All will clear stored data in all Test IDs.
  • Page 37 Delete Sample will clear the last sample in an individual Test ID selected by the user. DELETE DATA DELETE SAMPLE Delete All Test 001 14 Samples Delete Test Test 002 10 Samples Delete Sample Test 003 12 Samples Test 004 8 Samples Test 005 7 Samples...
  • Page 38 ZERO CO This menu item applies to TSI probe Model 982 which can measure carbon monoxide (CO). Turn the instrument on for a minimum of five minutes to let it warm up before zeroing the CO sensor. Zero CO will zero the CO sensor readings that may have drifted.
  • Page 39 APPLICATIONS This menu option includes specialized measurement protocols used to perform various tests or investigations. You can choose Draft Rate, Heat flow, Turbulence, % Outside Air, and Leakage Test in the Applications menu. For more information on these applications, refer to the following information: Draft Rate: Application Note AF-142 ◼...
  • Page 40 Zero CO Calibrate VOC Applications Restore Factory Cal Calibration Bluetooth Functions BLUETOOTH FUNCTIONS (Models TA465-P and TA465-X only) ® The Airflow™ Instruments meter contains a Bluetooth Functions menu which is used to adjust parameters to assist with wireless ® connections to other Bluetooth capable devices.
  • Page 41 Applications Note AF-150. Printing Data Using the Portable Printer (Models TA465-P and TA465-X only) To print logged data, first enter the DATALOGGING menu. Then, use the CHOOSE TEST item to select the data to be printed. After the test is selected, use the VIEW STATS and VIEW SAMPLES items to select statistics or individual data points to view and print.
  • Page 42 LogDat2™ Downloading Software LogDat2™ software can be downloaded from the TSI Software and Firmware Wizard | TSI. Once downloaded onto your PC, click the application file to begin installation. Follow the on-screen instructions to install the software. To download data from the Model TA465, connect the supplied computer interface USB cable to the Model TA465 and to a computer USB port.
  • Page 43 Chapter 4 Maintenance The Model TA465 and probe accessories require very little maintenance to keep it performing well. Recalibration To maintain a high degree of accuracy in your measurements, we recommend that you return your Model TA465, 960 series ® thermoanemometer probes, IAQ and VOC probes to TSI Incorporated for annual recalibration.
  • Page 44 (This page intentionally left blank) Chapter 4...
  • Page 45 Chapter 5 Troubleshooting Table 5-1 lists the symptoms, possible causes, and recommended solutions for common problems encountered with the Model TA465. If your symptom is not listed, or if none of the solutions solves your ® problem, please contact TSI Incorporated.
  • Page 46 W A R N I N G Remove the probe from excessive temperature immediately: excessive heat can damage the sensor. Operating temperature limits can be found in Appendix A, Specifications. The pressure sensor is protected from damage up to 7 psi (48 kPa or 360 mmHg).
  • Page 47 Appendix A Specifications Specifications are subject to change without notice. Velocity (TA Probe): Range: 0 to 9999 ft/min (0 to 50 m/s) 1&2 Accuracy ±3% of reading or ±3 ft/min (±0.015 m/s), whichever is greater Resolution: 1 ft/min (0.01 m/s) Velocity (Pitot Tube): Range 250 to 15500 ft/min (1.27 to 78.7 m/s)
  • Page 48 Static / Differential Pressure: Range -15 to +15 in. H O (-28.0 to +28.0 mm Hg, -3735 to +3735 Pa) Accuracy: ±1% of reading ±0.005 in. H O (±1 Pa, ±0.01 mm Hg) Resolution: 0.001 in. H O (0.1 Pa, 0.01 mm Hg) Barometric Pressure: Range: 20.36 to 36.648 in.
  • Page 49 Power Requirements: Four AA-size batteries (included) or AC Adapter p/n 801761 Input: 90 to 240 VAC, 50 to 60 Hz Output: 9 VDC, 2A Temperature compensated over an air temperature range of 40 to 150°F (5 to 65°C). The accuracy statement of ±3.0% of reading or ±3 ft/min (±0.015 m/s), whichever is greater, begins at 30 ft/min through 9999 ft/min (0.15 m/s through 50 m/s).
  • Page 50 (This page intentionally left blank) Appendix A...
  • Page 51 Appendix B Optional Plug-in Probes Thermoanemometer Probes Model Description Air Velocity and Temperature, Straight Probe Air Velocity and Temperature, Articulating Probe Air Velocity, Temperature, and Humidity, Straight Probe Air Velocity, Temperature, and Humidity, Articulating Probe Rotating Vane Anemometer Probes Model Description 4 in.
  • Page 52 Pitot Probes Model Description 634634000 Pitot Probe 12" (30 cm) - 5/16" (8 mm) diameter 634634001 Pitot Probe 18" (46 cm) - 5/16" (8 mm) diameter 634634002 Pitot Probe 24" (61 cm) - 5/16" (8 mm) diameter 634634003 Pitot Probe 36" (91 cm) - 5/16" (8 mm) diameter 634634005 Pitot Probe 60"...
  • Page 54 Airflow Instruments, TSI Instruments Ltd. Visit our website at www.tsi.com for more information. Tel: +44 149 4 459200 Germany Tel: +49 241 523030 France Tel: +33 1 41 19 21 99 P/N 6005359 Rev G ©2024 TSI Incorporated Printed in U.S.A.

This manual is also suitable for:

Ta465Ta465-aTa465-x
