- Page 2 Please carefully read the instructions prior to assembly and first use. Be sure to keep the instructions for reference and/or maintenance. If you have any further questions, please contact us. We wish you lots of success and fun while training. Check List IF ANY OF THESE PARTS ARE MISSING CONTACT YOUR DEALER IMMEDIATELY .
-
Page 3: Safety Strap

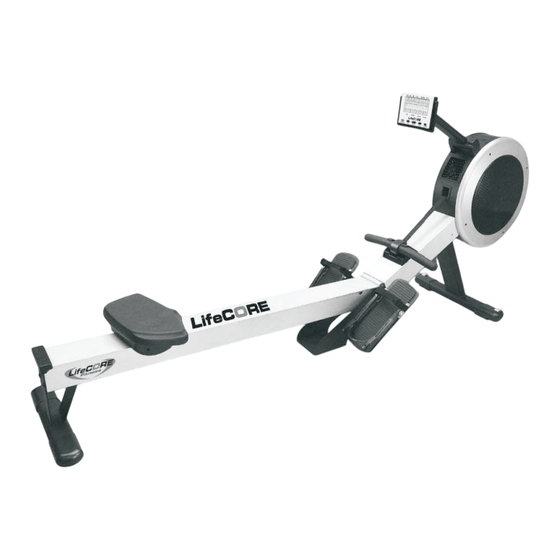

R100APM Premier Rower ASSEMBLY INSTRUCTIONS STEP 1 Clear a 2 x Meter by 2.5 Meter working space before unpacking your R100APM Premier Rower. STEP 2 Open the carton as shown in the diagram below. NOTE: To protect the R100APM Premier Rower while assembling we suggest that you do not remove the Protective Packing Material until it is absolutely necessary. - Page 4 R100APM Premier Rower ASSEMBLY INSTRUCTIONS STEP 7 Remove 4 x BOLT [300] from SEAT [119] with the TOOL provided. Assemble SEAT [119] with the same 4 x BOLT [300] and tighten firmly. [117] Engage Correctly into each other as shown in the diagram below.
-
Page 5: Part Description
R100APM Premier Rower DETAILED PARTS LIST PART DESCRIPTION Q’TY ALUMINUM BEAM MAIN FRAME DIE CAST PIVOT DIE CAST PIVOT SHAFT STABILIZER - FRONT STABILIZER - REAR REAR BRACKET ALI HANDLE BAR SEAT CARRIAGE - SIDE PLATE SEAT CARRIAGE - SHAFT GUIDE ROLLER - BOLT GUIDE ROLLER - PLATE FOOT REST - RIGHT... - Page 6 R100APM Premier Rower EXPLODED DRAWING STYLE No. R100APM August 2005...
