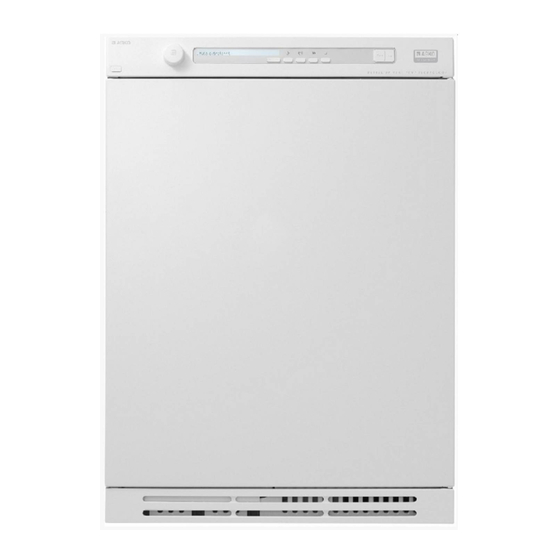

Asko T884XL Operating Instructions Manual

Tumble dryer
Hide thumbs Also See for T884XL:
Table of Contents

Advertisement

Quick Links

Dear Customer,
Thank you for choosing this quality product from ASKO. We hope it will
meet your expectations and fulfil your needs for many years to come.
Scandinavian design combines clean lines, everyday functionality and high
quality. These are key characteristics of all our products and the reason
they are greatly appreciated throughout the world.
To get the most out of your new machine, we recommend that you read the
operating instructions before using the machine. The operating instructions
also include information on how you can help protect the environment.

Operating Instructions

Tumble dryer

T884XL
WARNING: Read the instructions before using the machine.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T884XL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Asko T884XL

Summary of Contents for Asko T884XL

  • Page 1: Operating Instructions

    Dear Customer, Thank you for choosing this quality product from ASKO. We hope it will meet your expectations and fulfil your needs for many years to come. Scandinavian design combines clean lines, everyday functionality and high quality. These are key characteristics of all our products and the reason they are greatly appreciated throughout the world.

  • Page 2: Table Of Contents

    CONTENTS BEFORE USING YOUR MACHINE FOR THE CARE AND CLEANING FIRST TIME Cleaning the lint filter Language selection Cleaning the outside of the machine Laundry labels TROUBLESHOOTING SAFETY INSTRUCTIONS The machine will not start Grounding instructions The machine loses all power during a program Installation Drying takes too long Packing material...

  • Page 3: Before Using Your Machine For The First Time

    BEFORE USING YOUR MACHINE FOR THE FIRST TIME Do you need this Use&Care Guide in Spanish? Log on to www.askona.com/customer-care to download. ¿Necesita esta Instrucciones de uso y cuidado en español? Entre en www.askona.com/customer-care y descárguesela. LANGUAGE SELECTION You will be prompted to select the display language when you have connected your machine and start it for the fi rst time.

  • Page 4: Safety Instructions

    • The interior of the machine should be cleaned periodi- cally by an authorized ASKO service agent. B) Grounding instructions for a permanently connected appliance: • Do not place items exposed to cooking oils in your dryer.

  • Page 5: Installation

    SAFETY INSTRUCTIONS INSTALLATION See the section Installation instructions. PACKING MATERIAL Please sort waste materials in accordance with local guidelines.. DISPOSAL This machine is manufactured and labelled for recycling. In order to prevent personal injury, the machine must be made inoperable after deciding to take it out of service. Contact your local authority for information about where and how your machine should be correctly recycled.

  • Page 6: Description Of The Tumble Dryer

    DESCRIPTION OF THE TUMBLE DRYER 1. Main power switch 4. Lint filter 2. Panel 5. Outer door 3. Serial number tag and rating plate Customer Care Center, 1-800-898-1879, www.askona.com...

  • Page 7: Advice And Tips Before You Tumble-Dry

    ADVICE AND TIPS BEFORE YOU TUMBLE-DRY Here are some tips that may help you before you begin NOTE! tumble-drying. You can stop the tumble dryer by pressing the Stop button for three seconds or by opening the door. In both HAVE THE CLOTHES BEEN SPUN? cases the programme is stopped and starts from the beginning if restarted.

  • Page 8: Tumble Drying

    TUMBLE DRYING SORT YOUR FABRICS WARNING! You will achieve the most uniform drying results if the To reduce the risk of electric shock or injury to persons, items are made of the same type of material. Do up zips read the”Important Safety Instructions” section before and buttons, fasten belts, sort the items and adjust the operating this appliance.

  • Page 9: Selecting Options

    TUMBLE DRYING SELECTING OPTIONS PRESS THE START BUTTON By selecting options, you can tailor a drying program to Remaining drying time suit your requirements. The available options depend An estimate of the remaining drying time will be shown on on the selected program. Once you have started the the display a few minutes after the drying program starts.

  • Page 10: Programme Chart

    TUMBLE DRYING PROGRAMME CHART Here we present the energy and time consumption of a few different programmes. The table shows the effect of using different spin speeds when washing the load. Consumption can vary depending on room temperature, humidity, load, variations in the power supply and selected options.

  • Page 11: Settings

    SETTINGS YOU CAN ALTER THE FOLLOWING SETTINGS: • Language • KidSafe™ Child-safe LANGUAGE Follow these instructions: 1. Turn off the machine using the main power switch. 2. Press and hold the Start button and then press the main power switch. 3.

  • Page 12: Care And Cleaning

    CARE AND CLEANING CLEANING THE LINT FILTER 4. Close the lint filter and put it back in the door.Close the lint filter before closing the door. The lint filter must be cleaned after each load. 1. Lift the filter from the holder in the door. CLEANING THE OUTSIDE OF THE MACHINE Clean the outside of the machine and the program panel...

  • Page 13: Troubleshooting

    TROUBLESHOOTING ERROR MESSAGES NOTE! • Read Drying takes too long in this chapter if Max pro- When starting the tumble dryer for the first time or gram time appears on the display. after a long period without use, you may notice a slight thumping noise.

  • Page 14: Technical Inforamtion

    TECHNICAL INFORAMTION Height: 33 1/2” (850 mm) Width: 23 1/2” (595 mm) Depth: 29 1/3” (745 mm) Weight (net): 99 lb (45 kg) Cylinder volume: 38,3gal (145 l) Max. drying capacity: 24 lb (11 kg) Speed: 50-55 rpm Sound pressure level: The sound pressure level is below 66 dB(A) Rated power: See type plate.

  • Page 15: Service And Guarantee

    AS PROVIDED HEREIN. This Limited Warranty is valid service if the ASKO Product is located in a remote only when the ASKO Product is used in the country in area where service by an authorized ASKO service which it was purchased. Proof of original purchase date is company is not available.
  • Page 16 TROUBLESHOOTING & ASKO CUSTOMER Customer Care at 1-800-898-1879. After your purchase CARE and prior to first use of the ASKO Product, register If you think you need repair service, first see the your ASKO Product with ASKO by utilizing the address “Troubleshooting”...

  • Page 17: Installation

    INSTALLATION How to assemble the stack: WARNING ! 1. Undo the screw on the back of the ASKO washing Risk of fire. machine as shown in the figure. Install the clothes dryer according to the manufacturer’s instructions and local codes.

  • Page 18: Air Exhaust

    Asko dryers have a "T-style" exhaust vent that allows you to Vent connect the duct on the rear, on the left, or on the right side 6.
  • Page 19 INSTALLATION CONNECTING THE EXHAUST DUCT TO NOTE! THE LEFT OR RIGHT SIDE OUTLET When installing in warm climates (77° F and above) with high humidity levels, do not route the air exhaust To connect the exhaust duct to the left or right side outlet, duct upwards.

  • Page 20: Electrical Installation

    The grounding link on the ASKO washers rated 208–240 V have two internal dryer must be removed for all 4-wire installations. fuses of 15 A each. These Electrical Connection instructions provide for...
  • Page 21 INSTALLATION Connecting a 3-wire Power Cord Connecting a 4-wire Power Cord WARNING ! WARNING ! Before starting this procedure, be sure the power is Before starting this procedure, be sure the power is turned off at the breaker/fuse box. turned off at the breaker/fuse box. Ground Ground (center)

  • Page 22: Electrical Installation

    INSTALLATION ELECTRICAL INSTALLATION 7. Connect neutral (white) wire of cord under center screw of terminal block. Connect the machine by plugging it into an earthed wall socket. The electrical wall socket must be placed outside 8. Connect the other wires to outer screws. of the installation area to be easily accessible.

  • Page 23: Reversing The Door

    REVERSING THE DOOR 1. Hinge pins (top and bottom) 4. Locking hook 2. Cover plate 5. Hinges (left + right side) 3. Plastic plugs (on the upper and lower edges) 6. Toe kick Customer Care Center, 1-800-898-1879, www.askona.com...
  • Page 24 REVERSING THE DOOR You can choose whether the door is hung on the right or the left. Follow these instructions: 1. Remove the Toe kick. 2. Remove the hinge (two screws). 3. Lift the door up and remove it. Support the door while doing this.
  • Page 25 YOUR NOTES Customer Care Center, 1-800-898-1879, www.askona.com...
  • Page 26 YOUR NOTES Customer Care Center, 1-800-898-1879, www.askona.com...
  • Page 27 YOUR NOTES Customer Care Center, 1-800-898-1879, www.askona.com...

  • Page 28: Quick Guide

    The text End appears on the display when the programme is finished. Clean the lint filter after each load. Turn off the main power switch. Close the door. We reserve the right to make changes. www.askona.com TD80.2 SPO T884XL US/CA en (04-14)
