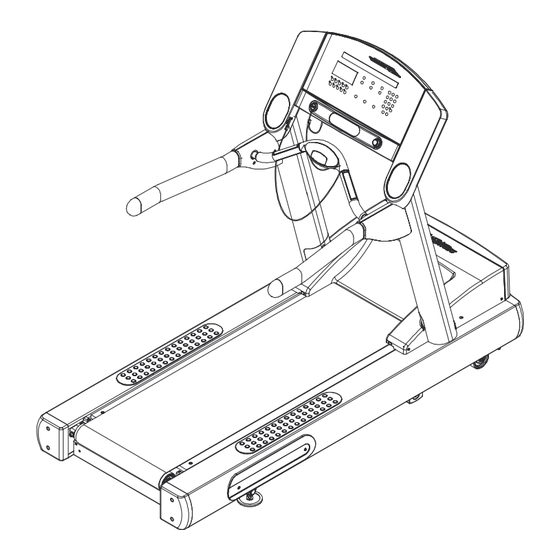

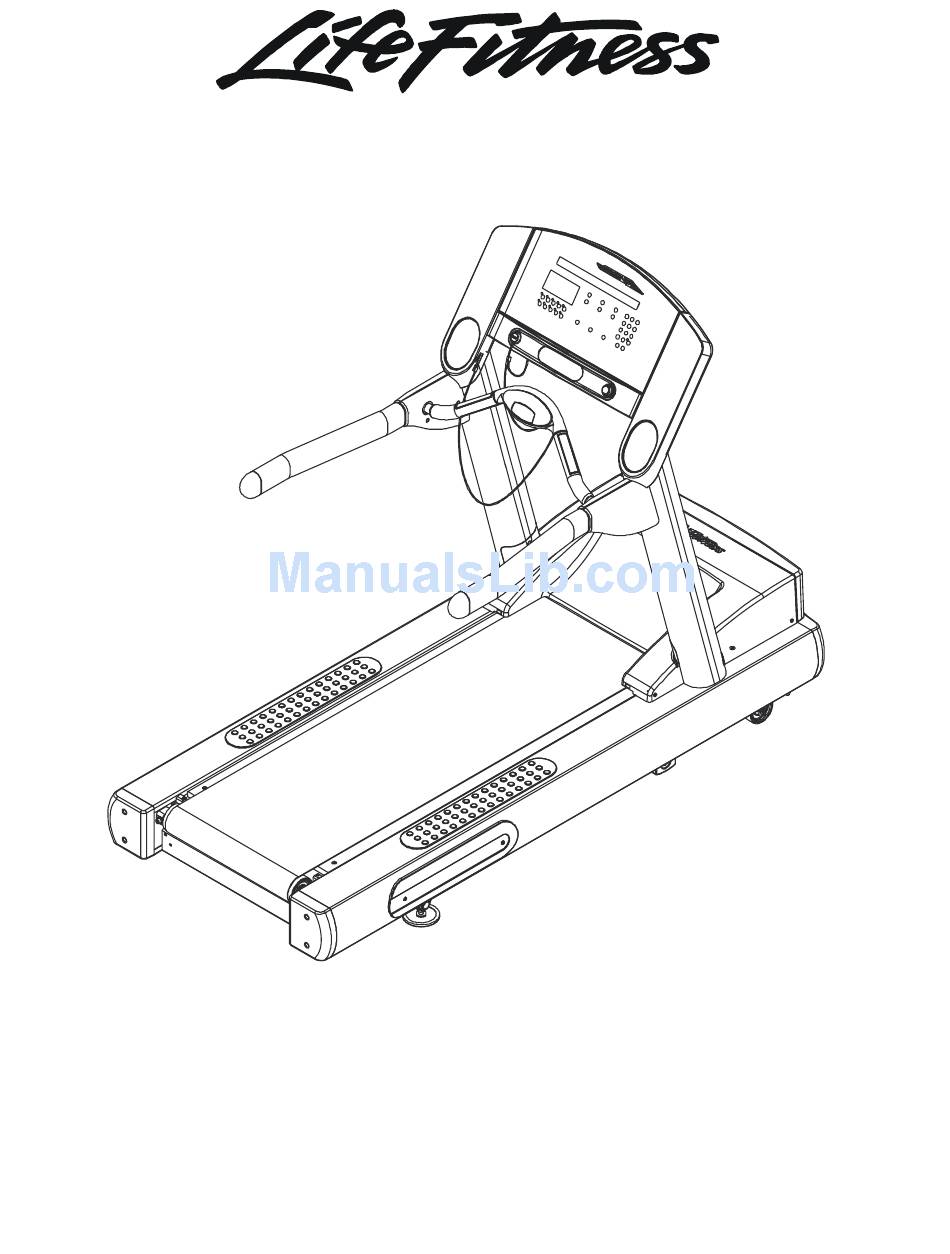

- Page 1 Arctic Silver 95TWEZ Treadmill Customer Support Services PARTS MANUAL rev 13 May 2008...
-
Page 2: Table Of Contents
ARCTIC SILVER 95TWEZ 95TWEZ-0XXX-01 Contents S/N TWZ100000 and up Miscellaneous ... 3 Rear Endcaps and Cup Holders ... 4 Scuff Pad, Tinsel, and Frame Tag Board ... 5 Console and Related Components ... 6 Entertainment TV Console ... 7 Connector Bracket ... 8 Entertainment Mounting Bracket ... -
Page 3: Miscellaneous
ARCTIC SILVER 95TWEZ Miscellaneous OPERATION MANUAL SERVICE MANUAL ACCESS PLATE ASSEMBLY CONSISTS OF: 1) CONNECTOR PLATE 2) F TYPE CONNECTOR COAX CABLE POWER CABLE HARDWARE BAG TOUCH UP PAINT: SPRAY CAN .5 OZ BOTTLE W/APPLICATOR .33 OZ PEN INSTALLATION VIDEO... -
Page 4: Rear Endcaps And Cup Holders
ARCTIC SILVER 95TWEZ Rear End Caps and Cup Holders Cup Holder, LT AK58-00247-0002 Rear End Cap 0K58-01268-0000 Screws (4) 0017-00101-1772 Decal - LF Logo 0K60-01193-0000 Rear End Cap 0K58-01268-0000 95TWEZ-0XXX-01 S/N TWZ100000 and up Cup Holder, RT AK58-00247-0001... -
Page 5: Scuff Pad, Tinsel, And Frame Tag Board
ARCTIC SILVER 95TWEZ Scuff Pad, Tinsel, and Frame Tag Board Anti-Static Tinsel 0K58-01102-0001 Tinsel Spring 0017-00009-0901 Anti-Scuff Pad 0K58-01376-0000 (2) 95TWEZ-0XXX-01 S/N TWZ100000 and up Frame Tag PCB B084-92187-D000... -
Page 6: Console And Related Components
ARCTIC SILVER 95TWEZ Console and Related Components Screws 0017-00101-1288 Accessory Cover 0K58-01280-0000 PCB Assembly A084-92184-A010 Headphone /C-Safe Cable AK32-00147-0001 Headphone Jack Assembly AK32-00133-0000 Screw 0017-00101-1811 Stop Tether Assembly AK58-00322-0000 Language Console Assembly AK58-00536-0001 AK58-00536-0002 AK58-00536-0003 AK58-00536-0004 AK58-00536-0007 AK58-00536-0008 AK58-00536-0009 AK58-00536-0010... -
Page 7: Uprights, Handrails, And Ergo Bar
ARCTIC SILVER 95TWEZ Uprights, Handrails, and Ergo Bar Handrail Mounting Screw (4) Console Mounting 0017-00101-1774 Screw (4) 0017-00101-1773 Top LT Handrail Boot 0K58-01303-0002 Upright, Plug (2) 0K58-01305-0002 Upright, LT AK58-00310-0004 Upright Tube Cap (2) 0K58-01302-0000 Upright Tube Cap Screw (2) - Page 8 ARCTIC SILVER 95TWEZ Motor Cover, Front Cover, and Front End Caps Motor Cover Screws (4) 0017-00101-1772 Felt Strip - 28” 0017-00081-0294 Front Cover 0K58-01266-0000 Screws (4) 0017-00101-1771 S/N TWZ100000 and up Motor Shroud Assy. AK58-00397-0000 Front End Cap (2) 0K58-01267-0000...
-
Page 9: Belt, Deck, And Rear Roller
ARCTIC SILVER 95TWEZ Belt, Deck, and Rear Roller Striding Belt 0K58-01400-0000 Deck 0K58-01091-0001 TECSPAK Mounting Screw (8) 0017-00101-1652 TECSPAK Spring (8) 0K40-01026-0002 TECSPAK Tinnerman Clip (4) 0017-00103-0198 Washer (8) 0017-00104-0072 Grommet (2) 0017-00042-1147 Screw 0017-00101-1776 Round Grommet 0017-00042-0326 Washer 0017-00104-0043... -
Page 10: Lift Frame And Lift Motor
ARCTIC SILVER 95TWEZ Lift Frame and Lift Motor IEC Receptacle 0017-00003-0949 Retainer Bracket w/Screw 0017-00042-1145 Frame Screws 0017-00101-1723 Lift Frame End Cap 0017-00042-1076 Line Cord Clip 0017-00042-0840 Wheel 0K58-01071-0000 Phillips Screw 0017-00101-1612 Washer 0017-00104-0189 Hex Screw (2) 0017-00101-1777 Flat Washer (2) -
Page 11: Wax/Lift Assembly
ARCTIC SILVER 95TWEZ Wax/Lift Assembly Wax/Lift Assembly AK58-00243-0000 Pin Collar Spacer (3) 0017-00042-1070 Wax Lift Mounting Screw (3) 0017-00101-1641 Wax/Lift PCB A084-92261-A001 Spacer (3) Locking Nut (3) 0017-00042-1149 0017-00103-0052 Mounting Bracket 0K58-01316-0000 95TWEZ-0XXX-01 S/N TWZ100000 and up Motor Capacitor PCB Mounting... -
Page 12: Motor Controller Assembly
ARCTIC SILVER 95TWEZ Motor Controller Assembly Motor Controller Assemblies 100-120V w/o Ferrite AK60-00171-0000 200-240V w/o Ferrite AK60-00171-0001 100-120V w/Ferrite AK60-00171-0002 200-240V w/Ferrite AK60-00171-0003 S/N TWZ100000 and up 95TWEZ-0XXX-01... -
Page 13: Drive Motor Assembly
ARCTIC SILVER 95TWEZ Drive Motor Assembly Poly-V Pulley 0K58-01057-0001 Locking Nut (4) 0017-00103-0027 Washer (4) 0017-00104-0409 Insulating Shoulder Washer (4) 0K58-01255-0000 Drive Motor Assembly Part No. AK58-00172-0000 AK58-00172-0002 Motor w/Caution Label AK58-00171-0000 (SN 100000 - AK58-00171-0001 (SN 100021 - WTE100...) -
Page 14: Idler Arm Assembly And Static Brush
ARCTIC SILVER 95TWEZ Idler Arm Assembly and Static Brush Idler Arm Assembly AK58-00053-0002 Anti Static Brush 0K58-01263-0001 Tinsel Bracket Screw(2) 0017-00101-1193 Grommet 0017-00042-0326 Drive Belt 0K58-01114-0000 Idler Pulley 0K26-01731-0000 Threaded Idler Shaft 0K58-01084-0002 Lock Nut: Idler 0017-00103-0324 Wire Clamp Limit Switch... -
Page 15: Leveler Assembly
ARCTIC SILVER 95TWEZ Leveler Assembly Leveler Assembly AK58-00370-0000 Flat Washer (4) 0017-00104-0190 Lock Washer (4) 0017-00104-0333 Hex Nut (4) 0017-00101-1253 95TWEZ-0XXX-01 S/N TWZ100000 and up Bracket Leveler 0K58-01083-0000 Pivot Pin 0K58-01098-0000 Stop Nut 0K58-01099-0000 Leveling Foot 0K58-01110-0000... -
Page 16: Front Roller Assembly
ARCTIC SILVER 95TWEZ Front Roller Assembly Front Roller Assembly AK58-00066-0000 Polley V Pulley 8” 0K58-01105-0000 Lock Washer 0017-00104-0005 Hex Bolt 0017-00101-1632 S/N TWZ100000 and up Mounting Bolt 0017-00101-0974 Flat Washer 0017-00104-0043 3.5” Front Roller 0K58-01001-001 Flat Washer 0017-00104-0330 95TWEZ-0XXX-01... -
Page 17: Ergo Bar With Lifepulse
ARCTIC SILVER 95TWEZ Ergo Bar with Lifepulse Lens Cover Assembly AK58-00064-0000 S/N TWZ100000 and up Lens Cover Mounting Screw (2) 0017-00101-0824 Heart Rate Electrode Kit GK20-00002-0005 Ergo Bar Gasket (2) 0K58-01347-0000 95TWEZ-0XXX-01... -
Page 18: Power Components Schematic
ARCTIC SILVER 95TWEZ Power Components Schematic Line Cord (Plug End Changes) 0017-00003-0947 12’ 120v 0017-00003-0974 Domestic 0017-00003-0948 12’ 220v 0017-00003-0915 RT Angle Plug 0017-00003-0781 220v/60Hz 0017-00003-0696 Continental 0017-00003-0890 240v/59Hz UK 0017-00003-0996 240v+ AUS Xformer Bracket Assembly (foreign units only) AK58-00210-0000 MOV/Filter Cable Assy. - Page 19 ARCTIC SILVER 95TWEZ Wax/Lift Power Supply 120V 240V 220/230V 200V 100V +12VDC BUS_REQ +8VDC +8VDC LI N E CHART RIGHT *CLEAR *BLACK *BLACK LEFT *CLEAR *BLACK *RED *BLACK *RED POLAR *WHITE *WHITE *WHITE REED SENSE REED BLACK BLACK +12VDC WHITE...
