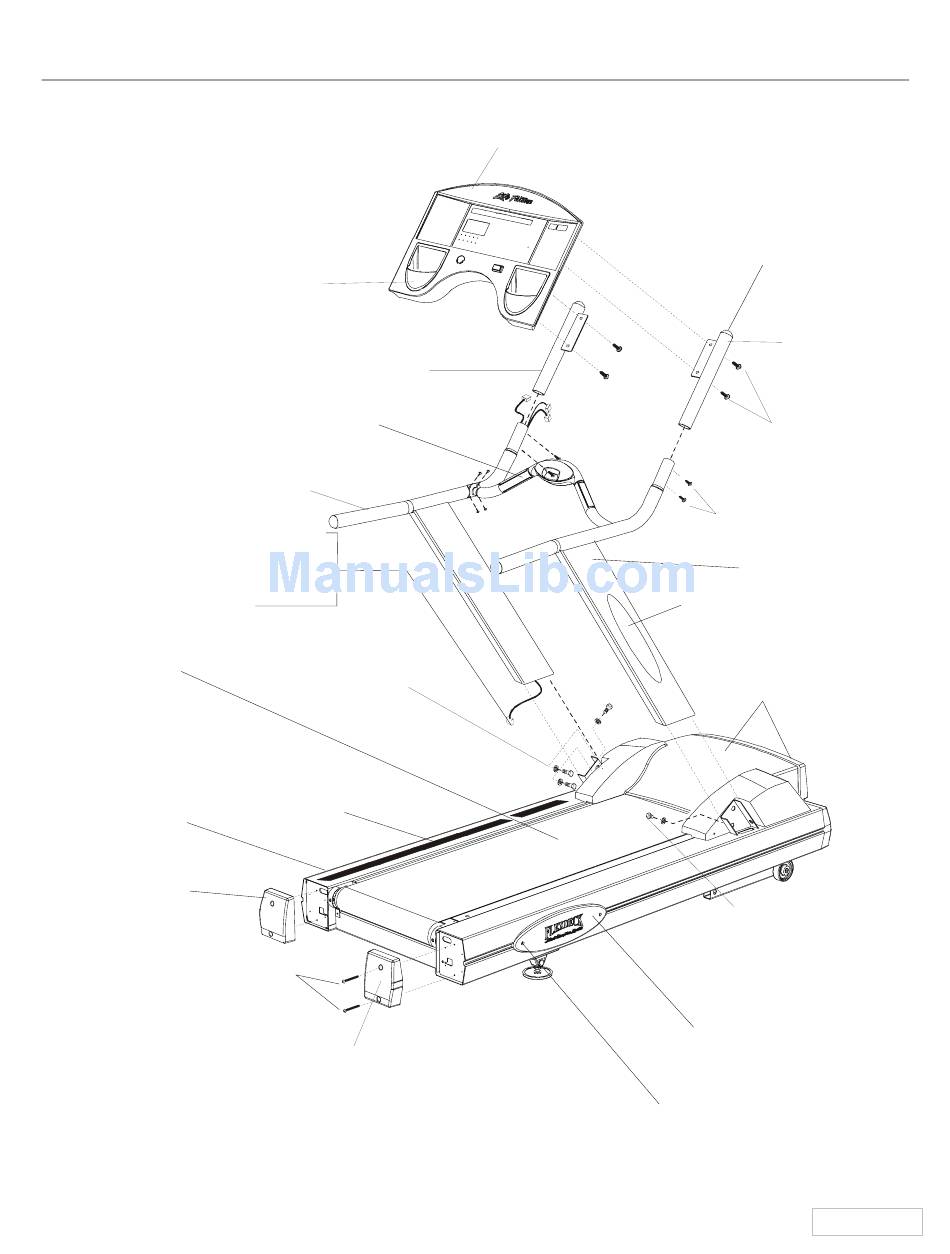

TR97 Treadmill
General Assembly
LT Handrail
AK58-00115-0002
Cables-Message Center Console
Cables-Wax Lift Power Supply
Cables-Power Modules
Striding Belt, Deck,
Rear Roller
Frame Assembly
Components
Left Rear End Cap
0K58-01070-0002
End Cap Screws (4)
0017-00101-1060
Right Rear End Cap
0K58-01070-0001
Cup Holder
0K58-01018-0000
LT Handlebar Ext.
SK58-00112-0002
ERGO Bar Assembly
Handrail
Bolt
0017-00101-1620(5)
Handrail Washer
0017-00104-0335(6)
Anti-Skid Pad (2)
0K58-01052-0001
TR97-0100-03
S/N HTP100000
Console (External View)
Console (Internal View)
Access Panel Screws (4)
0017-00101-0658
End Cap (4)
0K43-01025-0000
RT Handlebar Ext.
SK58-00112-0001
Console Mounting
Screws(4)
0017-00101-1640
Handlebar Ext. Screw (4)
0017-00101-1640
RT Handrail
SK58-00115-0001
Decal
0K58-01147-0001(2)
Covers, End Caps,
Hardware
Short Handrail Bolt (1)
0017-00101-1630
Access Panel (2)
0K58-01017-0000
Rev. 14 Aug 2006
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Life Fitness TR97
Summary of Contents for Life Fitness TR97
- Page 1 TR97 Treadmill General Assembly Cup Holder 0K58-01018-0000 ERGO Bar Assembly LT Handrail AK58-00115-0002 Cables-Message Center Console Cables-Wax Lift Power Supply Cables-Power Modules Handrail 0017-00101-1620(5) Striding Belt, Deck, Handrail Washer Rear Roller 0017-00104-0335(6) Anti-Skid Pad (2) 0K58-01052-0001 Frame Assembly Components Left Rear End Cap...
- Page 2 TR97 Treadmill Frame Assembly Components Motor Assembly Static Tinsel Bracket Idler Arm Assembly Power Box/ Line Cord Lift Motor Motor Controller Phillip Screw 0017-00101-1265 Motor Controller AK58-00153-0001 120v AK58-00153-0002 230v Tinsel 0K58-01102-0001 Tinsel Spring 0017-00009-0901 Frame Tag PCB B084-92187-D000 Front Roller Assembly...
- Page 3 TR97 Treadmill Console (External View) Console Assembly AK58-00055-0001 Eng/Met AK58-00055-0003 Ger/Met AK58-00055-0004 Spn/Met/Eur (120v/60Hz) AK58-00055-0005 Spn/Met (230v/50Hz) AK58-00055-0006 Jap/Met AK58-00055-0007 Frn/Met/Eur (120v/60Hz) AK58-00055-0008 Itl/Met AK58-00055-0009 Dut/Met AK58-00055-0010 Por/Met AK58-00055-0011 Frn/Met (230v/50Hz) Workout Profiles 0K58-01216-0001 Eng/Met 0K58-01216-0003 Ger/Met 0K58-01216-0004 Spn/Met/Eur 0K58-01216-0006 Jap/Met...
- Page 4 TR97 Treadmill Console (Internal View) Phillips Screw-8 (6-19x6) Spacer 0017-00101-1275 0K58-01154-0000 Screw(4) 0017-00101-1275 Secondary Display B084-92186-B000 Polar/End Retainer Session Cable 0K26-02149-0000 Side Foam 0K36-01060-0000 Isolator Receiver Cube 0K36-01059-0001 Polar Receiver AK40-00045-0001 PCB Board Assembly A084-92185-A008 Micro Switch 0017-00032-0185 Stop Key Cable...
- Page 5 TR97 Treadmill Cover, End Caps, Hardware End Cap, Right Front 0K58-01070-0001 End Cap Screws 0017-00101-1060 Front Cover Screws 0017-00101-0658 TR97-0100-03 S/N HTP100000 Motor Cover AK58-00095-0000 Front Cover 0K58-01016-0000 End Cap Screws 0017-00101-1060 Page 5 of 18 Motor Cover Screw-4 0017-00101-1621...
-
Page 6: Belt, Deck, Rear Roller
IMPORTANT: Components can be ordered separately with Serial Numbers above: TR9100 HTN102105-Above, TR9500 HTM105585-Above, and TR9700 HTP100531-Above. Use the appropriate Roller Guard Kit: GK58-00002-0056 for TR91/95, and GK58-00002-0057 for Tr97 with Serial Numbers: TR9100 HTN102105-Below, TR9500 HTM105585-Below, and TR9700 HTP100531-Below. - Page 7 TR97 Treadmill Lift Motor and Lift Frame Power Cord Retainer 0K58-01065-0001 Lift Motor Hex Bolt 0017-00101-1021 Lift Frame End Cap 0017-00042-1076 Line Cord Clip 0017-00042-0840 Wheel 0K58-01071-0000 Phillips Screw 0017-00101-1621 Washer 0017-00104-0189 Clevis Clip 0017-00007-0208 Clevis Pin 0017-00007-0214 Decline Switch Bracket...
- Page 8 TR97 Treadmill Power Box Assembly ON/OFF Power Switch 0017-00032-0198 Transformer (EURO Only) 0017-00101-0162 Phillips Pan Head Screw (8-32x6) 0017-00101-0162 Phillips Pan Head Screw (8-32x8) 0017-00101-1182 Line Cord (Plug End Changes) 0017-00003-0947 12’ 120v Line Cord 0017-00003-0923 Domestic 0017-00003-0948 12’ 220v Line Cord...
-
Page 9: Motor Controller
TR97 Treadmill Motor Controller Wax Lift / Motor Controller AK58-00164-0001 120v AK58-00164-0002 230 Line Filter (50hz units Only) 0017-00003-0898 Speed Sensor Cable Bushing 0017-00042-1069 Hex Nut 0017-00103-0005 Retainer Bracket 0K58-01144-0000 Wax PCB Retainer 0K58-01149-0000 Washer 0017-00104-0456 0017-00103-0005 Phillips Screw 0017-00101-1759 “LOAD”... -
Page 10: Motor Assembly
TR97 Treadmill Motor Assembly Speed Sensor Assembly AK58-00073-0001 Flywheel Assembly AK58-00090-0002 Insulating Shoulder Washer (4) 0K58-01255-0000 TR97-0100-03 S/N HTP100000 Slotted Hex Screw(2) 0017-00101-0975 Motor w/Caution Label AK58-00171-0000 Insulating Pad (2) 0K58-01256-0001 Page 10 of 18... - Page 11 TR97 Treadmill Waxing components Wax Pump 0K58-01074-0001 Tube Reducer Connector 0017-00021-2188 Replacement Hose Assembly AK58-00148-0000 Phillip Screws 0017-00101-0658 Protective Sleeve 0K58-01080-0000 Wax Refill Bag GK58-00002-0002 TR97-0100-03 S/N HTP100000 Hose Clamp 0017-00042-0842 Spray Nozzle Assy AK58-00046-0000 Brass Spray Tip 0017-00009-0842 Extrusion...
-
Page 12: Idler Arm Assembly
TR97 Treadmill Idler Arm Assembly Idler Arm Assembly AK58-00053-0002 Tinsel Bracket 0K58-01263-0001 Tinsel Bracket Screw(2) 0017-00101-1193 Tinnerman Clip 0017-00103-0280 Drive Belt 0K58-01115-0000 Pulley: Idler 0K26-01731-0000 Threaded Shaft: Idler 0K58-01084-0002 Lock Nut: Idler 0017-00103-0324 Allen Screw 0017-00101-0333 Motor Pulley 0K58-01056-0000 Wire Clamp... - Page 13 TR97 Treadmill Lever Assembly – AK58-00076-0000 Flat Washer-4 0017-00104-0190 Lock Washer-4 0017-00104-0333 Hex Nut-4 (8-18x10) 0017-00101-1253 TR97-0100-03 S/N HTP100000 Assembly Leveler & Bushing AK58-00089-0000 Stop Nut 0K58-01099-0000 Leveling Foot 0K58-01110-0000 Page 13 of 18 Pivot Pin 0K58-01098-0001...
- Page 14 TR97 Treadmill Front Roller Assembly – AK58-00067-0000 Polley V Pulley 8” 0K58-1105-0000 Lock Washer 0017-00104-0005 Hex Bolt (1/4x20) 0017-00101-1632 Mounting Bolt (3/8-16x32) 0017-00101-0974 Flat Washer 0017-00104-0043 Flat Washer 0017-00104-0330 Page 14 of 18 TR97-0100-03 S/N HTP100000...
- Page 15 TR97 Treadmill ERGO Bar Assembly – AK58-00018-0000 Lens Cover Assembly AK58-00064-0000 Heart Rate Sensor Cable Proximity Sensor Cable TR97-0100-03 S/N HTP100000 Electrode Kit GK20-00002-0004 Flat Washers 0017-00104-0411 Page 15 of 18 Phillips Pan Screws (8-16x18) 0017-00101-0824...
- Page 16 TR97 Treadmill Cables – Message Center Console TR97-0100-03 S/N HTP100000 Page 16 of 18...
- Page 17 TR97 Treadmill Cables – Wax Lift Power Supply TR97-0100-03 S/N HTP100000 Page 17 of 18...
- Page 18 TR97 Treadmill TR97-0100-03 Cables – Power Modules S/N HTP100000 Page 18 of 18...
