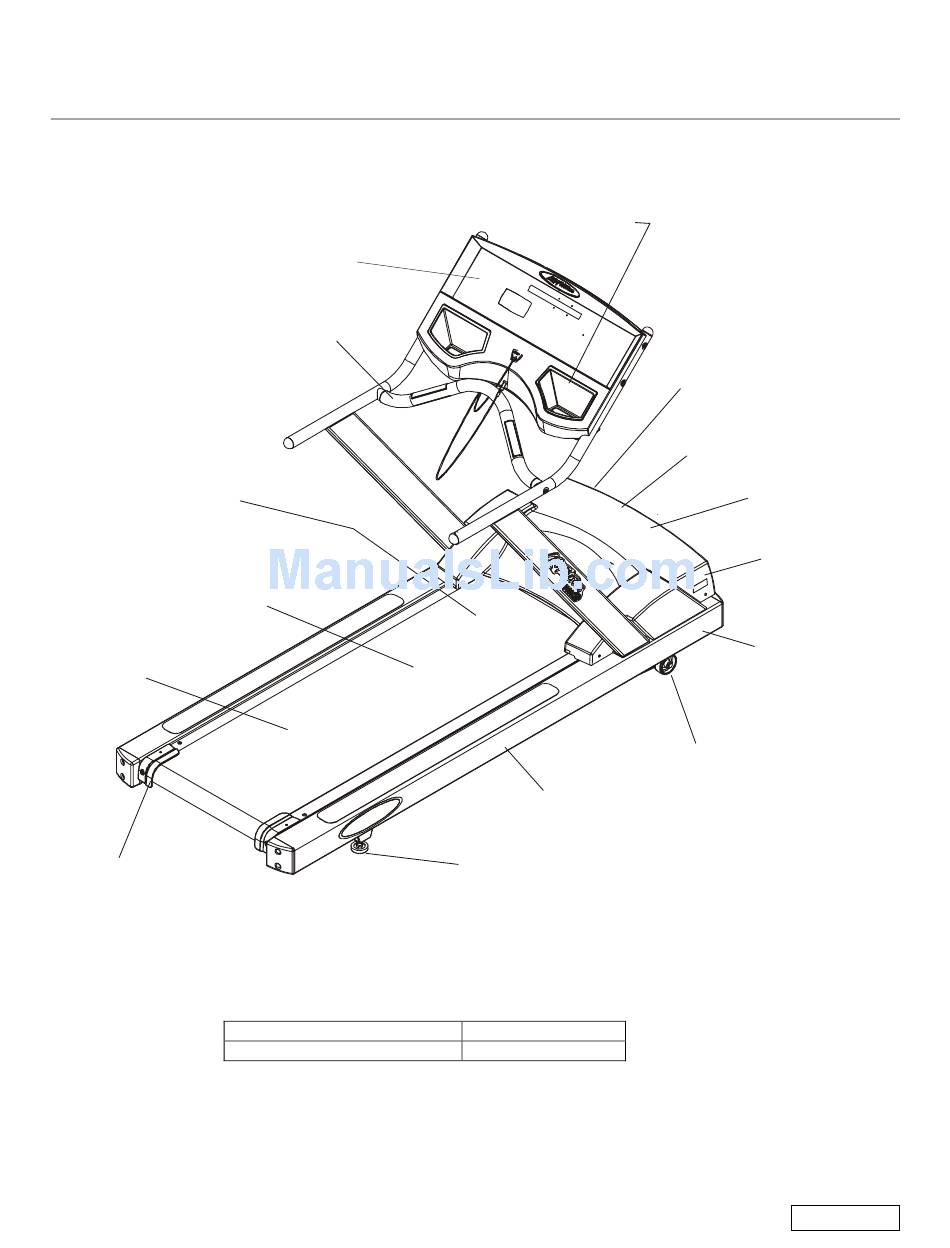

Midline TR9000 Treadmill
General Assembly
ERGO Bar/ Uprights
Wax Motor/
Nozzle/Bag/
Bracket
Lifespring/
Tinsel
Belt/ Deck/
Rollers
Rear Roller
Cover Guards
Console
Operation Manual TR90/85
Service Manual TR90/85/T9i
TR90-XXXX-14 S/N CTB100000
Accessory
Trays
Cables
Motor Cover/
Leveler/ End Caps
M051- 00K20-A371
M051-00K60-A013
Line Filter/
Line Cord
Drive Motor
Sensors
Lift Motor/
Home Switch
DC Controller/
ON/OFF Switch
Lift Frame
Rev. 12 Sep 2007
Advertisement
Related Manuals for Life Fitness TR85
Summary of Contents for Life Fitness TR85
- Page 1 Midline TR9000 Treadmill General Assembly Console ERGO Bar/ Uprights Wax Motor/ Nozzle/Bag/ Bracket Lifespring/ Tinsel Belt/ Deck/ Rollers Rear Roller Cover Guards Operation Manual TR90/85 Service Manual TR90/85/T9i TR90-XXXX-14 S/N CTB100000 Accessory Trays Line Filter/ Line Cord Drive Motor Lift Frame...
- Page 2 Midline TR9000 Treadmill Console Assembly (1of 3) TR9000 Console Assembly AK60-00014-0001 AK60-00014-0003 AK60-00014-0004 AK60-00014-0006 AK60-00014-0007 AK60-00014-0008 AK60-00014-0009 AK60-00014-0010 Stop Key/ Tether Assembly AK60-00101-0000 TR90-XXXX-14 S/N CTB100000 TR9000 Overlay Bezel Eng/Met AK60-00011-0001 Ger/Met AK60-00011-0003 Spn/Met AK60-00011-0004 Jap/Met AK60-00011-0006 Frn/Met AK60-00011-0007 Itl/Met...
- Page 3 Midline TR9000 Treadmill Console Assembly (2 of 3) Console Front w/o Overlay AK60-00011-00SC TR90-XXXX-14 S/N CTB100000 Left Wire Cover 0K60-01041-0001 Rear Decal 0K58-01129-0000 Phillips Screw(9) 0017-00101-1288 Right Wire Cover 0K60-01041-0002...
- Page 4 Midline TR9000 Treadmill Console Assembly (3 of 3) 6-Pin Connector 2-Pin Connector Receiver Isolator Tube 0K36-01059-0002 Side Foam 0K36-01060-0000 TR90-XXXX-14 S/N CTB100000 Polar/Emergency Stop Cable Assembly AK60-00043-0000 (Note: The 6-pin connector, connects to the PCB Assy. 2-Pin The 2-pin connector,...
- Page 5 Midline TR9000 Treadmill Motor Cover, Leveler, and End Caps Motor Cover AK60-00033-0000 End Cap(4) 0K60-01018-0000 TR90-XXXX-14 S/N CTB100000 Jam Nut 0017-00103-0323 Leveler 0K60-01033-0000...
- Page 6 Midline TR9000 Treadmill ERGO Bar and Upright Assembly Electrode Kit GK20-00002-0004 Mounting Screw 0017-00101-1738 Left Upright Assembly AK60-00069-0001 Decal 0K60-01086-0000 TR90-XXXX-14 S/N CTB100000 Main Wiring Cable ERGO Bar w/Heart Rate Sensor AK60-00049-0000 Grounding Spring 0K60-01157-0000 Right Upright Assembly AK60-00068-0001 Decal...
- Page 7 Midline TR9000 Treadmill Accessory Trays Accessory Tray RT 0K60-01008-0001 TR90-XXXX-14 S/N CTB100000 Accessory Tray LT 0K60-01008-0002 Push Rivots(2) 0017-00042-1142 Mounting Screws(4) 0017-00101-1727...
- Page 8 Midline TR9000 Treadmill Belt, Deck, and Rollers Striding Belt 0K60-01024-0000 Front Roller AK60-00029-0000 Deck Screws (4) 0017-00101-1775 TR90-XXXX-14 S/N CTB100000 Rear Roller 0K60-01011-0000 Deck 0K60-01022-0000...
- Page 9 Midline TR9000 Treadmill Lifesprings & Anti-Static Tinsel Tinnerman Clip(4) 0017-00103-0198 TR90-XXXX-14 S/N CTB100000 Anti-Static Tinsel 0K60-01055-0000 Allen Screw(8) 0017-00101-1652 Lifespring(8) 0K40-01026-0000 Washer(8) 0017-00104-0072...
- Page 10 Midline TR9000 Treadmill Lift Frame Assembly Wheel Assembly 0K60-01020-0000 0K60-01092-0000 Cotter Pin 0017-00007-0208 Clevis Pin 0017-00007-0271 TR90-XXXX-14 S/N CTB100000 Lift Frame Assembly AK60-00065-0000 Clevis Pin 0017-00007-0270 Cotter Pin 0017-00007-0208...
- Page 11 Midline TR9000 Treadmill Lift Motor and Home Switch Lift Motor 0K60-01094-0000 (120v) 0K60-01166-0000(220v/60Hz) Clevis Clips 0017-00007-0208 TR90-XXXX-14 S/N CTB100000 Clevis Pins 0017-00007-0214 Home Switch 0017-00032-0195...
- Page 12 Midline TR9000 Treadmill Drive Motor Assembly Drive Motor Assembly AK60-00081-0000 Motor Brush Kit GK60-00002-0007 Current Limit Wires AK60-00098-0000 TR90-XXXX-14 S/N CTB100000 Tensioning Bolt 0017-00101-1283 Mounting Nuts(4) 0017-00103-0132 Drive Belt 0K60-01025-0000...
- Page 13 Midline TR9000 Treadmill Wax Motor, Wax Bag, and Wax Nozzle & Bracket Wax Bag GK60-00002-0001 Wax Spray Nozzle 0017-00009-1138 TR90-XXXX-14 S/N CTB100000 Wax Motor 0K60-01122-0000 (120v) AK60-00099-0000(220v) Support Wax Bag 0K60-01035-0000 Push Rivets 0017-00042-1142 Wax Bracket Assemlby AK60-00017-0000 Wax Hose...
- Page 14 Midline TR9000 Treadmill Sensors (If Equipped) STAMP MUST FACE EACH OTHER Mounting Screws 0017-00101-0776 Speed Sensor w/o Bracket AK60-00093-0000 OPTO Speed Sensor w/Bracket AK60-00048-0001 TR90-XXXX-14 S/N CTB100000 Chopper Pulley Wheel Assembly AK60-00120-0001 Backer Plate 0K60-01189-0000 Screw 0017-00101-1017 Setscrews(2) 0017-00101-0333 Drive Motor Pulley...
- Page 15 Midline TR9000 Treadmill Rear Roller Cover Guards Rear Roller Cover Guards LT 0K60-01085-0002 Washer(2) 0017-00104-0334 TR90-XXXX-14 S/N CTB100000 Rear Roller Cover Guards RT 0K60-01085-0001 Rear Roller Adjusting Bolt(2) 0017-00101-1714...
- Page 16 Midline TR9000 Treadmill DC Controller and ON/OFF Switch TR90-XXXX-14 S/N CTB100000 DC Controller Mounting Screws(4) 0017-00101-0162 ON/OFF Switch 0017-00032-0198 DC Controller GK60-00002-0002 100-120/50-60 GK60-00002-0003 200-240/50-60...
- Page 17 Midline TR9000 Treadmill Line Filter Assembly and Line Cord Strain Relief 0017-00042-1138 TR90-XXXX-14 S/N CTB100000 Screw(2) 0017-00101-0162 Line Cord AK60-00067-0000 Domestic 120v/60Hz 0017-00003-0696 220v/50Hz Continental 0017-00003-0890 220v/50Hz UK 0017-00003-0951 220v/60Hz U.S. 0017-00003-0952 120v/60Hz 12’ Domestic Line Filter Assembly 0017-00003-0898 (220v, 10Amp...
- Page 18 Midline TR9000 Treadmill TR90-XXXX-14 S/N CTB100000 Cables...
