iBall Baton iB-WRA150N User Manual

Iball baton 150m wireless-n adsl2+ router
Hide thumbs Also See for iB-WRA150N:
Table of Contents

Advertisement

Quick Links

See also: User Manual

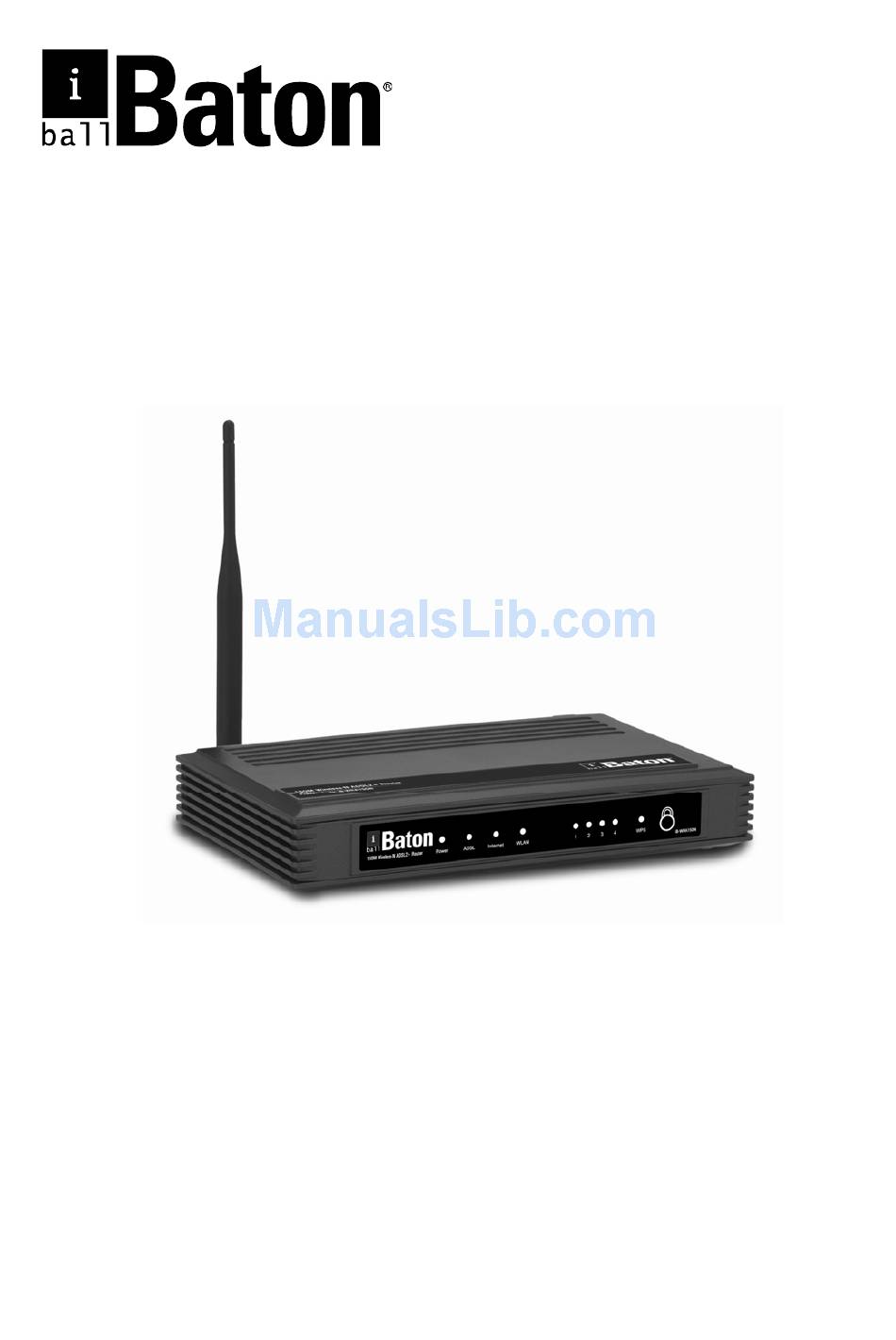

150M Wireless-N ADSL2+ Router
Model No. :iB-WRA150N
User Guide
Ver. 2.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iB-WRA150N and is the answer not in the manual?

Questions and answers

Related Manuals for iBall Baton iB-WRA150N

Summary of Contents for iBall Baton iB-WRA150N

  • Page 1 150M Wireless-N ADSL2+ Router Model No. :iB-WRA150N User Guide Ver. 2.0.0...

  • Page 2: Fcc Statement

    FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 3: Table Of Contents

    CONTENTS 150M Wireless-N ADSL2+ Router................1 Model No. iB-WRA150N.................... 1 Package Contents ....................1 Chapter 1. Introduction ..................2 Product Overview ..................2 Main Features ..................3 Conventions ..................3 Chapter 2. Hardware Installation ................4 The Front Panel..................4 The Back Panel ..................5 Installation Environment ................6...
  • Page 4 4.4.6 ADSL ....................... 50 Access Management ................50 4.5.1 ACL......................51 4.5.2 Filter......................51 4.5.3 SNMP ...................... 59 4.5.4 UPnP ....................... 60 4.5.5 DDNS....................... 60 4.5.6 CWMP ..................... 61 Maintenance..................62 4.6.1 Administration ..................63 4.6.2 Time Zone....................63 4.6.3 Firmware ....................65 4.6.4 SysRestart ....................

  • Page 5: 150M Wireless-N Adsl2+ Router

    150M Wireless-N ADSL2+ Router User Guide Package Contents The following contents should be found in your package: One iB-WRA150N 150M Wireless N ADSL2+ Router One Power Adapter for iB-WRA150N 150M Wireless N ADSL2+ Router Quick Installation Guide One RJ45 cable Two RJ11 cables...

  • Page 6: Chapter 1. Introduction

    The device is designed to provide a simple and cost-effective ADSL Internet connection for a private Ethernet or IEEE 802.11n/ IEEE 802.11g/ IEEE 802.11b wireless network. The iB-WRA150N connects to an Ethernet LAN or computers via standard Ethernet ports. The ADSL connection is made using ordinary telephone line with standard connectors. Multiple workstations can be networked and connected to the Internet using a single Wide Area Network (WAN) interface and single global IP address.

  • Page 7: Main Features

    Supports system log and flow Statistics. Supports firmware upgrade and Web management. 1.3 Conventions The Router or device mentioned in this User Guide stands for iB-WRA150N without any explanations. Parameters provided in the pictures are just references for setting up the product, which may differ...

  • Page 8: Chapter 2. Hardware Installation

    150M Wireless-N ADSL2+ Router User Guide Chapter 2. Hardware Installation 2.1 The Front Panel Figure 2-1 The LEDs locate on the front panel. They indicate the device’s working status. For details, please refer to LED Explanation. LED Explanation: Name...

  • Page 9: The Back Panel

    150M Wireless-N ADSL2+ Router User Guide 2.2 The Back Panel Figure 2-2 POWER: The Power plug is where you will connect the power adapter. ON/OFF: Switch for the power. RESET: There are two ways to reset the Router's factory defaults.

  • Page 10: Installation Environment

    Method one: Plug one end of the twisted-pair ADSL cable into the ADSL LINE port on the rear panel of iB-WRA150N, and insert the other end into the wall socket. Method two：You can use a separate splitter. External splitter can divide the data and voice, and then you can access the Internet and make calls at the same time.
  • Page 11 150M Wireless-N ADSL2+ Router User Guide Figure 2-3...

  • Page 12: Chapter 3. Quick Installation Guide

    Chapter 3. Quick Installation Guide 3.1 Configure PC After you directly connect your PC to the iB-WRA150N or connect your adapter to a Hub/Switch which has connected to the Router, you need to configure your PC’s IP address. Follow the steps below to configure it.
  • Page 13 150M Wireless-N ADSL2+ Router User Guide Figure 3-2 Step 3: Select General tab, highlight Internet Protocol (TCP/IP), and then click the Properties button. Figure 3-3...
  • Page 14 150M Wireless-N ADSL2+ Router User Guide Step 4: Configure the IP address as Figure 3-4 shows. After that, click OK. Figure 3-4 Note: You can configure the PC to get an IP address automatically, select “Obtain an IP address automatically”...

  • Page 15: Login

    150M Wireless-N ADSL2+ Router User Guide Figure 3-5 If the result displayed is similar to the screen shown below, it means that your PC has not connected to the Router. Figure 3-6 You can check it follow the steps below:...
  • Page 16 150M Wireless-N ADSL2+ Router User Guide Figure 3-7 Step 1: Select the Quick Start tab, then click RUN WIZARD, and you will see the next screen. Click the NEXT button. Figure 3-8 Step 2: Configure the time for the Router, and then click the NEXT button.
  • Page 17 150M Wireless-N ADSL2+ Router User Guide Figure 3-10 Step 4: Configure the following options provided by your ISP: Username, Password, VPI, VCI and Connection Type. Then click NEXT. Figure 3-11 Step 5: Configure the rules for the WLAN, and click NEXT.
  • Page 18 150M Wireless-N ADSL2+ Router User Guide Figure 3-12 Note: If the Access Point is activated, the wireless function will be available even without the external antenna because of an additional printed antenna. To adopt the wireless security protection measures, please refer to Section 4.3.3.

  • Page 19: Chapter 4. Software Configuration

    150M Wireless-N ADSL2+ Router User Guide Chapter 4. Software Configuration This User Guide recommends using the “Quick Installation Guide” for first-time installation. For advanced users, if you want to know more about this device and make use of its functions adequately, maybe you will get help from this chapter to configure the advanced settings through the Web-based Utility.

  • Page 20: System Log

    150M Wireless-N ADSL2+ Router User Guide Figure 4-2 Note: Click the other submenus System Log or Statistics in Figure 4-2, and you will be able to view the system log and traffic statistics about the Router. 4.1.2 System Log...

  • Page 21: Statistics

    150M Wireless-N ADSL2+ Router User Guide Figure 4-3 The Router can keep logs of all traffic. You can query the logs to find what happened to the Router. Click the CLEAR LOG button to clear the logs. Click the SAVE LOG button to save the logs.
  • Page 22 150M Wireless-N ADSL2+ Router User Guide Figure 4-4 Interface: You can select Ethernet, ADSL and WLAN to view the corresponding network traffic over different ports. Select Ethernet, and you will see the statistics table as below. Statistics Table: Transmit Frames The frames transmitted over the Ethernet port.

  • Page 23: Quick Start

    150M Wireless-N ADSL2+ Router User Guide Select ADSL, and you will see the statistics table as below. Statistics Table: Transmit total PDUs The total PDUs transmitted over the ADSL port. Transmit The total errors occurred over the ADSL port when data...

  • Page 24: Network Setup

    150M Wireless-N ADSL2+ Router User Guide 4.3 Network Setup Choose “Network Setup”, you can see the next submenus: WAN, LAN and Wireless. Figure 4-5 Click any of them, and you will be able to configure the corresponding function. 4.3.1 WAN Choose “Network Setup→WAN”...
  • Page 25 150M Wireless-N ADSL2+ Router User Guide Figure 4-6 ATM VC: ATM settings are used to connect to your ISP. Your ISP provides VPI (Virtual Path Identifier), VCI (Virtual Channel Identifier) settings to you. In this Device, you can totally setup 8 VCs on different encapsulations, if you apply 8 different virtual circuits from your ISP.
  • Page 26 150M Wireless-N ADSL2+ Router User Guide • VCI: Identifies the virtual channel endpoints in an ATM network. The valid range is from 32 to 65535 (1 to 31 is reserved for well-known protocols). Please input the value provided by your ISP.
  • Page 27 150M Wireless-N ADSL2+ Router User Guide Dynamic Route: Select this option to specify the RIP (Routing Information protocol) version for WAN interface, including RIP1, RIP2-B and RIP2-M. RIP2-B and RIP2-M are both sent in RIP2 format, the difference is that RIP2-M using Multicast, while RIP2-B using Broadcast format.
  • Page 28 150M Wireless-N ADSL2+ Router User Guide PPPoA/PPPoE Select this option if your ISP requires you to use a PPPoE connection. This option is typically used for DSL services. Select Dynamic PPPoE to obtain an IP address automatically for your PPPoE connection.

  • Page 29: Lan

    150M Wireless-N ADSL2+ Router User Guide Connection: For PPPoE/PPPoA connection, you can select Always on or Connect on-Demand or Connect Manually. Connect on demand is dependent on the traffic. If there is no traffic (or Idle) for a pre-specified period of time), the connection will tear down automatically.
  • Page 30 150M Wireless-N ADSL2+ Router User Guide Figure 4-11 Router Local IP: These are the IP settings of the LAN interface for the device. These settings may be referred to as Private settings. You may change the LAN IP address if needed. The LAN IP address is private to your internal network and cannot be seen on the Internet.
  • Page 31 150M Wireless-N ADSL2+ Router User Guide • Multicast: Select IGMP version, or disable the function. IGMP (Internet Group Multicast Protocol) is a session-layer protocol used to establish membership in a multicast group. The ADSL ATU-R supports both IGMP version 1 (IGMP v1) and IGMP v2. Select “Disabled”...
  • Page 32 150M Wireless-N ADSL2+ Router User Guide • DNS Relay: If you want to disable this feature, you just need to set both Primary and secondary DNS IP to 0.0.0.0. If you want to use DNS relay, you can setup DNS server IP to 192.168.1.1 on their Computer.

  • Page 33: Wireless

    150M Wireless-N ADSL2+ Router User Guide 4.3.3 Wireless Choose “Network Setup→Wireless” menu, and you will see the Wireless screen (shown in Figure 4-14 ). Please configure the parameters for wireless according to the descriptions below. Figure 4-14...
  • Page 34 150M Wireless-N ADSL2+ Router User Guide Access point Settings: These are the settings of the access point. You can configure the rules to allow wireless-equipped computers and other devices to communicate with a wireless network. • Access point: Select Activated to allow wireless station to associate with the access point.
  • Page 35 150M Wireless-N ADSL2+ Router User Guide • Channel Bandwidth: Select the Bandwidth you want to use from the drop-down List. There are two options, “20 MHz” and “20/40 MHz”. If bigger bandwidth is selected, device could transmit and receive data with higher speed.
  • Page 36 150M Wireless-N ADSL2+ Router User Guide • Authentication Type: Select an authentication type from the drop-down list, which allows you to configure security features of the wireless LAN interface. Options available are: Disabled, WEP-64Bits, WEP-128Bits, WPA-PSK, WPA2-PSK, and WPA-PSK/ WPA2-PSK.
  • Page 37 150M Wireless-N ADSL2+ Router User Guide WPA-PSK To configure WPA-PSK settings, select the WPA-PSK option from the drop-down list. The menu will change to offer the appropriate settings. WPA-PSK requires a shared key and does not use a separate server for authentication. PSK keys can be ASCII or Hex type.
  • Page 38 150M Wireless-N ADSL2+ Router User Guide WPA-PSK/WPA2-PSK To configure WPA-PSK/WPA2-PSK settings, select the WPA-PSK/WPA2-PSK option from drop-down list. menu will change offer appropriate settings. WPA-PSK/WPA2-PSK requires a shared key and does not use a separate server for authentication. PSK keys can be ASCII or Hex type. WPA-PSK/WPA2-PSK is more flexible than WPA-PSK or WPA2-PSK.
  • Page 39 150M Wireless-N ADSL2+ Router User Guide Method One: Step 1: Press the WPS button on the front panel of the Router or click Start WPS button in Figure 4-21. Step 2: Press and hold the WPS button of the adapter directly for 2 or 3 seconds.
  • Page 40 150M Wireless-N ADSL2+ Router User Guide The WPS Configuration Screen of Wireless Adapter Step 3: Wait for a while until the next screen appears. Click Finish to complete the WPS configuration. The WPS Configuration Screen of Wireless Adapter...
  • Page 41 150M Wireless-N ADSL2+ Router User Guide PIN code If the wireless adapter supports Wi-Fi Protected Setup and the PIN method, you can add it to the network by PIN with the following two methods. Click PIN code, you will see the screen as shown below.
  • Page 42 150M Wireless-N ADSL2+ Router User Guide Figure 4-23 Method Two: Enter the PIN from my Router Step 1: Get the Current PIN code of the Router from AP self PIN code in Figure 4-23 (each Router has its unique PIN code. Here takes the PIN code 00745659 of this Router for example).

  • Page 43: Advanced Setup

    150M Wireless-N ADSL2+ Router User Guide • SSID: Wireless network name shared among all points in a wireless network. The SSID must be identical for all devices in the wireless network. It is case-sensitive and must not exceed 32 characters (use any of the characters on the keyboard). Make sure this setting is the same for all stations in your wireless network.

  • Page 44: Firewall

    150M Wireless-N ADSL2+ Router User Guide 4.4.1 Firewall Choose “Advanced Setup→Firewall” menu, and you will see the next screen (shown in Figure 4-25). Figure 4-25 Firewall: Select this option can automatically detect and block Denial of Service (DoS) attacks, such as Ping of Death, SYN Flood, Port Scan and Land Attack.

  • Page 45: Nat

    150M Wireless-N ADSL2+ Router User Guide Click ADD ROUTE button to add a new route in the next screen (shown in Figure 4-27). Figure 4-27 Destination IP Address: This parameter specifies the IP network address of the final destination.
  • Page 46 150M Wireless-N ADSL2+ Router User Guide Figure 4-28 Virtual Circuit: Enter Virtual Circuit Index that you plan to setup for the NAT function. NAT Status: This field shows the current status of the NAT function for the current VC. You can go to the previous screen (shown in Figure 4-6) to activate the function.
  • Page 47 150M Wireless-N ADSL2+ Router User Guide 4.4.3.2. Virtual Server Choose “Advanced Setup→NAT→Virtual Server” in Figure 4-28, you can configure the Virtual Server in the next screen. The Virtual Server is the server or server(s) behind NAT (on the LAN), for example, Web server or FTP server, that you can make visible to the outside world even though NAT makes your whole inside network appear as a single machine to the outside world.
  • Page 48 150M Wireless-N ADSL2+ Router User Guide To add a virtual server entry: Step 1: Select the “Virtual Circuit” and select “ Virtual Server”. Note: For VCs with single IP, select Single; For VCs with multiple IPs, select Multiple for the option.

  • Page 49: Qos

    150M Wireless-N ADSL2+ Router User Guide Rule Index: Select the Virtual server rule index for this VC. You can specify 8 rules in maximum. Rule Typ: There are four types: one-to-one, Many-to-One, Many-to-Many Overload and Many-to-Many No-overload. Local Start & End IP: Enter the local IP Address you plan to map to. Local Start IP is the starting local IP address and Local End IP is the ending local IP address.
  • Page 50 150M Wireless-N ADSL2+ Router User Guide Figure 4-32 QoS: Select this option to Activate/Deactivate the IP QoS on different types (IP ToS and DiffServ). Summary: Click the button to view the configurations of QoS. Rule: Configure the rules for QoS. If the traffic complies with the rule, then the Router will take the corresponding action to deal with it.
  • Page 51 150M Wireless-N ADSL2+ Router User Guide • Source MAC & IP & Mask & Port Range: Enter the IP information about the Source host for the rule. • Protocol ID: Select one among TCP/UDP, TCP, UDP or ICMP protocols for the application.

  • Page 52: Vlan

    150M Wireless-N ADSL2+ Router User Guide 4.4.5 VLAN Choose “Advanced Setup→VLAN” menu, you can activate the VLAN function in the next screen. Virtual LAN (VLAN) is a group of devices on one or more LANs that are configured so that they can communicate as if they were attached to the same LAN, when in fact they are located on a number of different LAN segments.
  • Page 53 150M Wireless-N ADSL2+ Router User Guide Figure 4-34 PVID: Each physical port has a default VID called PVID (Port VID). PVID is assigned to untagged frames or priority tagged frames (frames with null (0) VID) received on this port.

  • Page 54: Adsl

    150M Wireless-N ADSL2+ Router User Guide ATM VCs: Select the ATM VCs as members of VLAN, and if you leave the Tagged blank, the tag in frames will be deleted when transmitted from the VC. Ethernet: Select the Ethernet port as a member of VLAN.

  • Page 55: Acl

    150M Wireless-N ADSL2+ Router User Guide 4.5.1 ACL Choose “Access Management→ACL” menu, you can see the next screen (shown in Figure 4-38). You can specify the client to access the ADSL Router once setting his IP as a Secure IP Address through selected applications.
  • Page 56 150M Wireless-N ADSL2+ Router User Guide 4.5.2.1. IP Filter Select IP/Mac Filter as the Filter type, and select IP as the Rule type (shown in Figure 4-39), then you can configure the filter rules based on IP address. The filtering includes Outgoing and Incoming, the detailed descriptions are provided below.
  • Page 57 150M Wireless-N ADSL2+ Router User Guide Note: If select PVC0~PVC7 as an interface, the filter will match the IP traffic of WAN port with specified IPs (Source IP Address and Destination IP Address). If select LAN as an interface, the filter will match the IP traffic of LAN port with specified IPs.
  • Page 58 150M Wireless-N ADSL2+ Router User Guide To add an IP Address filtering entry: For example: If you desire to block E-mail received and sent by the IP address 192.168.1.7 on your local network; And wish to make the PCs with IP address 192.168.1.8 unable to visit the website of IP address 202.96.134.12, while other PCs have no limit.
  • Page 59 150M Wireless-N ADSL2+ Router User Guide Step 4: Select the Protocol as “TCP” and select the Unmatched rule as “Next”. Step 5: Finally, click the SAVE to save the entry. Step 6: Go to Step 2 to configure the next two rules: Block E-mail received by the IP address 192.168.1.7 on your local network;...
  • Page 60 150M Wireless-N ADSL2+ Router User Guide Figure 4-40 Rule Type: Select MAC for the MAC Filter rule. Active: Select “Yes” to make the rule to take effect. MAC Address: Enter the MAC address for the rule. Rule Unmatched: If the current rule can not match, and you select Forward, the router will skip the rule and transmit directly.
  • Page 61 150M Wireless-N ADSL2+ Router User Guide Step 2: Select the IP/MAC Filter Set Index and IP/MAC Filter Rule Index for the rule, then select the Interface “PVC0”, and select the Direction “Outgoing” for the first rule. Note: If you want to make the rule take effect, please select Yes to active the rule.
  • Page 62 150M Wireless-N ADSL2+ Router User Guide Figure 4-41 Filter Type Selection: Select the Application Filter for the next configuration. Application Filter: Activate or deactivate the function. ICQ & MSN & Real Audio/Video: Select Allow or Deny for these applications. If you select Allow, the Router will accept the application;...

  • Page 63: Snmp

    150M Wireless-N ADSL2+ Router User Guide URL Index: Select the index for the URL Filter entry. URL: Enter the URL for this URL Filter. URL Filter Listing: This displays the information about the URL Filter rules. To add a URL filter entry: For example: If you want to forbid the user to access the website: www.yahoo.com.

  • Page 64: Upnp

    150M Wireless-N ADSL2+ Router User Guide 4.5.4 UPnP Choose “Access Management→UPnP” menu, you can configure the UPnP in the screen (shown in Figure 4-44). UPnP (Universal Plug and Play) is a distributed, open networking standard that uses TCP/IP for simple peer-to-peer network connectivity between devices.

  • Page 65: Cwmp

    150M Wireless-N ADSL2+ Router User Guide Figure 4-45 Dynamic DNS: Activate the DDNS function or not. Service Provider: This field displays the service provider of DDNS. My Host Name: Enter your host name here. E-mail Address: Enter your E-mail address here.

  • Page 66: Maintenance

    150M Wireless-N ADSL2+ Router User Guide Figure 4-46 CWMP: Select activate the CWMP function. URL: Enter the website of ACS which is provided by your ISP. User Name/Password: Enter the User Name and password to login the ACS server.

  • Page 67: Administration

    150M Wireless-N ADSL2+ Router User Guide 4.6.1 Administration Choose “Maintenance→Administration” menu, you can set new password for admin in the screen (shown in Figure 4-48). Figure 4-48 Note: There is only one account that can access Web-Management interface. The default account is "admin", and the password is "admin".
  • Page 68 150M Wireless-N ADSL2+ Router User Guide Figure 4-49 Note: The ADSL Router built-in some NTP Servers, when the Router connects to the Internet, the Router will get the system time automatically from the NTP Server. You can also configure the NTP Server address manually, and then the Router will get the time from the specific Server firstly.

  • Page 69: Firmware

    150M Wireless-N ADSL2+ Router User Guide Figure 4-51 4.6.3 Firmware Choose “Maintenance→Firmware” menu, you can upgrade the firmware of the Router in the screen (shown in Figure 4-52). Make sure the firmware or romfile you want to use is on the local hard drive of the computer.
  • Page 70 150M Wireless-N ADSL2+ Router User Guide Note: When you upgrade the router's firmware, you may lose its current configurations, so please back up the router’s current settings before you upgrade its firmware. Do not turn off the router or press the Reset button while the firmware is being upgraded.

  • Page 71: Sysrestart

    150M Wireless-N ADSL2+ Router User Guide iB-WRA150N Figure 4-54 To restore the Router’s settings: Step 1: Click the Browse button to locate the update file for the device, or enter the exact path in “New Romfile Location” field. Step 2: Click the UPGRADE button to complete.

  • Page 72: Diagnostics

    150M Wireless-N ADSL2+ Router User Guide 4.6.5 Diagnostics Choose “Maintenance→Diagnostics” menu, you can view the test results for the connectivity of the physical layer and protocol layer for both LAN and WAN sides in the screen (shown in Figure 4-56).

  • Page 73: Help

    150M Wireless-N ADSL2+ Router User Guide 4.7 Help Choose “Help”, you can view the help information for configuration of any function. Figure 4-57 Note: Click the tab, and you will be able to get the corresponding information.

  • Page 74: Appendix A: Specifications

    150M Wireless-N ADSL2+ Router User Guide Appendix A: Specifications General ANSI T1.413, ITU G.992.1, ITU G.992.2, ITU G.992.3, ITU G.992.5, Standards and Protocols IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u Protocols TCP/IP, PPPoA, PPPoE, SNTP, HTTP, DHCP, ICMP, NAT LAN Ports: 4-10/100M Auto-Negotiation RJ45 ports （Auto MDI/MDIX)
  • Page 75 150M Wireless-N ADSL2+ Router User Guide Physical and Environment Working Temperature ℃ ~ 40 ℃ Working Humidity 10% ~ 90% RH (non-condensing) Storage Temperature ~ 70 ℃ ℃ Storage Humidity 5% ~ 90% RH (non-condensing)

  • Page 76: Appendix B: Contact Information

    150M Wireless-N ADSL2+ Router User Guide Appendix B: Contact Information Note: For any technical help on iBall Baton products please contact support@iballbaton.com www.iBallBaton.com...
