3G+ MiFi GSM Router
Model No.: iB-W3GM072G
UserzManual
Ver.: 2.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Baton iB-W3GM072G and is the answer not in the manual?

Questions and answers

Summary of Contents for iBall Baton Baton iB-W3GM072G

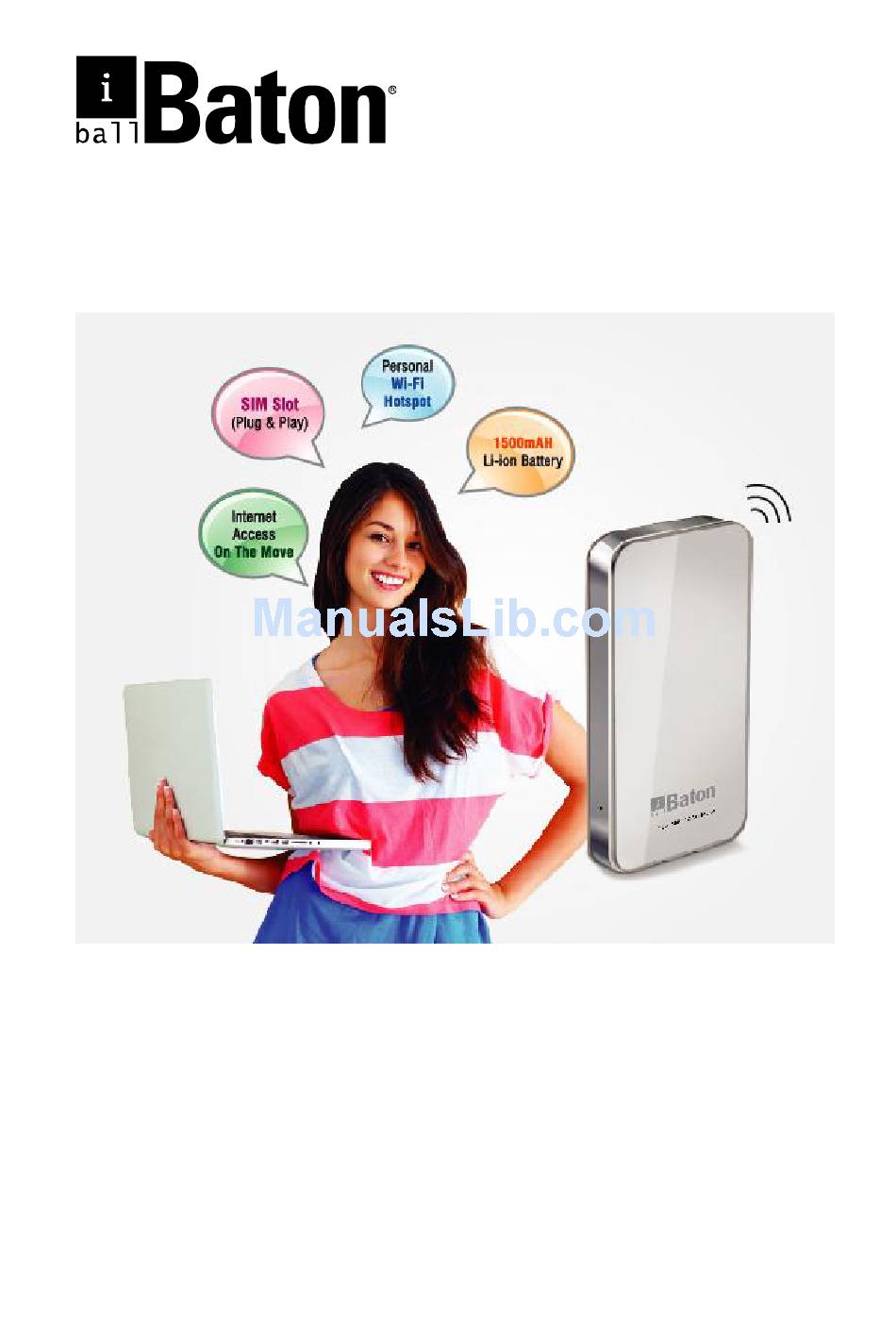

  • Page 1 3G+ MiFi GSM Router Model No.: iB-W3GM072G UserzManual Ver.: 2.0.0...
  • Page 2: Fcc Statement

    FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 3: Safety Precautions

    CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Safety Precautions Read the safety precautions carefully to ensure the correct and safe use of your wireless device.
  • Page 4: Table Of Contents

    Contents Safety Precautions ................ 3 Package Contents ................. 5 1.Overview: ................... 5 1.2. Product Features………………………………………………….6 1.3. Introduction to MiFi GSM Router ..........7 2. Access to the Internet ..............9 3.Login to the 3G+ MiFi GSM Router .......... 10 4. Access Router through USB cable .......... 10 5.
  • Page 5: Package Contents

    1. Overview iBall Baton 3G+ MiFi GSM Router is compact size pocket / travel ideal for travel users. 2G/3G GSM Internet - Access Internet with mobility, Wi-Fi Ready - Personal Hotspot Compact design with Li-ion battery ideal for Travel use...
  • Page 6: Product Features

    1.1 Product Features:  Complies with IEEE802.11 b/g standards  Support 802.11n wireless connection  SIM slot GSM Router - 2G/3G Internet access  High Speed transmit rate upto 7.2Mbps HSDPA & 5.76Mbps HSUPA  2G/3G Frequency band HSPA / UMTS :2100Mhz GSM/ GPRS/ EDGE: 850Mhz, 900Mhz, 1800Mhz &...
  • Page 7: Introduction To Mifi Gsm Router

    1.2 Introduction of 3G+ MiFi GSM Router 1.Reset Button 2.USB Interface 3.Power Button 4. iBall Baton Logo 5. Product Name 6.Total Internet Traffic Statistics 7.Identification of ISP 8.RSSI 9. Internet Access Type: 2G / 3G 10.WiFi 11. Internet : Connected / Disconnected 12.SMS Indication...
  • Page 8: System Requirements

    1.3 Install the SIM card, Micro SD card and battery Make the card with corner side towards top left, then slide the card into slot. System Requirements  CPU: Pentium 500MHz or above.  Hard Disk: 50MB available space.  Operating System: Windows 8/7/VISTA/XP (SP2 and above), Mac OS X 10.4.9 and Later, Up to X10.6.0.
  • Page 9: Access To The Internet

    2. Access to the Internet Description: By default, iB-W3GM072G has been complete pre-management parameters, you can quickly access to the Internet by the following steps. As for the detailed operation, please refer to the help information of “Management websites”. Step I: ON / OFF of iB-W3GM072G •...
  • Page 10: Login To The 3G+ Mifi Gsm Router

    3. Login to the 3G+ MiFi GSM Router 1. Confirm the connection for iB-W3GM072G with WiFi or the computer is good. 2. Open the browser, enter http://192.168.1.1 in the address field 3. Input username: admin and password: admin, then click “OK”. Description: If you can't visit the management web page, please restart your iB-W3GM072G and then you can visit without any issues.
  • Page 11: Battery Usage Details

    4. Wired Connectivity through USB Cable For Win 7/8/XP OS, driver will install automatically. Wait until driver installation over, you could connect to Internet directly. Note: It needs to install the driver in Windows XP SP3 systems, steps: • Without SIM card. Under the Windows SP3 system, connect to computer via USB cable connection, popup Window of the driver installation to install automatically, till “My computer”...
  • Page 12: Restore To Factory Default

    Installation of Micro SD card 1. Open the Micro SD card slot cover. 2. Input the Micro SD card. 3. Pin the SD card slot cover and push the cards then lock it in the slot. 6. Restore to Factory Default : If you forget the SSID of the Router or the username and password of the Router, please take the following methods to restore Wi-Fi default values Method I: RESET button...
  • Page 13: Multi Device Access Through Router

    7. Multi-device access  High Speed download transmit rate up to 7.2Mbps Download & 5.76Mbps Upload  Access Internet through Wireless mobility to 5 Wi-Fi device.  Access Internet through wired USB connection...
  • Page 14: Appendix: Specification

    8. Appendix: Specification Device Type WCDMA 3G Wireless Router 3G:UMTS/HSDPA/HSUPA Network Type 2G:GSM/GPRS/EDGE UMTS/HSDPA/HSUPA:2100MHz Frequency Band GSM/GPRS/EDGE:850/900/1800/1900MHz Max7.2Mbps(DL) Data Transfer Rate Max5.76Mbps(UL) Interface Micro USB Memory Card Micro SD card support up to 32GB Other Features SMS , Storage Support System Windows &...
  • Page 15: Contact Information

    COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. iBall Baton is a registered trademark of Best IT World (India) Pvt. Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from Best IT World (India) Pvt.
