Summary of Contents for iBall Baton iB-OR5A5300N

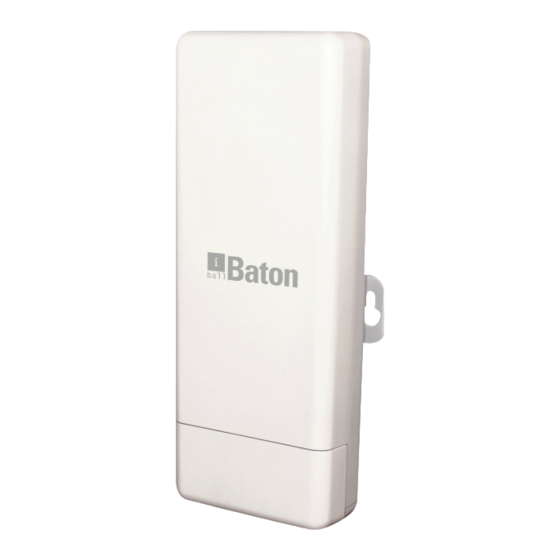

- Page 1 5 GHz 300Mbps Outdoor AP Router Model No. iB-OR5A5300N Ver.: 1.0.0...
-
Page 2: Fcc Statement
FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference in a residential installation. -
Page 3: Table Of Contents
CONTENTS Package contents......................4 Introduction........................5 Connecting the Router....................9 3. Wireless........................... 11 Wireless Configuration guideline................14 AP – Wireless Basic Setting..................15 6. WAN Settings........................16 7. Firewall..........................17 8. Maintenance........................22 9. Product Features :......................26... -
Page 4: Package Contents
Package contents The following items should be found in your package: 5 GHz 300Mbps Outdoor AP Router(iB-OR5A5300N) DC 12V Power Adapter POE Injector Cable Tie User Manual NOTE: Kindly use the POE Injector as provided in box packaging. -
Page 5: Introduction
1. Introduction iBall Baton iB-OR5A5300N is High Power Outdoor AP Router with reliable solution. Enhanced Wireless data transmission rate up to 300Mbps. Operation Mode: Access Point, Station Wireless Mode: AP, WDS, Bridge Antenna Type: Internal 14dBi Directional Antenna 1.1 Main Features ... -
Page 6: Led Description
1.2 LED description Fig.1 LED Indicator State Description The WLAN Broadband Router is powered ON. 1. PWR LED The WLAN Broadband Router is powered Off. LAN Connected LAN Disconnected 2. Secondary LAN Flash Data is transmitting or receiving on the wireless. PoE Connected PoE Not Connected 3. -
Page 7: Port Description
1.3 Port description Interfaces Description Power 24V DC Power Reset button : press for 5-10 sec & release Reset The RJ-45 port allows LAN connection through Cat. 5 cables. Support Auto-Negotiation RJ45 ports, half/ full duplex; comply with IEEE 802.3/ 802.3u respectively. The RJ-45 port allows WAN connection through a Cat. -
Page 8: Hardware Installation Steps
1.4 Hardware installation steps Step1: Push the button in the side to remove upper housing. Step2: Pass through Ethernet cable from the hole; insert the cable to Secondary port. Note: RJ-45 8P8C Ethernet cable is required. Step3: Install the upper housing and make sure the housing is well installed. -
Page 9: Connecting The Router
Step4: Install POE Injector DC: Insert adapter POE: This hole is linked to Secondary port of the Outdoor Router with RJ-45. LAN: This hole is linked to LAN side PC/Hub or Router/ADSL modem device with RJ-45 Note: The above image is just for your reference, Colour of POE may vary as per product packaging.. 2. - Page 10 Web browser, such as Microsoft Internet Explorer, Mozilla Firefox 2.2 TCP/IP Configuration The default IP address of the iB-OR5A5300N 5 GHz 300Mbps Outdoor AP Router is 192.168.1.200 and the default Subnet Mask is 255.255.255.0. These values can be changed as per the requirement.
-
Page 11: Wireless
3. Wireless Wireless Status Click “Wireless” to go Wireless setting menu, as shown in below image. Operation Mode: This mode the Operational mode status (Station/AP) Channel-Band: This menu shows the Wireless Channel and Band of the device. -
Page 12: Network Settings
Rate : This menu shows the Connection Speed of the device. SSID: Identification of Remote device’s wireless network. BSSID: Identification of Remote device’s MAC Address. Encryption: Security type of main SSID, in drop-down list to choose right mode you need or ... -
Page 13: Dhcp Server Settings
DHCP Server Settings: You can enable or disable DHCP server here,then click Next Wireless Settings： To configure wireless settings of the device, you could enable or disable wireless, select security mode / set encrypt key etc,after that click Apply to save previous settings. Note: The device will restart after changing these settings, if you just keep defaults value please click... -
Page 14: Wireless Configuration Guideline
next for further process 7. Wireless Configuration guideline Station: Click “Wireless ”→“Basic Settings” →“Station” go to basic configuration page, as below image: Note: Station mode is use to create Bridge, WDS Bridge, WISP & Client AP router function, Router connect to access internet ... -
Page 15: Wan Settings
In this page you may set wireless access point as per your requirement, after that click “Apply Changes” to save settings and restart device. SSID “iBall-Baton” will broadcast its name. Select SSID you can change its name here. Broadcast SSID: Enable the option, SSID will be visible you can see the SSID name by PC or laptop’s wireless scan tools, once you disable it user couldn’t find the SSID by scanning tools, the SSID has been hided, but if you still wish to connect with the SSID, just enter the SSID manually. -
Page 16: Firewall
Bridge -This menu will Create Bridge between both Ethernet Ports. WDS Bridge: This menu can create WDS Wireless Bridge between Remote access Point at far end distance. DHCP: In this option configure Dynamic IP address type of connection ... -
Page 17: Mac Filtering
IP / Port Filtering IP / Port Filtering Filter includes both outbound filter and inbound filter. And they have same way to setting. It enables you to control what packets are allowed to pass the router. Outbound filter applies on all outbound packets. However, inbound filter applies on packets that destined to Virtual Servers or DMZ host only. -
Page 18: Url Filtering
MAC Filtering allows you to assign different access right for different users and to assign a specific IP address to a certain MAC address . White list - Allow all to pass except those match the specified rules. Black List - Deny all to pass except those match the specified rules. Disable –... -
Page 19: Port Forwarding
Port Forwarding This product’s NAT firewall filters out unrecognized packets to protect your Intranet, so all hosts behind this product are invisible to the outside world. If you wish, you can make some of them accessible by enabling the Virtual Server Mapping. For example, if you have an FTP server (port 21) at 192.168.1.192, a Web server (port 80) at then you need to specify the following table:... -
Page 20: Dynamic Dns
DMZ DMZ (Demilitarized Zone) Host is a host without the protection of firewall. It allows a computer to be exposed to unrestricted 2-way communication for Internet games, Video conferencing, Internet telephony and other special applications. Dynamic DNS To host your server on a changing IP address, you have to use dynamic domain name service (DDNS). - Page 21 Domain Name: Register a domain name to the DDNS provider. The fully domain name is concatenated with hostname (you specify) and a suffix (DDNS provider specifies). Username/E-mail: Input username or E-mail based on the DDNS provider you select. Password/Key: Input password or key based on the DDNS provider you select. Afterwards, click on “Apply Changes ”...
-
Page 22: Maintenance
11. Maintenance Click “System Tools” to go to system management menu, as shown in below image. Choose menu “Maintenance”, you can see the submenus under the main menu: Time Settings, System Log, Firmware Upgrade, Factory Defaults, Backup & Restore, Restart, Password, Diagnostic Tool and Logout. -
Page 23: System Log
System log Choose menu “Maintenance → System Log”, you can view the logs of the Router. System Log : This can enable or disable system log. Remote IP address : This option can configure system log on Remote syslog server ... - Page 24 Backup / Restore Choose menu “Maintenance → Backup & Restore”, you can save the current configuration of the Router as a backup file and restore the configuration via a backup file as shown in bellow figure. Backup: This menu is use to save router setting to Backup file. Backup your router setting and store it to a safe place which can use to recover router setting in future.
-
Page 25: Diagnostic Tools
Diagnostic Tools You could check all the system logs on “Log Settings” Logout This option can use to logout the router settings. -
Page 26: Product Specifications
Product Specifications : LAN Interface 1 10/100Mbps RJ45 port WAN Interface 1 10/100Mbps RJ45 port Power supply 12V-24V，1A （DC/POE） Antenna Inner 14dBi antenna Protection IP65 Power consumption 9W（Max） Dimension 95mm x 51mm x 256mm（W x H x D） Protocol IEEE 802.11b/g/n 5.180-5.240GHz ;5.745-5.825GHz. - Page 27 Maximum Input Power -W COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. iBall Baton is a registered trademark of Best IT World India Pvt. Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.
