Cisco TelePresence SpeakerTrack 60 Installation Manual page 6

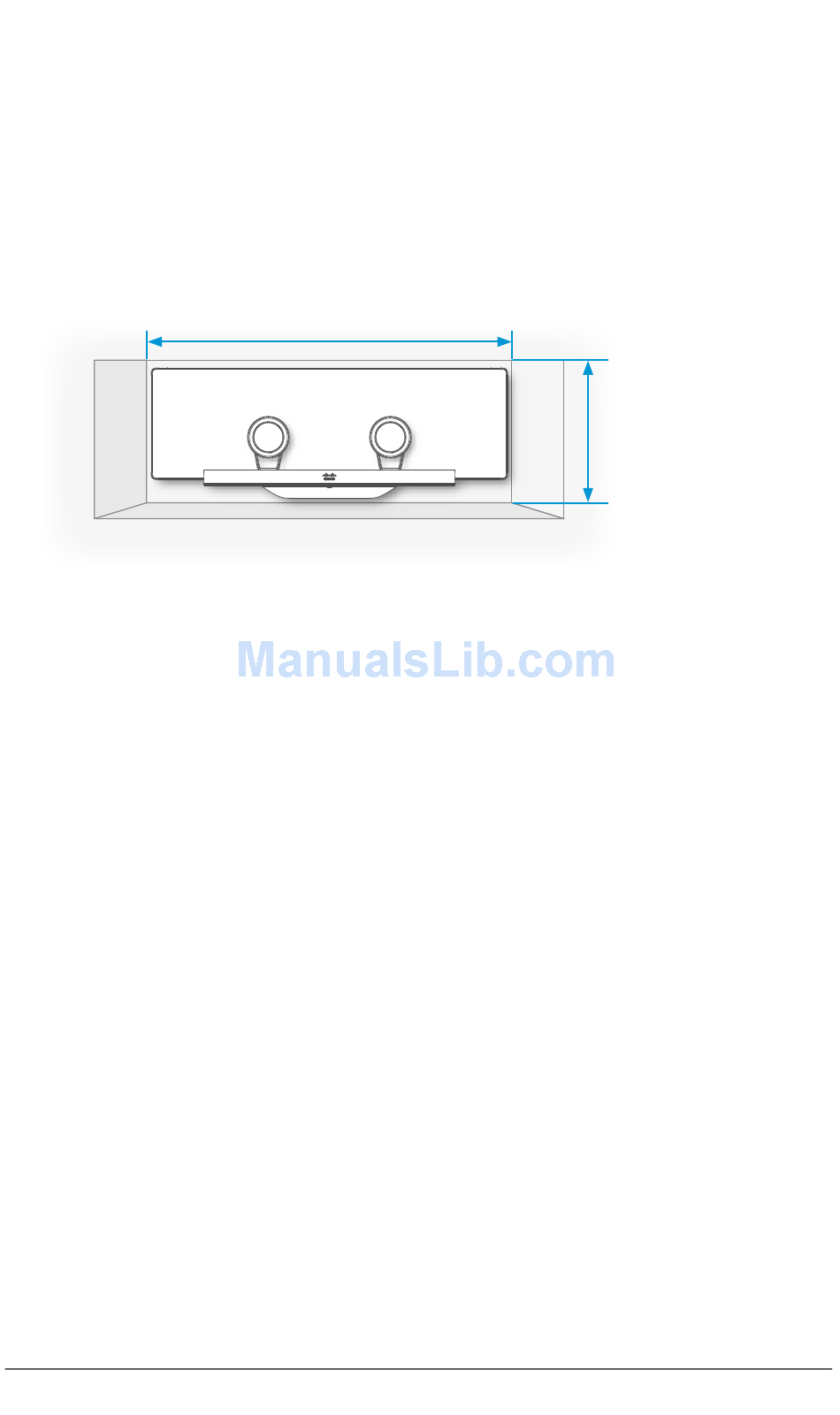

Mounting in a recess above the monitor
SpeakerTrack 60 is designed to be wall mounted. If mounted in a recess, the sound from any
participant in the room must reach at least three of the four microphones on the microphone
panel. To obtain this, the recess should be constructed with sloping walls.
Cad drawings with details and dimensions: http://www.cisco.com/go/telepresence/docs and
navigate to: Collaboration Endpoints > Collaboration Peripherals > TelePresence Peripherals >
TelePresence SpeakerTrack 60 > Technical References
• The bottom wall of the recess is sloped 17°
• The side walls of the recess are sloped 45°
• The maximum depth of the recess is 217.6 mm (8.56 in). If less depth the camera will
protrude from the wall. Follow local building regulations and accessibility requirements.
78-100223-02C0 | MARCH 2015.
Copyright © 2015 Cisco Systems, Inc. All rights reserved.
820 mm (32.3 in)
320 mm
(12.6 in)
