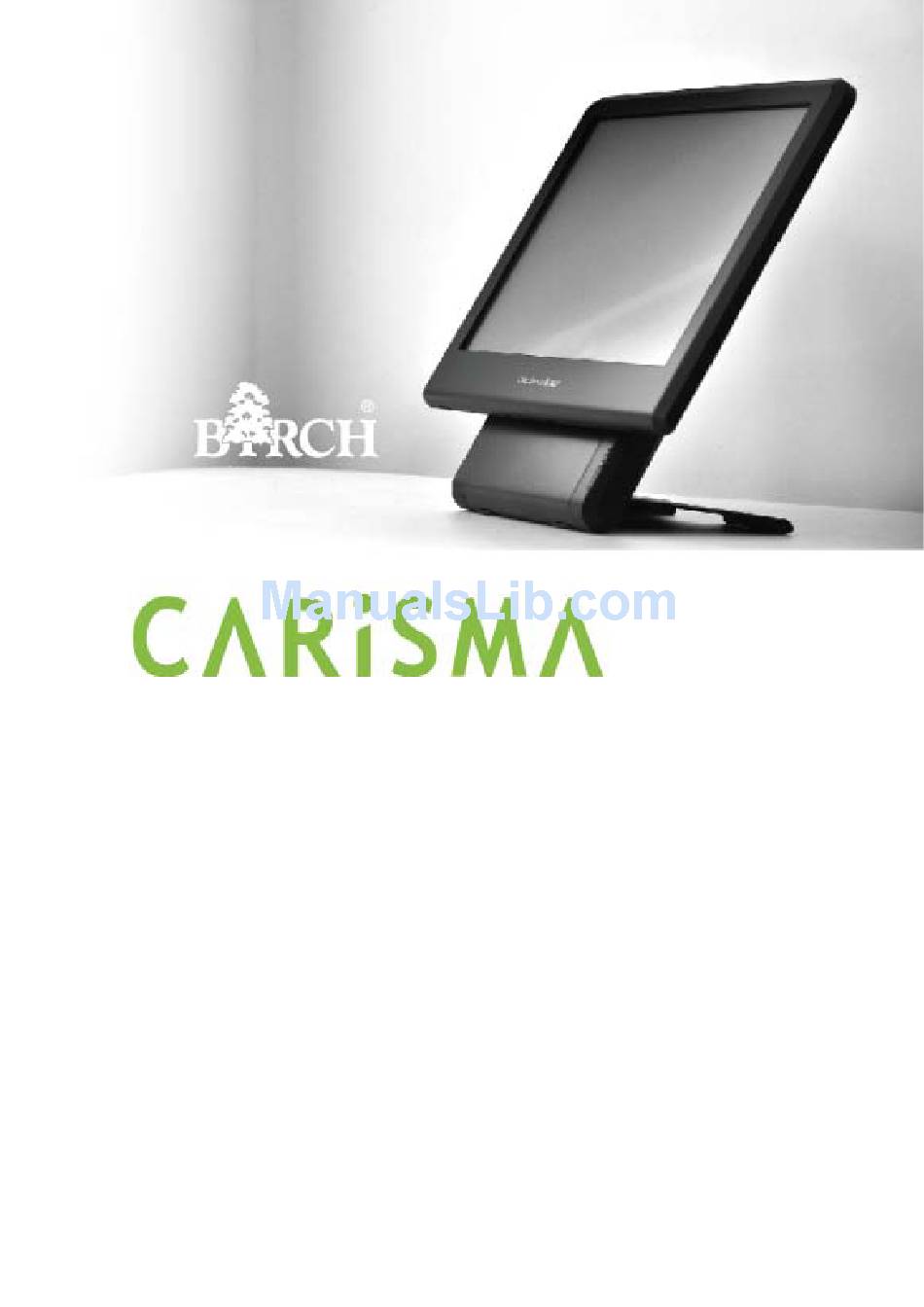

S m a l l f o o t p r i n t & E l e g a n t
®Copyright 2010 July All Rights Reserved Version1.1
The information contained in this document is subject to change without notice. We make no warranty of any
kind with regard to this material, including, but not limited to, the implied warranties of merchantability
and fitness for a particular purpose. We shall not be liable for errors contained herein or for incidental
or consequential damages in connection with the furnishing, performance, or use of this material.
This document contains proprietary information that is protected by copy right. All rights are reserved. No
part of this document may be photocopied, reproduced or translated to another language without the prior
written consent of the manufacturer.
TRADEMARK
Intel®, Pentium® and MMX are registered trademarks of Intel® Corporation. Microsoft® and Windows® are
registered trademarks of Microsoft Corporation.
Advertisement
Table of Contents
Related Manuals for Birch Carisma IT7000III
Summary of Contents for Birch Carisma IT7000III
- Page 1 S m a l l f o o t p r i n t & E l e g a n t ®Copyright 2010 July All Rights Reserved Version1.1 The information contained in this document is subject to change without notice. We make no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
-
Page 2: Main Board
Main Board IT7000III-15 Intel® Core 2 Duo, Pentium 1.46GHz (T2310) Chipset Intel® GME 965 Express + ICH8M System Memory Total up to 4GB Socket-type RAM device, 200PIN SO-DIMM DDR2 RAM, up to 2GB On-board DDR2 RAM device, up to 2GB Graphic Memory Shared system memory up to 256MB LCD Panel... -
Page 3: Optional Peripherals
Power Power Adaptor Input AC 100-240V 2.5A 50/60Hz, Output DC 12V 6.66A I / O Serial Four COM ports with RJ-45 Connector Pin 9 with 5V / 12V power selectable Parallel One LPT with adaptor cable 2nd VGA Output One with optional adaptor cable PS/2 Audio One Earphone &... - Page 4 If any item is missing, please contact your sale agent immediately. Take the system unit out from the carton. Remove the unit by carefully holding the foam inserts and remove slowly to protect the system. The following items should be found in the carton: 1.
- Page 5 Please unplug the AC power of the adapter before opening any part of the system. Since the standby power is always on after the adapter is plugged in. It may cause permanent damage to your system when you open any part of it. Front View Power Side USB...
-
Page 6: How To Open The Connector Bezel
How to open the connector bezel Please unplug the AC power of the adapter before opening any part of the system. Since the standby power is always on after the adapter is plugged in. It may cause permanent damage to your system when you open any part of it. As illustrated in the following, Push the locker downward... -
Page 7: The Connector Panel
The connector panel Please notice that all Four COM ports using RJ-45 connector and two RJ-45 to DB-9 conversion cables are provided in the package. Please notice that the Printer and VGA connectors in the second level, using JST PHD pitch 1.25 type connectors. -
Page 8: Installing Peripherals
Please unplug the AC power of the adapter before opening any part of the system. Since the standby power is always on after the adapter is plugged in. It may cause permanent damage to your system when you open any part of the system. Installing Peripherals To install the peripheral’s cables, please follow the method described below. - Page 9 Jumper Setting and Reset the Main Board BIOS Setting The jumper you can select COM3 to COM4 9 with 5V or 12V power. The second jumper is Clean CMOS. 1. Release the four screws in the front panel. 2. Sometime, if the CPU front panel is too tight, it is easier to use a tweezers as a hook to pull the panel out.
- Page 10 JP2 JP1 CMOS Jumper: JP1(COM4)/JP2(COM3) Type: onboard 3 x 2-pin header JP1/JP2 Mode Standard COM Port Pin9 with 12V signal Pin9 with 5V signal Default setting...
- Page 11 1 Jumper: JRTC Type: Onboard 3-pin jumper Normal Operation Mode Clear CMOS Normal Operation Default setting After changing RAM module, please lock the four screws for front housing...
- Page 12 Mount CARiSMA on Wall 1. Turn the system upside down 2. Release metal foot 3. Release the screw 4. Lock the Wall mount by screw 5. It is the same procedure to lock right side wall mount...
- Page 13 5. Mark the signal 6. Drill the hole on the wall 7. Lock the metal foot on the wall 8. Insert the machine down from Upper side Attention: Please check the 9. Lock the CARiSMA by screw screw is lower than metal foot...
-
Page 14: Installing Magnetic Card Reader (Msr)
Installing Magnetic Card Reader (MSR) 1. Turn the system upside down 2. Open the cover of MSR cable 3. Connect the cable to MSR 4. Lock the screw to mount MSR... -
Page 15: Installing Customer Display
Installing Customer Display 1. Release Four screw on the back of VFD module 2. Release Two screw... - Page 16 3. Release the screws on the VFD module 4. Release the VFD board 5. Turn the system upside down 6. Open the VFD cover by fingernail...
- Page 17 7. Pass the signal line through the middle of the lower hinge mount hole 8. Pass the signal line through the middle of 9. Lock the hinge mount by screw the upper of hinge mount hole 10. Pass the signal line through the middle of 11.
- Page 18 12. Lock the VFD board by screws 13. Close the VFD cover Attention: Make sure latches are securely 14. Lock the VFD cover with VFD base 15. Install hinge cover 16. Lock the hinge cover by screw...
- Page 19 17. Lock the VFD module with hinge mount...
-
Page 20: Installing Hard Disk
Installing Hard Disk Please unplug the AC power of the adapter before opening the hard disk cover. Since the standby power is always on after the adapter is plugged in. It may cause permanent damage to your system when you open any part of the system. 1. -
Page 21: Installing Ram
Installing RAM 1. Release the four screws in the front housing. 2. Sometime, if the CPU front panel is too tight, it is easier to use a tweezers as a hook to pull the panel out. - Page 22 3. After changing RAM module, please lock the four screws for front housing...
-
Page 23: Important Notice
Important Notice If you find the screen is completely dark when power on. Please Reset BIOS setting as described in the former chapter. After clean CMOS operation, press <DEL> key many times after power on beep sound to enter BIOS setup mode then press <F10> and <Enter>. It will set BIOS to default value. - Page 24 Use this menu to set the Advanced Features available on the system. Advanced Chipset Features Use this menu to change the values in the chipset registers and optimize the system’s performance. Integrated Peripherals Use this menu to specify your settings for integrated peripherals. Power Management setup Use this menu to specify your settings for power management.
- Page 25 a. Intel Chipset driver Driver List b. Intel Extreme Graphics driver c. Intel 82562ET LAN driver d. Realtek AC97 codec driver e. TouchKit Touch Screen driver Please always install the Intel Chipset driver first and restart the Windows system before processing other driver’s installation. Chipset Driver Installation Insert the CD comes with the system into any USB external CD-ROM, select the CD driver and change directory to “Chipset”.
- Page 26 A. Click the “Next” button on the B. Click the “Yes” button on the License Welcome window Agreement window C. Click the “Next” button to continue D. Click the “Finish” button...
- Page 27 VGA Driver Installation Select the CD directory to “VGA”...
- Page 28 B. Click the “Yes” button on the License A. Click the “Next” button on the Agreement window Welcome window C. Click the “Next” button to continue D. Click the “Finish” button...
- Page 29 LAN Driver Installation Select the CD directory to “LAN” A. Click the “Next” button on the Welcome window...
- Page 30 B. Click the “Finish” button...
- Page 31 Audio Driver Installation Select the CD directory to “Step 4 - Install Realtek AC97 codec Driver” A. Click “NEXT”...
- Page 32 B. Click the “Finish” button...
- Page 33 Touch Kit Touch Driver Installation Select the CD directory to “TouchKit Driver” B. Click the “Next” button on the Welcome A. Double click “SETUP” on the window My computer window C. Click “Next “button on the “Select Type” D. Select “None” and Click “Next” window E.
- Page 34 A. Double click “SETUP” on the my computer B. Click the “Next” button on the Welcome window window G. Install successful and restart your system...
- Page 35 Four Points Calibration of the touch screen Always perform the Four Points Calibration of the TouchKit program after your first installation of the touch screen driver. B. Press the Green Blink Cross mark. A. Select Tools then 4 Points Calibration. C.
- Page 36 DirectX 9 Installation...
-
Page 37: Motherboard Layout Component Side
Please unplug the AC power of the adapter before opening any part of the system. Since the standby power is always on after the adapter is plugged in. It may cause permanent damage to your system when you open any part of the system. Installing Peripherals Connectors &... -
Page 38: Solder Side
Solder side... - Page 39 Connector: CN_USB3/4 Type: DF13 10-pin pitch=1.25mm Description Description 5VSB 5VSB USB4N/6N USB5N/7N USB4P/6P USB5P/7P Connector: CN_COM1 Type: DF13 10-pin pitch=1.25mm Description Description MDCD1 MSIN1 MS01 MDTR1 MDSR1 MRTS1 MCTS1 +12V Connector: CN_COM2 Type: DF13 10-pin pitch=1.25mm Description Description MDCD1/2 MSIN1/2 MS01/2 MDTR1/2 MDSR1/2...
- Page 40 Connector: CN_INV Type: 5-pin LVDS Power Header Description +12V CTLBKL ENABKL Connector: JVLCD Type: 6-pin Power select Header Description LCDVCC (3.3V) LCDVCC (5V) LCDVCC (12V) Connector: CN_LVDS Type: onboard 40-pin connector for LVDS connector Connector model: HIROSE DF13-40DP-1.25V Description Description LCDVCC LCDVCC ATX0-...
- Page 41 ATX1- BTX1- ATX1+ BTX1+ ATX2- BTX2- ATX2+ BTX2+ ACLK- BTX3- ACLK+ BTX3+ ATX3- BCLK- ATX3+ BCLK+ DDCPCLK DDCPDATA Connector: CN_JFRNT Type: DF13 10-pin pitch=1.25mm Description Description PWRBT- PWRBT- LANLED- LANLED+ HDLED HDLED+ PWRLED PWRLED+ Reset+ Reset- Connector: DC_OUT Type: 4-pin connector for +5V/+12V output Description Description...
- Page 42 Connector: CN_LPT Type: DF14 25-pin pitch=1.25mm Description Description -PSTB PRD0 PRD1 INIT PRD2 SLIN PRD3 PRD4 PRD5 PRD6 PRD7 BUSY SLCT Connector: CN_CRT Type: DF14 25-pin pitch=1.25mm Description Description 5VSB HSYNC VSYNC...
- Page 43 Character Font Table A. Control code set B. U.S.A. font set...
- Page 44 C. International character selection ASCII CODE 3DH: Standard Europe international font set...
- Page 45 3EH: Multingual international font set 3FH: Portuguese international font set...
- Page 46 40H: Canadian French international font set 41H: NORDIC internatinal font set...
- Page 47 42H: RUSSIA font set 43H: SLAVONIC Font set...
-
Page 48: System Commands
44H: Katakana font set System Commands Command Format Command List A. Set Baud Rate COMMAND: B COMPUTER:EOT SOH 'B' 'BAUD RATE' 'N' ETB ASCII (04H) (01H)(42H) (31H~37H)(4EH)(17H) Byte 1 DISPLAY: ACK (or NACK if failed) ASCII (06H) (15H) Byte... - Page 49 Note: Baud rates 31H: 9600 32H: 4800 33H: 2400 34H: 1200 35H: 600 36H: 300 37H:19200 B. Select international code table COMMAND: I COMPUTER:EOT SOH 'I' 'CHAR' ETB ASCII(04H)(01H)(49H)(30H~44H)(17H) Byte DISPLAY: ACK (or NACK if failed) ASCII (06H) (15H) Byte Note : International Character Code C.
- Page 50 D. Set cursor position COMMAND: P COMPUTER: EOT SOH 'P' 'Position' ETB ASCII (04H) (01H) (50H) (31H~58H) (17H) Byte 1 DISPLAY: ACK (or NACK if failed) ASCII (06H) (15H) Byte 1 Note: The cursor can be set to the position from 1 to 40 Position 1 means the upper left corner position.
- Page 51 select 31H means display the message saved on layer 1. select 32H means display the message saved on layer 2. select 33H means display the message saved on layer 1+ layer2. select 34H means display the message saved on layer 3. select 35H means display the two messages saved on layer 1 + layer 3.
-
Page 52: Command Modes
Transmission method Each ASCII character is transmitted with 1 start bit 8 data bits 1 stop bit No parity Note: You may generate your own application software to run the display according to the standard RS-232C communication protocols and the SOFTWARE CONTROL information listed on this chapter. Command Modes The command modes can be selected with the Demo Software. - Page 53 Mode 1: EPSON Esc/POS mode...
- Page 54 Mode 2: UTC Standard mode Mode 3: UTC enhanced mode Mode 4: AEDEX mode...
- Page 55 Mode 5: ICD 2002 mode REMARK)* Using command "ESC E r Φ", the value of parameter: r 58= all rows 55= upper row 44= lower row Φspecial function, the value is one of 30= shift mode (default) 31= rotation mode 32= blink mode 33= clear this row and switch to shift mode 34= overwrite mode...
- Page 56 Mode 6: CD 5220 standard mode...
- Page 57 Mode 7: DSP-800 mode Mode 8: ADM 787/788 mode...
-
Page 58: Caution On Lithium Batteries
CE MARK This device compiles with the requirements of the EEC directive 89/336/EEC with regard to “Electromagnetic compatibility” and 73/23/EEC “Low Voltage Directive” This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference.
