S m a l l f o o t p r i n t & E l e g a n t
®Copyright 2010 July All Rights Reserved Version 2.0
The information contained in this document is subject to change without notice. We make no warranty of any
kind with regard to this material, including, but not limited to, the implied warranties of merchantability
and fitness for a particular purpose. We shall not be liable for errors contained herein or for incidental
or consequential damages in connection with the furnishing, performance, or use of this material.
This document contains proprietary information that is protected by copy right. All rights are reserved. No
part of this document may be photocopied, reproduced or translated to another language without the prior
written consent of the manufacturer.
TRADEMARK
Intel®, Pentium® and MMX are registered trademarks of Intel® Corporation. Microsoft® and Windows® are
registered trademarks of Microsoft Corporation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Carisma and is the answer not in the manual?

Questions and answers

Related Manuals for Birch Carisma

Summary of Contents for Birch Carisma

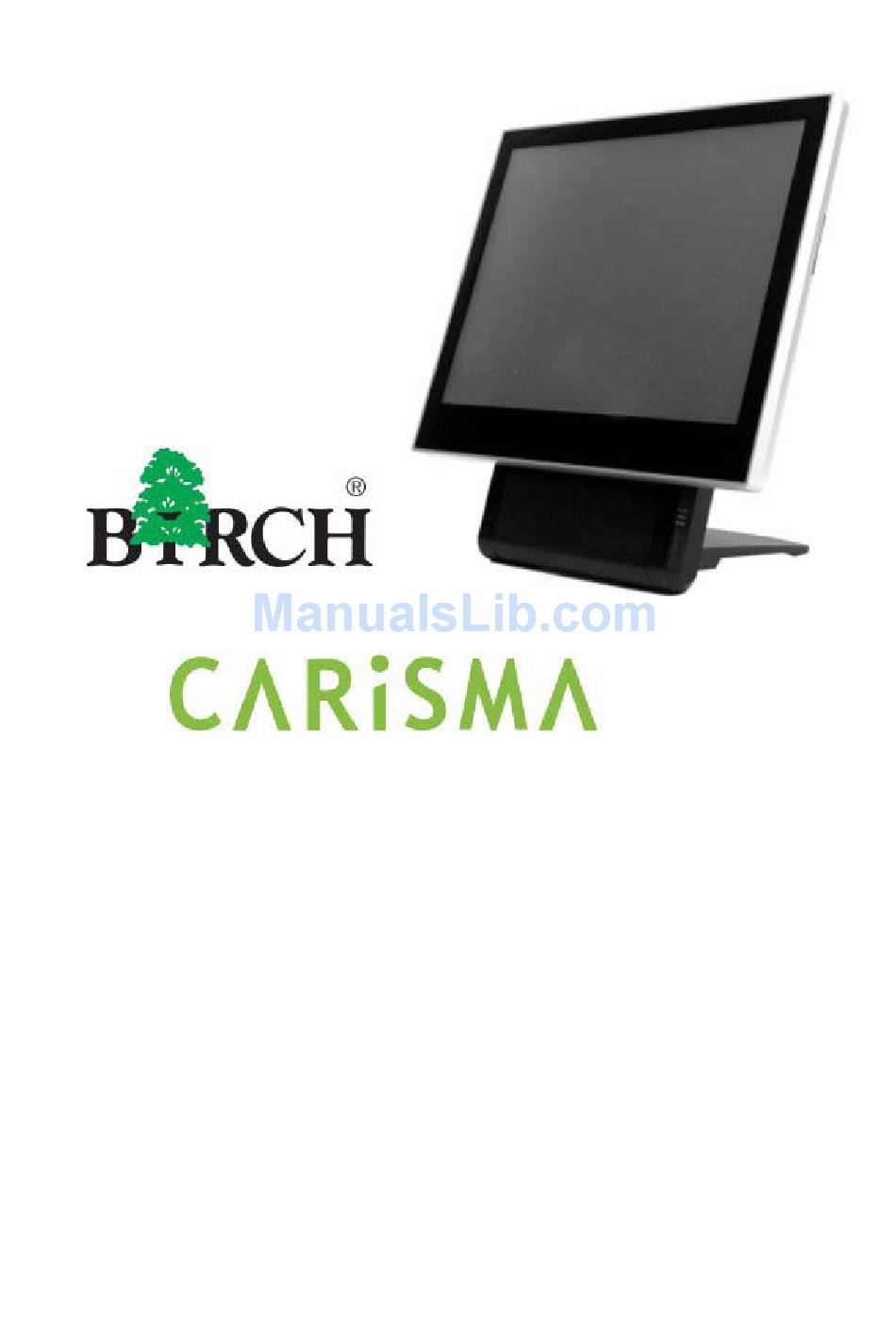

  • Page 1 S m a l l f o o t p r i n t & E l e g a n t ®Copyright 2010 July All Rights Reserved Version 2.0 The information contained in this document is subject to change without notice. We make no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

  • Page 2: Main Board

    Main Board IT7000V0-15 Intel® Pentium® Processor 2117U (2M Cache, 1.80 GHz) Chipset Intel® HM70 Express System Memory Socket-type RAM device, 204PIN SO-DIMM DDR3 1333 / 1600 RAM, up to 8GB Graphic Memory Shared system memory up to 256MB LCD Panel IT7000V0-15 Panel Size 15”...

  • Page 3: Optional Peripherals

    Audio One Earphone & One Microphone Cash Drawer One with optional adapter Control/Indicator Power Button LED Indicators Power (Green), HDD (Red), LAN(Orange) Optional Peripherals Magnetic Card Reader ISO Track 1/2/3, USB interface VFD customer display 20 x 2 characters, RS-232 interface Dimensions IT-7000V0-15 358(W) X 367(L) X 173(H) mm...
  • Page 4 If any item is missing, please contact your sale agent immediately. Take the system unit out from the carton. Remove the unit by carefully holding the foam inserts and remove slowly to protect the system. The following items should be found in the carton: 1.
  • Page 5 Please unplug the AC power of the adapter before opening any part of the system. Since the standby power is always on after the adapter is plugged in. It may cause permanent damage to your system when you open any part of it. Front View Power Side USB...

  • Page 6: How To Open The Connector Bezel

    How to open the connector bezel Please unplug the AC power of the adapter before opening any part of the system. Since the standby power is always on after the adapter is plugged in. It may cause permanent damage to your system when you open any part of it. As illustrated in the following, Push the locker downward...

  • Page 7: The Connector Panel

    The connector panel Please notice that all Four COM ports using RJ-45 connector and two RJ-45 to DB-9 conversion cables are provided in the package. Please notice that the Printer and VGA connectors in the second level, using JST PHD pitch 1.25 type connectors.

  • Page 8: Installing Peripherals

    Please unplug the AC power of the adapter before opening any part of the system. Since the standby power is always on after the adapter is plugged in. It may cause permanent damage to your system when you open any part of the system. Installing Peripherals To install the peripheral’s cables, please follow the method described below.

  • Page 9: Installing Magnetic Card Reader (Msr)

    Installing Magnetic Card Reader (MSR) 1. Turn the system upside down 2. Open the cover of MSR cable 3. Connect the cable to MSR 4. Lock the screw to mount MSR...

  • Page 10: Installing Customer Display

    Installing Customer Display 1. Release Four screw on the back of VFD module 2. Release Two screw...
  • Page 11 3. Release the screws on the VFD module 4. Release the VFD board 6. Open the VFD cover by fingernail 5. Turn the system upside down...
  • Page 12 7. Pass the signal line through the middle of the lower hinge mount hole 8. Pass the signal line through the middle of 9. Lock the hinge mount by screw the upper of hinge mount hole   10. Pass the signal line through the middle of 11.
  • Page 13 12. Lock the VFD board by screws Attention: Make sure latches are securely 13. Close the VFD cover   14. Lock the VFD cover with VFD base 15. Cut two plastic sheets...
  • Page 14 16. Install hinge cover 17. Lock the hinge cover by screw 18. Lock the VFD module with hinge mount 19. Taped...

  • Page 15: Installing Hard Disk

    Installing Hard Disk Please unplug the AC power of the adapter before opening the hard disk cover. Since the standby power is always on after the adapter is plugged in. It may cause permanent damage to your system when you open any part of the system. 1.

  • Page 16: Installing Ram

    Installing RAM 1. Release the four screws in the front housing. 2. Sometime, if the CPU front panel is too tight, it is easier to use a tweezers as a hook to pull the panel out.
  • Page 17 3. After changing RAM module, please lock the four screws for front housing...

  • Page 18: Introducing Bios

    Introducing BIOS BIOS options this manual reference only. Notice! Different configurations lead difference BIOS screen and BIOS screens in manuals are usually the first BIOS version when the board is released different from your purchased motherboard. Users are welcome to download the latest BIOS version form our official website. The BIOS is a program located on a Flash Memory on the motherboard.

  • Page 19: Bios Menu Screen

    BIOS Menu Screen The following diagram show a general BIOS menu screen: Menu Bar  General Help Items  Current Setting Value  Menu Items  Functions Keys  Function Key In the above BIOS Setup main menu of, you can see several options. We will explain these options step by step in the following pages of this chapter, but let us first see a short description of the function keys you may use here: ...

  • Page 20: Getting Help

     [F4]: Save & Reset.  Press <Esc> to quit the BIOS Setup. Getting Help Main Menu The on-line description of the highlighted setup function is displayed at the top right corner the screen. Status Page Setup Menu/Option Page Setup Menu Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item.

  • Page 21: Main Menu

    Main Menu Main menu screen includes some basic system information. Highlight the item and then use the <+> or <-> and numerical keyboard keys to select the value you want in each item. System Date Set the date. Please use [TAB] to switch between data elements. System Time Set the time.

  • Page 22: Advanced Menu

    Advanced Menu Full Screen logo Display Enables or disables Quiet Boot option. Bootup Numlock State Select the keyboard Number Lock State. Option ROM Messages Set display mode for Option ROM PCI/PCIE Device Configuration PCI, PCI-X and PCI Express Settings PCI Latency Timer Value to be programmed into PCI Latency Timer Register EHCI1 Control the USB EHCI (USB 2.0) functions.
  • Page 23 EHCI2 Control the USB EHCI (USB 2.0) functions. One EHCI controller must always be enabled. Legacy USB Support Enables Legacy USB support. Audio Controller Control Detection of the Audio Controller. Launch Onboard Lan OpROM Enables or Disable Boot Option for Legacy Network Devices. Mini-PCIe Slot Select Mini-PCIe or mSATA mode for Mini-PCIe Slot.
  • Page 24 Serial Port 5 Use this item to enable or disable serial port. Change Settings Use this item to select an optimal setting for super IO device. Serial Port 6 Use this item to enable or disable serial port. Change Settings Use this item to select an optimal setting for super IO device.

  • Page 25: Boot Menu

    Boot Menu Boot Option #1 The optional settings are: [Windows Boot Manager]; [Disabled]. Hard Drive BBS Priorities Set the order of the legacy devices in this group.

  • Page 26: Security Menu

    Security Menu Security menu allow users to change administrator password and user password settings. PCH-FW Configuration Configure Management Engine Technology Parameters. Intel(R) Anti-Theft Technology Configuration Disabling Intel(R) AT Allow user to login to platform. This is strictly for testing only. This does not disable Intel(R) AT Services in ME.

  • Page 27: Chipset Menu

    Chipset Menu VT-d Enables or disables VT-d function on MCH. DVMT Pre-Allocated Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device. DVMT Total Gfx Mem Select DVMT 5.0 Total Graphic Memory size used by the internal Graphics Device. Primary IGFX Boot Display Select the Video Device which will be activated during POST Active LFP...
  • Page 28 LFP Panel Type Select internal panel type. Panel Color Depth Select internal panel color depth. Backlight Mode Backlight Mode Selection Backlight Control Backlight Control Selection Backlight Level Backlight Level Selection...

  • Page 29: Power Menu

    Power Menu ACPI Sleep State Select ACPI sleep state the system will enter when the SUSPEND button is pressed. Restore AC Power Loss Select AC power state when power is re-applied after a power failure. Deep S5 Configure the DeepSx Mode Configuration. Advanced Resume Events Control USB from S3/S4 Main switch Resume on USB from S3/S4...
  • Page 30 Ring Enabled or Disabled Wake On Ring. Enable or Disable System wake on from S3/S4/S5 alarm event.

  • Page 31: Save & Exit Menu

    Save & Exit Menu Save Changes and Reset This item allows user to reset the system after saving the changes. Discard changes and Reset This item allows user to reset the system without saving any changes. Discard changes Discard changes done so far to any of the setup options. Optimized Defaults Use this item to restore /Load default values for all the setup options.
  • Page 32 Launch EFI Shell from filesystem device This item is used for attempts to launch EFI shell application from one of the available file system devices.

  • Page 33: Motherboard Layout Component Side

    Please unplug the AC power of the adapter before opening any part of the system. Since the standby power is always on after the adapter is plugged in. It may cause permanent damage to your system when you open any part of the system. Installing Peripherals Connectors &...
  • Page 35 Connector: JUSB1/2 Type: DF13 10-pin pitch=1.25mm Description Description 5VSB 5VSB USB4N/6N USB5N/7N USB4P/6P USB5P/7P...
  • Page 36 Connector: COM1 Type: DF13 10-pin pitch=1.25mm Description Description MDCD1 MSIN1 MS01 MDTR1 MDSR1 MRTS1 MCTS1 +12V Connector: COM2 Type: DF13 10-pin pitch=1.25mm Description Description MDCD1/2 MSIN1/2 MS01/2 MDTR1/2 MDSR1/2 MRTS1/2 MCTS1/2 Connector: JAF1 Type: DF13 10-pin pitch=1.25mm Description Description MIC2-L RSVD MIC2-R RSVD...
  • Page 37 Connector: JINV1 Type: 5-pin LVDS Power Header Description +12V CTLBKL ENABKL Connector: JLVDS1 Type: onboard 40-pin connector for LVDS connector Connector model: HIROSE DF13-40DP-1.25V Description Description LCDVCC LCDVCC ATX0- BTX0- ATX0+ BTX0+ ATX1- BTX1- ATX1+ BTX1+ ATX2- BTX2- ATX2+ BTX2+ ACLK- BTX3- ACLK+...
  • Page 38 Connector: JFP1 Type: DF13 10-pin pitch=1.25mm Description Description PWRBT- PWRBT- LANLED- LANLED+ HDLED HDLED+ PWRLED PWRLED+ Reset+ Reset- Connector: JHDDPWR1 Type: 4-pin connector for +5V/+12V output Description Description +12V Ground Ground Connector: JPLT Type: DF14 25-pin pitch=1.25mm Description Description -PSTB PRD0 PRD1 INIT...
  • Page 39 Connector: JVGA1 Type: DF14 25-pin pitch=1.25mm Description Description 5VSB HSYNC VSYNC Connector: JCDW1 Type: DF14 25-pin pitch=1.25mm Description Description Drawer kick-out drive signal Drawer Open/closed signal 24VDC Drawer kick-out Open/closed signal Drawer kick-out drive signal ground≤1A/24V Connector: JCOM1(COM3)/JCOM2(COM4) /JCOM3(COM5 & COM6) Type: onboard 3 x 2-pin header JP1/JP2 Mode...
  • Page 40 Connector: JCOMS1 Type: Onboard 3-pin jumper Normal Operation Mode Clear CMOS Normal Operation Default setting Connector: JAT_ATX11 Type: Onboard 3-pin jumper Normal Operation Mode AT Mode ATX Mode Default setting...
  • Page 41 Character Font Table A. Control code set B. U.S.A. font set...
  • Page 42 C. International character selection ASCII CODE 3DH: Standard Europe international font set...
  • Page 43 3EH: Multingual international font set 3FH: Portuguese international font set...
  • Page 44 40H: Canadian French international font set 41H: NORDIC internatinal font set...
  • Page 45 42H: RUSSIA font set 43H: SLAVONIC Font set...

  • Page 46: System Commands

    44H: Katakana font set System Commands Command Format Command List A. Set Baud Rate COMMAND: B COMPUTER:EOT SOH 'B' 'BAUD RATE' 'N' ETB ASCII (04H) (01H)(42H) (31H~37H)(4EH)(17H) Byte 1 DISPLAY: ACK (or NACK if failed) ASCII (06H) (15H) Byte...
  • Page 47 Baud rates Note: 31H: 9600 32H: 4800 33H: 2400 34H: 1200 35H: 600 36H: 300 37H:19200 B. Select international code table COMMAND: I COMPUTER:EOT SOH 'I' 'CHAR' ETB ASCII(04H)(01H)(49H)(30H~44H)(17H) Byte DISPLAY: ACK (or NACK if failed) ASCII (06H) (15H) Byte Note : International Character Code C.
  • Page 48 D. Set cursor position COMMAND: P COMPUTER: EOT SOH 'P' 'Position' ETB ASCII (04H) (01H) (50H) (31H~58H) (17H) Byte 1 DISPLAY: ACK (or NACK if failed) ASCII (06H) (15H) Byte 1 The cursor can be set to the position from 1 to 40 Note: Position 1 means the upper left corner position.
  • Page 49 select 31H means display the message saved on layer 1. select 32H means display the message saved on layer 2. select 33H means display the message saved on layer 1+ layer2. select 34H means display the message saved on layer 3. select 35H means display the two messages saved on layer 1 + layer 3.

  • Page 50: Command Modes

    Transmission method Each ASCII character is transmitted with 1 start bit 8 data bits 1 stop bit No parity You may generate your own application software to run the display according to the standard Note: RS-232C communication protocols and the SOFTWARE CONTROL information listed on this chapter. Command Modes The command modes can be selected with the Demo Software.
  • Page 51 Mode 1: EPSON Esc/POS mode...
  • Page 52 Mode 2: UTC Standard mode Mode 3: UTC enhanced mode Mode 4: AEDEX mode...
  • Page 53 Mode 5: ICD 2002 mode REMARK)* Using command "ESC E r Φ", the value of parameter: r 58= all rows 55= upper row 44= lower row Φspecial function, the value is one of 30= shift mode (default) 31= rotation mode 32= blink mode 33= clear this row and switch to shift mode 34= overwrite mode...
  • Page 54 Mode 6: CD 5220 standard mode...
  • Page 55 Mode 7: DSP-800 mode Mode 8: ADM 787/788 mode...

  • Page 56: Caution On Lithium Batteries

    CE MARK This device compiles with the requirements of the EEC directive 89/336/EEC with regard to “Electromagnetic compatibility” and 73/23/EEC “Low Voltage Directive” This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference.
