Summary of Contents for Drinkpod 500 series

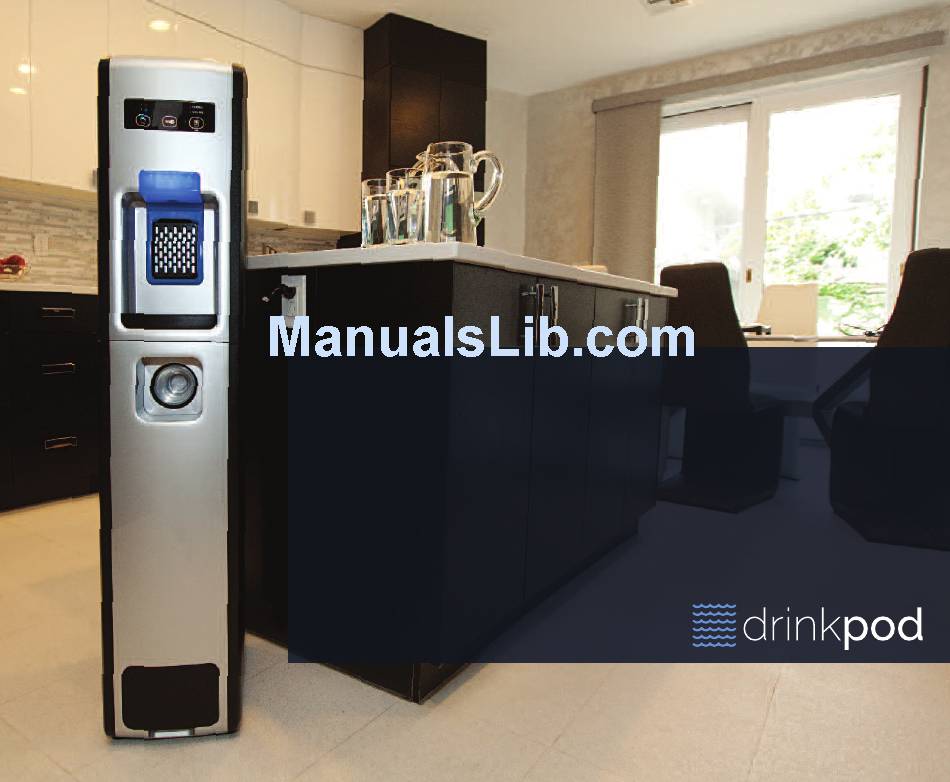

- Page 1 SERIES 500 owners manual Point-of-Use Drinking Water Appliance...
-
Page 2: Table Of Contents
Your Drinkpod Series 500 is designed to purify and disinfect tap cleaning and maintenance water at the point-of-use by utilizing one of the most advanced filtration processes available. Once the tap water is treated by a... -
Page 3: Introduction
WARNING: Plastic bags and wrapping can present a choking hazard for small children. Please discard thoughtfully. Before first use Before using your Drinkpod Series 500, we suggest reading this manual completely to ensure proper operation. -
Page 4: Safety Reminders
Return the Series plug, or Series 500 in water or other liquids. 500 to your authorized Drinkpod dealer for examination, repair, and electrical or mechanical adjustment. Close supervision is necessary when the Series 500 is used by or near children. - Page 5 Series 500. shock, this plug will fit into a polarized, grounded outlet Use only Drinkpod filters or warranty will be voided. only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified A short power supply cord is provided to reduce the risks electrician.
-
Page 6: Getting To Know Your Series 500
getting to know your Series 500 Top Cover Serial Number Hot and Cold Anti-microbial Compressor touch-panel Switches Dispensing Gap Foldable Cup Holder RO Drain Line Outlet Water Source Inlet Cup Dispenser Drainage Plug Included with your Series 500: 25’ Food Grade PVC Tubing Self-piercing Saddle Valve Shut Off Ball Valve Brass connectors and fittings... -
Page 7: Installation Notes
Series 500. If copper DO NOT use tubing of an unknown tubing is used it may result in a quality or origin. serious leak. If building code or regulations require copper tubing, contact Drinkpod Technical Support for specific instructions and... -
Page 8: Installation Instructions
Please follow all of the installation steps below. If you have any questions, don’t hestitate to contact us at 844-DRINKPOD (844-374-6576). Step 1 Install the saddle valve Step 2 Connect and run the Step 3 Install the optional... - Page 9 Step 4 Hook up the Step 4 Make sure the Step 5 Turn on the water water supply compressors are off source back on Once the tubing is placed securely, On the back of the Series 500 are two The water will begin to flow through connect one end to the saddle valve switches that turn the heating and the lines to the cooler.
- Page 10 Please follow all of the installation steps below. If you have any questions, don’t hestitate to contact us at 844-DRINKPOD (844-374-6576). Step 6 Plug in to electricity Step 7 Test water flow Step 8 Flush the tanks and filters...
- Page 11 Step 9 Chilling and heating Step 10 Enjoy! the water tanks Enjoy endless amounts of clean, delicious and pure water! After flushing, turn the hot and cold compressors on by flipping the switches to the on or “I” position. The chilling and heating indicators on the touch panel will light as chilling and heating is in process.
-
Page 12: Operation
heating LED chilling LED hot power LED operation cold power LED Touch Panel hot water cold water hot water button safety lock button Your Series 500 is equipped with an anti-microbial touch- panel featuring LED indicators to let you know when the cold and hot power are working and operating. - Page 13 Dispensing Gap Your Series 500 features a large 9 inch dispensing gap with Foldable Cup Rest—truly a new feature. This feature is helpful when filling a small coffee mug to avoid the splashing when the water hits the bottom of the cup. When filling a mug or smaller cup, use the fold down cup holder and be closer to the dispenser.
-
Page 14: Cleaning And Maintenance
cleaning and maintenance WARNING: To reduce the risk of fire or electrical shock, unplug your Series 500 and turn off the water supply under the sink before cleaning. Do not attempt to repair the Series 500, only authorized personnel should attempt repairs. Cleaning the exterior Emptying the Drip Collector Draining the tanks... - Page 15 When on vacation If the unit will be going unused for any length of time, you might consider turning the hot and cold power off as well as the water supply. The switches are located on the top back of the unit, and the optional shut off ball valve.
-
Page 16: Troubleshooting
troubleshooting WARNING: To reduce the risk of fire or electrical shock, unplug your Series 500 and turn off the water supply under the sink before removing panels. Only authorized personnel should attempt repairs. Removing the back panel No Hot Water To remove the back panel of your Series 500, If, upon testing, you find there is no hot water, it is possible simply unfasten the screws holding the panel in place... - Page 17 Accessing the filter compartment Accessing the filter compartment is simple. First, remove the drip tray and set aside. Then, grip the opening of the unit face and gently pull away. Next, with a philips head screw driver, unscrew the single screw holding the filter frame in place. At that point the filter frame will slide out easily so you can access all of the filters.
-
Page 18: Filters And Accessories
& accessories Ordering replacement filters Internal & External Parts To maintain the highest quality water your Drinkpod can Stainless steel tanks are more sanitary and durable than provide, your filter should be replaced every 6-8 months or plastic tanks, with no possible chance of leaching in the 1200 gallons, whichever comes first. -
Page 19: Warranty
Drinkpod’s obligation under this Limited Warranty is limited to replacing a defective cooler with a similar cooler or providing parts to repair or replace any part of the water dispenser which is expressly covered by this Limited Warranty, but only if Drinkpod determines that the water cooler, or parts in the water cooler, and the purported defect or defects, are covered by this Limited Warranty. - Page 20 844-DRINKPOD (844-374-6576) drinkpodusa.com...
