IR Emitter Installation

To install the IR emitter:
The photo to the below shows an IR emitter* installed.
The end of the emitter is to be mounted in front of the IR sensor window.
Remove the protective glue cover on the emitter, and place the emitter in front of the IR sensor window. Press down
to secure it in place.
Note it may be necessary to use a small amount of glue to secure the IR emitter in place as most IR emitters dual stick tape
do not adhere well to powder coated surfaces. Use a small amount of glue or RTV (Silicon) to secure the emitter in place yet
allowing it to be removed or replaced.
* Neither the emitter or control block are supplied by SkuVue Outdoor TV. See instructions that come with your IR Emitter
and control block to determine how to make the connections.

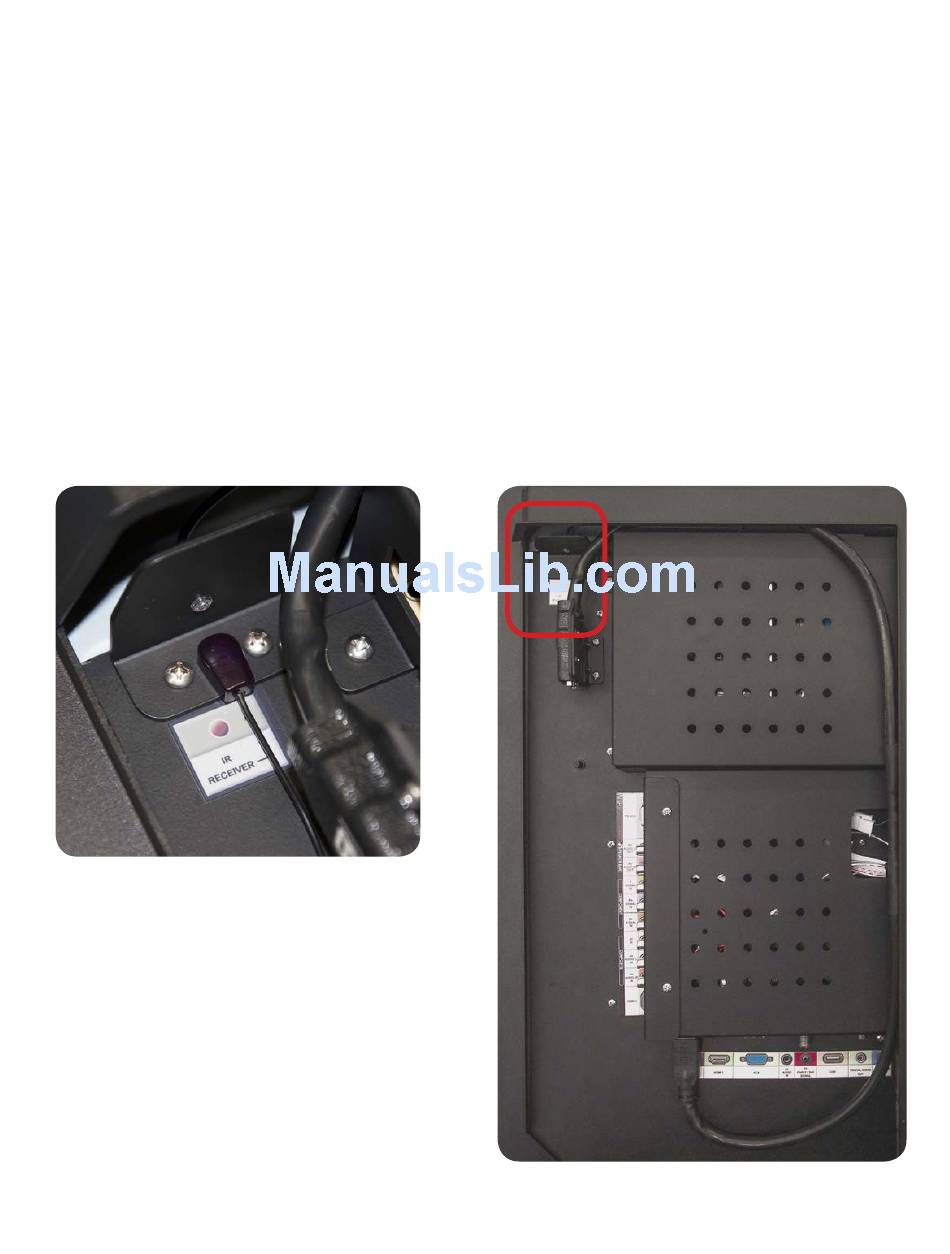

IR Receiver Installed
Location of IR Receiver
®
