Thank you for choosing super quality air conditioner. Please be sure to read this
user's manual carefully before using the machine. Any problem, please contact the
professional service for help.

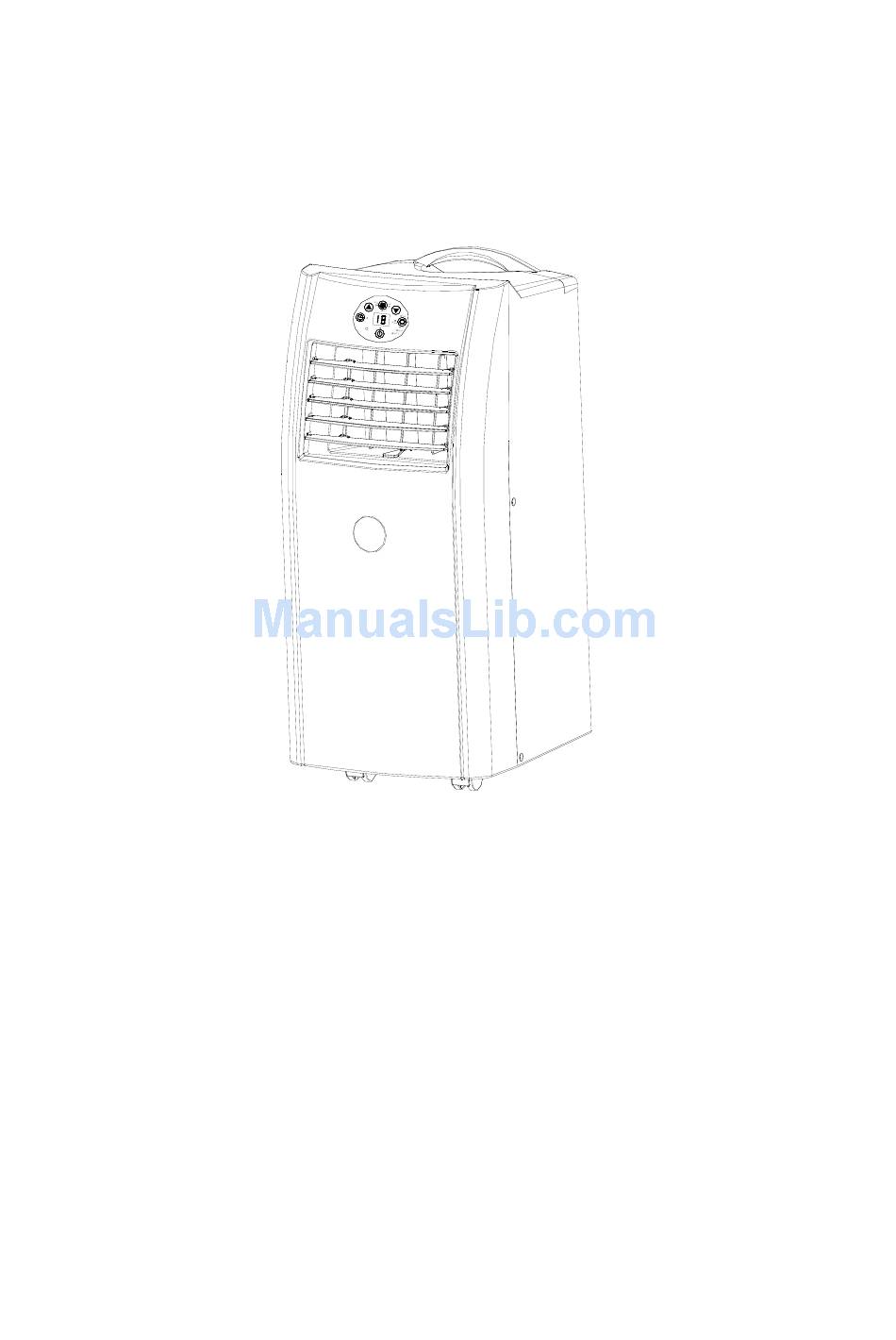

JHS
USER'S MANUAL
JHS-A001-07KRH/C
JHS-A001-08KRH/C
JHS-A001-09KRH/C
JHS-A001-10KRH/C SERIES

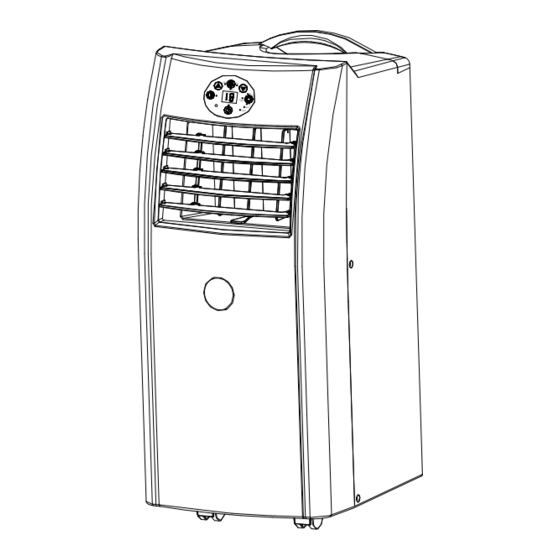

PORTABLE AIR CONDITIONER
Advertisement
Table of Contents
Related Manuals for JHS8 JHS-A001-07KRH/C Series
Summary of Contents for JHS8 JHS-A001-07KRH/C Series
- Page 1 USER’S MANUAL JHS-A001-07KRH/C JHS-A001-08KRH/C JHS-A001-09KRH/C JHS-A001-10KRH/C SERIES PORTABLE AIR CONDITIONER Thank you for choosing super quality air conditioner. Please be sure to read this user’s manual carefully before using the machine. Any problem, please contact the professional service for help.
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFEGUARDS…................3 PLACEMENT AND INSTALLATION…...............4 PARTS NAME….......................6 CONTROL PANEL…....................7 REMOTE CONTROL…..................8 OPERATION METHODS…..................8 WATER DRAINAGE…....................9 MAINTENANCE…....................10 TROUBLE SHOOTING…..................11... -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS Please read following safeguards carefully before using the machine: ·This machine just for domestic use, please don’t use it in any other places. ·Please use this machine indoor not outdoor, and place it in a dry environment. ·Don’t use the machine when any damage in power cord, plug or machine itself. Any damage, please contact professional serviceman for help. -
Page 4: Placement And Installation
Note : ·Place the machine on flat ground, and keep it far from around things at least 50cm. ·Make sure the socket can be reached from machine location. ·Keep the machine stand upright so that compressor can work well. ·Don’t run the machine near to gasoline or any other flammable liquids. ·Make sure free access of air-inlet and air-outlet. - Page 5 Installation ·Spin adapter into exhaust pipe first, then spin the exhaust pipe into exhaust connector (counter-clockwise) (fig.2) ·Put adapter into window sealplate, adjust window open width in order sealplate match window well, and the length of sealplate is adjustable. (fig.2) Installation Errors ·Free access of exhaust pipe is important, installation errors will bring bad influence of machine.
-
Page 6: Parts Name
Parts Name Front side(fig.5) 1. Handle 2. Control Panel 3. Air-outlet 4. Fan blade 5. Castor fig.5 Back Side(fig.6) 6. Filter frame upper 7. Exhaust Connector 8. Power Cord Location 9. Filter frame lower 10. Rubber plug 11. Plug cap 12.Power Cord fig.6 Check packing accessories, read user’s manual to get how to use them. -
Page 7: Control Panel
Control Panel 1. Power button 9. Down button 2. Display window 10. “Water Full” indicator 3. Sleep mode indicator 11. Low fan indicator 4. Heating mode indicator 12. Fan button 5. Fan mode indicator 13. High fan indicator 6. Mode button 14. -
Page 8: Remote Control
7. TIMER: under power-on or standby mode, press this key to setup on/off time from 1~24. Remote Control 1. Power 2. Timer 3. Down 4. Mode 5. Up 7. Sleeping Operation Methods Cooling mode ·After machine turns on, default value is cooling mode with 22℃ and low fan speed. ·Press “... - Page 9 Note: When heating mode works, if don’t want to empty the water-tank under this mode, please connect a water-drainage-pipe to remove the water out continuously Fan mode ·Press “ MODE” to select fan mode, fan mode indicator turns on . ·Press “...
-
Page 10: Water Drainage
Water Drainage This machine with auto-water-evaporating system. Condensed-water cycle to cool down the condenser, which will not only improve cooling efficiency, but also save energy. · If inner water tank is full, “W.F” indicator will flashed on the screen , 8 seconds later machine enter into standby mode, buzzer shouts , compressor stops and all keys is invalid till machine recovers to be normal . -
Page 11: Maintenance
Maintenance Note: in order to avoid electric shocks, please power-off the machine and pull out plug before maintenances or repairs. Cleaning ·Please pull out plug before cleaning . ·Use soft semi-dry cloth to clean the machine. Don’t use chemical agents, such as benzene, alcohol, gasoline and so on ;... -
Page 12: Trouble Shooting
Trouble Shooting Please contact professional serviceman without delay in following situation Trouble Cause Solution Power off Power on Machine cannot water-full indicator turns on Drain water out work Direct sunlight Draw the curtains Machine Door and windows are open , Close the door and windows, move out auto-restarts many heat sources in the room .
