JHS8 Electrical (Australia) Pty Ltd
User's Manual

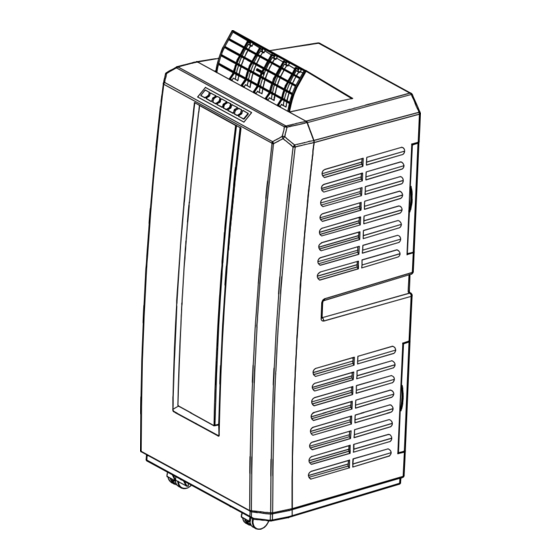

Inverter Portable Air Conditioner
Model No: A002BPY-18KR/A
Thank you for choosing super quality air conditioner. Please be sure to read
this user's manual carefully before using the machine. Any problem, please
contact the professional service for help.
Advertisement
Table of Contents
Related Manuals for JHS8 A002BPY-18KR/A
Summary of Contents for JHS8 A002BPY-18KR/A

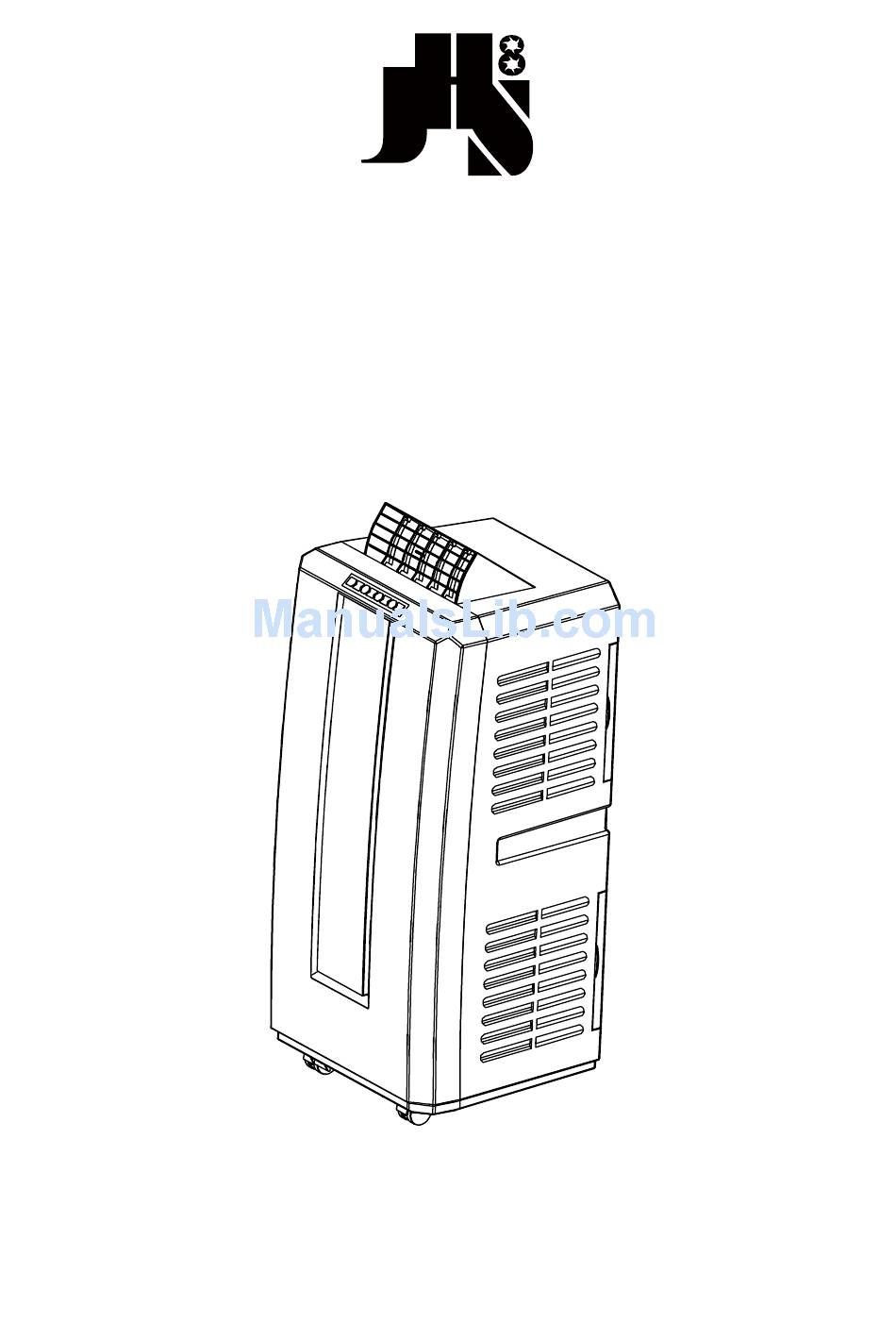

- Page 1 JHS8 Electrical (Australia) Pty Ltd User’s Manual Inverter Portable Air Conditioner Model No: A002BPY-18KR/A Thank you for choosing super quality air conditioner. Please be sure to read this user’s manual carefully before using the machine. Any problem, please contact the professional service for help.
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFEGUARDS…................3 PLACEMENT AND INSTALLATION…...............4 PARTS NAME….......................6 CONTROL PANEL…....................7 SCREEN….........................8 OPERATION METHODS…..................8 REMOTE CONTROL…..................10 WATER DRAINAGE…...................12 MAINTENANCE…....................12 TROUBLE SHOOTING…..................13... -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS Please read following safeguards carefully before using the machine: This machine just for domestic use, please don’t use it in any other places. ● Please use this machine indoor not outdoor, and place it in a dry environment. ●... -
Page 4: Placement And Installation
Don’t use spraying agent (such as pesticides , paint) or other flammable materials, otherwise ● plastic deformation, or even electric damage of the machine may be caused. Power supply Make sure no damage in plug. ● Don’t use connector instead of plug. ●... -
Page 5: Parts Name
Installation Errors Free access of exhaust pipe is important, installation errors will bring bad influence of ● machine. (fig.3) Avoid exhaust-pipe with sharp bend. ● Make sure air in exhaust pipe can run smoothly ● (fig.3) Warning Length of exhaust pipe according to the machine features, please don’t replace or lengthen it freely, otherwise errors will be easily caused. -
Page 6: Control Panel
Back Side 5. Filter frame upper 6. Power Cord Location 7. Filter frame lower 8. Plug cap 9. Exhaust Pipe 10. Handle 11. Exhaust Connector Check packing accessories, read user’s manual to get how to use them. (fig.4) 1. Exhaust hose 2. Ajustable slide bar 3. -
Page 7: Screen
5. UP: under cooling mode, press this key to upward temperature from 16~31℃. 6. SLEEP: under cooling mode, press this key to turn on/off sleeping function. 7. TIMER: under power-on or standby mode, press this key to setup on/off time from 1~24. 8. -
Page 8: Remote Control
Dehumidifying mode Press “MODE” to select dehumidifying mode, dehumidifying mode indicator turns on . ● Under dehumidifying mode, sleeping function cannot be setup, and fan speed is low. ● Sleeping mode Press key “SLEEP” enter into sleeping mode, default value of fan speed is low. ●... - Page 9 Installation of the carbon filter (Optional) Remove the side filter frame from the unit. Remove the back filter frame from the unit. Separate the filter fixer from the back filter frame. Remove the active carbon filter from its plastic bag. Insert the active carbon filter into the filter frame.
-
Page 10: Water Drainage
Water Drainage This machine with auto-water-evaporating system. Condensed-water cycle to cool down the condenser, which will not only improve cooling efficiency, but also save energy. If inner water tank is full, “ ” will flashed on the screen , machine enter into standby mode, ●... -
Page 11: Trouble Shooting
Trouble Shooting Please contact professional serviceman without delay in following situation Machine cannot Power off Power on work water-full indicator turns on Drain water out Direct sunlight Draw the curtains Door and windows are open , Close the door and windows, move many heat sources Machine out heat sources.
