Quick Install Guide
Dual-Band Wireless 600N Router
Use the XWR-600 to:
Use the XWR-600 to:
Provide an Affordable Concurrent Dual-Band Wi-Fi
„
Network
Combine High Performance Gigabit and 802.11n Wireless
„
Functionality
Minimize Wireless Interference and Maximize Data Rates
„
Create a Secure Guest Network
„
Simply Connected
XWR-600

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XWR-600 and is the answer not in the manual?

Questions and answers

Related Manuals for Luxul XWR-600

Summary of Contents for Luxul XWR-600

  • Page 1 Simply Connected Quick Install Guide XWR-600 Dual-Band Wireless 600N Router Use the XWR-600 to: Use the XWR-600 to: Provide an Affordable Concurrent Dual-Band Wi-Fi „ Network Combine High Performance Gigabit and 802.11n Wireless „ Functionality Minimize Wireless Interference and Maximize Data Rates „...

  • Page 2: Document Conventions

    No part of this publication may be modifi ed or adapted in any way, for any purposes without permission in writing from Luxul. The material in this manual is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design. No license is granted, either expressly or by implication or otherwise under any Luxul intellectual property rights.

  • Page 3: Package Contents

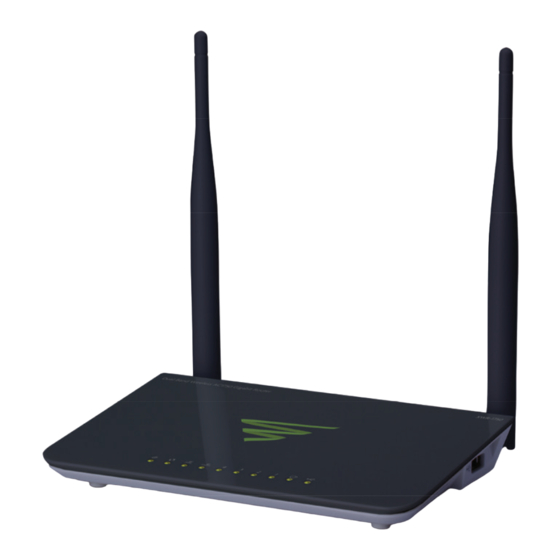

    Simply Connected PACKAGE CONTENTS The following items should be included in the box: XWR-600 Dual-Band Wireless 600N Router „ 2 Dual Band RPSMA Male Antennas „ Ethernet Cable „ Power Adaptor „ Quick Installation Guide „ NOTE: If any of the listed items are missing or damaged, please contact the reseller from whom you purchased for return/replacement.

  • Page 4: Rear Panel

    Antenna Ports: 2 RPSMA female antenna ports to connect the included „ antennas Power Input: Power adapter included „ NOTE: To hard reboot the router, remove the power adapter. Wait 10 seconds and re-apply power. 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | luxul.com | 801-822-5450 LUX-QIG-XWR-600 0828141127...

  • Page 5: Side Panel

    LAN 1 - 4 Ports: 4 Green RJ-45 Ethernet Ports for connecting to the local network „ NOTE: It is recommended that a Luxul switch be used in conjunction with the XWR-600 to increase number of local ports available. WPS/Reset Button: Used to confi gure WPS or restore factory default settings „...

  • Page 6: Preparing For Installation

    „ XWR-600 INSTALLATION Desktop Installation For use as a desktop device, position the XWR-600 on a desk or other horizontal surface with adequate room around the XWR-600 for ventilation. Wall Installation The XWR-600 Is keyholed to allow installation on a wall or ceiling. Use the Mounting Pattern (Page 8-9) for keyhole alignment.

  • Page 7: Default Ip Address

    Use a computer or mobile device to connect via Ethernet or wireless to the XWR-600. The DHCP server on the XWR-600 is configured by default. If your client device is set to obtain an address automatically, no further configuration is required.

  • Page 8: Advanced Settings

    Used to configure WPS (Wi-Fi Protected Setup) or restore factory default settings To configure WPS, press and hold the WPS/Reset button until the WPS LED turns on (typically about 5 seconds). The XWR-600 is now in WPS pairing mode. Follow the pairing instructions for your client device and enter the XWR-600 WPS pin number (12345678) when prompted.

  • Page 9: Warnings And Safety Information

    „ ACCESSORIES OUT OF THE REACH OF CHILDREN! The XWR-600 may become hot when in use for extended time periods. This is normal and is not a „ malfunction. DO NOT install where it will be exposed to paper, cloth or other flammable materials.

  • Page 10: Rf Exposure Guidelines

    Do not operate the radio or attempt to transmit data unless the antenna is connected; this „ behavior may cause damage to the radio. 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | luxul.com | 801-822-5450 LUX-QIG-XWR-600 0828141127...

  • Page 11: Radiation Exposure Statement

    This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Hereby, Luxul, 14203 Minuteman Drive, Suite 201, Draper, Utah, 84020, declares that this Luxul XAP-1500 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

  • Page 12: Industry Canada (Rss-Gen Issue 2)

    20 centimètres entre le radiateur et votre corps. CAN ICES-03(B)/NMB-3(B) Information on this document supersedes all previous versions. Products and documents subject to change without notice. Products may be discontinued without notice. LUX-QIG-XWR-600 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 0828141127 luxul.com | 801-822-5450...
