Summary of Contents for Luxul XWR-600

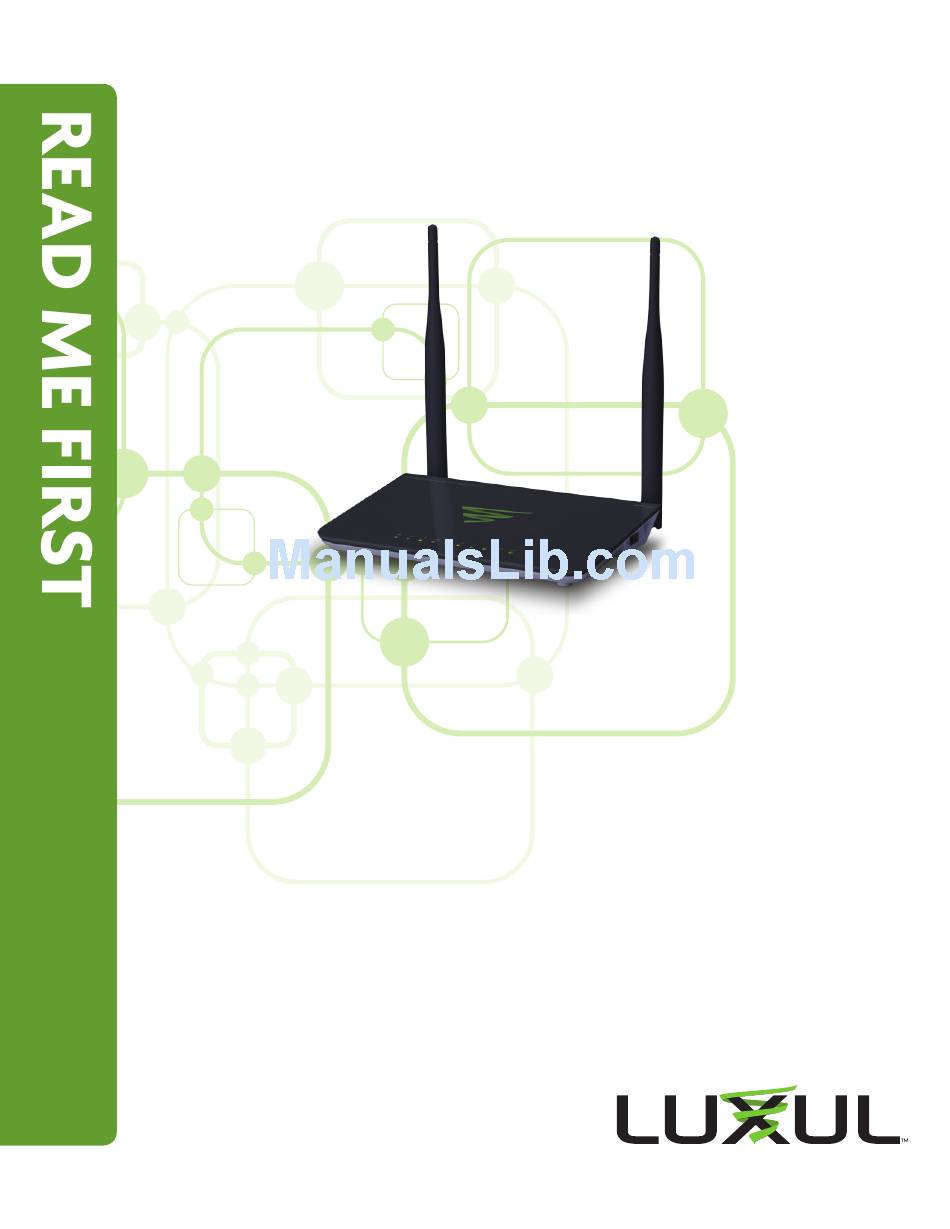

- Page 1 QUICK INSTALL GUIDE Dual-Band Wireless 600N Router XWR-600 Includes: „ O ne:„XWR-600„Dual-Band„Wireless„600N„Router„ „ „ Two:„Attached„Dual„Band„Antennas „ „ One:„Ethernet„Cable „ „ One:„Power„Adaptor „ „...
-
Page 2: Physical Installation
ROUTER SETUP AND CONFIGURATION Physical Installation The„XWR-600„Wireless„Router„is„designed„for„simple„and„efficient„installation„ on„a„desk„or„other„horizontal„surface.„Be„sure„to„place„the„XWR-600„where„ there„is„adequate„room„around„the„device„for„ventilation.„ Connecting Ethernet and Power WAN Connection:„Connect„the„Ethernet„cable„from„the„modem/router„ „ „ equipment„provided„by„your„Internet„Service„Provider„(ISP)„to„the„black„ WAN„port„of„the„XWR-600. AC Power: Connect„the„included„AC„Adapter„to„the„XWR-600„first„and„then„ „ „ to„the„AC„outlet. Preparing for Access IP Addressing The„XWR-600„default„LAN„IP„address„is„192.168.0.1.„The„DHCP„server„on„the„ XWR-600„is„configured„by„default„to„create„a„192.168.0.x„network. Both„the„default„LAN„IP„address„and„subnet„scheme„can„be„changed.„However„ for„hassle-free„plug-and-play„installation„of„other„Luxul„hardware,„we„recom- mend„you„use„the„default„IP„address„if„possible. If„your„client„device„is„set„to„obtain„an„address„automatically,„no„further„ configuration„is„required„and„you„can„skip„to„the„next„step,„Access and Setup. -
Page 3: Getting Connected
If„your„computer„or„device„isn’t„set„to„obtain„an„IP„address„automatically,„ you’ll„need„to„set„a„temporary„static„IP„address„on„that„device.„Set„the„IP„ address„of„your„computer„to„an„address„in„the„192.168.0.X„range,„then„set„ the„Gateway/Router„address„to„192.168.0.1„(the„default„IP„address„of„the„ XWR-600). Note:nn n V isitnhttp://luxul.com/ip-addressingntonlearnnmorenaboutn changingnyourncomputer’snIPnaddressnandngettingnconnected. Access and Setup Getting Connected Connecting Via an Ethernet Device:„Use„an„Ethernet„cable„to„connect„ „ „ your„computer„to„one„of„the„green„XWR-600„LAN„ports.„Ethernet„is„the„ preferred„method„of„connection. Connecting Via a Wireless Device:„Connect„a„wireless„client„device„ „ „ to„one„of„the„XWR-600„default„wireless„networks„(Luxul600„or„ Luxul6005G).„Both„Wireless„networks„will„run„in„Open„Security„mode,„so„ a„passphrase„will„not„be„required„„until„Wireless„Security„is„configured. Open„a„web„browser,„enter„192.168.0.1,„then„log„in„to„the„router„using„the„ default„user„name„and„password„and„proceed„with„configuration: „ Default IP: 192.168.0.1... - Page 4 Hardware Operation XWR-600 Front Panel LED Indicators Indicator Name Status Function For„future„or„custom„design„ considerations. 5GHz Indicates„a„5GHz„wireless„network„ is„broadcasting. 2.4GHz Indicates„a„2.4GHz„network„is„ broadcasting. 1-4„LED Indicates„a„device„is„connected„to„ the„Ethernet„port„number.„ FLASHING indicates„data„packets„are„being„ transmitted„to„the„connected„ device. Internet„ Indicates„the„XWR-600„is„ connected„to„the„ISP. FLASHING Indicates„data„packets„are„being„ transmitted...
- Page 5 Indicator Name Status Function USB„LED Indicates„a„USB„enabled„device„is„ connected„and„configured. Power„ ON„indicates„power„is„applied„to„ the„XWR-600. FLASHING A„flashing„“heartbeat”„indicates„the„ XWR-600„is„operating„normally. Indicates„power„is„not„applied„to„ the„XWR-600. Front Panel XWR-600 Front Panel View...
- Page 6 Rear Panel XWR-600 Rear Panel View Power Input:„Power„adapter„included „ „ NOTE:nn T onrebootnthenrouter,nremoventhenpowernadapter,nwaitn10nsecondsn andnre-connectnthenpowernadapter. WAN Port: 1„Black„RJ-45„Ethernet„Port„for„Internet„connection „ „ LAN 1 - 4 Ports:„4„Green„RJ-45„Ethernet„ports„for„connecting„to„the„„ „ „ local„network...
- Page 7 NOTE:nAnLuxulnswitchnisnrecommendedninnconjunctionnwithnthenXWR- 600ntonincreasenthennumbernofnlocalnportsnavailable. Reset Button:„Used„to„restore„factory„default„settings. „ „ CAUTION:nn H oldingnthenResetnbuttonnlongernthann10nsecondsnwilln resultninnanfactorynreset To restore factory defaults,„press„and„hold„the„Reset„button„until„the„ System„LED„stops„flashing„(approximatly„20„seconds).„A„factory„reset„ will„take„one„minute„or„more„to„complete.„A„successful„factory„reset„is„ indicated„when„all„of„the„Port„LEDs„flash„once.„When„the„System„LED„ starts„flashing„again,„the„unit„is„ready. CAUTION:nn R esettingnthenXWR-600ntonfactoryndefaultsnwillnremoven allncustomnsettings. Side Panel XWR-600nSidenPanelnView USB Port: 1„USB„2.0„port„for„future„expansion. „ „...
- Page 8 FCC Compliance This„device„complies„with„Part„15„of„the„FCC„Rules.„Operation„is„subject„to„ the„following„two„conditions:„(1)„this„device„may„not„cause„harmful„inter- ference,„and„(2)„this„device„must„accept„any„interference„received,„including„ interference„that„may„cause„undesired„operation. FCC„ID:„W59XWR-600„ IC:„8584A-XWR-600 FCC Statement—Wireless FCC 2.4GHz & 5GHz 802.11abgn This„equipment„has„been„tested„and„found„to„comply„with„the„limits„for„a„ Class„B„digital„device,„pursuant„to„Part„15„of„the„FCC„Rules.„ Hereby,„Luxul,„14203„Minuteman„Drive,„Suite„201,„Draper,„Utah,„84020,„ declares„that„this„Luxul„XWR-600„is„in„compliance„with„the„essential„ requirements„and„other„relevant„provisions„of„Directive„1995/5/EC. For„a„copy„of„this„report„send„a„self„addressed„stamped„envelope„„ to:„Luxul„CE,„14203„Minuteman„Drive,„Suite„201,„Draper,„Utah,„84020. Industry„Canada„(RSS-Gen„Issue„4) CAN„ICES-3(B)/NMB-3(B)„ Sales Technical Support P:„801-822-5450„ P:„801-822-5450„Option„3„ E:„sales@luxul.com E:„support@luxul.com © 2016 Luxul. All Rights Reserved. LUX-QIG-XWR-600 0161609...
