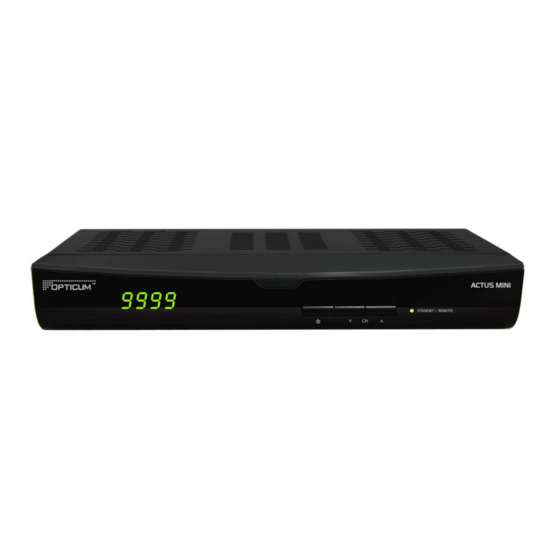

Opticum ACTUS MINI User Manual

Full hd digital satellite receiver digital innovation life
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Full HD Digital Satellite Receiver
Digital Innovation Life
User's Manual
ACTUS MINI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACTUS MINI and is the answer not in the manual?

Questions and answers

Related Manuals for Opticum ACTUS MINI

Summary of Contents for Opticum ACTUS MINI

  • Page 1 Full HD Digital Satellite Receiver Digital Innovation Life User's Manual ACTUS MINI...

  • Page 3: Table Of Contents

    INDEX Precautions..........................5 1. Important Safety Instructions ....................5 2. Notice ............................5 3. Copyright ..........................6 4. Disclaimer..........................6 Before You Begin ........................7 1. Main Features .......................... 7 2. Accessories ..........................8 Hardware Description ......................9 1. Front Panel Configuration ......................9 2.
  • Page 4 Menu Map ..........................32 Main Menu of Guide ....................... 33 1. System Tools .......................... 33 1.1 Storage Manager ....................... 33 1.2 Timer Settings ........................34 1.3 Service List Manager......................34 1.4 Data Transfer........................36 2. Configuration .......................... 36 2.1 Recording Option ......................36 2.2 Parental Control ........................

  • Page 5: Precautions

    Precautions 1. Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

  • Page 6: Copyright

    To reduce the risk of electric shock, do not remove the cover (or back). No user serviceable parts are inside. Refer servicing to qualified service personnel. The Lightning Flash with arrowhead symbol The exclamation point within an within an equilateral triangle, is intended to equilateral triangle is intended to alert alert the user to the presence of un-insulated the user to the presence of important...

  • Page 7: Before You Begin

    Before You Begin 1. Main Features ü Full HD Satellite PVR receiver ü HDMI Video & Audio Output (576i, 576p, 720p, 1080i, 1080p) ü H.264 / MPEG4 - HD,SD / DVB-S2 Compliant ü Recording & Playback with External USB 2.0 Devices ü...

  • Page 8: Accessories

    2. Accessories User's Manual Remote Control AAA size Batteries X2 HDMI Cable ADAPTOR RCA cable (Option) NOTE : If any accessories listed above are missing, contact the sales representative where you purchased this unit. It is ready to be mounted behind of the TV. Use the screws provided to hold the components in place.

  • Page 9: Hardware Description

    Hardware Description 1. Front Panel Configuration Display : The 4-digit shows channel number or menu state in normal mode, shows local time in standby mode. POWER Button: Press to switch between STANDBY and POWER ON modes. CH Up/Down Button: Press to change services in normal mode, to move the highlighted-bar UP/DOWN in menu mode. STANDBY / REMOTE Indication LED (RED / GREEN): The LED (RED) lights on in standby mode.

  • Page 10: Rear Panel Configuration

    2. Rear Panel Configuration 1. IR extension : The 2.5mm mini plug is connected to the “IR Rec” jack to use IR extension when HS 7110 is mounted with optional bracket. (Front remote sensor will not be operated when IR Extension is connected) 2.

  • Page 11: Remote Control Unit

    3. Remote Control Unit 1. POWER : Turns the STB On/Off. 2. MUTE / Resolution : Turns the sound On/Off. / To select the resolution format press and hold Resolution button. You will see the resolution menu. Each time you press the Resolution button, the resolution changes in the following sequence: 576i >...
  • Page 12 11. Favorite : To display the satellite group and the favorite groups. 12. EPG(Electronic Program Guide) : Show the TV/Radio program guide. 13. Recall : Moves to previous service. 14. Volume Up & Down : To change the Volume. 15. Play / Time shift : Display the progress bar of playback when no progress bar is displayed. Start playback with normal speed.
  • Page 13 24. Color Buttons a. RED : Used for special function in menu. RED key is used to sort lists in service list or go to previous day search in EPG or make/delete the current position as a bookmark. b. GREEN : Used for special function in menu. Green key is used to set favorites setting in service list or go to the next bookmark position.

  • Page 14: Connecting Diagram

    Connecting diagram 1. Receiver to Adaptor Connect the adaptor to D/C power socket of receiver. 2. Receiver to TV with Digital A/V Output l Connect the HDMI Cable to the HDMI Connector of the TV. l Connect SPDIF to Digital audio input of the equipment(Digital Audio) NOTE : Depending on the A/V equipment you own, there are various ways you can connect the STB.

  • Page 15: Receiver To Tv With Analog A/V Output

    3. Receiver to TV with Analog A/V Output l Connect the VIDEO and AUDIO L, R to VIDEO IN and AUDIO L, R IN of TV. NOTE : The composite connection(RCA cable) is recommended for analogue TV You cannot view high definition video with the composite video connector. 4.
  • Page 16 l Using DiSEqC switch : Connect the cable of DiSEqC switch to LNB IN. l Using DiSEqC motor : Connect the cable of DiSEqC motor to LNB IN.

  • Page 17: Guide To Mounting An Stb On Tv Back Panel (Optional)

    Guide to mounting an STB on TV back panel Install the mount bracket on back panel of TV using the screws provided Mount your STB on the bracket. Connect IR Extension to the IR Rec Jack on the rear panel. l PLACEMENT : The IR receiver should be located so that it is not directly facing a light source such as lamps or displays.

  • Page 18: Guide Of Functions

    Guide of Functions 1. Selecting a Service To select the desired service (channel), please refer to the instructions below. 1.1 Using CH UP/DOWN buttons You can navigate between services by pressing CH UP/DOWN buttons. Whenever you press the CH UP(DOWN) button, current service will be changed to next/previous service. Please press CH UP or CH DOWN button until you fine the service you want to watch.

  • Page 19: Using Recent Service List

    1.4 Using Recent Service List To display recent service list, press the RECALL button for a short time. To return to the previous service that you were watching, press RECALL button twice or for a longer time. Choose the service from the recent service list, use the ARROW button to select, and then press the OK button.

  • Page 20: Favorite Group

    Press the EPG button, then the EPG menu will be displayed. Use the ARROW buttons to move to other services or to see previous/next guide. Press the EPG button once to view full EPG with multi service list, and press it twice to view the additional EPG information of a specific channel service.

  • Page 21: Subtitle

    8. Subtitle You can select the language for a Subtitle, if the program provides subtitle information. Press the SUBTITLE button on your remote control unit. Select the desired subtitle language then press OK button. The subtitle will be displayed in the selected language at the bottom of the screen.

  • Page 22: Teletext

    10. Teletext When the TELETEXT icon on the INFO Banner, press the TELETEXT button to view the teletext. 11. PIP (Picture in Picture) When you press the PIP button, a sub picture screen will appear on the main screen view. If you press the PIP button one more time, the primary picture and the sub picture will appear together side-by-side with the same size.
  • Page 23 If you press the PAGE UP/DOWN button, the location of the sub picture is changed. If you press the PIP SERVICE LIST button, you can see the list of services of sub picture. You can change the service of the sub picture from the service list shown.

  • Page 24: Pvr (Personal Video Recorder) Function

    PVR (Personal Video Recorder) Function 1. Recording You can select a recording storage device with the following sequence : Menu > Configuration > Recording Option > Record Device. Default is set to ‘USB’. 1.1 Recording methods There are 3 type recording methods. (Instant Recording / Time Scheduled Recording / Event Scheduled Recording).
  • Page 25 Event Scheduled Recording via EPG - In the EPG menu screen, you can choose the event you wish to schedule or record. - While watching the LIVE TV screen, press the EPG button to access the EPG menu screen. - Choose the event you wish to reserve to play or record, then press OK to view option menu.

  • Page 26: Recording Edit

    1.2 Recording Edit Press the REC button while recording to see the recording message window. Pause : Select Pause Recording then press OK to pause the current recording process. Duration : Set recording duration. Press LEFT/RIGHT ARROW button to change recording duration. Stop Position : Set the finishing time of recording.
  • Page 27 Press PAUSE button once again and event will resume from the pause time. During recording, press the PLAY/TIMESHIFT button to show the Play bar screen. While the Play bar is shown on your screen, you may use the LEFT/RIGHT Arrow button to move (forward & backward) freely within recorded time.

  • Page 28: Time Shifting

    2. Time Shifting You can select a storage device for a temporary file of the Time shifting with the following sequence: Menu > Configuration > Recording Option > TimeShift Device. Default storage device is set to ‘USB’ If pressing the PAUSE button during Time shift, the live video is paused but the temporary recording for time shift is continued at the selected storage device.

  • Page 29: Playback (Play List)

    3. Playback (Play List) You can playback many files with the Playlist which you access by the PLAYLIST button. In the Playlist, you can check and playback recorded files, multimedia movie files, MP3 music files, and image files. With the LEFT/RIGHT ARROW button, go to the Recorded Files, Imported Files, Music and Photo category and check &...

  • Page 30: Imported Files

    File Option : If you press the BLUE button, you can select a option for Delete, New Folder, Move to Folder, Copy to Device, Rename, Lock/Unlock. You can select multiple files together and delete or move all of them at once. - Delete : To delete file(s) - New Folder : To make new folder.

  • Page 31: Bookmark

    4. Bookmark When the Play bar is displayed, you may move to desired time and book mark it by pressing the RED button. Bookmark(s) are indicated with a Green line on the play bar. Also, you may press the RED button to activate the play bar to mark your bookmark(s).

  • Page 32: Menu Map

    Menu Map Main Menu 1. Storage Manager 2. Timer Settings 3. Service List Manager 4. Data Transfer System Tools 1. Recording Option 2. Parental Control 3. Display Setting 4. Time Setting 5. Language Setting Configuration 6. A/V Output Setting 1. Dish Setting 2.

  • Page 33: Main Menu Of Guide

    Main Menu of Guide To display the menu, press the MENU button at any time. You can select the sub menus by using the ARROW buttons. The selected sub menu becomes highlighted. After selecting (highlighting) the sub menu you want to access, press the OK button.

  • Page 34: Timer Settings

    1.2 Timer Settings Insert a new timer entry or modify an existing timer entry. To add new timer entry : Press the GREEN button. Timer Edit window will popup. You can set the specific start date, time, duration and service for its reservation. And you can choose one of Timer Modes as 'Once' or 'Daily' or 'Weekly'.
  • Page 35 Delete Services : All service lists will be shown on left side of the window. By using the ARROW and OK buttons you may select services to be deleted by placing them in the middle window. The press the GREEN button to delete the selected services.

  • Page 36: Data Transfer

    1.4 Data Transfer Transfer all System data to USB storage : If you want to transfer and use BOTH of the current system parameters and service data in the future, this menu will allow you to store all data to your USB device. Press OK button to store all current data to an external USB storage.

  • Page 37: Parental Control

    Playback Numeric Function : This selection of function defines the operation type of the NUMERIC buttons of your remote control unit (RCU) while the ‘Playbar’ is displayed on the screen. - Commercial Skip : When the NUMERIC buttons (1 to 9) are pressed the video will move forward according to the NUMERIC buttons pressed.

  • Page 38: Time Setting

    Zapping Mode : You can set the zapping mode as follows (zapping mode is when changing services). - Black screen : Display a black screen when changing between services. - Freeze : Display the last still picture when changing services. Simple Service List : To set the simple service list ‘On’...

  • Page 39: A/V Output Setting

    Subtitle Language : Select the default language for subtitle when changing service. Teletext Language : Select the default language for Teletext. User Font file : Select a font you want to use. NOTE : To show and use the User Font, please install a desired font file(*.ttf) to the /Var/Font directory(folder) in your PC which is connected with your receiver(STB) by network.

  • Page 40: Installation

    3. Installation 3.1 Dish Setting Select the satellite/antenna and LNB settings for service sear ch. The values that are set in this menu will be available fo r selection in other service searching menus. Satellite : Select the satellite which you want to do a search for.

  • Page 41: Service Search

    - Using USALS : Dish Longitude : Enter the longitude position of the antenna using the NUMERIC buttons. Dish Latitude : Enter the latitude using the NUMERIC buttons. Go To : Press the OK button to rotate the dish to the selected antenna position.

  • Page 42: Network Setting

    Blind Search Mode : - Satellite : Press the OK button to select multiple satellites. - Frequency : Set Auto to search whole frequency, Set Manual to search only desired frequency. - Polarity : Select the polarity. ( All Polarity/Vertical/Horizontal - Search Type : Select the search type.

  • Page 43: System Recovery

    Control of the files via the network and your PC : - Check the IP Address of the STB on the Network Setting menu. - Press Enter button on your PC, after writing IP Address on the web browser address line. Ex.) \\168.158.10.146\storage - You can see the folder name of USB in the Storage folder.

  • Page 44: System Information

    Store system data : If you want to use system parameters and service data in the future, this menu allows you to store current state. Press the OK button to store current state. Delete store position : Delete stored system data. 3.6 System Information This menu displays general information about the hardware and software version of your receiver.

  • Page 45: Plugin

    CAM information You can view the current status of CAM. Select the slot which you want to view using the ARROW buttons, and press the OK button. If the CAM is available, you can view information about each slot. NOTE : The displayed information of each CAMs may be different depending on the CAM used. CI message - On : To display the CI message on live TV service.

  • Page 46: Free Tv

    4.5 Free TV+ What is Free TV+? - Free TV+ is a unique feature that enables you to play & enjoy FREE web media contents like Youtube and other free (but premium) contents from various internet websites such as documentary and more.

  • Page 47: Internet Tv

    Ÿ Download (Recording button): Web contents are available for download into USB or HDD storage. - Note: If more than one storage devices are connected with the STB at the same time, then the Downloaded files will be saved at the faster and bigger storage device automatically. Ÿ...

  • Page 48: Troubleshooting

    Troubleshooting Problem Solution ü Check the main power cable and check that it is plugged into a Does not display any message suitable power outlet. on the front panel. ü Check the STB main power switch ‘ON’ at the rear of the STB. ü...

  • Page 49: Specifications

    Specifications Tuner & Channel Decoder Input Connector F-type, IEC 169-24, Female Loop through out F-type, IEC 169-24, Female Frequency Range 950MHz ~ 2150MHz Input Impedance 75Ω, unbalanced Signal Level -65 to -25dBm LNB Power 13/18VDC, max.400mA 22KHz Tone (22±2)KHz, (0.6±0.2)V DISEqC Control V1.0/1.2/USALS Compatible Demodulation...
  • Page 50 Audio / Video & Data IN/OUT CVBS Video Output, Audio L/R Output HDMI Video & Audio Output OPTIC AC-3 Dolby Digital (SPDIF) RS-232C 9-pin D-SUB (Male) type, Transfer rate 115Kbps USB 2.0 Host Support Ethernet 10/100 Base-Tx RJ-45 port IR extension Removable IR Extension Front / Rear Panel Slot...
