7. LEDs
LEDs are located in two places on the xPrintServer device, and provide information about
device activity and status.

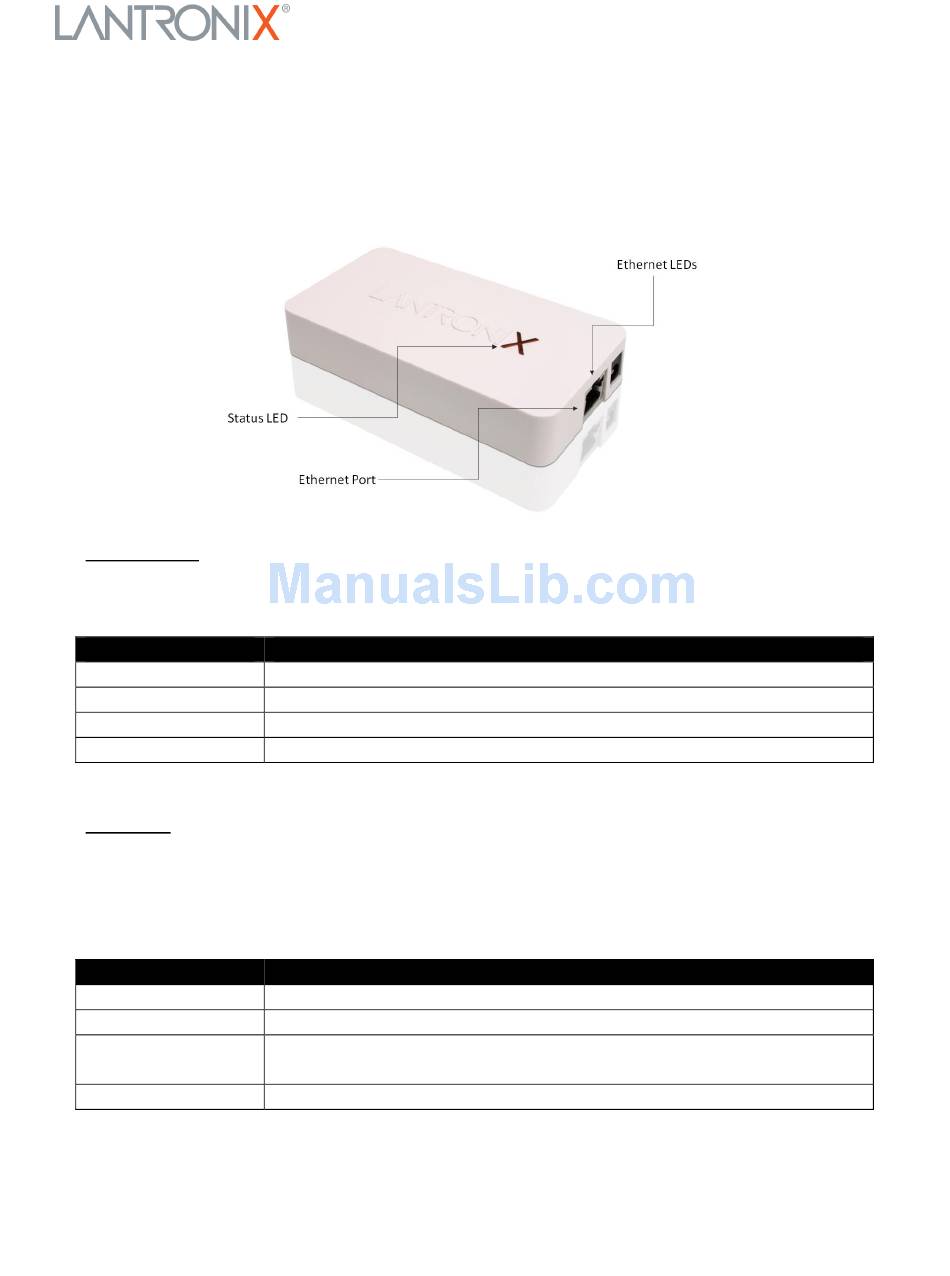

Ethernet LEDs. There are two "Ethernet LEDs" located on the upper left and right corners of
the Ethernet port: One yellow when lit, and the other green. The display and pattern of
each LED provides specific status information for the network connection:
Ethernet LEDs
Solid Yellow
Flashing Yellow
Solid Green
Green Off
Status LED. The "Status LED" on the xPrintServer device is incorporated in the "x" letter of the
Lantronix logo on the top of the device. The Status LED is orange when lit, and specific display
patterns indicates specific status and activity. The LED may display a solid light, display no
light, slowly glow on, slowly glow off, or flash on/off. The status of the device is
communicated by following the specific glow and flash patterns and number of cycles.
Status LED
Solid Orange
Off
Glow On – Dim Off
(repeating pattern)
Fast and Flashing
Description
Indicates that a link to the Ethernet is established
Indicates activity
Indicates an Ethernet connection speed between 10 and 100 Mbps
Indicates an Ethernet connection speed of up to 10 Mbps
Description
Indicates the power is ON or the device is booting
Indicates the power is OFF
Repeating pattern of glowing on to glowing off cycle occurring once
every three (3) seconds indicates the device is booted and IDLE
Indicates activity in progress (i.e., actively printing a print job)
7
