Orbit 62061-24E rA Quick Start Manual

1 Outlet HOse Faucet timer
IMPORTANT PLEASE READ!
wHen expeCting freezing
temperatUreS, timerS SHoULD
Be removeD from tHe HoSe
faUCet anD StoreD inDoorS to
avoiD potentiaL freeze Damage.
fiLter trapS Dirt partiCLeS,
proLonging Life of timer.
CLean fiLter regULarLy anD
repLaCe if worn.

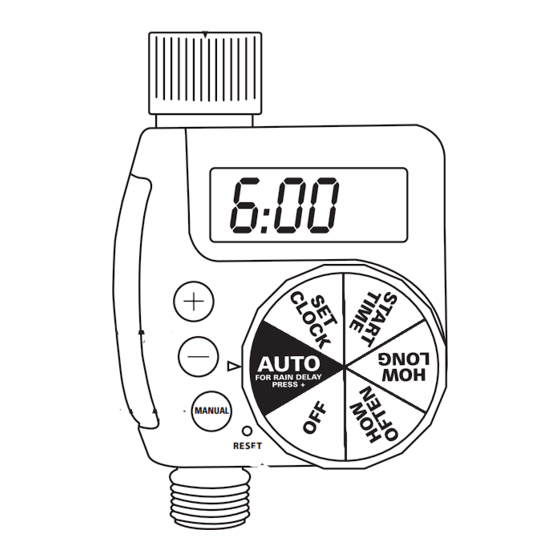

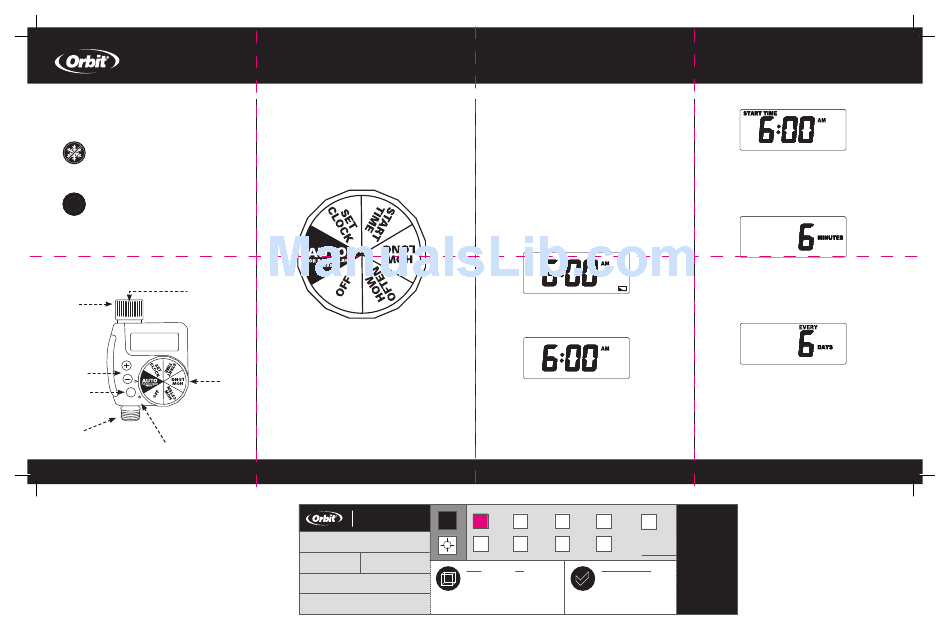

timer featUreS
FILTER
HOSE TAP
CONNECTION
6:00
+/-
BUTTONS
DIAL
MANUAL/
MANUAL
CLEAR
RESET
OUTLET
RESET
DiaL—Rotate the dial to customize your
watering schedule
reSet—Press to clear all programming
manUaL/CLear—Press to water manually or to
clear programming within a specific program
+/- BUttonS—Use these buttons to adjust time
and system setup
aUto—Timer waters according to your
customized schedule
Set CLoCK—Set the time of day
Start time—Select what time you would like
watering to start
How Long—Determine how long to water
How often—Choose how often you will water
off—Turn off all watering
Orbit
®
K
1.801.299.5555
orbitonline.com
DATe: 02/09/2014
DesIgner: JC MArKeTIng: AY
ArTwOrK №: 62061-24e rA
sOfTwAre: Adobe Indesign Cs6
QUiCK Start
inStaLLing tHe BatterieS
1. Remove the tray on the back of the timer by
sliding or pulling it out.
2. Insert two AA (1.5V) alkaline batteries
(not included) and replace the tray.
Note: Firmly replace the battery tray to ensure water resistance
and increase battery life. You will know the battery tray is fully
inserted if it locks in place and does not pull out easily.
Used up or dead batteries must be removed from the timer and
disposed of properly. Batteries should be removed from the timer
at the end of the watering season and replaced with new ones at the
beginning of the next watering season. Replace batteries when low
battery icon appears on display.
AM
programming tHe timer
Set CLoCK
AM
1. Turn dial to SET CLOCK.
2. Using the +/- buttons, set the time of day,
including AM and PM.
3. Turn dial to save changes.
Dims./ Product
Dieline Callout Fold Coverage
PrInterS Are
PMS PMS PMS PMS requIreD tO MAtCh
All SPeCIFIeD
0000 0000 0000 0000
PMS COlOrS.
Folded Flat Additional Information
∙
l: 000.000" W: 12.0"
∙
∙
W: 3.0" h: 6.0"
∙
h: 3.0"
Start time
AM
1. Turn dial to START TIME.
2. Using the +/- buttons, set your start time,
including AM and PM.
3. Turn dial to save changes
How Long
MINUTES
1. Turn dial to HOW LONG.
2. Using the +/- buttons, select watering
duration from 1 to 240 minutes
3. Turn dial to save changes.
How often
DAYS
1. Turn dial to HOW OFTEN.
2. Using the +/- buttons, set your watering
frequency. You can choose to water every 6
hours, 12 hours, or from 1 to 7 days.
note:
1 is every day, 2 is every other day, etc.
3. Turn dial to save changes.
