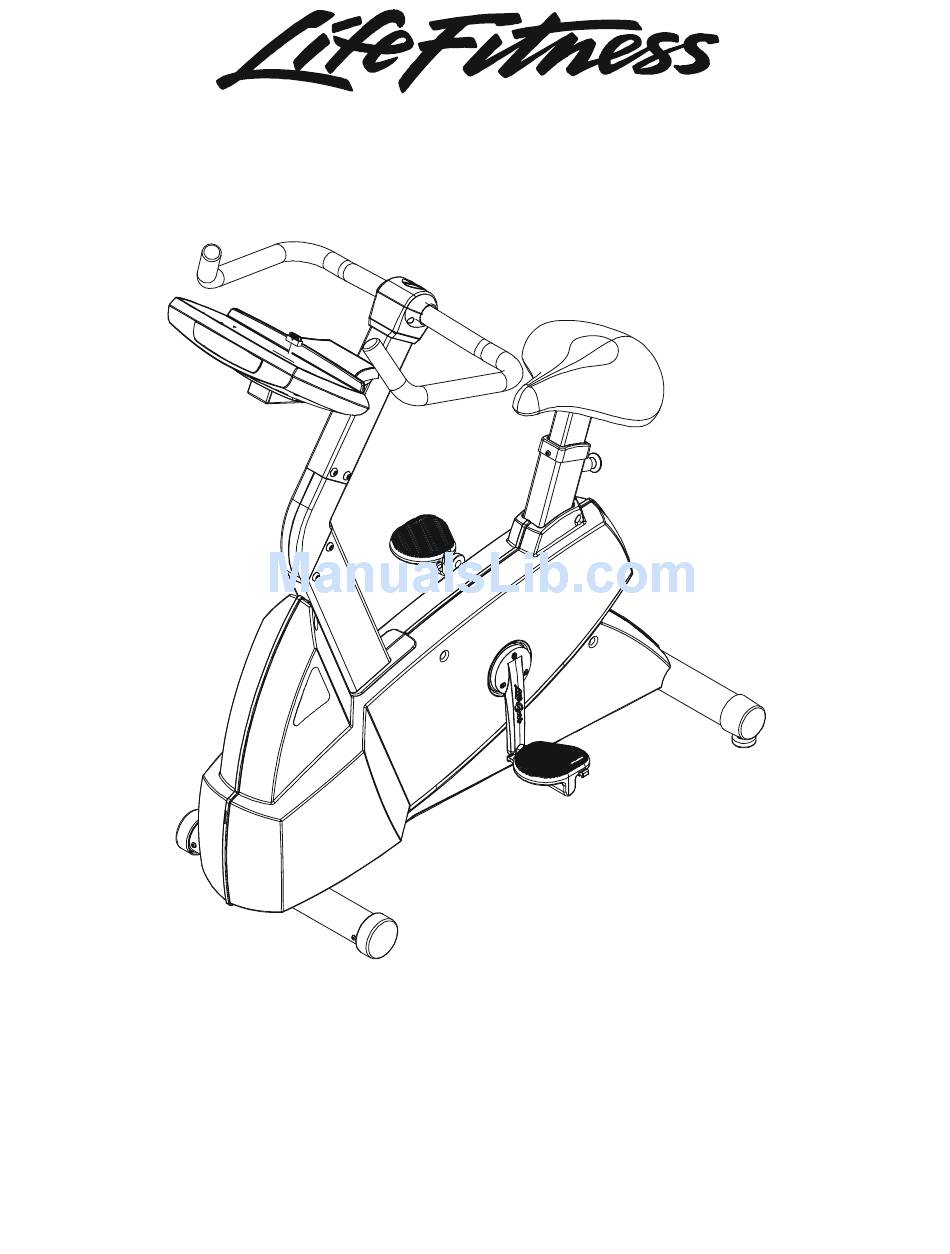

- Page 1 ARCTIC SILVER 90CW Upright Bike Customer Support Services PARTS MANUAL revised 29 Apr 2008...
- Page 2 ARCTIC SILVER 90CW REFERENCES OPERATION MANUAL ACCESSORY TRAY HARDWARE BAG POLAR UPGRADE KIT TOUCH UP PAINT: SPRAY CAN .5 OZ BOTTLE .33 OZ PEN COAX CABLE ER READY BRACKET ASSEMBLY ASSEMBLY CONSISTS OF: 1) POWER CABLE 2) ER READY BRACKET 3) F TYPE CONNECTOR SERVICE MANUAL NOTE: ADDING THE BOLT ON LCD SCREEN TO THE...
-
Page 3: Table Of Contents
ARCTIC SILVER 90CW 90CW-0XXX-01 CONTENTS S/N CCI100000 and UP Page CONSOLE COMPONENTS ...4 CONSOLE MOUNTING SCREWS AND POLAR COVERS..………………………………..5 ALTERNATOR W/PULLEY ...6 CRANKSHAFT AND BEARING ASSEMBLY...7 INTERMEDIATE SHAFT AND BEARING ASSEMBLY...8 SEAT LATCH ASSEMBLY ...9 SEAT POST ASSEMBLY ...10 SEAT POST SHROUDS………………………………………………………………………….11 IDLER BRACKET ASSEMBLY...12 CONSOLE SUPPORT ASSEMBLY...13 LEFT SIDE SHROUD AND CRANKARM ...14... -
Page 4: Console Components
ARCTIC SILVER 90CW Console Components Overlay Bezel Phillips Pan Screws(13) 0017-00101-1650 Console Assembly AK63-00162-0001 Eng Met AK63-00162-0003 Ger Met AK63-00162-0004 Spn Met AK63-00162-0006 Jap Met AK63-00162-0007 Frn Met AK63-00162-0008 Itl Met AK63-00162-0009 Dut Met AK63-00162-0010 Por Met Console Board - Upper A084-92220-A006 Phillips Pan Screws(13) 0017-00101-1650... -
Page 5: Console Mounting Screws And Polar Covers
ARCTIC SILVER 90CW Console Screws & Polar Covers Console Assembly Console Mounting Screws(4) 0017-00101-1744 S/N CCI100000 and UP Upper Cover 0K63-01145-0001 Lower Cover 0K63-01146-0001 Cover Screws(4) 0017-00101-1744 4-inch Gasket 0K63-01007-0004 90CW-0XXX-01 Rear Stabilizer 0K63-01219-0001 Leg Leveler AK61-00035-0000... -
Page 6: Alternator W/Pulley
ARCTIC SILVER 90CW Alternator w/Pulley - AK63-00093-0000 Alternator Pulley 0K61-02500-0001 Locking Nut 0017-00103-0117 S/N CCI100000 and UP Alternator 0017-00009-0841 Brushes 0017-00009-0895 Bolt 0017-00101-0956 Washer 0017-00104-0044 90CW-0XXX-01... -
Page 7: Crankshaft And Bearing Assembly
ARCTIC SILVER 90CW Crankshaft and Bearing Assembly Crank Arm Hub 0K63-01095-0001 *Needle Bearing(2) 0K63-01128-0000 *Small Snap Ring(2) 0017-00100-0241 Pulley Assemlby AK63-00051-0000 Pully 0K63-01018-0000 Flywheel Screws(3) 0017-00101-1715 Washers(3) 0017-00104-0458 *Crank Shaft & Bearing Kit GK63-00002-0077 *Crank Shaft 0K63-01012-0000 *Small Thrust Washer(2) 0K63-01129-0000 *Large Thrust Washer(2) 0K63-01129-0001... -
Page 8: Intermediate Shaft And Bearing Assembly
ARCTIC SILVER 90CW Intermediate Shaft & Bearing Assembly Clutch Assembly AK63-00026-0000 (not included in kit) Delrin Washers (2) 0017-00104-0455 Retaining Ring 0017-00100-0242 Intermediate Shaft and Bearing Assembly Kit GK63-00002-0007 90CW-0XXX-01 S/N CCI100000 and UP Magnet 118E-00001-0124 (not included in kit) Intermediate Spacer (not Bearings (2, not... -
Page 9: Seat Latch Assembly
ARCTIC SILVER 90CW Seat Latch Assembly - AK63-00043-0001 Latch Bracket 0K63-01064-0000 E-Ring 0017-00100-0050 Link Shaft Assy. AK63-00113-0001 Latch Spring 0K63-01117-0000 NYLINER 0017-00042-1129 Set Screws (2) 0017-00101-0333 NYLINER 0017-00042-1129 90CW-0XXX-01 S/N CCI100000 and UP Latch Rack 0K63-01061-0000... -
Page 10: Seat Post Assembly
ARCTIC SILVER 90CW Seat Post Assembly. – AK63-00232-0003 Screw 0017-00101-1750 Seat Adjustment Rack 0K63-01049-0001 Seat Post Decal 0K63-01310-0000 Pan Screws(3) Polylastomer Bumper 0017-00101-1614 0017-00042-1131 90CW-0XXX-01 S/N CCI100000 and UP Standard Seat Assy. AK63-00229-0004 Lock Washer(4) 0017-00104-0064 Hex Bolt(4) 0017-00101-1121 Extrusion Guide Cap 0K63-01044-0000 Seat Post Assembly... -
Page 11: Seat Post Shrouds
ARCTIC SILVER 90CW Seat Post Shrouds Left Seat Post Shroud 0K63-01092-0010 Screw 0017-00101-1741 90CW-0XXX-01 S/N CCI100000 and UP Right Seat Post Shroud 0K63-01092-0009... -
Page 12: Idler Bracket Assembly
ARCTIC SILVER 90CW Idler Bracket Assembly.- AK63-00021-0000 Lock Nut 0017-00103-0218 90CW-0XXX-01 S/N CCI100000 and UP Idler Bracket 0K63-01050-0000 Idler w/Bearing AK63-00008-0000... -
Page 13: Console Support Assembly
ARCTIC SILVER 90CW Console Support Assembly End Cap 0K63-01320-0000 Support Screws(4) 0017-00101-1755 Pan Screws(4) 0017-00101-1753 Handlebar Cover-RT 0k63-01191-0003 I-Beam Joint 0K63-01178-0001 Handlebar Cover-LT 0k63-01191-0004 90CW-0XXX-01 S/N CCI100000 and UP Console Support Weldment Assy AK63-00089-0002... -
Page 14: Left Side Shroud And Crankarm
ARCTIC SILVER 90CW Left Side Shroud and Crankarm Shroud Screws(3) 0017-00101-1741 Shroud Plug 0K63-01084-0001 Decal 0K63-01316-0000 90CW-0XXX-01 S/N CCI100000 and UP Left Side Shroud AK63-00178-0002 Crank Arm Screws(3) 0017-00101-1855 Crank Arm, LT 0K39-01042-0008 Left Pedal AK63-00123-0004 Left Pedal Strap 0K63-01237-0004... -
Page 15: Right Side Shroud And Crankarm
ARCTIC SILVER 90CW Right Side Shroud and Crankarm Right Pedal AK63-00123-0003 Right Pedal Strap 0K63-01237-0003 Crank Arm Screws(3) 0017-00101-1855 Crank Arm, RT 0K39-01042-0007 S/N CCI100000 and UP Right Side Shroud Decal AK63-00178-0001 0K63-01316-0000 Right Side Shroud Screws(8) 0017-00101-1741 90CW-0XXX-01... -
Page 16: Pcb Mounting Bracket Assembly
ARCTIC SILVER 90CW PCB Mounting Bracket Assembly Plastic Grommet(4) 0017-00042-0821 Power Control Board B084-92064-A000 Phillips Screw(4) 0017-00101-0832 90CW-0XXX-01 S/N CCI100000 and UP Mounting Bracket 0K63-01211-0001... -
Page 17: Front Wheels
ARCTIC SILVER 90CW Front Wheels – AK63-00017-0001 Wheel Screw 0017-00101-1747 Wheel Insert 0K63-01039-0000 Wheel/Bearing Assembly AK63-00016-0001 S/N CCI100000 and UP Pan Screw(2) 0017-00101-1747 Flat Washer 0K63-01041-0000 90CW-0XXX-01... -
Page 18: Resistor Assembly
ARCTIC SILVER 90CW Resistor Assembly – AK63-00114-0000 Resistor .5 OHM 240 Watt 100E-00002-0084 Retainer 0K63-01215-0000 Resistor Bracket(2) 0K63-01165-0000 S/N CCI100000 and UP Nut(3) 0017-00103-0081 Pan Screw (2) 0017-00101-1282 90CW-0XXX-01 Resistor Mounting Rod 0K63-01166-0000... -
Page 19: Handlebar Assembly
ARCTIC SILVER 90CW Handlebar Assembly – AK63-00101-0001 Dipped Grip 0K63-01177-0002 90CW-0XXX-01 S/N CCI100000 and UP Handlebar AK63-00084-0000... -
Page 20: Belts
ARCTIC SILVER 90CW Belts Alternator Belt 0K63-01065-0000 90CW-0XXX-01 S/N CCI100000 and UP Intermediate Belt 0K63-01066-0001... -
Page 21: Cables
ARCTIC SILVER 90CW Cables Power Cable AK63-00098-0000 90CW-0XXX-01 S/N CCI100000 and UP Console Cable AK63-00097-0000...
