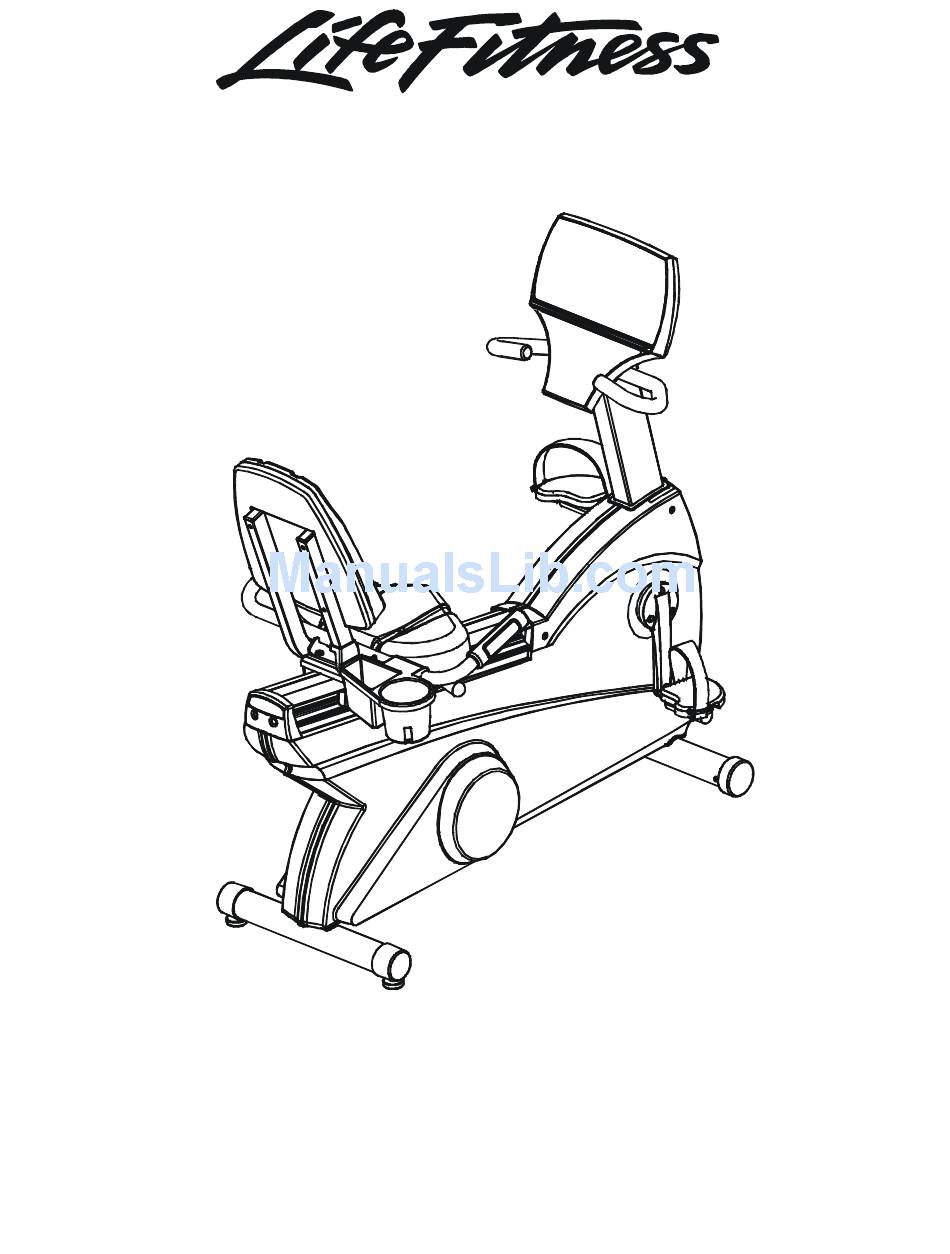

- Page 1 Arctic Silver 90RW Recumbent Bike Customer Support Services PARTS MANUAL revised 29 Apr 2008...
- Page 2 COAX CABLE CONNECTION BRACKET ASSEMBLY ASSEMBLY CONSISTS OF: 1) POWER CABLE 2) F TYPE CONNECTOR SERVICE MANUAL NOTE: ADDING THE BOLT ON LCD SCREEN TO THE 90RW-OXXX-02 MAKES THE UNIT 90RER-0XXX-02. 90RW-0XXX-02 S/N CCK100000 and UP M051-00K39-A020 AK39-00052-0004 GK39-00002-0008 GK39-00002-0001...
-
Page 3: Table Of Contents
ARCTIC SILVER 90RW 90RW-0XXX-02 CONTENTS S/N CCK100000 and UP Page CONSOLE COMPONENTS ...4 CONSOLE SUPPORT ASSEMBLY...5 SHROUDS, END CAP, CRANKARMS AND PEDALS ...6 BELTS...7 RESISTOR ASSEMBLY ...8 POWER CONTROL BOARD ...9 ALTERNATOR W/PULLEY ...10 CRANKSHAFT AND BEARING ASSEMBLY...11 INTERMEDIATE SHAFT AND BEARING ASSEMBLY...12 IDLER BRACKET ASSEMBLY...13... -
Page 4: Console Components
ARCTIC SILVER 90RW Console Components Upper Overlay Lower Overlay Console Assembly AK39-00072-0001 Eng Met AK39-00072-0003 Ger Met AK39-00072-0004 Spn Met AK39-00072-0006 Jap Met AK39-00072-0007 Frn Met AK39-00072-0008 Itl Met AK39-00072-0009 Dut Met AK39-00072-0010 Por Met 90RW-0XXX-02 S/N CCK100000 and UP... -
Page 5: Console Support Assembly
ARCTIC SILVER 90RW Console Support Assembly Grip(2) 0K39-01005-0001 Console Support AK39-00003-0002 Frame Post Bolt(4) 0017-00101-1756 90RW-0XXX-02 S/N CCK100000 and UP 4-Pin Heart Rate Cable 10-Pin Connector Main Wiring Cable Console Mounting Screw(4) 0017-00101-1744 Frame Post... -
Page 6: Shrouds, End Cap, Crankarms And Pedals
ARCTIC SILVER 90RW Shrouds, End cap and Pedals Shroud Screws(7) 0017-00101-1741 Crank Arm, RT 0K39-01042-0007 Screws(3) 0017-00101-1855 Right Pedal AK63-00123-0003 Pedal Strap (not shown) 0K63-01237-0003 Right Shroud AK39-00033-0007 Decal 0K39-01070-0000 Left Shroud AK39-00033-0008 Crank Arm, LT Decal 0K39-01042-0008 0K39-01070-0000 Screws(3) -
Page 7: Belts
ARCTIC SILVER 90RW Belts Screw 0017-00101-1193 Alternator Belt 0017-00009-0735 90RW-0XXX-02 S/N CCK100000 and UP Intermediate Pulley Belt 0K63-01066-0001... -
Page 8: Resistor Assembly
ARCTIC SILVER 90RW Resistor Assembly Resistor 100E-00002-0084 Pan Screw(2) 0017-00101-1057 Mounting Rod 0K63-01166-0000 Mounting Bracket 0K39-01036-0000 90RW-0XXX-02 S/N CCK100000 and UP Washer(2) 0017-00104-0309 Resistor Retainer 0K39-01043-0000 Hex Nut(3) 0017-00103-0081... -
Page 9: Power Control Board
ARCTIC SILVER 90RW Power Control Board Assembly Number - AK39-00022-0002 90RW-0XXX-02 S/N CCK100000 and UP Plastic Grommet(4) 0017-00042-0821 Bracket 0K39-01027-0000 Philip Screw(4) 0017-00101-0823 Power Control Board B084-92064-A000... -
Page 10: Alternator W/Pulley
ARCTIC SILVER 90RW Alternator w/Pulley Assembly Assembly Number – AK63-00093-0000 Alternator Pulley 0K61-02500-0001 Locking Nut 0017-00103-0117 S/N CCK100000 and UP Alternator 0017-00009-0841 Washer 0017-00104-0044 90RW-0XXX-02 Bolt 0017-00101-0956... -
Page 11: Crankshaft And Bearing Assembly
ARCTIC SILVER 90RW Crank Shaft and Bearing Assembly Crank Arm Hub Pulley Assembly 0K63-01095-0001 AK63-00051-0000 Pulley 0K63-01018-0000 *Needle Bearing (2) Washers (3) 0017-00104-0458 Flywheel Screws (3) 0017-00101-1715 *Crankshaft 0K63-01012-0001 *Small Thrust Washer (2) 0K63-01129-0000 0K63-01344-0000 *Small Snap Ring (2) 0017-00100-0241... -
Page 12: Intermediate Shaft And Bearing Assembly
ARCTIC SILVER 90RW Intermediate Shaft and Bearing Assembly Clutch Assembly AK63-00026-0000 (not included in kit) Delrin Washers (2) 0017-00104-0455 Retaining Ring 0017-00100-0242 Intermediate Shaft and Bearing Assembly Kit GK63-00002-0007 90RW-0XXX-02 S/N CCK100000 and UP Magnet 118E-00001-0124 (not included in kit) -
Page 13: Idler Bracket Assembly
ARCTIC SILVER 90RW Idler Bracket Assembly Idler Bracket Assembly – AK63-00021-0000 Lock Nut 0017-00103-0218 90RW-0XXX-02 S/N CCK100000 and UP Idler Bracket 0K63-01050-0000 Idler Bearing AK63-00008-0000... -
Page 14: Seat Assembly
ARCTIC SILVER 90RW Seat Assembly Foam Grip 0K14-01926-0005 90RW-0XXX-02 S/N CCK100000 and UP End Cap 0K19-01208-0001 Seat Assembly AK51-00034-0003... -
Page 15: Seat Bottom Assembly
ARCTIC SILVER 90RW Seat Assembly - Bottom Spacer(4) 0K51-01044-0000 Washer(4) 0017-00104-0462 Bolt(4) 0017-00101-1743 Roller Assembly AK51-00056-0001 Roller (2), LT 0K51-01034-0002 S/N CCK100000 and UP Washer Roller Shield(4) 0017-00104-0461 0K51-01059-0001 Roller (2), RT 0K51-01034-0001 90RW-0XXX-02 Locking Nut(4) 0017-00103-0326 Washer(4) 0017-00104-0463 Screw(2) -
Page 16: Seat Frame Assembly
ARCTIC SILVER 90RW Seat Frame Assembly Screw(4) 0017-00101-1746 Washer(4) 0017-00104-0462 Front Stop Bracket 0K51-01062-0000 Plastic Shield 0K19-01185-0001 S/N CCK100000 and UP Complete Seat Assembly AK51-00027-0003 90RW-0XXX-02... -
Page 17: Seat Pads And Accessory Tray
ARCTIC SILVER 90RW Seat Pads and Accessory Tray Washer(4) 0017-00104-0462 Mounting Screw(4) 0017-00101-1743 90RW-0XXX-02 S/N CCK100000 and UP Seat Back 0K51-01056-0001 Seat Bottom 0k51-01054-0001... -
Page 18: Extrusion Assembly
ARCTIC SILVER 90RW Extrusion Assembly – AK39-00027-0006 Screw 0017-00101-1750 Bolts 0017-00101-1183 Screws 0017-00101-1751 Locking Rack 0K51-01013-0002 Extrusion Seat Assy AK39-00027-0006 90RW-0XXX-02 S/N CCK100000 and UP Stop Bracket 0K51-01061-0001 Decal 0K51-01039-0001 Bumper 0017-00041-0654 Plastic Grommet 0017-00042-1055... -
Page 19: Seat Locking Assembly
ARCTIC SILVER 90RW Locking Assembly – AK51-00053-0001 Knob AK51-00029-0001 Retainer Bearing 0K51-01011-0000 E-Ring 0017-00100-0018 90RW-0XXX-02 S/N CCK100000 and UP TORX Screw 0017-00101-1742 Anti-Rattle Washer 0K51-01060-0001 Handle Shaft 0K51-01007-0000 Groove Pin 0017-00007-0245 Compression Spring 0K51-01012-0000 Washer 0017-00104-0421 Housing-Insert Assembly AK51-00030-0001 Locking-Block Assembly... -
Page 20: Wheel And Leveler
ARCTIC SILVER 90RW Wheel and Leveler Pan Screw(2) 0017-00101-1747 Wheel Screw 0017-00101-1747 S/N CCK100000 and UP Rear Stabilizer GK39-00002-0012 Flat Washer 0K63-01041-0000 Wheel Insert 0K63-01039-0000 Wheel Assembly AK63-00016-0001 Complete Wheel Assembly AK63-00017-0001 90RW-0XXX-02 End Cap 0K63-01219-0001 Leveler 0017-00009-0795 Lock Nut... -
Page 21: Cables
ARCTIC SILVER 90RW Cables Cable (Alternator to control) AK39-00009-0000 90RW-0XXX-02 S/N CCK100000 and UP Cable Main AK39-00008-0000...
