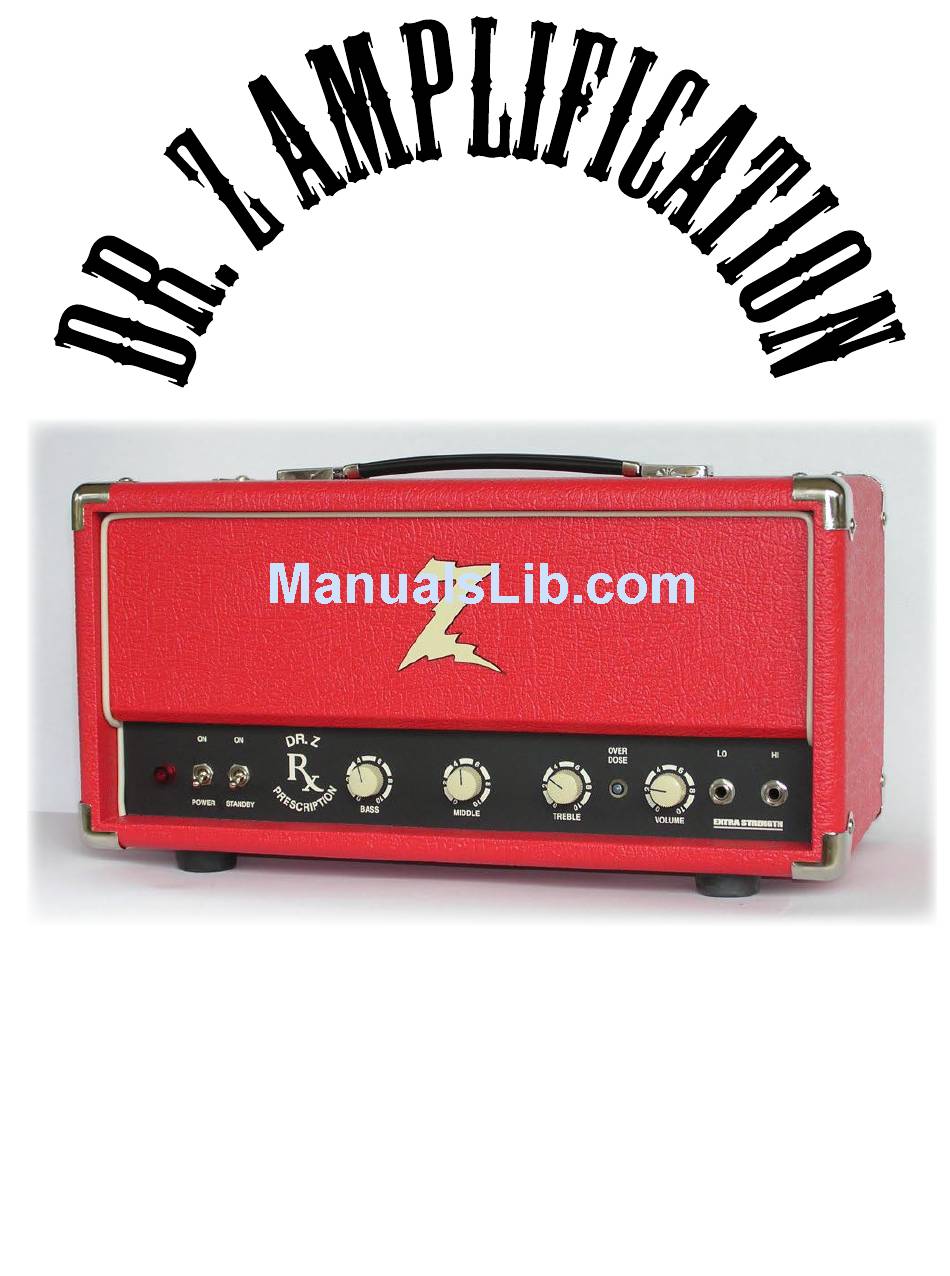

- Page 1 Prescription ES/JS Owners Manual...
-

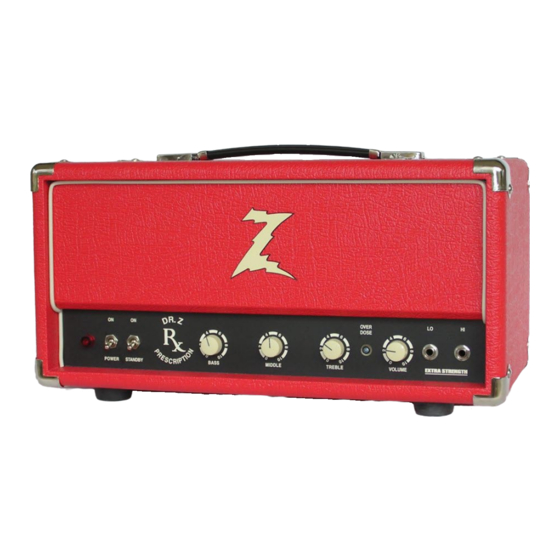

Page 2: Front Panel
Prescription Extra Strength/Junior Strength Intro: Thank you for purchasing a Dr Z Amp. This amplifier was designed to give you years of playing and sonic enjoyment. We are proud to forge ahead and create new tube amplifier sounds with a nod to the classics of the past. Whether you are a touring professional, weekend warrior, or basement jammer;... -
Page 3: Rear Panel
Rear Panel: Fuses: ½ Amp fuse for DC Voltage section or 3 Amp AC fuse. Speaker Jacks: Plug speaker into specific jack for it’s rating (8ohm speaker into 8ohm jack.) Footswitch: Use single button footswitch (supplied) to turn Overdose func- tion on or off. -
Page 4: General Maintenance
General Maintenance: • If you experience intermittent crackle/static type sounds make sure the 4 screws that secure the chassis are tight. If a bit loose, the chassis will lose connection to the RF shield. • Make sure a speaker is connected to your amplifier before you turn it on. Always match your speaker or cabinet to the proper ohm rating on the rear of the amp (8 ohm speaker or cab into the 8 ohm jack.) •... - Page 5 12AX7 EF86 12AX7 EL84 EL84 EL84 EL84 © Copyright 2005 Dr. Z Amplification www.drzamps.com 12AX7 EF86 12AX7 EL84 EL84 © Copyright 2007 Dr. Z Amplification www.drzamps.com...
