- Page 1 SRZ-65 Manual Model: ZA-1 www.drzamps.com...
- Page 2 This symbol warns the user of dangerous voltage levels localized within the enclosure. This symbol advises the user to read all accompanying literature for safely operating the unit Important Safety Instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions.
-
Page 3: General Information

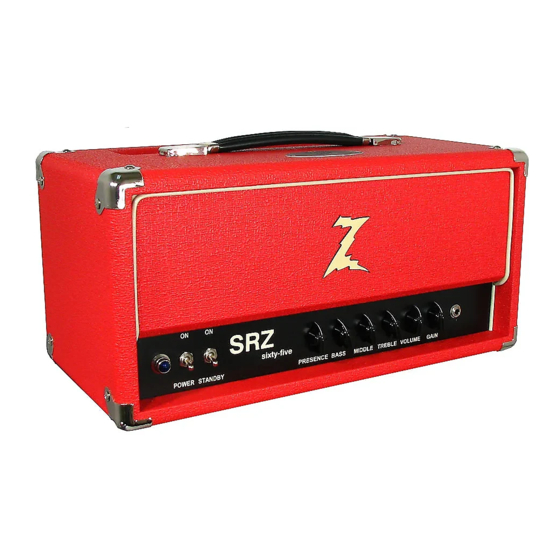

General Information The SRZ-65 is one of Dr Z's first designs going back 20 years. This amp was ahead of it’s time. You get a tube rectified EL34 output section and a classic three 12AX7 cascaded gain front end in all it’s hand wired glory. - Page 4 FRONT PANEL 1. Power Indicator: Lights up when power is switched on. If bulb fails replace with type T47. 2. Power: Switch up to turn on amplifier. Switch down to turn off amplifier. 3. Stand-By: Leave in off position for 1 minute when powering up the amp. Turn on for play. Place in off position for extended break periods.
- Page 5 MODEL: ___________________ SERIAL NUMBER: ___________ INPUT VOLTAGE: ____________ MADE IN USA...
