- Page 1 Z-28 Manual Model: ZA-15 www.drzamps.com...
- Page 2 This symbol warns the user of dangerous voltage levels localized within the enclosure. This symbol advises the user to read all accompanying literature for safely operating the unit Important Safety Instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions.
-
Page 3: General Information
General Information The Z28 shares the same EF86 front end as its bigger brothers the Route 66 and KT45. Pairing this front end with a pair of fixed bias 6V6s yields an authority not heard before from a dual 6V6 design. Having more of an American type sound, the Z28 gives you a wide pallet to work from. -
Page 4: Front Panel

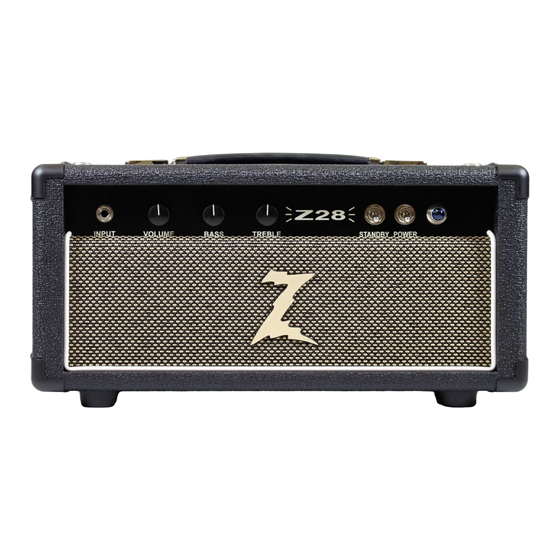

FRONT PANEL 1. Input: Input jack for your guitar. 2. Volume: Controls overall amp volume. As you turn the volume up more natural drtive will occur along with an increase in level. 3. Bass: Controls overall low frequency response. The bass control works much the same way as the treble control. -
Page 5: Made In Usa
MODEL: ___________________ SERIAL NUMBER: ___________ INPUT VOLTAGE: ____________ MADE IN USA...
