Drive Medical 18715 Instruction Manual

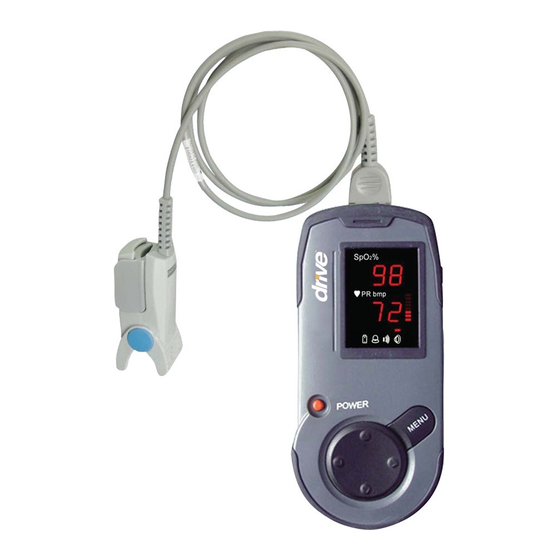

Handy ox hand held pulse oximeter
Hide thumbs
Table of Contents

Advertisement

Quick Links

HANDY OX
HAND HELD
PULSE OXIMETER
INSTRUCTION
MANUAL
Model # 18715

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 18715 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Drive Medical 18715

Summary of Contents for Drive Medical 18715

  • Page 1 HANDY OX HAND HELD PULSE OXIMETER INSTRUCTION MANUAL Model # 18715...

  • Page 2: Table Of Contents

    Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL Contents 1 Introduction ..........3 1.1 Brief Introduction ......... 3 1.2 Safety Information ......... 3 1.3 Equipment symbols ....... 8 1.4 Electromagnetism interference ...... 9 1.5 Equipment classification ......9 1.6 Accessory ........10 2 General Descriptions ........
  • Page 3 Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL 4 .Take a measurement ........19 5. Maintain and Cleaning ........25 5.1 Safety Checks ........26 5.2 Calibration and Verification ......28 5.3 Warranty ........27 APPENDIX A Specifications ........30 APPENDIX B ..........34...

  • Page 4: Introduction

    Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL 1 Introduction 1.1 Brief Introduction Thank you for purchasing this handheld pulse oximeter. The device is designed to measure oxygen saturation (SpO ) and Pulse Rate (PR), delivering visual and audio alarm. Please read this manual carefully before using it.
  • Page 5 Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL  Do not use the oximeter in an MRI or CT environment.  Do not open the equipment housings; electric shock hazard may exist. All servicing and future upgrades must be carried out by the personnel trained and authorized by our company only.
  • Page 6 Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL for diagnostic interpretation.  Do not rely exclusively on the audible alarm system for patient monitoring. Adjustment of alarm volume to “off” may result in a hazard to the patient. Remember that alarm settings should be customized according to different patient situations and always keeping the patient under close surveillance is the most reliable way for safe patient monitoring.
  • Page 7 Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL  The operator must be thoroughly familiar with the information in this manual before using the device.  Unplug the sensor from the oximeter before cleaning or disinfecting it.  If liquid is accidentally spilled on the unit, clean and dry thoroughly before reuse.
  • Page 8 Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL especially sunlight. Shield the sensor area if necessary.  Dyes introduced into the bloodstream, such as methylene blue, indocyanine green, indigo carmine, and fluorescein, may influence the accuracy of the SpO reading.  Any condition that restricts blood flow, such as use of a blood pressure cuff or extremes in systemic vascular resistance, may cause a failure to determine accurate pulse rate and readings.

  • Page 9: Equipment Symbols

    PULSE OXIMETER INSTRUCTION Oximeter Series MANUAL  This manual describes all features and options. Your equipment may not have all of them.  Federal Law restricts this device to sale by or on the order of a physician. 1.3 Equipment symbols Symbol Definitions Attention！Read the operator’s manual carefully before...

  • Page 10: Electromagnetism Interference

    PULSE OXIMETER INSTRUCTION Oximeter Series MANUAL Serial number 1.4 Electromagnetism interference This oximeter is designed and tested in compliance with the EMC standard, complying with the international standard for the EMC of the electronic medical device - IEC 60601-1-2. However, because of the proliferation of radio frequency transmitting equipment and other sources of electrical noise in the health-care and home environments (e.g.

  • Page 11: Accessory

    Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL Electrical shock: According to the degree of Ordinary equipment (enclosed protection against harmful equipment without protection ingress of water. against ingress of water) According to the methods Non-sterilizable: Use of Liquid sterilization surface disinfectants only. disinfection According to the mode of continuous operation...

  • Page 12: General Descriptions

    Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL 2 General Descriptions The handheld pulse oximeter adapts 8-segment digital LED for displaying data. It can display the SpO and pulse rate value pulse bar as well as battery status etc. 2.1 Front panel Please refer to Fig 1.
  • Page 13 Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL Fig1 Front panel Instruction of figure 1： ： SpO 1, SpO value 2, PR： Pulse rate ：Low power indicator. When the power is lower than 2.4V, the lamp indicated by it will be lighted. And the oximeter will...

  • Page 14: Rear Panel

    Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL power off automatically when the power is lower than 2.3V. Alarm Indicator： When technical alarm or physiological alarm occurs, the lamp indicated by it will turn red. 5, Power button Pulse bar：The pulse bar is in proportion to the Pulse volume.
  • Page 15 Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL Fig.2 Rear panel Rear panel introduction:  1: Batteries  2: Fixing hole  3: Fixing screw  4: Battery Wharf cover Batteries Installation : 1) Open the battery cover: Rotate the fixing screw slightly in the rear panel to the up position which is marked with “...
  • Page 16 Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL 3) Close battery cover: Close the battery cover and rotate the screw to the position. And the batteries are locked. Make sure that the polarity of the batteries is correct. Otherwise the unit cannot operate normally. Battery life and replacement When the low-power indication lamp is lighted, please replace the batteries with new ones timely.

  • Page 17: Right-Side Panel

    Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL more).  Do not use batteries of a different type together.  Do not use new and used batteries together. 2.3 Right-side panel A band delivered together with the oximeter can be inserted into the 8-shape hole on the right side of the oximeter,.
  • Page 18 Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL packing case is intact, open the package and remove the equipment and accessories carefully. Check all materials as per the packing list and check for any mechanical damage. WARNINGS  Keep the packing material out of children’s reach. Disposal of the packaging material should observe the applicable waste control regulations.
  • Page 19 Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL 3.3 Connect the sensor 1. Before use, check the pulse oximeter for mechanical damage. 2. Install the alkaline batteries and ensure that the batteries have sufficient power. 3. Plug the SpO extension cable in the multifunctional connector on top of the oximeter, as shown in figure 3.

  • Page 20: Take A Measurement

    Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL normal screen. To shut off the pulse oximeter, 1. Confirm that the patient measurement is finished. 2. Disconnect the SpO extension cable from the pulse oximeter. 3. Press and hold the Power button for 4 seconds. WARNING Do not use the pulse oximeter if you suspect it is not working properly, or if it is mechanically damaged.
  • Page 21 Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL Fig 6 placement of the sensor  Select the suitable sensor in terms of type and dimension.  Clip the sensor to the patient’s finger as shown above. And ensure that the patient’s nail surface is facing upward. ...
  • Page 22 Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL considered reliable and accurate if the following conditions are present during measurement:  Shock or cardiac arrest  Extreme temperature of the digit  After the administration of a cardiovascular drug  Anemia  Evidence of ventilation-perfusion mismatch 2.5.2 Instrument performance depends on the wavelength absorption for oxyhemoglobin and deoxyhemoglobin.
  • Page 23 Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL b) Placement of a sensor on an extremity that currently has installed a blood pressure cuff, arterial catheter, or intravascular line; c) The patient has hypotension, severe vasoconstriction, severe anemia, or hypothermia; d) An arterial occlusion proximal to the sensor. WARNINGS! ...
  • Page 24 Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL such as a surgical lamp, a bilirubin lamp, or sunlight; c) A blood pressure cuff is inflated on the same extremity as the one to which an SpO sensor is attached. NOTES：  Pulse sensor should obviate the light source, e.g. radial lamp or infrared lamp.
  • Page 25 Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL ALARM ACTIVATION Alarm will be activated on following conditions: Physiological alarm: Technical alarm (error code): a) Error Definitions E 1: program memory is damaged. E 3: Signal strength is too weak to be detected. E 4: Sensor is unplugged.

  • Page 26: Maintain And Cleaning

    Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL screen, please press menu button again. Warnings! When alarm occurs：  Check which type of alarm is issued.  Check patient’s condition if parameter alarm is issued.  Make the alarm mute if necessary. ...

  • Page 27: Safety Checks

    Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL Control Officer or Epidemiologist. Keep your equipment and accessories free of dust and dirt. To avoid damage to the equipment, follow these rules: Always dilute according the manufacturer’s instructions or  use lowest possible concentration. ...
  • Page 28 Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL damage.  Make sure that only specified accessories are applied.  Inspect if the alarm system functions correctly.  Make sure that the batteries meet the performance requirements.  Make sure that the pulse oximeter is in good working condition.

  • Page 29: Calibration And Verification

    Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL 2. Clean the display screen using a soft, clean cloth dampened with a glass cleaner. 3. Clean the exterior surface of the equipment using a soft cloth dampened with the cleaner. 4. Wipe off all the cleaning solution with a dry cloth after cleaning if necessary.
  • Page 30 Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL a)．Connect SpO Probe to the SpO connector on the oximeter. b)．Insert the operator’s finger into the finger sensor, the SpO measured value of healthy person should be from 95% to 100%, and the pulse rate is same as heart rate, c)．If SpO Simulator is available, verify the accuracy of Oxygen Saturation Value with probes as follows:...

  • Page 31: Warranty

    Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL b) "SEn oFF " alarm Please check if the probe was connected with the oximeter correctly or the finger is inserted fully. If the sensor is with extension cable please check if the extension cable is connected with the sensor correctly.

  • Page 32: Appendix A Specifications

    Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL This warranty excludes cost of delivery to and from Drive. Drive reserves the right to charge a fee for a warranty repair request on any oximeter found to be within specifications. The Drive handheld pulse oximeter is a precision electronic instrument and must be repaired by Drive Technical Support.
  • Page 33 Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL Alarm limits range: 70%-100% Default limits: High 99%; low 90% Display range: 0%~100% Measurement range: 70%~100% Resolution: Accuracy: ±3% (70-100%) Unspecified (0-69%) Measurement Wavelengths and Output Power 660nm @ 3mw nominal Infrared 940nm @3mw nominal Pulse Rate Display range: 0~254bpm...
  • Page 34 Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL Identification International Electrotechnical Commission Light Emitting Diode Pulse Rate Radio Frequency Arterial Oxygen Saturation from Pulse Oximeter Abbreviations ampere beats per minute ºC centigrade gram kilohertz megahertz Gigahertz hour hertz kilo kilogram kilopascal meter, minute mega minute millimeters...

  • Page 35: Appendix B

    Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL APPENDIX B Guidance and manufacturer's declaration - electromagnetic immunity The Handheld Pulse Oximeter is intended for use in an electromagnetic environment specified below. The customer or the user of the Pulse Oximeter should assure that it is used in such an environment.
  • Page 36 Oximeter Series PULSE OXIMETER INSTRUCTION MANUAL by absorption and reflection from structures, objects and people. Field strengths from fixed transmitters, such as base situation for radio (cellular/cordless) telephones and land/mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy.
  • Page 37 NOTE1 At 80MHz and 800MHz, the separation distance for the higher frequency range applies. NOTE2 These guidelines may not apply in all situations. Electromagnetic interference is affected by absorption and reflection from structures, objects and people. DRIVE MEDICAL 99 Seaview Blvd Port Washington, NY 11050 www.drivemedical.com Phone: 516-998-4600...
