Drive Medical 13068BV Quick Start Manual

Drive Medical

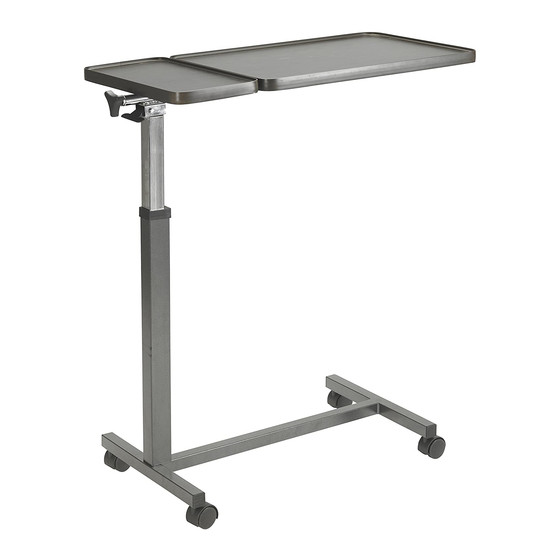

TILT TOP TABLE - 13068BV
Assembly Instructions

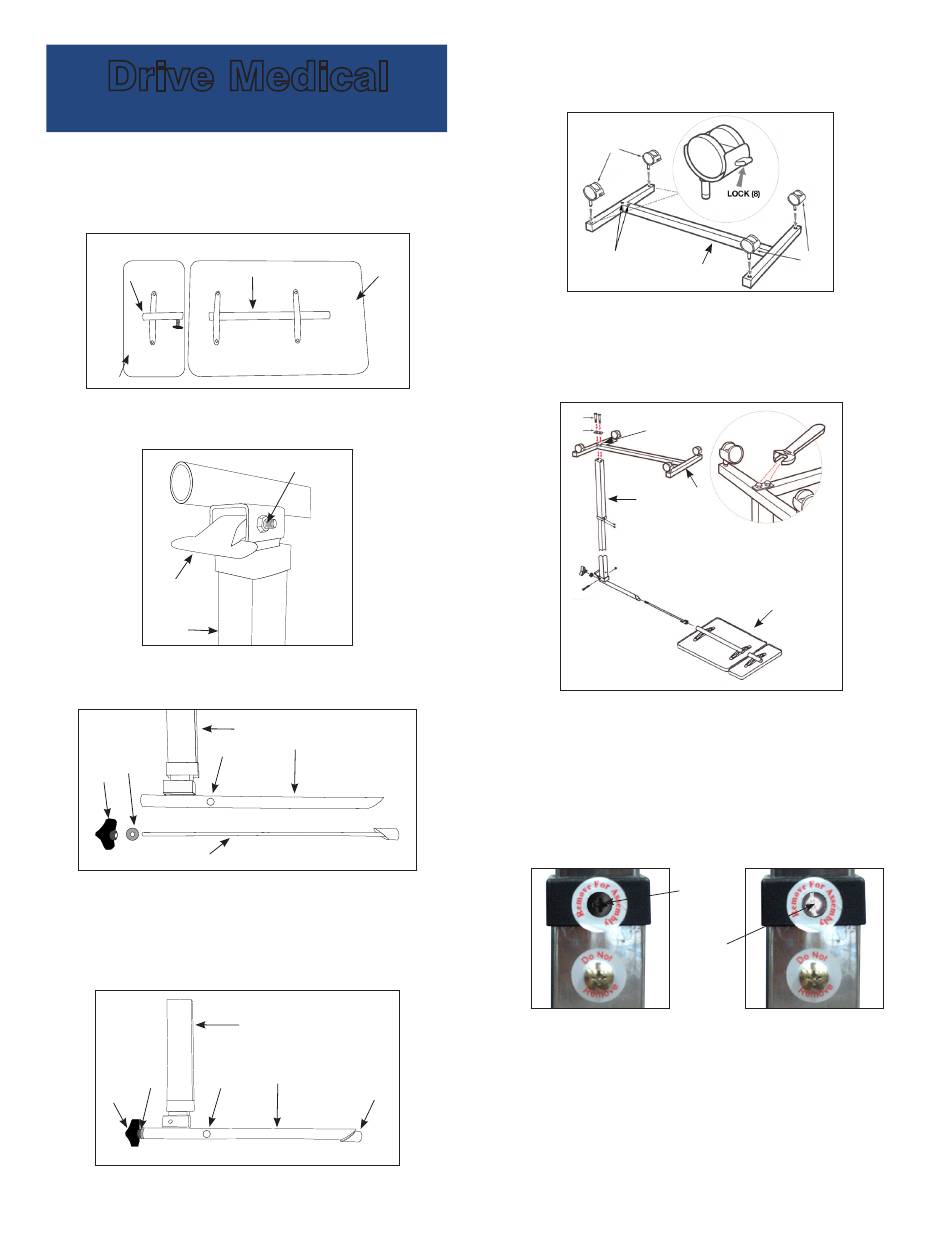

1. Remove contents from packaging and lay top boards
(1 & 1S) upside down on flat surface with Mounting Tubes
(5 & 5S) facing upward. See Fig. 2.
5s
1s
2. Take the Column Assembly (2) and place Trip Lever (3)
on top of Trip Rod and secure with Bolt and Nut (4)
See Fig. 1.
3
2
3. Remove Triangle Knob (16) and Spacer (17) and
remove Inner tube (6) from Outer tube (18). See Fig. 3.
Hole
17
16
6
4. Insert outer tube(18) on column assembly through mount-
ing tube (5s) on short top (1s). Then insert outer tube
through mounting tube (5) on large top (1). Then insert
inner tube (6) through Mounting tube (5). Tighten thumb
screw (19) into hole on Outer tube(18).
Hole
17
16
5. Replace Triangle Knob (16) and Spacer (17) and
secure by tightening the knob.
5
1
FIG. 2
4
FIG. 1
2
18
FIG. 3
2
18
6
FIG. 4
6. Install two Casters With Lock (8) into Base (7) which
connects to Column Assembly (2). Install two Non-Lock-
ing Casters (9) into base opposite Column Assembly (2).
See Fig. 5.
8
Column end of base
with 2 holes
7. Install two Bolt Sleeves (10) into upside down Base (7)
and then position two Bolts (12) through Bolt Plate (11)
and into Bolt Sleeves (10). Position Base (7) over Column
Assembly (2) and thread bolts into bottom of Column
Assembly (2) and tighten using 16mm wrench. See Fig. 6.
12
11 10
2
8. Turn the table upright and stand on casters.
9. CAUTION: This step must be completed last to
prevent damage to the spring loaded mechanism.
Remove the Black Screw (13) in the Column Assembly
(2) collar labeled "Remove for Assembly" and replace
it with the Chrome Screw (14) contained in hardware
package. Do not remove Chrome Screw labeled "Do
Not Remove". See Fig. 7 and Fig. 8.
Remove 13
FIG. 7
WARNING
FOR SAFETY – DO NOT REMOVE BLACK SCREW (13) ON COL-
UMN ASSEMBLY (2) UNTIL THE TABLE IS FULLY ASSEMBLED AND
STANDING IN UPRIGHT POSITION. AFTER REMOVING BLACK
SCREW, REPLACE WITH CHROME SCREW (14) INCLUDED IN
HARDWARE PACKAGE.
THE BOTTOM CHROME SCREW WITH THE "DO NOT REMOVE"
LABEL SHOULD NEVER BE REMOVED AS IT WILL DAMAGE THE
UNIT AND VOID YOUR WARRANTY.
9
7
FIG. 5
7
1
FIG. 6
Insert 14
FIG. 8
REV1.5.2.14
