MIRKA CEROS User Manual

Compact electrical random orbital sander 150 mm (6 in.) & 125 mm (5 in.)
Hide thumbs Also See for CEROS:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
Compact Electrical
Random Orbital Sander
150 mm (6 in.) & 125 mm (5 in.)

Advertisement

Table of Contents
loading

Related Manuals for MIRKA CEROS

Summary of Contents for MIRKA CEROS

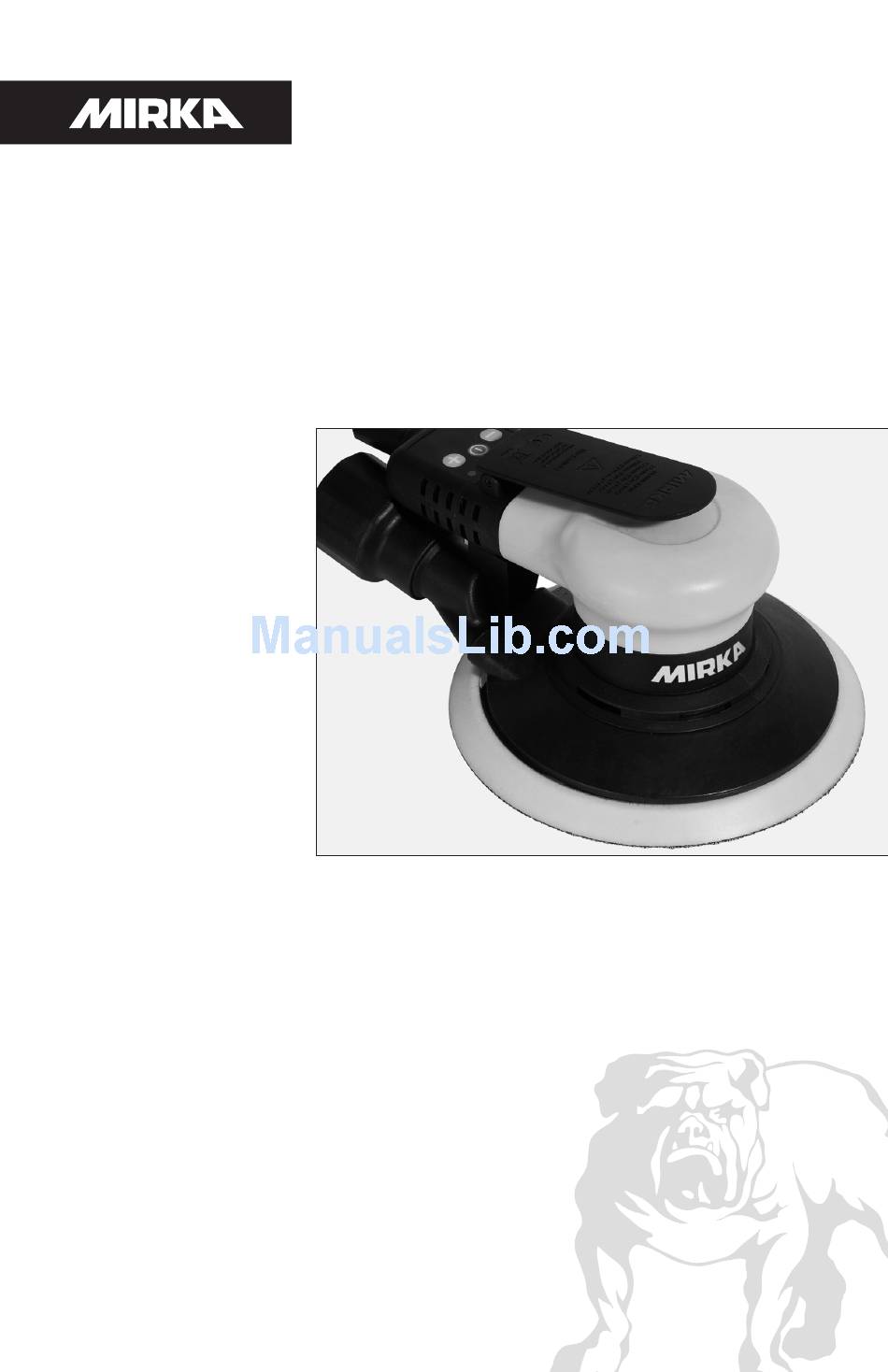

  • Page 1 Compact Electrical Random Orbital Sander 150 mm (6 in.) & 125 mm (5 in.)

  • Page 2: Declaration Of Conformity

    Parts replacement or repair during the warranty period is free of charge if carried out by an official KWH MIRKA service center. Freight costs are always to be paid by the purchaser.
  • Page 3 FIGURE 1. Sander FIGURE 2. DC Power transformer unit On/Off Switch AC socket AC Power Cord DC socket...

  • Page 4: General Power Tool Safety Warnings

    General Power Tool Safety Warnings WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to any power supplied (corded) power tool or battery- operated (cordless) power tool.

  • Page 5: Additional Safety Warnings

    5) Service a) Have your power tool serviced by an authorized Mirka service center using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Additional Safety Warnings a) Always ensure that the material to be sanded is firmly fixed to prevent its movement.

  • Page 6: Work Stations

    Proper Use of Tool This sander is designed for sanding a variety of materials i.e. wood, composites, plastics, etc. using abrasive discs designed for this purpose. Do not use this sander for any other purpose than that specified without consulting the manufacturer or the manufacturer’s authorized supplier. Do not press on the shroud when sanding.

  • Page 7: Getting Started

    Getting Started 1. Make sure tool is turned off and unplugged. Select a suitable abrasive disc and attach it to the tool, ensuring that the disc is centered on the backing pad. 2. Connect the cord from the tool to the DC power transformer. Cord will click when locked in place. Refer to Figure 1-2.

  • Page 8: Parts Schematic

    Parts Schematic...

  • Page 9: Parts List

    Parts List ITEM DESCRIPTION QTY. Part Number DC Power Supply (Transformer) MIN6522511 Power cable US 110V MIN5617511 Motor assembly 150mm/5mm MIN6510111 Motor assembly 125mm/5mm MIN5510111 Fan 150mm/5mm MIN6510211 Fan 125mm/5mm MIN5510211 Double row bearing 8993019711 (Bearing Kit) Spacer 8993019711 (Bearing Kit) Washer 8993019711 (Bearing Kit) Retaining ring...

  • Page 10: Technical Data

    Technical Data Compact Electrical Random Orbital Sander CEROS650CV CEROS550CV Power 400 W 400 W Input Voltage 90-240 VAC 90-240 VAC DC voltage to sander 22 VDC 22 VDC Speed 4,000 - 10,000 rpm 4,000 - 10,000 rpm Orbit 5.0 mm 5.0 mm Size of backing pad Ø...
  • Page 11 Notes:...
  • Page 12 KWH Mirka Ltd Finland Mirka Abrasives Inc. Twinsburg, OH 44140 USA Tel. 330.963.6421 www.mirka-usa.com Quality from start to finish...
