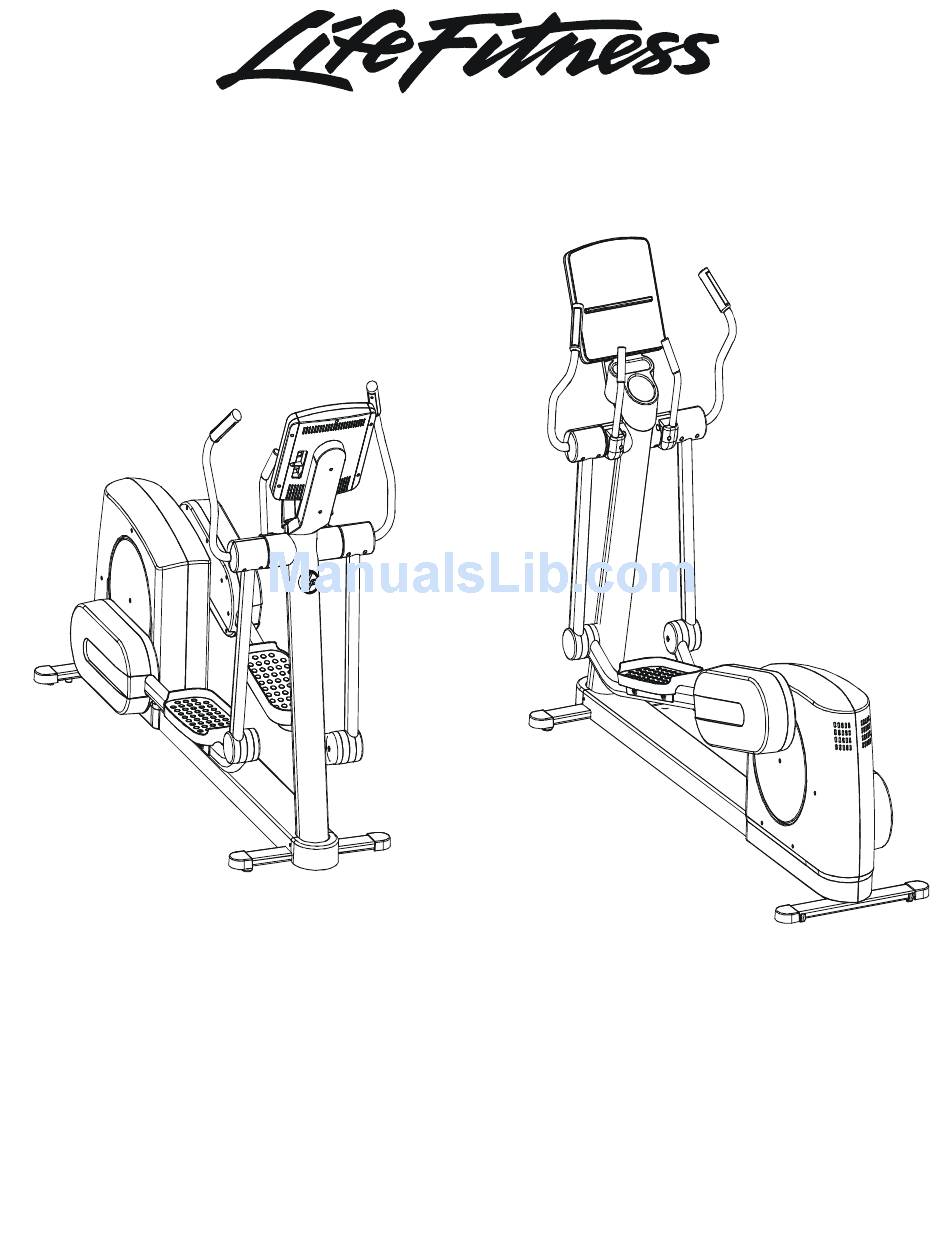

- Page 1 ARCTIC SILVER QUIET DRIVE CROSS TRAINER 93XW-0XXX-03 Customer Support Services PARTS MANUAL revised 30 Jul 2008...
- Page 2 ARCTIC SILVER QUIET DRIVE 93XW REFERENCES OPERATION MANUAL SERVICE MANUAL TOUCH UP PAINT: SPRAY CAN .5 OZ BOTTLE W/APPLICATOR .33 OZ PEN PLUG IN OPTION 120/60 PLUG IN OPTION 240/50 UK PLUG IN OPTION 240v PLUG IN OPTION 230/50 CONT POWER CABLE W/BRACKET ASSY.
-
Page 3: Table Of Contents
ARCTIC SILVER QUIET DRIVE 93XW 93XW-0XXX-03 CONTENTS S/N AXD100000 and up Page CONSOLE SUPPORT & DEADSHAFT COVERS ...4 HANDLEBARS AND BULLHORNS ...5 CONSOLE AND RELATED COMPONENTS...6 UPPER FRAME HARDWARE ...7 ROCKER ARMS AND PEDAL LEVERS ...8 CRANK COVER AND LOWER CAPS ...9 LOWER FRAME SHROUDS AND HARDWARE...10 PEDAL LEVER COMPONENTS ...11 PCB, BATTERY, REED SWITCH &... -
Page 4: Console Support & Deadshaft Covers
ARCTIC SILVER QUIET DRIVE 93XW Console Support & Deadshaft Covers Console Support AK62-00123-0000 Console Support Cap 0K62-01030-0000 Console Support Shroud 0K62-01023-0000 Right Inside Deadshaft Cover 0K62-01010-0000 Left Inside Deadshaft Cover 0K62-01011-0000 2-Front Inside Deadshaft Cover 0K62-01009-0000 93XW-0XXX-03 S/N AXD100000 and up Right Bullhorn Cover 0K62-01007-0001... -
Page 5: Handlebars And Bullhorns
ARCTIC SILVER QUIET DRIVE 93XW Handlebars and Bullhorns Right Handlebar AK62-00090-0000 Medallion Bug AK58-00245-0000 Bug Adaptor 0K62-01034-0001 NOTE: The Right Bullhorn Assembly consists of: AK62-00057-0001 Bullhorn, 0K62-01136-0000 Grip, and 0K62-01199-0001 Gasket. NOTE: The Left Bullhorn Assembly consists of: AK62-00058-0001 Bullhorn, 0K62-01136-0000 Grip and 0K62-01199-0001 Gasket 93XW-0XXX-03 S/N AXD100000 and up... -
Page 6: Console And Related Components
ARCTIC SILVER QUIET DRIVE 93XW Console & Related components Programmed PCB A084-92220-A008 Polar W/Latch Ca ble AK39-00063-0000 CONSOLE AK62-00327-0001 AK62-00327-0003 AK62-00327-0004 AK62-00327-0006 AK62-00327-0007 AK62-00327-0008 AK62-00327-0009 AK62-00327-0010 AK62-00327-0014 Console Case Screws 0017-00101-1242 PCB Mounting Screws 0017-00101-1650 Polar PCB with Receiver AK39-00064-0000 Overlay/Bezel/Switch (see chart below) OVERLAY/BEZEL/SWITCH... -
Page 7: Upper Frame Hardware
ARCTIC SILVER QUIET DRIVE 93XW Upper Frame Hardware Console Mounting Screws (4) 0017-00101-1796 Console Support Mounting Screws (6) 0017-00101-1791 Console Support Shroud Mounting Screws 0017-00101-1796 Inside Deadshaft Cover Screws 0017-00101-1796 (2 per side) Items Not Shown Accessory Tray 0K62-01022-0000 Accessory Tray 0017-00101-1846 Mounting Screws (2) Bullhorn Screw Kit... -
Page 8: Rocker Arms And Pedal Levers
ARCTIC SILVER QUIET DRIVE 93XW Rocker Arms & Pedal Levers contents: Rocker Arms (2) Hardened Spacers (2) Oilite Washers (2) Retaining Rings (2) Loctite 620 Alcohol pad Rocker Arms AK62-00002-0070 Shaft Collar w/Screws 0K61-01259-0000 Right Pedal Lever Assembly AK62-00236-0000 93XW-0XXX-03 S/N AXD100000 and up Left Pedal Lever Assembly... -
Page 9: Crank Cover And Lower Caps
ARCTIC SILVER QUIET DRIVE 93XW Crank Cover and Lower Caps Front frame Cap 0K62-01004-0000 Mounting Screws (Located on front sides of Ladder Frame Cover) 2- 0017-00101-1795 Stabilizer Caps 4 - 0K62-01003-0000 93XW-0XXX-03 S/N AXD100000 and up Crank Cover 0K61-03100-0002 2 - Mounting screws 0017-00101-1837... -
Page 10: Lower Frame Shrouds And Hardware
ARCTIC SILVER QUIET DRIVE 93XW Lower Frame Shrouds & Hardware Rocker Cover Kit (includes clip & screw) GK62-00002-0066 Mounting screw 0017-00101-1796 Right Inside Rocker Cover 0K62-01038-0000 Right Inside Lever Joint Cover 0K62-01040-0000 Outside Pedal Joint Cover 0K62-01035-0000 Mounting screw 0017-00101-1836 Leg Levelers AK62-00124-0000 Rocker Cover Kit... -
Page 11: Pedal Lever Components
ARCTIC SILVER QUIET DRIVE 93XW Pedal Lever Assembly Components Control Link Kit GK62-00002-0071 (contains 2 control links, part nos. AK62-00384-0000) E-Ring 0017-00100-0107 Thrust Washer 0K47-01105-0000 Brass Washer 0K47-01104-0000 Pedal/Rocker Shaft & Bearings Order Kit GK62-00002-0001 Left Pedal 0K62-01005-0000 Pedal Mounting Right Pedal Hardware Screws (4) 0K62-01006-0000... -
Page 12: Pcb, Battery, Reed Switch & Bracket
ARCTIC SILVER QUIET DRIVE 93XW PCB, Battery, Reed Switch & Bracket Power Control Board B084-92218-D002 PCB Mounting screws 0017-00101-1838 Battery Mounting screws 0017-00101-1797 PCB, Reed Switch Battery Bracket 0K62-01233-0000 6V Battery 0017-00003-0685 93XW-0XXX-03 S/N AXD100000 and up Grommet (4) 0017-00042-0821 Reed Switch 118E-00001-0140 Reed Switch... -
Page 13: Bearing-Insert Assembly
ARCTIC SILVER QUIET DRIVE 93XW Bearing-Insert Assembly -AK62-00299-0000 Service Kit- GK62-00002-0044 Includes: 1- crankshaft 2- bearings 2- sets of bearing flanges 4- nuts and washers Service Kit- GK62-00002-0045 Includes: 1 - intermediate shaft 2 - bearings 2- sets of bearing flanges 4- nuts and washers 93XW-0XXX-03 S/N AXD100000 and up... -
Page 14: Crank Arm Pulley Assembly
ARCTIC SILVER QUIET DRIVE 93XW Crank Arm Pulley Assembly Retaining Ring 0017-00100-0107 Crank arm mounting bolt 0017-00101-1849 nut - 0017-00103-0334 Magnet Mounting screw 0017-00101-1835 washer 0017-00104-0144 Crank arm weld Assembly AK62-00205-0000 Magnet-Standoff Assembly AK62-00186-0000 93XW-0XXX-03 S/N AXD100000 and up Poly-V Crank Pulley 0K61-02409-0000 Crankshaft Plate 0K61-02302-0001... -
Page 15: Drive Module
ARCTIC SILVER QUIET DRIVE 93XW Drive Module Crank Arm-Pulley Assembly See Page 13 for breakdown Crankshaft 0K62-01222-0000 J10 Flexonic Belt 0K62-01135-0000 Intermediate Shaft 0K62-01223-0000 Resistor Assembly Includes Power Control Cable AK62-00260-0000 93XW-0XXX-03 S/N AXD100000 and up Alternator-Flywheel Assembly AK61-00250-0001 Mando Alternator Brushes 0017-00009-0895 Right Crank Arm Weld Assembly... -
Page 16: Drive Module Hardware
ARCTIC SILVER QUIET DRIVE 93XW Drive Module Hardware Crankshaft 0K62-01222-0001 Square Machine Key (2) 0K53-01122-0000 Alernator-flywheel mounting bolt and nut bolt-0017-00101-1867 nut-0017-00103-0332 S/N AXD100000 and up Alternator-Flywheel Assembly Mounting bolt 0017-00101-0986 Crank Arm Mounting bolt 0017-00101-1849 0017-00103-0334 Machine Key 0K53-01183-0000 Bearing-Insert Mounting Screw and Nut (refer to Weldnut Kit, part no. -
Page 17: Cables
ARCTIC SILVER QUIET DRIVE 93XW Cables Power Control Cable AK62-00092-0000 93XW-0XXX-03 S/N AXD100000 and up Power Control Board B084-92218-D000 Console PCB A084-92220-A008 Main Cable AK62-00093-0000...
