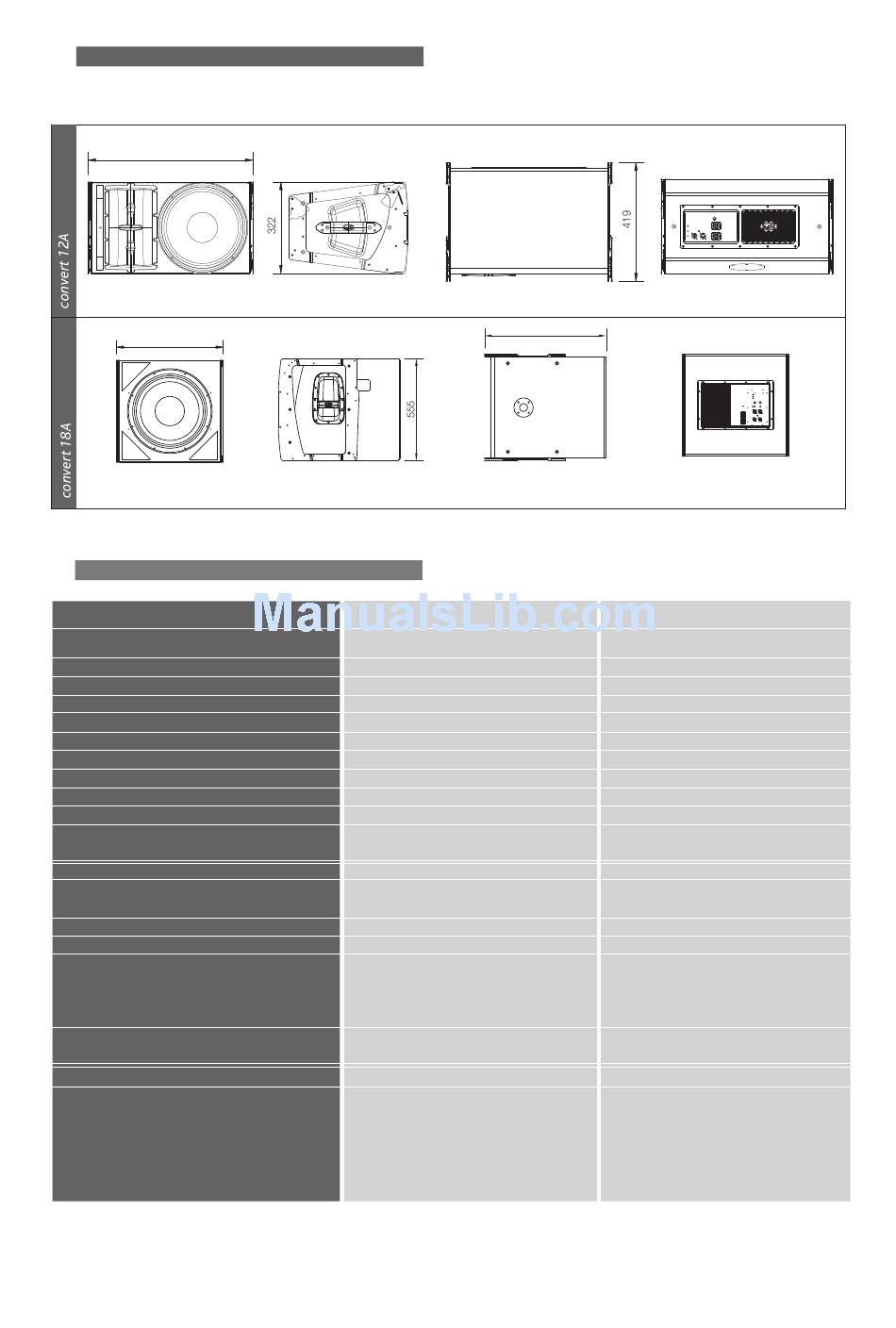

LINE DRAWINGS

582
Front View
580
Front View

SPECIFICATIONS

LF Amplifier Power
HF Amplifier Power
Nominal Amplifier Power
Input Impedance
Frequency Range (-10dB)
Horizontal Coverage (-6dB)
Vertical Coverage
Rated Maximum Peak SPL at 1m
Transducer/Replacement Parts
Enclosure Geometry
Enclosure Material
Rigging System Splay Angles
Safety Factor
AC Power Requirements
Dimensions (H x W x D)
D.A.S. Audio S.A. continuously strives to enhance its products through investigation and development. All
specifications are subject to change without prior warning.
ALL DIMENSIONS IN MILIMETERS
Right View
Right View
convert 12A
MODEL
1000 Wpeak - 500 Wcontinuous
200 Wpeak - 100 Wcontinuous
Input Type Balanced Differential Line
Line: 20kOhms
Sensitivity Line: 1.95 V (+8dBu)
63 Hz - 20 kHz
90º Nominal
15º Nominal
131 dB
LF: 1 x 12V4/GM 12P4
HF: 2 x M-60N/GM M-60N
Trapezoidal 15º
Birch Plywood
Black or White/ISO-flex Paint
Color/Finish
15º
Maximum 6 cabinets @ 7:1
Connectors INPUT: Female XLR
LOOP THRU: Male XLR
AC INPUT: PowerCon
AC OUTPUT: PowerCon
3.4A, 115V, 50 Hz/60 Hz
1.7A, 230V, 50 Hz/60 Hz
32.2 x 57.6 x 41.7 cm
12.7 x 22.7 x 16.4 in
Weight 27.5 kg
AX-convert12
Accesories
AXS-convert12
Pick-up-AX-convert12
Manual del Usuario / convert series / User's Manual
Top View
663
Top View
convert 18A
-
-
2000 Wpeak - 1000 Wcontinuous
Balanced Differential Line
Line: 20kOhms
Line: 1.95 V (+8dBu)
35 Hz - 160 Hz (variable LFP)
-
-
134 dB
LF: 1 x 18H/GM 18G
-
-
Birch Plywood
Black or White/ISO-flex Paint
-
-
INPUT: 2 x Female XLR
LOOP THRU: 2 x Male XLR
AC INPUT: PowerCon
AC OUTPUT: PowerCon
3.2A, 115V, 50 Hz/60 Hz
1.6A, 230V, 50 Hz/60 Hz
56.6 x 57.6 x 67 cm
22 x 22.7 x 26.4 in
47 kg
TRD-6
Rear View
Rear View
