AX-convert12

AX-convert12 structure allows to rig maximum
6 convert 12A. It has three points where you can
hook the rigging slings. To control the vertical
inclination use the slots from the side pieces, like
other accessories and with help of the software
Easy Focus. Join the first enclosure of the column to
this structure with the rod described before and
the safety pins.
WLL: 190 kgf (418 lbf)
Weight: 6 Kg (13.2 lbs)
Dimmensions: 15 x 57.4 x 44.6 cm
(Al x An x P) 5.9 x 22.6 x 17.56 in

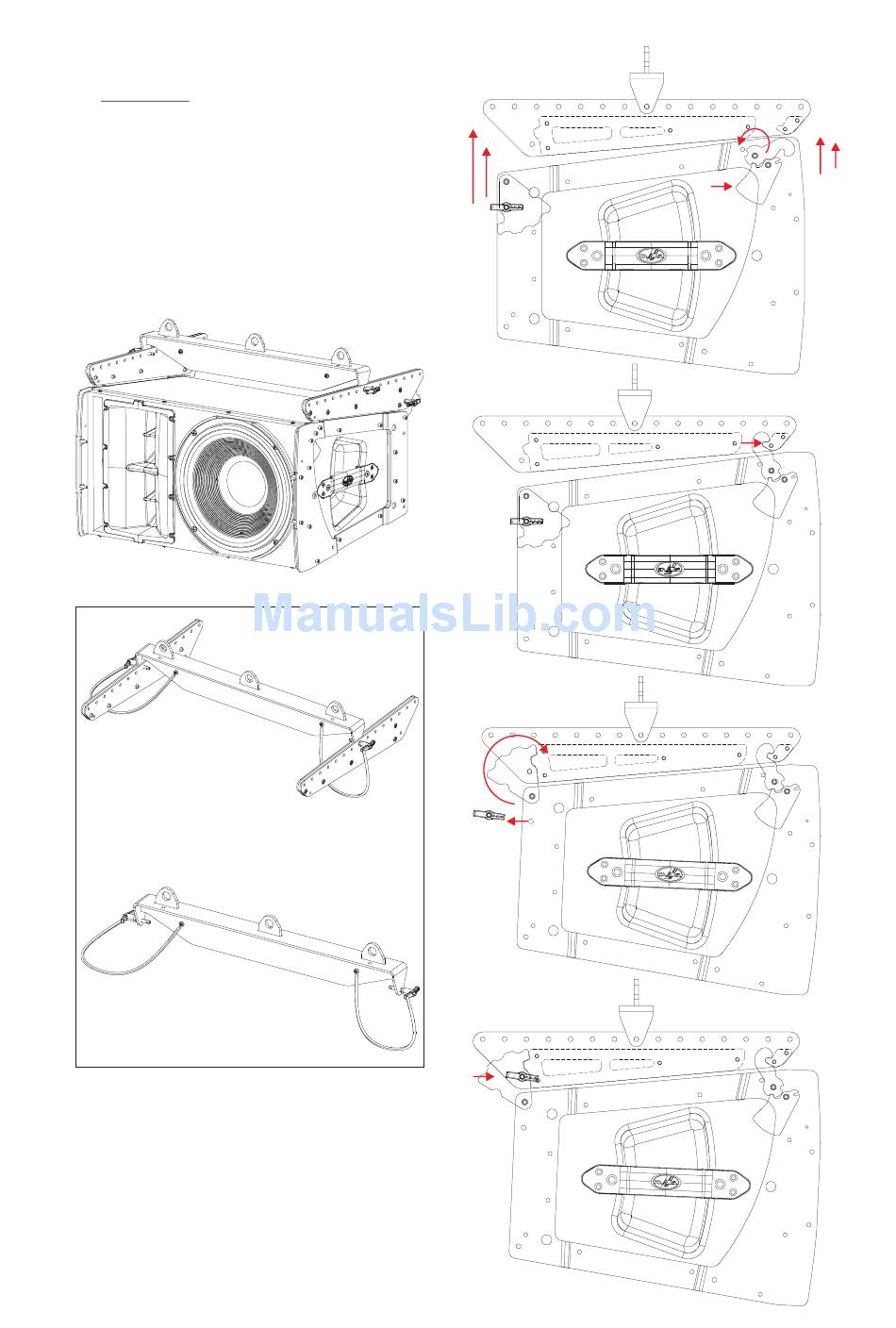

On the attached figures can be seen the order
to follow for the right assembly between AX-
convert12 and the first convert 12A.
Adding a Pick Up AX-convert12 we will get extra
rigging points, for example, for another rigging
power unit.
AX-convert12
Pick Up AX-convert12
