lifetime limited
warranty
Limited lifetime warranty on frame and cross braces
One year limited warranty on other components
Your Drive brand product is warranted to be free of
defects in materials and workmanship for the lifetime of
the original consumer purchaser.
This device was built to exacting standards and care-
fully inspected prior to shipment. This Lifetime Limited
Warranty is an expression of our confidence in the mate-
rials and workmanship of our products and our assur-
ance to the consumer of years of dependable service.
In the event of a defect covered by this warranty, we will,
at our option, repair or replace the device.
This warranty does not cover device failure due to owner
misuse or negligence, or normal wear and tear. The war-
ranty does not extend to non-durable components, such
as rubber accessories, casters, and grips, which are sub-
ject to normal wear and need periodic replacement.
T
his warranty does not cover damage resulting from
transit use or from exceeding weight limit for user plus
items carried.
If you have a question about your Drive device or
this warranty, please contact an authorized Drive
dealer.
© 2006 Medical Depot, Inc. All rights reserved.
Drive is a trademark of Medical Depot, Inc.
Port Washington N.Y. 11050 USA Made in China
®
trotter

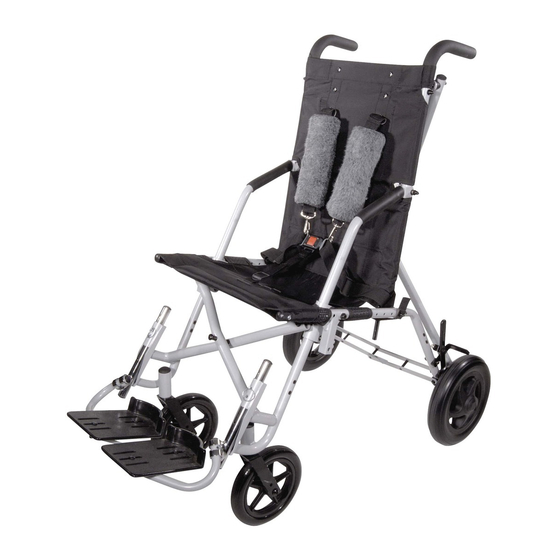

mobility chair
TR 1200, TR 1400, TR 1600 & TR 1800
EU Authorized Representative
Drive Medical LTD
Ainley's Industrial Estate
Elland, West Yorkshire,
United Kingdom HX5 9JP
www.drivemedical.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Drive Medical trotter TR 1200
Summary of Contents for Drive Medical trotter TR 1200
- Page 1 If you have a question about your Drive device or this warranty, please contact an authorized Drive EU Authorized Representative Drive Medical LTD dealer. Ainley’s Industrial Estate Elland, West Yorkshire, United Kingdom HX5 9JP www.drivemedical.com...
-
Page 2: Operating Instructions
features figure 1 A. UNFOLDING (Fig 1) 1. Unhook closure strap. 2. Place chair in the upright position, hold one push handle (A) and press firmly on the seat rail (B) on the opposite side. 3. Press down the seat rail until the chair is completely open. - Page 3 B. WHEEL LOCKS (Fig 3) D. FOLDING (Fig 3) 1. To engage, pull both wheel lock levers (A) back until 1. Engage wheel locks (A). Remove the child from the the locking bar pushes into the wheel and the lever chair.
- Page 4 SEAT DEPTH ADJUSTMENT 1. Determine the proper seat depth. 2. To change seat depth, undo the Velcro® that attaches the back panel to the seat panel. (Fig. 4) 3. Relieve fabric tension by partially folding the chair. 4. Depress spring button on the side of the seat rail (Fig.
- Page 5 FIVE POINT “H” HARNESS & PELVIC BELT ADJUSTMENT FOOTREST ADJUSTMENTS 1. Place user in the chair and position child’s hips. To Adjust Or Remove Footrest: 2. Buckle the pelvic positioning belt to the proper position. 1. Pull out the locking pin (Fig. 8A). 3.
- Page 6 To Modify the Range of Adjustment by Inverting the Depth Adjustment Footrest Extension Tube 1. Loosen both fasteners on the footplate (Fig. 12A). 1. Remove the footrest. 2. Slide the footplate to the desired position. 2. Remove the cap head screw (Fig 10A) from the foot 3.
